complexType MissionTelemetryElementType

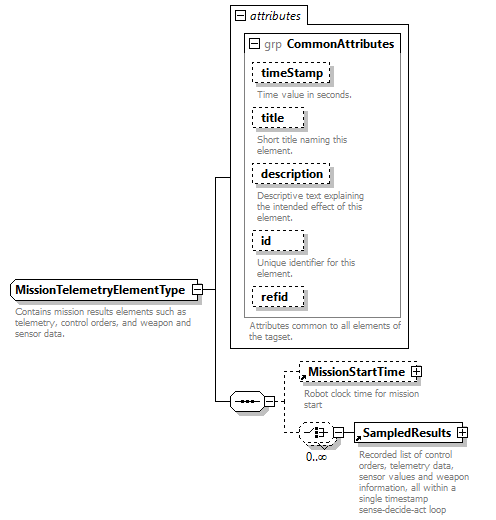

diagram
children	MissionStartTime SampledResults
used by	element  MissionTelemetry
attributes	Name   Type   Use   Default   Fixed   Annotation timeStamp   nonNegativeScalarType   optional         documentation Time value in seconds. title   xsd:string   optional         documentation Short title naming this element. description   xsd:string   optional         documentation Descriptive text explaining the intended effect of this element. id   xsd:ID   optional         documentation Unique identifier for this element. refid   xsd:IDREF   optional
annotation	documentation Contains mission results elements such as telemetry, control orders, and weapon and sensor data.
source	<xsd:complexType name="MissionTelemetryElementType">   <xsd:annotation>     <xsd:documentation>Contains mission results elements such as telemetry, control orders, and weapon and sensor data.</xsd:documentation>   </xsd:annotation>   <xsd:sequence>     <xsd:element ref="MissionStartTime" minOccurs="0"/>     <xsd:choice minOccurs="0" maxOccurs="unbounded">       <xsd:element ref="SampledResults"/>     </xsd:choice>   </xsd:sequence>   <xsd:attributeGroup ref="CommonAttributes"/> </xsd:complexType>
