element MoveRotate

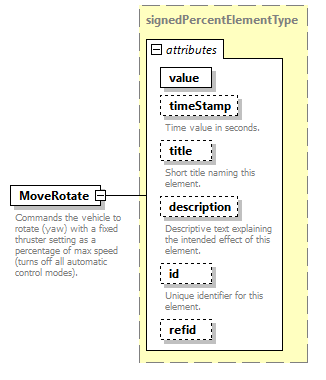

diagram
type	signedPercentElementType
properties	content  complex
used by	complexTypes  uuvLoggableEventType uuvScriptCommandsType
attributes	Name   Type   Use   Default   Fixed   Annotation value   signedPercentType   required         timeStamp   nonNegativeScalarType   optional         documentation Time value in seconds. title   xsd:string   optional         documentation Short title naming this element. description   xsd:string   optional         documentation Descriptive text explaining the intended effect of this element. id   xsd:ID   optional         documentation Unique identifier for this element. refid   xsd:IDREF   optional
annotation	documentation Commands the vehicle to rotate (yaw) with a fixed thruster setting as a percentage of max speed (turns off all automatic control modes).
source	<xsd:element name="MoveRotate" type="signedPercentElementType">   <xsd:annotation>     <xsd:documentation>Commands the vehicle to rotate (yaw) with a fixed thruster setting as a percentage of max speed (turns off all automatic control modes).</xsd:documentation>   </xsd:annotation> </xsd:element>
