element SetSonar

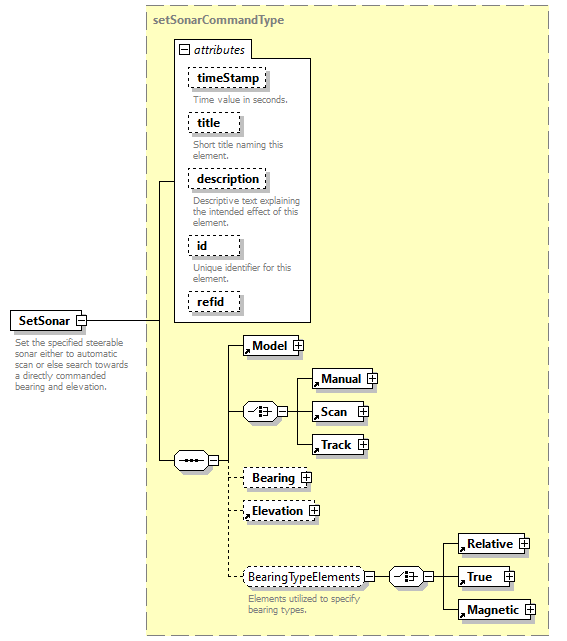

diagram
type	setSonarCommandType
properties	content  complex
children	Model Manual Scan Track Bearing Elevation Relative True Magnetic
used by	complexTypes  uuvLoggableEventType uuvScriptCommandsType
attributes	Name   Type   Use   Default   Fixed   Annotation timeStamp   nonNegativeScalarType   optional         documentation Time value in seconds. title   xsd:string   optional         documentation Short title naming this element. description   xsd:string   optional         documentation Descriptive text explaining the intended effect of this element. id   xsd:ID   optional         documentation Unique identifier for this element. refid   xsd:IDREF   optional
annotation	documentation Set the specified steerable sonar either to automatic scan or else search towards a directly commanded bearing and elevation.
source	<xsd:element name="SetSonar" type="setSonarCommandType">   <xsd:annotation>     <xsd:documentation>Set the specified steerable sonar either to automatic scan or else search towards a directly commanded bearing and elevation.</xsd:documentation>   </xsd:annotation> </xsd:element>
