complexType circleElementType

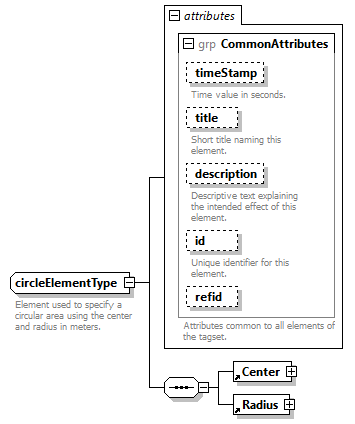

diagram
children	Center Radius
used by	element  Circle
attributes	Name   Type   Use   Default   Fixed   Annotation timeStamp   nonNegativeScalarType   optional         documentation Time value in seconds. title   xsd:string   optional         documentation Short title naming this element. description   xsd:string   optional         documentation Descriptive text explaining the intended effect of this element. id   xsd:ID   optional         documentation Unique identifier for this element. refid   xsd:IDREF   optional
annotation	documentation Element used to specify a circular area using the center and radius in meters.
source	<xsd:complexType name="circleElementType">   <xsd:annotation>     <xsd:documentation>Element used to specify a circular area using the center and radius in meters.</xsd:documentation>   </xsd:annotation>   <xsd:sequence>     <xsd:element ref="Center"/>     <xsd:element ref="Radius"/>   </xsd:sequence>   <xsd:attributeGroup ref="CommonAttributes"/> </xsd:complexType>
