complexType recoverCommandType

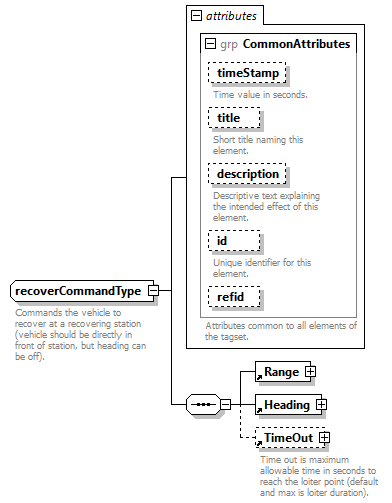

diagram
children	Range Heading TimeOut
used by	element  Recover
attributes	Name   Type   Use   Default   Fixed   Annotation timeStamp   nonNegativeScalarType   optional         documentation Time value in seconds. title   xsd:string   optional         documentation Short title naming this element. description   xsd:string   optional         documentation Descriptive text explaining the intended effect of this element. id   xsd:ID   optional         documentation Unique identifier for this element. refid   xsd:IDREF   optional
annotation	documentation Commands the vehicle to recover at a recovering station (vehicle should be directly in front of station, but heading can be off).
source	<xsd:complexType name="recoverCommandType">   <xsd:annotation>     <xsd:documentation>Commands the vehicle to recover at a recovering station (vehicle should be directly in front of station, but heading can be off).</xsd:documentation>   </xsd:annotation>   <xsd:sequence>     <xsd:element ref="Range"/>     <xsd:element ref="Heading"/>     <xsd:element ref="TimeOut" minOccurs="0"/>   </xsd:sequence>   <xsd:attributeGroup ref="CommonAttributes"/> </xsd:complexType>
