complexType usvControlOrdersElementType

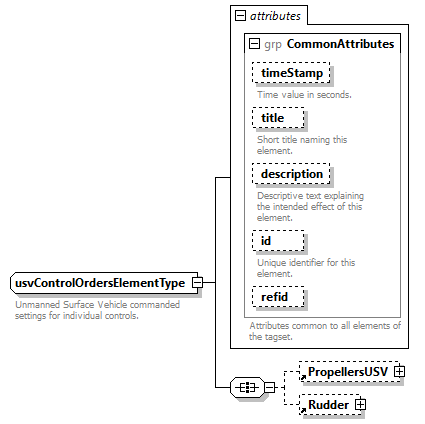

diagram
children	PropellersUSV Rudder
used by	element  USVControlOrder
attributes	Name   Type   Use   Default   Fixed   Annotation timeStamp   nonNegativeScalarType   optional         documentation Time value in seconds. title   xsd:string   optional         documentation Short title naming this element. description   xsd:string   optional         documentation Descriptive text explaining the intended effect of this element. id   xsd:ID   optional         documentation Unique identifier for this element. refid   xsd:IDREF   optional
annotation	documentation Unmanned Surface Vehicle commanded settings for individual controls.
source	<xsd:complexType name="usvControlOrdersElementType">   <xsd:annotation>     <xsd:documentation>Unmanned Surface Vehicle commanded settings for individual controls.</xsd:documentation>   </xsd:annotation>   <xsd:all>     <xsd:element ref="PropellersUSV" minOccurs="0"/>     <xsd:element ref="Rudder" minOccurs="0"/>   </xsd:all>   <xsd:attributeGroup ref="CommonAttributes"/> </xsd:complexType>
