X3D Model Documentation: AV8bHarrier.x3d

  1  <?xml version="1.0" encoding="UTF-8"?>
  2
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.0//EN" "https://www.web3d.org/specifications/x3d-3.0.dtd">
  3  <X3D profile='Immersive' version='3.0'  xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.0.xsd'>
  4       <head>
  5            <!-- Almost the entire model was done using extrusions. Something that helped a lot was the usage of a spread sheet for plotting the points of the extrusion and the spine. In that way I was able to visualize in some way the product before putting it to work in X3D-Edit. A plastic model was used and the contuor of it was plot in graph paper. A relative dimensions were taken and when the final product was assembled, a scale was applied in conformance with the real dimensions. The combination of the spreadsheet and graph paper really made the difference. -->
  6            <meta name='title' content='AV8bHarrier.x3d'/>
  7            <meta name='description' content='Model of the AV8B Harrier vertical short take off and landing aircraft. Used by the United States Marines, United Kingdom Royal Air Force, Spanish Navy and the Italian Navy. The pictures used in this model were taken by the author while deployed aboard USS Saipan and can be reproduced freely for reference.'/>
  8            <meta name='creator' content='Miguel A. Ayala'/>
  9            <meta name='creator' content='Duane Davis'/>
 10            <meta name='created' content='19 August 2001'/>
 11            <meta name='modified' content='28 November 2019'/>
 12            <meta name='reference' content='http://www.boeing.com/defense-space/military/av8b/av8bphotos.htm'/>
 13            <meta name='reference' content='http://www.boeing.com/defense-space/military/av8b/av8bspec.htm'/>
 14            <meta name='reference' content='http://www.av8b.org'/>
 15            <meta name='Image' content='Plastic_model_air_intake.jpg'/>
 16            <meta name='Image' content='Plastic_model_front.jpg'/>
 17            <meta name='Image' content='Plastic_model_left_side.jpg'/>
 18            <meta name='Image' content='Plastic_model_nozzles.jpg'/>
 19            <meta name='Image' content='Plastic_model_top.jpg'/>

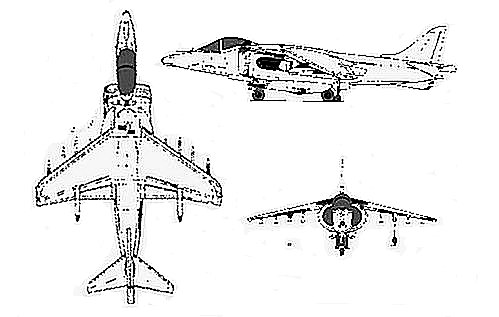

 20            <meta name='Image' content='harrier_contours.jpg'/>
 21            <meta name='Image' content='Harrier_Specs.jpg'/>
 22            <meta name='drawing' content='AV8B_side_fuselage_drawing_aid.jpg'/>
 23            <meta name='drawing' content='AV8B_top_fuselage_drawing_aid.jpg'/>
 24            <meta name='drawing' content='AV8B_wings_drawing_aid.jpg'/>
 25            <meta name='Image' content='AV8B_back_of_flight_deck2.jpg'/>
 26            <meta name='Image' content='AV8B_back_of_flight_deck.jpg'/>
 27            <meta name='Image' content='AV8B.jpg'/>
 28            <meta name='Image' content='AV8B_ready_to_takeoff.jpg'/>
 29            <meta name='Image' content='Group_AV8B_back_of_flight_deck.jpg'/>
 30            <meta name='Image' content='AV8B_landing_deck2.jpg'/>
 31            <meta name='Image' content='ACRAFT51.JPG'/>
 32            <meta name='identifier' content='https://savage.nps.edu/Savage/AircraftFixedWing/AV8bHarrierUnitedStates/AV8bHarrier.x3d'/>
 33            <meta name='generator' content='X3D-Edit, https://savage.nps.edu/X3D-Edit'/>
 34            <meta name='license' content='../../license.html'/>
 35       </head>
<!--

<!-- -->
<!-- to top Index for DEF nodes: Air_intakes, AV8B_transform, Back_cockpit_cover_plate, Back_cockpit_cover_plate_transf, Back_Fuselage_bottom, Back_Fuselage_bottom_fin, Back_Fuselage_top, Back_fuselage_turbine_transform, back_nozzle, back_nozzle_protector_transf, BUNO-TEXT, cammie1, Canopy_front, Canopy_front_trabsf, Canopy_transf, Canopy-back, Canopy-glass, circluar_base, circluar_base2, Circular_pivot_base, Circular_pivot_base2, Cockpit__left_wall, Cockpit_left_wall_transf, Cockpit_right_wall, cockpit_right_wall_transf, cockpit_seat_cover_plate, cockpit_seat_cover_plate_transf, Front_nozzle, Gear_rod, Instrumentations, Instruments, Instruments_panel, Instruments_transform, Intake_back_union, Intakes_back_union_transf, Intakes_transform, Jamming_pod, Jamming_pod_transf, Landing_box, Landing_gear, Landing_gear_base, Landing_gear_cover, Landing_gear_cover_transf, Landing_gear_group, Landing_rod, Left_arc_Transform, Left_back_nozzle_cover, Left_back_nozzle_cover_transf, Left_back_nozzle_transf, Left_Circular_pivot_base, Left_front_nozzle, Left_front_nozzle_cover, Left_front_nozzle_cover_transf, Left_Intake_Lower, Left_Intake_Top, Left_Intake_Top_Cover, Left_Intake_Transform, Left_landing_gear_transf, Left_nozzle_group, Left_nozzle_vane, Left_nozzle_vane2, Left_Stabilizer, Left_stabilizer_transf, Left_Wing, Left_wing_arc, Left_Wing_Transform, Lower_fuselage, Lower_Fuselage_transf, MARINES-Text_, nozzle_vane, nozzle_vane2, Pilot_Left_name_transf, Pilot_Name_Text_, Pilot_Rigth_name_transf, protector, Rectangle_base, Rectangle_base2, Right_back_nozzle, Right_back_nozzle_cover, Right_back_nozzle_cover_transf, Right_back_nozzle_protector_transf, Right_back_nozzle_transf, Right_Circular_pivot_base, Right_Front_nozzle, Right_front_nozzle, Right_front_nozzle_cover, Right_front_nozzle_cover_transf, Right_Intake_Lower, Right_Intake_Top, Right_Intake_Top_Cover, Right_Intake_Transform, Right_landing_gear_transf, Right_nozzle_group, Right_nozzle_group_tranf, Right_protector, Right_stabilizaer_transf, Right_Stabilizer, Right_Wing, Right_wing_arc, Right_Wing_arc_transf, Right_Wing_Transform, Rim, Rudder_group, Rudder_transform, Shock_abs, Stabilizer_Group, Stabilizer_Group_transf, Stabilizer_group_transf, Tail, Tail_curved_top_transform, Tail_top_curved2, Tail_transform, Tail2_triangle_extrusion, Tail3_Rudder, Text_Alignment_Wing_Transform, Text_Transform, Tire, Tire_support_arc, Top_Back_fuselage_spine, Top_back_fuselage_spine, Upper, Upper_nose_transf, Wing_Group, Wing_landing_gear_cover_back, Wing_landing_gear_cover_front, Wing_landing_gear_group, Wings_Transform

Index for Viewpoint nodes: Viewpoint_1, Viewpoint_2, Viewpoint_3, Viewpoint_4, Viewpoint_5, Viewpoint_6, Viewpoint_7, Viewpoint_8, Viewpoint_9, Viewpoint_10, Viewpoint_11, Viewpoint_12, Viewpoint_13, Viewpoint_14, Viewpoint_15
-->
 36       <Scene>
 37            <WorldInfo title='AV8bHarrier.x3d'/>
 38            <Viewpoint description='Harrier AV8B' orientation='0 1 0 0.4' position='5 2 7'/>
 39            <!-- Put most Viewpoints under an LOD so they are only visible on the Viewpoint list when close. This keeps Viewpoints manageable in very large scenes that might use this model. -->
 40            <Group>
 41                 <Viewpoint description='Harrier front, level' position='0 0 7'/>
 42                 <Viewpoint description='Harrier front, angle down' orientation='1 0 0 -0.78' position='0 10 5'/>
 43                 <Viewpoint description='Harrier right wing, level' orientation='0 1 0 1.57' position='10 0 -6.5'/>
 44                 <Viewpoint description='Harrier rear, level' orientation='0 1 0 3.14' position='0 1 -18'/>
 45                 <Viewpoint description='Harrier left wing, level' orientation='0 1 0 -1.57' position='-10 0 -6.5'/>
 46                 <Viewpoint description='Harrier bottom, up' orientation='1 0 0 1.57' position='0 -21 -6'/>
 47                 <Viewpoint description='Harrier top, down' orientation='1 0 0 -1.57' position='0 21 -6'/>
 48            </Group>
 49            <Background groundAngle='0.1 1.309 1.570796' groundColor='0 0 0 0 0.1 0.3 0 0.2 0.5 0 0.3 0.8' skyAngle='0.1 0.15 1.309 1.57079' skyColor='0.4 0.4 0.1 0.4 0.4 0.1 0 0.1 0.3 0 0.2 0.6 0.8 0.8 0.8'   backUrl=' "urn:web3d:media:textures/panoramas/ocean_3_back.jpg" "../../../Basic/UniversalMediaPanoramas/ocean_3_back.jpg " "https://www.web3d.org/WorkingGroups/media/textures/panoramas/ocean_3_back.jpg " "https://www.web3d.org/x3d/content/examples/Basic/UniversalMediaPanoramas/ocean_3_back.jpg " "http://www.web3dmedia.com/UniversalMedia/textures/panoramas/ocean_3_back.jpg " "http://www.officetowers.com/UniversalMedia/textures/panoramas/ocean_3_back.jpg " "http://geometrek.com/UniversalMedia/textures/panoramas/ocean_3_back.jpg " "http://www.sc.ehu.es/ccwgamoa/UniversalMedia/textures/panoramas/ocean_3_back.jpg " '   bottomUrl=' "urn:web3d:media:textures/panoramas/ocean_3_bottom.jpg" "../../../Basic/UniversalMediaPanoramas/ocean_3_bottom.jpg " "https://www.web3d.org/WorkingGroups/media/textures/panoramas/ocean_3_bottom.jpg " "https://www.web3d.org/x3d/content/examples/Basic/UniversalMediaPanoramas/ocean_3_bottom.jpg " "http://www.web3dmedia.com/UniversalMedia/textures/panoramas/ocean_3_bottom.jpg " "http://www.officetowers.com/UniversalMedia/textures/panoramas/ocean_3_bottom.jpg " "http://geometrek.com/UniversalMedia/textures/panoramas/ocean_3_bottom.jpg " "http://www.sc.ehu.es/ccwgamoa/UniversalMedia/textures/panoramas/ocean_3_bottom.jpg " '   frontUrl=' "urn:web3d:media:textures/panoramas/ocean_3_front.jpg" "../../../Basic/UniversalMediaPanoramas/ocean_3_front.jpg " "https://www.web3d.org/WorkingGroups/media/textures/panoramas/ocean_3_front.jpg " "https://www.web3d.org/x3d/content/examples/Basic/UniversalMediaPanoramas/ocean_3_front.jpg " "http://www.web3dmedia.com/UniversalMedia/textures/panoramas/ocean_3_front.jpg " "http://www.officetowers.com/UniversalMedia/textures/panoramas/ocean_3_front.jpg " "http://geometrek.com/UniversalMedia/textures/panoramas/ocean_3_front.jpg " "http://www.sc.ehu.es/ccwgamoa/UniversalMedia/textures/panoramas/ocean_3_front.jpg " '   leftUrl=' "urn:web3d:media:textures/panoramas/ocean_3_left.jpg" "../../../Basic/UniversalMediaPanoramas/ocean_3_left.jpg " "https://www.web3d.org/WorkingGroups/media/textures/panoramas/ocean_3_left.jpg " "https://www.web3d.org/x3d/content/examples/Basic/UniversalMediaPanoramas/ocean_3_left.jpg " "http://www.web3dmedia.com/UniversalMedia/textures/panoramas/ocean_3_left.jpg " "http://www.officetowers.com/UniversalMedia/textures/panoramas/ocean_3_left.jpg " "http://geometrek.com/UniversalMedia/textures/panoramas/ocean_3_left.jpg " "http://www.sc.ehu.es/ccwgamoa/UniversalMedia/textures/panoramas/ocean_3_left.jpg " '   rightUrl=' "urn:web3d:media:textures/panoramas/ocean_3_right.jpg" "../../../Basic/UniversalMediaPanoramas/ocean_3_right.jpg " "https://www.web3d.org/WorkingGroups/media/textures/panoramas/ocean_3_right.jpg " "https://www.web3d.org/x3d/content/examples/Basic/UniversalMediaPanoramas/ocean_3_right.jpg " "http://www.web3dmedia.com/UniversalMedia/textures/panoramas/ocean_3_right.jpg " "http://www.officetowers.com/UniversalMedia/textures/panoramas/ocean_3_right.jpg " "http://geometrek.com/UniversalMedia/textures/panoramas/ocean_3_right.jpg " "http://www.sc.ehu.es/ccwgamoa/UniversalMedia/textures/panoramas/ocean_3_right.jpg " '   topUrl=' "urn:web3d:media:textures/panoramas/ocean_3_top.jpg" "../../../Basic/UniversalMediaPanoramas/ocean_3_top.jpg " "https://www.web3d.org/WorkingGroups/media/textures/panoramas/ocean_3_top.jpg " "https://www.web3d.org/x3d/content/examples/Basic/UniversalMediaPanoramas/ocean_3_top.jpg " "http://www.web3dmedia.com/UniversalMedia/textures/panoramas/ocean_3_top.jpg " "http://www.officetowers.com/UniversalMedia/textures/panoramas/ocean_3_top.jpg " "http://geometrek.com/UniversalMedia/textures/panoramas/ocean_3_top.jpg " "http://www.sc.ehu.es/ccwgamoa/UniversalMedia/textures/panoramas/ocean_3_top.jpg " '/>
 50            <Transform DEF='AV8B_transform' rotation='-0.5775 0.577 0.5775 2.0935' scale='.48 .5 .5'>
 51                 <Transform DEF='Lower_Fuselage_transf'>
 52                      <Shape DEF='Lower_fuselage'>
 53                           <Appearance>
 54                                <Material/>
 55
                              <!-- ImageTexture cammie1 is a DEF node that has 33 USE nodes: USE_1, USE_2, USE_3, USE_4, USE_5, USE_6, USE_7, USE_8, USE_9, USE_10, USE_11, USE_12, USE_13, USE_14, USE_15, USE_16, USE_17, USE_18, USE_19, USE_20, USE_21, USE_22, USE_23, USE_24, USE_25, USE_26, USE_27, USE_28, USE_29, USE_30, USE_31, USE_32, USE_33 -->
                              <ImageTexture DEF='cammie1'   url=' "cammie1.jpg " "https://savage.nps.edu/Savage/AircraftFixedWing/AV8bHarrierUnitedStates/cammie1.jpg " '/>
 56                           </Appearance>
 57                           <Extrusion creaseAngle='.785' crossSection='1 0 0.92 -0.38 0.82 -0.55 0.71 -0.71 0.58 -0.81 0.38 -0.92 0.2 -0.98 0 -1 -0.2 -0.98 -0.38 -0.92 -0.58 -0.81 -0.71 -0.71 -0.82 -0.55 -0.92 -0.38 -1 0 1 0' scale='0.02 0.02 0.1 0.1 0.11 0.11 0.12 0.12 0.13 0.13 0.14 0.14 0.15 0.15 0.16 0.16 0.17 0.17 0.18 0.18 0.19 0.19 0.2 0.2 0.21 0.21 0.22 0.22 0.23 0.23 0.24 0.24 0.99 0.5 0.99 0.8 0.99 0.95 0.94 0.97 0.81 1 0.7 1.001 0.7 1 0.7 0.99 0.7 0.95 0.7 0.95 0.7 0.95 0.7 0.95' spine='0.5 0 0 0.56 0 0 0.57 0 0 0.58 0 0 0.59 0 0 0.6 0 0 0.61 0 0 0.62 0 0 0.63 0 0 0.64 0 0 0.65 0 0 0.66 0 0 0.67 0 0 0.68 0 0 0.69 0 0 0.7 0 0 2.7 0 0 6 0 0 7.3 0 0 8 0 0 9 0 0 9.25 0 0 9.35 0 0 9.5 0 0 9.75 0 0 9.85 0 0 9.95 0 0 10.1 0 0'/>
 58                      </Shape>
 59                 </Transform>
 60                 <Transform DEF='Upper_nose_transf' rotation='1 0 0 3.1416'>
 61                      <Shape DEF='Upper'>
 62                           <Appearance>
 63                                <Material/>
 64                                <ImageTexture USE='cammie1'/>
 65                           </Appearance>
 66                           <Extrusion creaseAngle='.785' crossSection='1 0 0.92 -0.38 0.82 -0.55 0.71 -0.71 0.58 -0.81 0.38 -0.92 0.2 -0.98 0 -1 -0.2 -0.98 -0.38 -0.92 -0.58 -0.81 -0.71 -0.71 -0.82 -0.55 -0.92 -0.38 -1 0 1 0' scale='0.02 0.02 0.1 0.1 0.11 0.11 0.12 0.12 0.13 0.13 0.14 0.14 0.15 0.15 0.16 0.16 0.17 0.17 0.18 0.18 0.19 0.19 0.2 0.2 0.21 0.21 0.22 0.22 0.23 0.23 0.24 0.24 .901 .95 .99 .99 .99 1' spine='0.5 0 0 0.56 0 0 0.57 0 0 0.58 0 0 0.59 0 0 0.6 0 0 0.61 0 0 0.62 0 0 0.63 0 0 0.64 0 0 0.65 0 0 0.66 0 0 0.67 0 0 0.68 0 0 0.69 0 0 0.7 0 0 2.45 0 0 2.7 0 0 3.25 0 0'/>
 67                      </Shape>
 68                 </Transform>
 69                 <Transform DEF='Cockpit_left_wall_transf' translation='0 0.01 0'>
 70                      <Shape DEF='Cockpit__left_wall'>
 71                           <Appearance>
 72                                <Material/>
 73                                <ImageTexture USE='cammie1'/>
 74                           </Appearance>
 75                           <Extrusion creaseAngle='.785' crossSection='1 0 0.92 0.38 0.82 0.55 0.71 0.71 0.58 0.81 0.58 0.78 0.71 0.68 0.82 0.52 0.92 0.35 0.97 0 1 0' scale='1 1 1 1 1 1.58 1 1.78' solid='false' spine='3.25 0 0 5.25 0 0 7.3 0 0 9.95 .3 0'/>
 76                      </Shape>
 77                 </Transform>
 78                 <Transform DEF='Back_fuselage_turbine_transform' translation='0 0 .2'>
 79                      <Shape DEF='Back_Fuselage_top'>
 80                           <Appearance>
 81                                <Material/>
 82                                <ImageTexture USE='cammie1'/>
 83                           </Appearance>
 84                           <Extrusion creaseAngle='5' crossSection='2.5 0 2.45 0.3 2.31 0.6 2.06 0.9 1.65 1.2 0.86 1.5 0 1.6 -.86 1.5 -1.45 1.3 -1.95 1 -2.24 0.7 -2.42 0.4 -2.49 0' scale='.82 .855 .8 .95 .79 .9 .78 .9 .55 .85 .55 .66 .45 .66 .02 .3' solid='false' spine='9.2 0 0 10 0 0 10.5 0 0 11 0 0 12 0 0 15.5 0 0 21.5 0 0 28 0 0'/>
 85                      </Shape>
 86                      <Shape DEF='Back_Fuselage_bottom'>
 87                           <Appearance>
 88                                <Material/>
 89                                <ImageTexture USE='cammie1'/>
 90                           </Appearance>
 91                           <Extrusion creaseAngle='2' crossSection='-2.5 0 -2.5 0 -2.45 -0.3 -2.31 -0.6 -2.06 -0.9 -1.65 -1.2 -0.86 -1.5 0 -1.6 0.3 -1.58 0.6 -1.55 0.9 -1.49 1.2 -1.403 1.5 -1.28 1.8 -1.11 2.1 -0.86 2.4 -0.44 2.5 0' scale='.82 .75 .8 .74 .79 .74 .78 .74 .55 .70 .55 .66 .45 .66 .02 .3' solid='false' spine='9.2 0 0 10 0 0 10.5 0 0 11 0 0 12 0 0 15.5 0 0 21.5 0 0 28 0 0'/>
 92                      </Shape>
 93                      <Shape DEF='Back_Fuselage_bottom_fin'>
 94                           <Appearance>
 95                                <Material/>
 96                                <ImageTexture USE='cammie1'/>
 97                           </Appearance>
 98                           <Extrusion creaseAngle='2' crossSection='-2.5 0 -2.5 0 -2.45 -0.3 -2.31 -0.6 -2.06 -0.9 -1.65 -1.2 -0.86 -1.5 0 -1.6 0.3 -1.58 0.6 -1.55 0.9 -1.49 1.2 -1.403 1.5 -1.28 1.8 -1.11 2.1 -0.86 2.4 -0.44 2.5 0' scale='.07 .55 0.02 .66 0.02 .65 .02 .64 .02 .63 .02 .61 .02 .45' solid='false' spine='23.5 0 0 27.5 0 0 27.6 0 0 27.7 0 0 27.8 0 0 27.9 0 0 28 0 0'/>
 99                      </Shape>
100                 </Transform>
101                 <Transform DEF='Intakes_transform' rotation='0.5774 -0.5773 -0.5773 2.0944' scale='.55 .505 1' translation='7.25 0 -.7'>
102                      <Group DEF='Air_intakes'>
103                           <Transform DEF='Left_Intake_Transform' rotation='0 1 0 -1.57079' scale='1 1.1 .9' translation='-1 -.38 -2'>
104                                <Transform rotation='1 0 0 1.57079' translation='0 4 0'>
105                                     <Shape DEF='Left_Intake_Lower'>
106                                          <Extrusion creaseAngle='2' crossSection='0.5 0 0.45 0.8 0.42 1.4 0.415 1.45 0.41 1.5 0.4 1.55 0.39 1.6 0.38 1.65 0.37 1.7 0.355 1.75 0.34 1.8 0.3 1.88 0.25 1.95 0.22 1.99 0.2 1.99 0.18 1.95 0.17 1.9 0.165 1.85 0 0.8 0 0 0.5 0' solid='false' spine='0 2.5 2.01 0 2.45 2.28 0 2.31 2.55 0 2.06 2.8 0 1.65 3.1 0 0.86 3.45 0 0 3.6 0 -1 3.7'/>
107                                          <Appearance>
108                                               <Material/>
109                                               <ImageTexture USE='cammie1'/>
110                                          </Appearance>
111                                     </Shape>
112                                     <Transform translation='1 0 0'>
113                                          <Shape DEF='Left_Intake_Top'>
114                                               <Extrusion creaseAngle='.78' crossSection='0.25 0.1 0.42 0.4 0.415 0.45 0.41 0.5 0.4 0.55 0.39 0.6 0.38 0.65 0.37 0.7 0.355 0.75 0.34 0.8 0.3 0.88 0.25 0.95 0.22 0.99 0.2 0.99 0.18 0.95 0.17 0.9 0.165 0.85 0.05 0.25' solid='false' spine='0 0 0.5 0 0.3 0.5 0 0.6 0.5 0 0.9 0.51 0 1.2 0.597 0 1.5 0.8 0 1.8 0.97 0 2.1 1.22 0 2.4 1.56 0 2.5 2 0 2.495 2.05'/>
115                                               <Appearance>
116                                                    <Material/>
117                                                    <ImageTexture USE='cammie1'/>
118                                               </Appearance>
119                                          </Shape>
120                                     </Transform>
121                                     <Transform translation='-1.1 -.05 0'>
122                                          <Shape DEF='Left_Intake_Top_Cover'>
123                                               <Extrusion creaseAngle='.78' crossSection='0.5 2 0.55 1.1' solid='false' spine='0 0 0.39 0 0.3 0.41 0 0.6 0.44 0 0.9 0.5 0 1.2 0.587 0 1.5 0.71 0 1.8 0.88 0 2.1 1.13 0 2.4 1.56 0 2.5 2 0 2.495 2.05'/>
124                                               <Appearance>
125                                                    <Material/>
126                                                    <ImageTexture USE='cammie1'/>
127                                               </Appearance>
128                                          </Shape>
129                                     </Transform>
130                                </Transform>
131                           </Transform>
132                           <Transform DEF='Right_Intake_Transform' rotation='0 1 0 1.57079' scale='1 1.1 .9' translation='1 -.38 0'>
133                                <Transform rotation='1 0 0 1.57079' translation='0 4 0'>
134                                     <Shape DEF='Right_Intake_Top'>
135                                          <Extrusion creaseAngle='.78' crossSection='0.25 0.9 0.42 0.6 0.415 0.55 0.41 0.5 0.4 0.45 0.39 0.4 0.38 0.35 0.37 0.3 0.355 0.25 0.34 0.2 0.3 0.12 0.25 0.05 0.22 0.01 0.2 0.01 0.18 0.05 0.17 0.1 0.165 0.15 0.05 0.75' solid='false' spine='0 0 0.4 0 0.3 0.42 0 0.6 0.45 0 0.9 0.51 0 1.2 0.597 0 1.5 0.72 0 1.8 0.89 0 2.1 1.14 0 2.4 1.56 0 2.5 2 0 2.495 2.05'/>
136                                          <Appearance>
137                                               <Material/>
138                                               <ImageTexture USE='cammie1'/>
139                                          </Appearance>
140                                     </Shape>
141                                     <Shape DEF='Right_Intake_Lower'>
142                                          <Extrusion creaseAngle='2' crossSection='0.5 2 0.45 1.2 0.42 0.6 0.415 0.55 0.41 0.5 0.4 0.45 0.39 0.4 0.38 0.35 0.37 0.3 0.355 0.25 0.34 0.2 0.3 0.12 0.25 0.05 0.22 0.01 0.2 0.01 0.18 0.05 0.17 0.1 0.165 0.15 0 1.2 0 2 0.5 2' solid='false' spine='0 2.5 2 0 2.45 2.28 0 2.31 2.55 0 2.06 2.8 0 1.65 3.1 0 0.86 3.45 0 0 3.6 0 -1 3.7'/>
143                                          <Appearance>
144                                               <Material/>
145                                               <ImageTexture USE='cammie1'/>
146                                          </Appearance>
147                                     </Shape>
148                                     <Shape DEF='Right_Intake_Top_Cover'>
149                                          <Extrusion creaseAngle='2' crossSection='0.5 2 0.45 1.1' solid='false' spine='0 0 0.3 0 0.3 0.32 0 0.6 0.4 0 0.9 0.51 0 1.2 0.597 0 1.5 0.72 0 1.8 0.89 0 2.1 1.14 0 2.4 1.56 0 2.5 2 0 2.495 2.05'/>
150                                          <Appearance>
151                                               <Material/>
152                                               <ImageTexture USE='cammie1'/>
153                                          </Appearance>
154                                     </Shape>
155                                </Transform>
156                           </Transform>
157                           <Transform DEF='Intakes_back_union_transf' scale='.43 .5 1' translation='0 4 -9.26'>
158                                <Shape DEF='Intake_back_union'>
159                                     <Appearance>
160                                          <Material/>
161                                          <ImageTexture USE='cammie1'/>
162                                     </Appearance>
163                                     <Extrusion creaseAngle='2' crossSection='2.5 0 2.45 -0.3 2.31 -0.6 2.06 -0.9 1.65 -1.2 0.86 -1.5 0 -1.6 -0.86 -1.5 -1.45 -1.3 -1.95 -1 -2.24 -0.7 -2.42 -0.4 -2.49 0' scale='1.65 .59 1 .59 1 .01' solid='false' spine='0 0 7.3 0 0 7.35 0 0 8.5'/>
164                                </Shape>
165                           </Transform>
166                      </Group>
167                 </Transform>
168                 <Transform DEF='Wings_Transform' translation='12 0 .9'>
169                      <Group DEF='Wing_Group'>
170                           <Transform DEF='Left_Wing_Transform' rotation='1 0 0 .1309' scale='1.2 1 1' translation='8.4 -10.2 -1.5'>
171                                <Shape DEF='Left_Wing'>
172                                     <Extrusion creaseAngle='.78' crossSection='4 1 3.8 0.99 3.6 0.98 3.4 0.96 3.2 0.93 3 0.9 2.8 0.85 2.6 0.8 2.4 0.77 2.2 0.72 2 0.68 1.8 0.62 1.6 0.6 1.4 0.55 1.2 0.52 1 0.5 0.8 0.48 0.6 0.44 0.4 0.42 0.2 0.4 0.4 0.38 0.6 0.37 0.8 0.36 1 0.35 1.2 0.32 1.4 0.28 1.6 0.23 1.8 0.18 2 0.15 2.2 0.12 2.4 0.1 2.6 0.09 2.8 0.07 3 0.06 3.2 0.05 3.4 0.04 3.6 0.05 3.8 0.06 4 0.07 4.2 0.08 4.4 0.09 4.6 0.1 4.8 0.11 5 0.12 5.2 0.14 5.4 0.15 5.6 0.18 5.8 0.2 6 0.21 6.2 0.23 6.4 0.26 6.6 0.29 6.8 0.33 6.9 0.35 6.95 0.36 7 0.4 6.95 0.5 6.9 0.6 6.8 0.7 6.6 0.82 6.4 0.9 6.2 0.95 6 0.97 5.8 0.99 5.6 1 5.4 1.01 5.2 1.02 5 1.02 4.8 1.02 4.6 1.02 4.4 1.02 4.2 1.01 4 1' scale='1 1 .3 .2' solid='false' spine='0 9.6 0 0 0 0'/>
173                                     <Appearance>
174                                          <Material/>
175                                          <ImageTexture USE='cammie1'/>
176                                     </Appearance>
177                                </Shape>
178                                <Transform DEF='Right_Wing_arc_transf' rotation='1 0 0 3.141519' translation='-9.9 10.6 .75'>
179                                     <Shape DEF='Right_wing_arc'>
180                                          <Appearance>
181                                               <Material/>
182                                               <ImageTexture USE='cammie1'/>
183                                          </Appearance>
184                                          <Extrusion creaseAngle='.78' crossSection='1 10.6 1.2 10.2 1.4 10 1.6 9.8 1.8 9.7 2 9.6 2.2 9.5 2.4 9.45 2.6 9.4 2.8 9.35 3 9.3 3.2 9.27 3.4 9.26 3.6 9.25 3.8 9.22 4 9.2 3 10.6 1 10.6' scale='1 1 1 1' solid='false' spine='0 11.6 .2 0 11.6 .25'/>
185                                     </Shape>
186                                </Transform>
187                           </Transform>
188                           <Transform DEF='Right_Wing_Transform' rotation='0 0.0654 0.9979 3.1415' translation='6.5 11.4 .7'>
189                                <Transform rotation='0 1 0 3.141519' translation='1 0 0'>
190                                     <Transform center='6 13 .7' rotation='1 0 0 -.0835' scale='1.2 1 1' translation='4.1 .8 1'>
191                                          <Shape DEF='Right_Wing'>
192                                               <Extrusion creaseAngle='.78' crossSection='4 0.1 3.8 0.11 3.6 0.12 3.4 0.14 3.2 0.17 3 0.2 2.8 0.25 2.6 0.3 2.4 0.33 2.2 0.38 2 0.42 1.8 0.48 1.6 0.5 1.4 0.55 1.2 0.58 1 0.6 0.8 0.62 0.6 0.66 0.4 0.68 0.2 0.7 0.4 0.72 0.6 0.73 0.8 0.74 1 0.75 1.2 0.78 1.4 0.82 1.6 0.87 1.8 0.92 2 0.95 2.2 0.98 2.4 1 2.6 1.01 2.8 1.03 3 1.04 3.2 1.05 3.4 1.06 3.6 1.05 3.8 1.04 4 1.03 4.2 1.02 4.4 1.01 4.6 1 4.8 0.99 5 0.98 5.2 0.96 5.4 0.95 5.6 0.92 5.8 0.9 6 0.89 6.2 0.87 6.4 0.84 6.6 0.81 6.8 0.77 6.9 0.75 6.95 0.74 7 0.7 6.95 0.6 6.9 0.5 6.8 0.4 6.6 0.28 6.4 0.2 6.2 0.15 6 0.13 5.8 0.11 5.6 0.1 5.4 0.09 5.2 0.08 5 0.08 4.8 0.08 4.6 0.08 4.4 0.08 4.2 0.09 4 0.1' scale='1 1 .3 .2' solid='false' spine='0 9.6 0 0 0 0'/>
193                                               <Appearance>
194                                                    <Material/>
195                                                    <ImageTexture USE='cammie1'/>
196                                               </Appearance>
197                                          </Shape>
198                                     </Transform>
199                                </Transform>
200                                <Transform DEF='Left_arc_Transform' rotation='0 1 0 3.141519' scale='1.2 1 1' translation='9.95 -1.2 -1.6'>
201                                     <Shape DEF='Left_wing_arc'>
202                                          <Appearance>
203                                               <Material/>
204                                               <ImageTexture USE='cammie1'/>
205                                          </Appearance>
206                                          <Extrusion creaseAngle='.78' crossSection='1 0 1.2 0.4 1.4 0.6 1.6 0.8 1.8 0.9 2 1 2.2 1.1 2.4 1.15 2.6 1.2 2.8 1.25 3 1.3 3.2 1.33 3.4 1.34 3.6 1.35 3.8 1.38 4 1.4 3 0 1 0' scale='1 1 1 1' solid='false' spine='0 11.6 .2 0 11.6 .25'/>
207                                     </Shape>
208                                </Transform>
209                           </Transform>
210                           <Transform DEF='Text_Transform' rotation='0 0 1 1.309' translation='5.5 3.5 .105'>
211                                <Transform DEF='Text_Alignment_Wing_Transform' rotation='0 1 0 .19'>
212                                     <Shape>
213                                          <Text string='"MARINES"'>
214                                               <FontStyle family='"SANS"' size='1.3' style='BOLD'/>
215                                          </Text>
216                                          <Appearance>
217                                               <Material diffuseColor='0 0 0'/>
218                                          </Appearance>
219                                     </Shape>
220                                </Transform>
221                           </Transform>
222                      </Group>
223                 </Transform>
224                 <Transform DEF='Back_cockpit_cover_plate_transf' center='7.3 0 1.2' rotation='0 1 0 -.065'>
225                      <Shape DEF='Back_cockpit_cover_plate'>
226                           <Extrusion crossSection='-0.5 0 -0.5 0.05 0.5 0.05 0.5 0 -0.5 0' scale='1.18 .8 1.18 1' solid='false' spine='7.3 0 1.24 10 0 1.24'/>
227                           <Appearance>
228                                <Material/>
229                                <ImageTexture USE='cammie1'/>
230                           </Appearance>
231                      </Shape>
232                 </Transform>
233                 <Transform DEF='cockpit_seat_cover_plate_transf' rotation='0 0 1 1.57079'>
234                      <Shape DEF='cockpit_seat_cover_plate'>
235                           <Extrusion crossSection='-0.5 0 -0.5 0.05 0.5 0.05 0.5 0 -0.5 0' scale='1.95 1 1.93 1 1.8 1 1.75 1 1.7 1 1.6 1 1.5 1 1.2 1 1.19 1' solid='false' spine='0 -7.25 0 0 -7.25 0.1594 0 -7.25 0.3188 0 -7.25 0.4782 0 -7.25 0.6375 0 -7.25 0.7819 0 -7.25 0.9263 0 -7.25 1.1156 0 -7.25 1.275'/>
236                           <Appearance>
237                                <Material/>
238                                <ImageTexture USE='cammie1'/>
239                           </Appearance>
240                      </Shape>
241                 </Transform>
242                 <Transform DEF='cockpit_right_wall_transf' rotation='1 0 0 3.142' translation='0 -.01 0'>
243                      <Shape DEF='Cockpit_right_wall'>
244                           <Appearance>
245                                <Material/>
246                                <ImageTexture USE='cammie1'/>
247                           </Appearance>
248                           <Extrusion creaseAngle='.785' crossSection='-1 0 -0.92 0.38 -0.82 0.55 -0.71 0.71 -0.58 0.81 -0.58 0.78 -0.71 0.68 -0.82 0.52 -0.92 0.35 -0.97 0.00' scale='1 1 1 1 1 1.58 1 1.78' spine='3.2 0 0 5.25 0 0 7.3 0 0 9.95 -.3 0'/>
249                      </Shape>
250                 </Transform>
251                 <Transform DEF='Tail_transform' translation='23 -.6 1.5'>
252                      <Group DEF='Tail'>
253                           <Transform DEF='Stabilizer_group_transf'>
254                                <Group DEF='Rudder_group'>
255                                     <Transform DEF='Rudder_transform' translation='4.25 .735 0'>
256                                          <Shape DEF='Tail3_Rudder'>
257                                               <Appearance>
258                                                    <Material/>
259                                                    <ImageTexture USE='cammie1'/>
260                                               </Appearance>
261                                               <Extrusion creaseAngle='.78' crossSection='0 0 0 0.24 0.2 0.24 0.7 0.12 0.2 0 0 0' solid='false' spine='0 0 0 0 0 3.78'/>
262                                          </Shape>
263                                     </Transform>
264                                     <Transform DEF='Tail_curved_top_transform' translation='-8.1 .11 -13.45'>
265                                          <Shape DEF='Tail_top_curved2'>
266                                               <Appearance>
267                                                    <Material/>
268                                                    <ImageTexture USE='cammie1'/>
269                                               </Appearance>
270                                               <Extrusion creaseAngle='.785' crossSection='0 0.25 -0.03 0.245 -0.06 0.231 -0.09 0.206 -0.12 0.165 -0.15 0.086 -0.16 0 -0.158 -0.03 -0.155 -0.06 -0.149 -0.09 -0.1403 -0.12 -0.128 -0.15 -0.111 -0.18 -0.086 -0.21 -0.044 -0.24 0 -0.25' scale='2 .6 2 .6 2.1 .6 2.5 .6 3 .6 3.5 .6 4 .6 4 .6 4 .6 4 .6 4 .6 4 .58 4 .3 4 .28 4 .25 4 .15 4 .05 4 .001' solid='false' spine='7.25 .5 13.4 7.75 .5 13.4 8 .5 13.45 8.25 .5 13.55 8.5 .5 13.65 9 .5 13.95 9.35 .5 14.2 9.6 .5 14.4 10 .5 14.75 12 .5 16.5 12.25 .5 16.75 12.55 .5 17 12.8 .5 17.2 12.81 0.5 17.21 12.85 0.5 17.214 12.91 0.5 17.218 13 0.5 17.22 13.05 .5 17.22'/>
271                                          </Shape>
272                                     </Transform>
273                                     <Shape DEF='Tail2_triangle_extrusion'>
274                                          <Appearance>
275                                               <Material/>
276                                               <ImageTexture USE='cammie1'/>
277                                          </Appearance>
278                                          <Extrusion creaseAngle='.78' crossSection='0 0 4.25 3.9 4.25 0 0 0' solid='false' spine='0 .5 0 0 .725 0'/>
279                                     </Shape>
280                                     <Transform rotation='1 0 0 1.57079' translation='1.2 .45 .5'>
281
                                        <!-- Shape MARINES-Text_ is a DEF node that has 1 USE node: USE_1 -->
                                        <Shape DEF='MARINES-Text_'>
282                                               <Text string='"MARINES"'>
283                                                    <FontStyle family='"SANS"' size='.5' style='BOLD'/>
284                                               </Text>
285                                               <Appearance>
286                                                    <Material diffuseColor='0 0 0'/>
287                                               </Appearance>
288                                          </Shape>
289                                     </Transform>
290                                     <Transform rotation='1 0 0 1.57079' translation='1.2 .45 1'>
291
                                        <!-- Shape BUNO-TEXT is a DEF node that has 1 USE node: USE_1 -->
                                        <Shape DEF='BUNO-TEXT'>
292                                               <Text string='"162072"'>
293                                                    <FontStyle family='"SANS"' size='.25' style='BOLD'/>
294                                               </Text>
295                                               <Appearance>
296                                                    <Material diffuseColor='0 0 0'/>
297                                               </Appearance>
298                                          </Shape>
299                                     </Transform>
300                                     <Transform rotation='-0 0.7071 0.7071 3.1416' translation='3.15 .765 .5'>
301                                          <Shape USE='MARINES-Text_'/>
302                                     </Transform>
303                                     <Transform rotation='-0 0.7071 0.7071 3.1416' translation='1.95 .78 1'>
304                                          <Shape USE='BUNO-TEXT'/>
305                                     </Transform>
306                                </Group>
307                           </Transform>
308                      </Group>
309                      <Transform DEF='Stabilizer_Group_transf' rotation='0 0 1 1.57079' scale='1.75 1.75 1' translation='5 .62 -.5'>
310                           <Group DEF='Stabilizer_Group'>
311                                <Transform DEF='Left_stabilizer_transf' rotation='0 1 0 -.1222' translation='-.2 0 0'>
312                                     <Shape DEF='Left_Stabilizer'>
313                                          <Extrusion creaseAngle='.78' crossSection='4 1 3.8 0.99 3.6 0.98 3.4 0.96 3.2 0.93 3 0.9 2.8 0.85 2.6 0.8 2.4 0.77 2.2 0.72 2 0.68 1.8 0.62 1.6 0.6 1.4 0.55 1.2 0.52 1 0.5 0.8 0.48 0.6 0.44 0.4 0.42 0.2 0.4 0.4 0.38 0.6 0.37 0.8 0.36 1 0.35 1.2 0.32 1.4 0.28 1.6 0.23 1.8 0.18 2 0.15 2.2 0.12 2.4 0.1 2.6 0.09 2.8 0.07 3 0.06 3.2 0.05 3.4 0.04 3.6 0.05 3.8 0.06 4 0.07 4.2 0.08 4.4 0.09 4.6 0.1 4.8 0.11 5 0.12 5.2 0.14 5.4 0.15 5.6 0.18 5.8 0.2 6 0.21 6.2 0.23 6.4 0.26 6.6 0.29 6.8 0.33 6.9 0.35 6.95 0.36 7 0.4 6.95 0.5 6.9 0.6 6.8 0.7 6.6 0.82 6.4 0.9 6.2 0.95 6 0.97 5.8 0.99 5.6 1 5.4 1.01 5.2 1.02 5 1.02 4.8 1.02 4.6 1.02 4.4 1.02 4.2 1.01 4 1' scale='.3 .2 .1 .1' solid='false' spine='0 0 0 -2.75 0 0'/>
314                                          <Appearance>
315                                               <Material/>
316                                               <ImageTexture USE='cammie1'/>
317                                          </Appearance>
318                                     </Shape>
319                                </Transform>
320                                <Transform DEF='Right_stabilizaer_transf' rotation='0 1 0 .1222' translation='.2 0 0'>
321                                     <Shape DEF='Right_Stabilizer'>
322                                          <Extrusion creaseAngle='.78' crossSection='4 1 3.8 0.99 3.6 0.98 3.4 0.96 3.2 0.93 3 0.9 2.8 0.85 2.6 0.8 2.4 0.77 2.2 0.72 2 0.68 1.8 0.62 1.6 0.6 1.4 0.55 1.2 0.52 1 0.5 0.8 0.48 0.6 0.44 0.4 0.42 0.2 0.4 0.4 0.38 0.6 0.37 0.8 0.36 1 0.35 1.2 0.32 1.4 0.28 1.6 0.23 1.8 0.18 2 0.15 2.2 0.12 2.4 0.1 2.6 0.09 2.8 0.07 3 0.06 3.2 0.05 3.4 0.04 3.6 0.05 3.8 0.06 4 0.07 4.2 0.08 4.4 0.09 4.6 0.1 4.8 0.11 5 0.12 5.2 0.14 5.4 0.15 5.6 0.18 5.8 0.2 6 0.21 6.2 0.23 6.4 0.26 6.6 0.29 6.8 0.33 6.9 0.35 6.95 0.36 7 0.4 6.95 0.5 6.9 0.6 6.8 0.7 6.6 0.82 6.4 0.9 6.2 0.95 6 0.97 5.8 0.99 5.6 1 5.4 1.01 5.2 1.02 5 1.02 4.8 1.02 4.6 1.02 4.4 1.02 4.2 1.01 4 1' scale='.1 .1 .3 .2' solid='false' spine='2.75 0 0 0 0 0'/>
323                                          <Appearance>
324                                               <Material/>
325                                               <ImageTexture USE='cammie1'/>
326                                          </Appearance>
327                                     </Shape>
328                                </Transform>
329                           </Group>
330                      </Transform>
331                 </Transform>
332                 <Transform DEF='Top_Back_fuselage_spine' rotation='1 0 0 3.1416' translation='0 0 1'>
333                      <Shape DEF='Top_back_fuselage_spine'>
334                           <Appearance>
335                                <Material/>
336                                <ImageTexture USE='cammie1'/>
337                           </Appearance>
338                           <Extrusion creaseAngle='2' crossSection='2.5 0 2.45 -0.3 2.31 -0.6 2.06 -0.9 1.65 -1.2 0.86 -1.5 0 -1.6 -0.86 -1.5 -1.45 -1.3 -1.95 -1 -2.24 -0.7 -2.42 -0.4 -2.49 0' scale='.3 .2 .22 .32 .6 .32 .6 .5 .55 .65 .55 .7 .5 .6 .4 .5 .1 .2' solid='false' spine='7.3 0 0 9.0 0 0 9.2 0 0 9.9 0 0 11 0 0 12 0 0 16 0 0 19 0 0 26 0 0'/>
339                      </Shape>
340                      <Transform DEF='Jamming_pod_transf' translation='0 0 -.15'>
341                           <Shape DEF='Jamming_pod'>
342                                <Appearance>
343                                     <Material/>
344                                     <ImageTexture USE='cammie1'/>
345                                </Appearance>
346                                <Extrusion creaseAngle='2' crossSection='2.5 0 2.45 -0.3 2.31 -0.6 2.06 -0.9 1.65 -1.2 0.86 -1.5 0 -1.6 -0.86 -1.5 -1.45 -1.3 -1.95 -1 -2.24 -0.7 -2.42 -0.4 -2.49 0 -2.49 0 -2.42 0.3 -2.24 0.6 -1.95 0.9 -1.45 1.2 -0.86 1.5 0 1.6 0.86 1.5 1.65 1.3 2.06 1 2.31 0.7 2.45 0.4 2.5 0' scale='.17 .29 .17 .3 .15 .27 .12 .25 .1 .2 .05 .05' solid='false' spine='20 0 0 29.1 0 0 29.2 0 0 29.3 0 0 29.4 0 0 29.5 0 0'/>
347                           </Shape>
348                      </Transform>
349                 </Transform>
350                 <Transform DEF='Canopy_transf' center='3 0 0' rotation='0 1 0 -.1' translation='0 0 .8'>
351                      <Shape DEF='Canopy-glass'>
352                           <Appearance>
353                                <Material diffuseColor='.86 .94 .97' transparency='.8'/>
354                           </Appearance>
355                           <Extrusion creaseAngle='2' crossSection='0.95 -1 1 0 1.01 0.1 1.02 0.2 1.03 0.3 1.04 0.4 1.05 0.5 1.04 0.6 1.03 0.7 1.02 0.8 1.01 0.9 1 0.925 0.985 0.95 0.96 1 0.9 1.1 0.8 1.2 0.7 1.3 0.6 1.4 0.5 1.45 0.4 1.48 0.3 1.5 0.2 1.53 0.1 1.54 0 1.55 -0.1 1.54 -0.2 1.53 -0.3 1.5 -0.4 1.48 -0.5 1.45 -0.6 1.4 -0.7 1.3 -0.8 1.2 -0.9 1.1 -0.96 1 -0.985 0.95 -1 0.925 -1.01 0.9 -1.02 0.8 -1.03 0.7 -1.04 0.6 -1.05 0.5 -1.04 0.4 -1.03 0.3 -1.02 0.2 -1.01 0.1 -1 0 -0.95 -1' scale='.48 .355 .6 .43 .6 .9 .6 .95 .6 1 .6 .95 .5 .6' solid='false' spine='3.1 0 0 3.3 0 0 5 0 0 5.2 0 0 6 0 0 6.5 0 0 8.5 0 0'/>
356                      </Shape>
357                      <Shape DEF='Canopy-back'>
358                           <Appearance>
359                                <Material/>
360                           </Appearance>
361                           <Extrusion creaseAngle='2' crossSection='1 0 1.01 0.1 1.02 0.2 1.03 0.3 1.04 0.4 1.05 0.5 1.04 0.6 1.03 0.7 1.02 0.8 1.01 0.9 1 0.925 0.985 0.95 0.96 1 0.9 1.1 0.8 1.2 0.7 1.3 0.6 1.4 0.5 1.45 0.4 1.48 0.3 1.5 0.2 1.53 0.1 1.54 0 1.55 -0.1 1.54 -0.2 1.53 -0.3 1.5 -0.4 1.48 -0.5 1.45 -0.6 1.4 -0.7 1.3 -0.8 1.2 -0.9 1.1 -0.96 1 -0.985 0.95 -1 0.925 -1.01 0.9 -1.02 0.8 -1.03 0.7 -1.04 0.6 -1.05 0.5 -1.04 0.4 -1.03 0.3 -1.02 0.2 -1.01 0.1 -1 0' scale='.5 .6 .1 .05' solid='false' spine='8.5 0 0 12.2 0 0'/>
362                      </Shape>
363                 </Transform>
364                 <Group DEF='Instrumentations'>
365                      <Transform DEF='Instruments_transform' rotation='1 0 0 3.1416' translation='-.77 0 .8'>
366                           <Shape DEF='Instruments_panel'>
367                                <Appearance>
368                                     <Material diffuseColor='0 0 0'/>
369                                </Appearance>
370                                <Extrusion creaseAngle='1' crossSection='1 0 0.92 -0.38 0.82 -0.55 0.71 -0.71 0.58 -0.81 0.38 -0.92 0.2 -0.98 0 -1 -0.2 -0.98 -0.38 -0.92 -0.58 -0.81 -0.71 -0.71 -0.82 -0.55 -0.92 -0.38 -1 0 1 0' scale='.57 .9 .51 .50 .20 .2 .1 .05' spine='5.5 0 0 4 0 0 3.5 0 0 3.0 0 0'/>
371                           </Shape>
372                           <Shape DEF='Instruments'>
373                                <Appearance>
374                                     <Material/>
375                                </Appearance>
376                                <Extrusion creaseAngle='1' crossSection='1 0 0.92 -0.38 0.82 -0.55 0.71 -0.71 0.58 -0.81 0.38 -0.92 0.2 -0.98 0 -1 -0.2 -0.98 -0.38 -0.92 -0.58 -0.81 -0.71 -0.71 -0.82 -0.55 -0.92 -0.38 -1 0 1 0' scale='.52 .85 .52 .85' spine='5.52 0 0 5.4 0 0'/>
377                           </Shape>
378                           <Transform DEF='Canopy_front_trabsf' center='4.0 0 0' rotation='0 1 0 .2618' translation='0 0 -.08'>
379                                <Shape DEF='Canopy_front'>
380                                     <Appearance>
381                                          <Material/>
382                                          <ImageTexture USE='cammie1'/>
383                                     </Appearance>
384                                     <Extrusion creaseAngle='1' crossSection='1 0 0.92 -0.38 0.82 -0.55 0.71 -0.71 0.58 -0.81 0.38 -0.92 0.2 -0.98 0 -1 -0.2 -0.98 -0.38 -0.92 -0.58 -0.81 -0.71 -0.71 -0.82 -0.55 -0.92 -0.38 -1 0 1 0' scale='.58 .50 .1 .05' spine='4.0 0 0 2.5 0 0'/>
385                                </Shape>
386                           </Transform>
387                      </Transform>
388                      <Transform translation='4.69 -.35 .4'>
389                           <Shape>
390                                <Box size='.1 .3 1'/>
391                                <Appearance>
392                                     <Material/>
393                                </Appearance>
394                           </Shape>
395                      </Transform>
396                      <Transform translation='4.69 .35 .4'>
397                           <Shape>
398                                <Box size='.1 .3 1'/>
399                                <Appearance>
400                                     <Material/>
401                                </Appearance>
402                           </Shape>
403                      </Transform>
404                 </Group>
405                 <Group DEF='Left_nozzle_group'>
406                      <Transform DEF='Left_front_nozzle_cover_transf' translation='10 1.74 -.2'>
407                           <Shape DEF='Left_front_nozzle_cover'>
408                                <Extrusion creaseAngle='2' crossSection='0.1 0 -0.1 0.01 -0.3 0.2 -0.25 0.4 -0.18 0.6 -0.1 0.8 0.6 0.8 0.6 0.75 -0.1 0.75 -0.15 0.6 -0.22 0.4 -0.27 0.2 -0.1 0.05 0.4 0.05 0.4 0' scale='.0001 1 1 1' solid='false' spine='0 0 0 2.1 0 0'/>
409                                <Appearance>
410                                     <Material/>
411                                     <ImageTexture USE='cammie1'/>
412                                </Appearance>
413                           </Shape>
414                      </Transform>
415                      <Transform DEF='Left_back_nozzle_cover_transf' rotation='0 1 0 .05' scale='1 .7 1' translation='14 1.3 -.25'>
416                           <Shape DEF='Left_back_nozzle_cover'>
417                                <Extrusion creaseAngle='2' crossSection='-0.5 0 -0.7 0.01 -0.9 0.2 -0.85 0.4 -0.78 0.6 -0.7 0.8 0.2 0.8 0.2 0.75 -0.7 0.75 -0.75 0.6 -0.82 0.4 -0.87 0.2 -0.7 0.05 0.2 0.05 0.2 0' scale='0.001 1 .9 1' solid='false' spine='-1.1 0 0 2.1 0 0'/>
418                                <Appearance>
419                                     <Material/>
420                                     <ImageTexture USE='cammie1'/>
421                                </Appearance>
422                           </Shape>
423                      </Transform>
424                      <Transform DEF='Left_front_nozzle' rotation='0.5774 0.5773 0.5774 2.0943' scale='.7 .7 .7' translation='12.75 .7 .2'>
425                           <Group DEF='Front_nozzle'>
426                                <Transform rotation='1 0 0 1.5707' scale='1.76 1.5 1.5'>
427                                     <Shape DEF='Circular_pivot_base2'>
428                                          <Extrusion creaseAngle='2' crossSection='0.375 0.375 0.425 0.371651719 0.475 0.361420807 0.525 0.343693177 0.575 0.317214439 0.625 0.279508497 0.675 0.225 0.725 0.13462912 0.75 0 0.725 -0.13462912 0.675 -0.225 0.625 -0.279508497 0.575 -0.317214439 0.525 -0.343693177 0.475 -0.361420807 0.425 -0.371651719 0.375 -0.375 0.325 -0.371651719 0.275 -0.361420807 0.225 -0.343693177 0.175 -0.317214439 0.125 -0.279508497 0.075 -0.225 0.025 -0.13462912 0 0 0.05 0.13462912 0.1 0.225 0.15 0.279508497 0.2 0.317214439 0.25 0.343693177 0.3 0.361420807 0.35 0.371651719 0.375 0.375' endCap='false' scale='1 1 1 1 .95 1 .9 1 .87 1 .77 1 .55 1 .3 1' solid='false' spine='0 0 0 .5 0 0 .6 0 0 .7 0 0 .8 0 0 .9 0 0 .99 0 0 1 0 0'/>
429                                          <Appearance>
430                                               <Material ambientIntensity='0' diffuseColor='0 0 0' shininess='.0561222' specularColor='.918362 .910614 .885116'/>
431                                          </Appearance>
432                                     </Shape>
433                                </Transform>
434                                <Transform center='1 0 0' rotation='0 1 0 1.5707'>
435                                     <Shape DEF='Rectangle_base2'>
436                                          <Extrusion creaseAngle='2' crossSection='-0.45 0 0.5 0 0.5 0.75 -0.5 0.75 -0.5 0 -0.45 0 -0.45 0.7 0.45 0.7 0.45 0.05 -0.45 0.05 -0.45 0' endCap='false' scale='1.1 1.05 1.1 1.05 1.1 1.05 1.1 1.05 1.1 1.03 1.1 1 1.0 .9 .5 .3' solid='false' spine='.5 0 0 1 0 0 1.1 0 0 1.2 0 0 1.3 0 0 1.4 0 0 1.5 0 0 1.6 0 0'/>
437                                          <Appearance>
438                                               <Material ambientIntensity='0' diffuseColor='0 0 0' shininess='.0561222' specularColor='.918362 .910614 .885116'/>
439                                          </Appearance>
440                                     </Shape>
441                                </Transform>
442                           </Group>
443                      </Transform>
444                      <Transform DEF='Left_back_nozzle_transf' rotation='0.5774 0.5773 0.5774 2.0943' scale='.9 .8 .8' translation='16.8 .25 .04'>
445                           <Group DEF='back_nozzle'>
446                                <Transform center='1 0 0' rotation='0 1 0 1.5707' translation='.26 0 -.22'>
447                                     <Shape DEF='circluar_base2'>
448                                          <Extrusion creaseAngle='2' crossSection='-0.5 0.25 -0.375 0.125 -0.25 0.0625 -0.125 0.02 0 0 0.125 0.02 0.25 0.0625 0.375 0.125 0.5 0.25 0.45 0.25 0.325 0.125 0.2 0.0625 0.075 0.028 0 0.015 -0.075 0.028 -0.2 0.0625 -0.325 0.125 -0.45 0.25 -0.5 0.25' endCap='false' scale='1 1 1.18 2 1 1.4' solid='false' spine='-.1 0 0 .80 0 0 1 0 0'/>
449                                          <Appearance>
450                                               <Material ambientIntensity='0' diffuseColor='0 0 0' shininess='.0561222' specularColor='.918362 .910614 .885116'/>
451                                          </Appearance>
452                                     </Shape>
453                                     <Transform center='1 0 0' rotation='0 1 0 -.28' translation='.55 0 .71'>
454                                          <Shape DEF='Left_nozzle_vane'>
455                                               <Box size='.4 1 .01'/>
456                                               <Appearance>
457                                                    <Material ambientIntensity='0' diffuseColor='0 0 0' shininess='.0561222' specularColor='.918362 .910614 .885116'/>
458                                               </Appearance>
459                                          </Shape>
460                                     </Transform>
461                                     <Transform center='1 0 0' rotation='0 1 0 -.28' translation='.15 0 .50'>
462                                          <Shape DEF='Left_nozzle_vane2'>
463                                               <Box size='.4 .8 .01'/>
464                                               <Appearance>
465                                                    <Material/>
466                                               </Appearance>
467                                          </Shape>
468                                     </Transform>
469                                </Transform>
470                                <Transform rotation='1 0 0 1.5707' scale='1.76 1.5 1.5'>
471                                     <Shape DEF='Left_Circular_pivot_base'>
472                                          <Extrusion creaseAngle='2' crossSection='0.375 0.375 0.425 0.371651719 0.475 0.361420807 0.525 0.343693177 0.575 0.317214439 0.625 0.279508497 0.675 0.225 0.725 0.13462912 0.75 0 0.725 -0.13462912 0.675 -0.225 0.625 -0.279508497 0.575 -0.317214439 0.525 -0.343693177 0.475 -0.361420807 0.425 -0.371651719 0.375 -0.375 0.325 -0.371651719 0.275 -0.361420807 0.225 -0.343693177 0.175 -0.317214439 0.125 -0.279508497 0.075 -0.225 0.025 -0.13462912 0 0 0.05 0.13462912 0.1 0.225 0.15 0.279508497 0.2 0.317214439 0.25 0.343693177 0.3 0.361420807 0.35 0.371651719 0.375 0.375' endCap='false' scale='1 1 1 1 .97 1 .95 1 .9 1 .75 1 .6 1 .45 1 0.001 1' solid='false' spine='0 0 0 .5 0 0 .6 0 0 .7 0 0 .8 0 0 .9 0 0 .95 0 0 .975 0 0 1 0 0'/>
473                                          <Appearance>
474                                               <Material ambientIntensity='0' diffuseColor='0 0 0' shininess='.0561222' specularColor='.918362 .910614 .885116'/>
475                                          </Appearance>
476                                     </Shape>
477                                </Transform>
478                           </Group>
479                      </Transform>
480                      <Transform DEF='back_nozzle_protector_transf' rotation='1 0 0 -1.5707' scale='1 .9 .3' translation='17 1.28 .04'>
481                           <Shape DEF='protector'>
482                                <Extrusion creaseAngle='2' crossSection='-0.5 0.25 -0.375 0.125 -0.25 0.0625 -0.125 0.02 0 0 0.125 0.02 0.25 0.0625 0.375 0.125 0.5 0.25 0.4 0.27 0.4 0.25 0.43 0.23 0.325 0.125 0.25 0.137 0.25 0.12 0.3 0.105 0.2 0.0625 0.075 0.028 0.05 0.02 0.05 0.03 -0.05 0.03 -0.05 0.02 0 0.015 -0.075 0.028 -0.2 0.0625 -0.3 0.105 -0.25 0.12 -0.25 0.137 -0.325 0.125 -0.45 0.23 -0.4 0.25 -0.4 0.27 -0.5 0.25' endCap='false' scale='1 1 1.18 2 1 1.4' solid='false' spine='0 0 0 1 0 0 2 0 0'/>
483                                <Appearance>
484                                     <Material ambientIntensity='0' diffuseColor='0 0 0' shininess='.0561222' specularColor='.918362 .910614 .885116'/>
485                                </Appearance>
486                           </Shape>
487                      </Transform>
488                 </Group>
489                 <Transform DEF='Right_nozzle_group_tranf' rotation='0.1 -0 -0.0017 3.1416' translation='0 0 .8'>
490                      <Group DEF='Right_nozzle_group'>
491                           <Transform DEF='Right_front_nozzle_cover_transf' translation='10 1.74 -.2'>
492                                <Shape DEF='Right_front_nozzle_cover'>
493                                     <Extrusion creaseAngle='2' crossSection='0.1 0 -0.1 0.01 -0.3 0.2 -0.25 0.4 -0.18 0.6 -0.1 0.8 0.6 0.8 0.6 0.75 -0.1 0.75 -0.15 0.6 -0.22 0.4 -0.27 0.2 -0.1 0.05 0.4 0.05 0.4 0' scale='0.001 1 1 1' solid='false' spine='0 0 0 2.1 0 0'/>
494                                     <Appearance>
495                                          <Material/>
496                                          <ImageTexture USE='cammie1'/>
497                                     </Appearance>
498                                </Shape>
499                           </Transform>
500                           <Transform DEF='Right_back_nozzle_cover_transf' scale='1 .7 1' translation='14 1.3 -.25'>
501                                <Shape DEF='Right_back_nozzle_cover'>
502                                     <Extrusion creaseAngle='2' crossSection='-0.5 0 -0.7 0.01 -0.9 0.2 -0.85 0.4 -0.78 0.6 -0.7 0.8 0.2 0.8 0.2 0.75 -0.7 0.75 -0.75 0.6 -0.82 0.4 -0.87 0.2 -0.7 0.05 0.2 0.05 0.2 0' scale='0.001 1 .9 1' solid='false' spine='-1.1 0 0 2.1 0 0'/>
503                                     <Appearance>
504                                          <Material/>
505                                          <ImageTexture USE='cammie1'/>
506                                     </Appearance>
507                                </Shape>
508                           </Transform>
509                           <Transform DEF='Right_front_nozzle' rotation='0.5774 0.5773 0.5774 2.0943' scale='.7 .7 .7' translation='12.75 .7 .2'>
510                                <Group DEF='Right_Front_nozzle'>
511                                     <Transform rotation='1 0 0 1.5707' scale='1.76 1.5 1.5'>
512                                          <Shape DEF='Right_Circular_pivot_base'>
513                                               <Extrusion creaseAngle='2' crossSection='0.375 0.375 0.425 0.371651719 0.475 0.361420807 0.525 0.343693177 0.575 0.317214439 0.625 0.279508497 0.675 0.225 0.725 0.13462912 0.75 0 0.725 -0.13462912 0.675 -0.225 0.625 -0.279508497 0.575 -0.317214439 0.525 -0.343693177 0.475 -0.361420807 0.425 -0.371651719 0.375 -0.375 0.325 -0.371651719 0.275 -0.361420807 0.225 -0.343693177 0.175 -0.317214439 0.125 -0.279508497 0.075 -0.225 0.025 -0.13462912 0 0 0.05 0.13462912 0.1 0.225 0.15 0.279508497 0.2 0.317214439 0.25 0.343693177 0.3 0.361420807 0.35 0.371651719 0.375 0.375' endCap='false' scale='1 1 1 1 .95 1 .9 1 .87 1 .77 1 .55 1 .3 1' solid='false' spine='0 0 0 .5 0 0 .6 0 0 .7 0 0 .8 0 0 .9 0 0 .99 0 0 1 0 0'/>
514                                               <Appearance>
515                                                    <Material ambientIntensity='0' diffuseColor='0 0 0' shininess='.0561222' specularColor='.918362 .910614 .885116'/>
516                                               </Appearance>
517                                          </Shape>
518                                     </Transform>
519                                     <Transform center='1 0 0' rotation='0 1 0 1.5707'>
520                                          <Shape DEF='Rectangle_base'>
521                                               <Extrusion creaseAngle='2' crossSection='-0.45 0 0.5 0 0.5 0.75 -0.5 0.75 -0.5 0 -0.45 0 -0.45 0.7 0.45 0.7 0.45 0.05 -0.45 0.05 -0.45 0' endCap='false' scale='1.1 1.05 1.1 1.05 1.1 1.05 1.1 1.05 1.1 1.03 1.1 1 1.0 .9 .5 .3' solid='false' spine='.5 0 0 1 0 0 1.1 0 0 1.2 0 0 1.3 0 0 1.4 0 0 1.5 0 0 1.6 0 0'/>
522                                               <Appearance>
523                                                    <Material ambientIntensity='0' diffuseColor='0 0 0' shininess='.0561222' specularColor='.918362 .910614 .885116'/>
524                                               </Appearance>
525                                          </Shape>
526                                     </Transform>
527                                </Group>
528                           </Transform>
529                           <Transform DEF='Right_back_nozzle_transf' rotation='0.5774 0.5773 0.5774 2.0943' scale='.9 .8 .8' translation='16.8 .25 .18'>
530                                <Group DEF='Right_back_nozzle'>
531                                     <Transform center='1 0 0' rotation='0 1 0 1.5707' translation='.26 0 -.22'>
532                                          <Shape DEF='circluar_base'>
533                                               <Extrusion creaseAngle='2' crossSection='-0.5 0.25 -0.375 0.125 -0.25 0.0625 -0.125 0.02 0 0 0.125 0.02 0.25 0.0625 0.375 0.125 0.5 0.25 0.45 0.25 0.325 0.125 0.2 0.0625 0.075 0.028 0 0.015 -0.075 0.028 -0.2 0.0625 -0.325 0.125 -0.45 0.25 -0.5 0.25' endCap='false' scale='1 1 1.18 2 1 1.4' solid='false' spine='-.1 0 0 .80 0 0 1 0 0'/>
534                                               <Appearance>
535                                                    <Material ambientIntensity='0' diffuseColor='0 0 0' shininess='.0561222' specularColor='.918362 .910614 .885116'/>
536                                               </Appearance>
537                                          </Shape>
538                                          <Transform center='1 0 0' rotation='0 1 0 -.28' translation='.55 0 .71'>
539                                               <Shape DEF='nozzle_vane'>
540                                                    <Box size='.4 1 .01'/>
541                                                    <Appearance>
542                                                         <Material ambientIntensity='0' diffuseColor='0 0 0' shininess='.0561222' specularColor='.918362 .910614 .885116'/>
543                                                    </Appearance>
544                                               </Shape>
545                                          </Transform>
546                                          <Transform center='1 0 0' rotation='0 1 0 -.28' translation='.15 0 .50'>
547                                               <Shape DEF='nozzle_vane2'>
548                                                    <Box size='.4 .8 .01'/>
549                                                    <Appearance>
550                                                         <Material ambientIntensity='0' diffuseColor='0 0 0' shininess='.0561222' specularColor='.918362 .910614 .885116'/>
551                                                    </Appearance>
552                                               </Shape>
553                                          </Transform>
554                                     </Transform>
555                                     <Transform rotation='1 0 0 1.5707' scale='1.76 1.5 1.5'>
556                                          <Shape DEF='Circular_pivot_base'>
557                                               <Extrusion creaseAngle='2' crossSection='0.375 0.375 0.425 0.371651719 0.475 0.361420807 0.525 0.343693177 0.575 0.317214439 0.625 0.279508497 0.675 0.225 0.725 0.13462912 0.75 0 0.725 -0.13462912 0.675 -0.225 0.625 -0.279508497 0.575 -0.317214439 0.525 -0.343693177 0.475 -0.361420807 0.425 -0.371651719 0.375 -0.375 0.325 -0.371651719 0.275 -0.361420807 0.225 -0.343693177 0.175 -0.317214439 0.125 -0.279508497 0.075 -0.225 0.025 -0.13462912 0 0 0.05 0.13462912 0.1 0.225 0.15 0.279508497 0.2 0.317214439 0.25 0.343693177 0.3 0.361420807 0.35 0.371651719 0.375 0.375' endCap='false' scale='1 1 1 1 .97 1 .95 1 .9 1 .75 1 .6 1 .45 1 0.001 1' solid='false' spine='0 0 0 .5 0 0 .6 0 0 .7 0 0 .8 0 0 .9 0 0 .95 0 0 .975 0 0 1 0 0'/>
558                                               <Appearance>
559                                                    <Material ambientIntensity='0' diffuseColor='0 0 0' shininess='.0561222' specularColor='.918362 .910614 .885116'/>
560                                               </Appearance>
561                                          </Shape>
562                                     </Transform>
563                                </Group>
564                           </Transform>
565                           <Transform DEF='Right_back_nozzle_protector_transf' rotation='1 0 0 -1.5707' scale='1 .9 .3' translation='17 1.28 .19'>
566                                <Shape DEF='Right_protector'>
567                                     <Extrusion creaseAngle='2' crossSection='-0.5 0.25 -0.375 0.125 -0.25 0.0625 -0.125 0.02 0 0 0.125 0.02 0.25 0.0625 0.375 0.125 0.5 0.25 0.4 0.27 0.4 0.25 0.43 0.23 0.325 0.125 0.25 0.137 0.25 0.12 0.3 0.105 0.2 0.0625 0.075 0.028 0.05 0.02 0.05 0.03 -0.05 0.03 -0.05 0.02 0 0.015 -0.075 0.028 -0.2 0.0625 -0.3 0.105 -0.25 0.12 -0.25 0.137 -0.325 0.125 -0.45 0.23 -0.4 0.25 -0.4 0.27 -0.5 0.25' endCap='false' scale='1 1 1.18 2 1 1.4' solid='false' spine='0 0 0 1 0 0 2 0 0'/>
568                                     <Appearance>
569                                          <Material ambientIntensity='0' diffuseColor='0 0 0' shininess='.0561222' specularColor='.918362 .910614 .885116'/>
570                                     </Appearance>
571                                </Shape>
572                           </Transform>
573                      </Group>
574                      <Group DEF='Landing_gear'>
575                           <Transform DEF='Left_landing_gear_transf' translation='19 6 0.55'>
576
                              <!-- Group Wing_landing_gear_group is a DEF node that has 1 USE node: USE_1 -->
                              <Group DEF='Wing_landing_gear_group'>
577                                     <Group DEF='Landing_gear_group'>
578                                          <Transform rotation='0 0 1 1.5707' translation='1 0 0'>
579                                               <Shape DEF='Landing_rod'>
580                                                    <Cylinder height='1.5' radius='.125'/>
581                                                    <Appearance>
582                                                         <Material diffuseColor='1 1 1'/>
583                                                    </Appearance>
584                                               </Shape>
585                                          </Transform>
586                                          <Transform>
587                                               <Shape DEF='Landing_box'>
588                                                    <Box size='.5 .25 .25'/>
589                                                    <Appearance>
590                                                         <Material diffuseColor='1 1 1'/>
591                                                    </Appearance>
592                                               </Shape>
593                                          </Transform>
594                                          <Transform rotation='0 0 1 1.5707' translation='2 0 0'>
595                                               <Shape DEF='Shock_abs'>
596                                                    <Cylinder height='.5' radius='.09'/>
597                                                    <Appearance>
598                                                         <Material ambientIntensity='0.113208' diffuseColor='0.697737 0.696336 0.699331' emissiveColor='0.000000 0.000000 0.000000' shininess='1.000000' specularColor='0.227785 0.227345 0.227393'/>
599                                                    </Appearance>
600                                               </Shape>
601                                          </Transform>
602                                          <Transform rotation='0 0 1 1.5707' translation='3 -.2 -.1'>
603
                                             <!-- Shape Tire_support_arc is a DEF node that has 1 USE node: USE_1 -->
                                             <Shape DEF='Tire_support_arc'>
604                                                    <Extrusion crossSection='0 0 0 0.2 0.1 0.2 0.1 0 0 0' spine='0.3 0.5 0 0.25 0.5 0 0.125 0.46875 0 0.075 0.4375 0 0.055 0.40625 0 0.0375 0.375 0 0.0225 0.34375 0 0.0125 0.3125 0 0 0.25 0 0 0 0'/>
605                                                    <Appearance>
606                                                         <Material diffuseColor='1 1 1'/>
607                                                    </Appearance>
608                                               </Shape>
609                                          </Transform>
610                                          <Transform rotation='0 0 1 1.5707' translation='2.35 0 0'>
611                                               <Shape DEF='Landing_gear_base'>
612                                                    <Cylinder height='.25' radius='.125'/>
613                                                    <Appearance>
614                                                         <Material diffuseColor='1 1 1'/>
615                                                    </Appearance>
616                                               </Shape>
617                                          </Transform>
618                                          <Transform rotation='0.7071 -0.7071 -0 3.1415' translation='3 .2 .1'>
619                                               <Shape USE='Tire_support_arc'/>
620                                          </Transform>
621                                          <Transform rotation='1 0 0 1.5707' scale='.55 .55 .55' translation='2.95 0 0'>
622                                               <Shape DEF='Tire'>
623                                                    <Appearance>
624                                                         <Material diffuseColor='0 0 0'/>
625                                                    </Appearance>
626                                                    <Extrusion creaseAngle='4' crossSection='0.25 0 0.23 -0.095 0.1775 -0.1775 0.095 -0.23 0 -0.25 -0.095 -0.23 -0.1775 -0.1775 -0.23 -0.095 -0.25 0 -0.23 0.095 -0.1775 0.1775 -0.095 0.23 0 0.25 0.095 0.23 0.1775 0.1775 0.23 0.095 0.25 0' solid='false' spine='0.5 0 0 0.46 -0.19 0 0.355 -0.355 0 0.19 -0.46 0 0 -0.5 0 -0.19 -0.46 0 -0.355 -0.355 0 -0.46 -0.19 0 -0.5 0 0 -0.46 0.19 0 -0.355 0.355 0 -0.19 0.46 0 0 0.5 0 0.19 0.46 0 0.355 0.355 0 0.46 0.19 0 0.5 0 0'/>
627                                               </Shape>
628                                               <Transform rotation='1 0 0 1.5707'>
629                                                    <Shape DEF='Rim'>
630                                                         <Appearance>
631                                                              <Material diffuseColor='1 1 1'/>
632                                                         </Appearance>
633                                                         <Cylinder height='.35' radius='.4'/>
634                                                    </Shape>
635                                               </Transform>
636                                          </Transform>
637                                          <Transform translation='2.95 0 0'>
638                                               <Shape DEF='Gear_rod'>
639                                                    <Cylinder height='.4' radius='.05'/>
640                                                    <Appearance>
641                                                         <Material ambientIntensity='0.113208' diffuseColor='0.697737 0.696336 0.699331' emissiveColor='0.000000 0.000000 0.000000' shininess='1.000000' specularColor='0.227785 0.227345 0.227393'/>
642                                                    </Appearance>
643                                               </Shape>
644                                          </Transform>
645                                     </Group>
646                                     <Transform DEF='Landing_gear_cover_transf' rotation='0 0 1 3.1415' translation='5.4 0 -.5'>
647                                          <Group DEF='Landing_gear_cover'>
648                                               <Shape DEF='Wing_landing_gear_cover_front'>
649                                                    <Extrusion crossSection='-0.15 0.9 -0.15 0.5 -0.15 0 0 0 0.15 0 0.15 0.5 0.15 0.9 -0.15 0.9' scale='1 1 .9 .05' solid='false' spine='6 0 0 9 0 0'/>
650                                                    <Appearance>
651                                                         <Material/>
652                                                         <ImageTexture USE='cammie1'/>
653                                                    </Appearance>
654                                               </Shape>
655                                               <Shape DEF='Wing_landing_gear_cover_back'>
656                                                    <Extrusion crossSection='-0.25 1 -0.15 0.9 -0.15 0.5 -0.15 0 0 0 0.15 0 0.15 0.5 0.15 0.9 0.25 1 0.25 1.05 0.15 1.05 0.1 0.9 0.1 0.5 0.1 0.1 -0.1 0.1 -0.1 0.5 -0.1 0.9 -0.15 1.05 -0.25 1.05 -0.25 1' solid='false' spine='3 0 0 6 0 0'/>
657                                                    <Appearance>
658                                                         <Material/>
659                                                         <ImageTexture USE='cammie1'/>
660                                                    </Appearance>
661                                               </Shape>
662                                          </Group>
663                                     </Transform>
664                                </Group>
665                           </Transform>
666                           <Transform DEF='Right_landing_gear_transf' translation='19 -6 0.55'>
667                                <Group USE='Wing_landing_gear_group'/>
668                           </Transform>
669                      </Group>
670                 </Transform>
671                 <Transform DEF='Pilot_Left_name_transf' rotation='1 0 0 1' translation='3.45 -.785 .6'>
672
                    <!-- Shape Pilot_Name_Text_ is a DEF node that has 1 USE node: USE_1 -->
                    <Shape DEF='Pilot_Name_Text_'>
673                           <Text string='"Capt. Miguel A. 'Old Yeller' Ayala"'>
674                                <FontStyle family='"SANS"' size='.12' style='BOLD'/>
675                           </Text>
676                           <Appearance>
677                                <Material diffuseColor='0 0 0'/>
678                           </Appearance>
679                      </Shape>
680                 </Transform>
681                 <Transform DEF='Pilot_Rigth_name_transf' rotation='-0 0.4625 0.8866 3.1415' translation='5.3 .785 .6'>
682                      <Shape USE='Pilot_Name_Text_'/>
683                 </Transform>
684            </Transform>
685            <Group>
686                 <Viewpoint description='Harrier front, level' position='0 0 7'/>
687                 <Viewpoint description='Harrier front, angle down' orientation='1 0 0 -0.78' position='0 10 5'/>
688                 <Viewpoint description='Harrier right wing, level' orientation='0 1 0 1.57' position='10 0 -6.5'/>
689                 <Viewpoint description='Harrier rear, level' orientation='0 1 0 3.14' position='0 1 -18'/>
690                 <Viewpoint description='Harrier left wing, level' orientation='0 1 0 -1.57' position='-10 0 -6.5'/>
691                 <Viewpoint description='Harrier bottom, up' orientation='1 0 0 1.57' position='0 -21 -6'/>
692                 <Viewpoint description='Harrier top, down' orientation='1 0 0 -1.57' position='0 21 -6'/>
693            </Group>
694       </Scene>
695  </X3D>
<!--

<!-- -->
<!-- to top Index for DEF nodes: Air_intakes, AV8B_transform, Back_cockpit_cover_plate, Back_cockpit_cover_plate_transf, Back_Fuselage_bottom, Back_Fuselage_bottom_fin, Back_Fuselage_top, Back_fuselage_turbine_transform, back_nozzle, back_nozzle_protector_transf, BUNO-TEXT, cammie1, Canopy_front, Canopy_front_trabsf, Canopy_transf, Canopy-back, Canopy-glass, circluar_base, circluar_base2, Circular_pivot_base, Circular_pivot_base2, Cockpit__left_wall, Cockpit_left_wall_transf, Cockpit_right_wall, cockpit_right_wall_transf, cockpit_seat_cover_plate, cockpit_seat_cover_plate_transf, Front_nozzle, Gear_rod, Instrumentations, Instruments, Instruments_panel, Instruments_transform, Intake_back_union, Intakes_back_union_transf, Intakes_transform, Jamming_pod, Jamming_pod_transf, Landing_box, Landing_gear, Landing_gear_base, Landing_gear_cover, Landing_gear_cover_transf, Landing_gear_group, Landing_rod, Left_arc_Transform, Left_back_nozzle_cover, Left_back_nozzle_cover_transf, Left_back_nozzle_transf, Left_Circular_pivot_base, Left_front_nozzle, Left_front_nozzle_cover, Left_front_nozzle_cover_transf, Left_Intake_Lower, Left_Intake_Top, Left_Intake_Top_Cover, Left_Intake_Transform, Left_landing_gear_transf, Left_nozzle_group, Left_nozzle_vane, Left_nozzle_vane2, Left_Stabilizer, Left_stabilizer_transf, Left_Wing, Left_wing_arc, Left_Wing_Transform, Lower_fuselage, Lower_Fuselage_transf, MARINES-Text_, nozzle_vane, nozzle_vane2, Pilot_Left_name_transf, Pilot_Name_Text_, Pilot_Rigth_name_transf, protector, Rectangle_base, Rectangle_base2, Right_back_nozzle, Right_back_nozzle_cover, Right_back_nozzle_cover_transf, Right_back_nozzle_protector_transf, Right_back_nozzle_transf, Right_Circular_pivot_base, Right_Front_nozzle, Right_front_nozzle, Right_front_nozzle_cover, Right_front_nozzle_cover_transf, Right_Intake_Lower, Right_Intake_Top, Right_Intake_Top_Cover, Right_Intake_Transform, Right_landing_gear_transf, Right_nozzle_group, Right_nozzle_group_tranf, Right_protector, Right_stabilizaer_transf, Right_Stabilizer, Right_Wing, Right_wing_arc, Right_Wing_arc_transf, Right_Wing_Transform, Rim, Rudder_group, Rudder_transform, Shock_abs, Stabilizer_Group, Stabilizer_Group_transf, Stabilizer_group_transf, Tail, Tail_curved_top_transform, Tail_top_curved2, Tail_transform, Tail2_triangle_extrusion, Tail3_Rudder, Text_Alignment_Wing_Transform, Text_Transform, Tire, Tire_support_arc, Top_Back_fuselage_spine, Top_back_fuselage_spine, Upper, Upper_nose_transf, Wing_Group, Wing_landing_gear_cover_back, Wing_landing_gear_cover_front, Wing_landing_gear_group, Wings_Transform

Index for Viewpoint nodes: Viewpoint_1, Viewpoint_2, Viewpoint_3, Viewpoint_4, Viewpoint_5, Viewpoint_6, Viewpoint_7, Viewpoint_8, Viewpoint_9, Viewpoint_10, Viewpoint_11, Viewpoint_12, Viewpoint_13, Viewpoint_14, Viewpoint_15
-->
X3D Tooltips element index: Appearance, Background, Box, Cylinder, Extrusion, FontStyle, Group, head, ImageTexture, Material, meta, Scene, Shape, Text, Transform, Viewpoint, WorldInfo, X3D, plus documentation for accessType definitions, type definitions, XML data types, and field types

-->
<!-- Online at
https://savage.nps.edu/Savage/AircraftFixedWing/AV8bHarrierUnitedStates/AV8bHarrierIndex.html -->
<!-- Version control at
https://gitlab.nps.edu/Savage/Savage/AircraftFixedWing/AV8bHarrierUnitedStates/AV8bHarrier.x3d -->

<!-- Color-coding legend: X3D terminology <X3dNode  DEF='idName' field='value'/> matches XML terminology <XmlElement  DEF='idName' attribute='value'/>
(Light-blue background: event-based behavior node or statement) (Grey background inside box: inserted documentation) (Magenta background: X3D Extensibility)
-->

to top <!-- For additional help information about X3D scenes, please see X3D Tooltips, X3D Resources, and X3D Scene Authoring Hints. -->
