<head>
<meta name='title' content='MfdScreen.x3d'/>
<meta name='description' content='This file defines an MFD screen that is inlined to create the cockpit console of a helicopter'/>
<meta name='creator' content='Doug Miller (original creator), Jane Wu (adapted from the original mfd.wrl created for vrtp demo helicopter)'/>
<meta name='created' content='19 February 1999'/>
<meta name='modified' content='12 January 2014'/>
<meta name='identifier' content=' https://savage.nps.edu/Savage/AircraftHelicopters/Helicopter-UnitedStates/MfdScreen.x3d '/>
<meta name='Image' content='JT-62-2.JPG'/>
<meta name='Image' content='JM1-3.JPG'/>
<meta name='Image' content='MFD.JPG'/>
<meta name='sound' content='50CAL.WAV'/>
<meta name='generator' content='X3D-Edit 3.2, https://savage.nps.edu/X3D-Edit'/>
<meta name='license' content=' ../../license.html'/>
</head>
<!--
Index for DEF nodes : BUTTON, CycleSelector, FIFTY_CAL_SOUND, FiftyCalOnOffToggle, GRAY, GREEN_COLOR, KNOB, MFD_GEOMETRY, MFD_SCREEN, OFF_WHITE, RIGHT_BUTTON1, RIGHT_BUTTON2
-->
<Scene>
<Group>
<Shape>
<Appearance DEF='GRAY'>
<Material diffuseColor='0.2 0.2 0.2'/>
</Appearance>
<Box size='0.26 0.21 0.05'/>
</Shape>
<Transform translation='0.00 0.00 0.03'>
<!-- ROUTE information for MFD_SCREEN node:  [from CycleSelector.value_changed to set_whichChoice ] -->
 <Switch DEF='MFD_SCREEN' whichChoice='3'>
<Shape>
<Appearance>
<Material DEF='GREEN_COLOR' diffuseColor='0.0 1.0 0.0'/>
</Appearance>
<IndexedFaceSet DEF='MFD_GEOMETRY' coordIndex='0 1 2 3 -1'>
<Coordinate point='-0.09 -0.07 0.01 0.09 -0.07 0.01 0.09 0.07 0.01 -0.09 0.07 0.01'/>
</IndexedFaceSet>
</Shape>
<Shape>
<Appearance>
<Material USE='GREEN_COLOR'/>
<ImageTexture
  url=' "JT-62-2.JPG" "https://savage.nps.edu/Savage/AircraftHelicopters/Helicopter-UnitedStates/JT-62-2.JPG" '/>
</Appearance>
<IndexedFaceSet USE='MFD_GEOMETRY'/>
</Shape>
<Shape>
<Appearance>
<Material USE='GREEN_COLOR'/>
<ImageTexture
  url=' "JM1-3.JPG" "https://savage.nps.edu/Savage/AircraftHelicopters/Helicopter-UnitedStates/JM1-3.JPG" '/>
</Appearance>
<IndexedFaceSet USE='MFD_GEOMETRY'/>
</Shape>
<Shape>
<Appearance>
<Material USE='GREEN_COLOR'/>
<ImageTexture

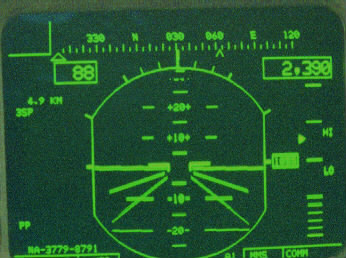

  url=' "MFD.JPG" "https://savage.nps.edu/Savage/AircraftHelicopters/Helicopter-UnitedStates/MFD.JPG" '/>
</Appearance>
<IndexedFaceSet USE='MFD_GEOMETRY'/>
</Shape>
</Switch>
</Transform>
<!-- ROUTE information for FIFTY_CAL_SOUND node:  [from FiftyCalOnOffToggle.value_changed to set_whichChoice ] -->
 <Switch DEF='FIFTY_CAL_SOUND' whichChoice='-1'>
<Sound>
<AudioClip description='50 caliber machine gun' loop='true'
  url=' "50CAL.WAV" "https://savage.nps.edu/Savage/AircraftHelicopters/Helicopter-UnitedStates/50CAL.WAV" '/>
</Sound>
</Switch>
<Transform translation='-0.11 -0.05 0.025'>
<Shape DEF='BUTTON'>
<Appearance DEF='OFF_WHITE'>
<Material diffuseColor='0.75 0.75 0.75'/>
</Appearance>
<Box size='0.02 0.02 0.01'/>
</Shape>
</Transform>
<Transform translation='-0.11 -0.015 0.025'>
<Shape USE='BUTTON'/>
</Transform>
<Transform translation='-0.11 0.02 0.025'>
<Shape USE='BUTTON'/>
</Transform>
<Transform translation='-0.11 0.055 0.025'>
<Shape USE='BUTTON'/>
</Transform>
<Transform translation='0.11 -0.05 0.025'>
<Shape USE='BUTTON'/>
</Transform>
<Transform translation='0.11 -0.015 0.025'>
<Shape USE='BUTTON'/>
</Transform>
<Transform translation='0.11 0.02 0.025'>
<Shape USE='BUTTON'/>
<!-- ROUTE information for RIGHT_BUTTON2 node:  [from isActive to FiftyCalOnOffToggle.set_boolean ] -->
 <TouchSensor DEF='RIGHT_BUTTON2' description='touch to activate'/>
</Transform>
<Transform translation='0.11 0.055 0.025'>
<Shape USE='BUTTON'/>
<!-- ROUTE information for RIGHT_BUTTON1 node:  [from isActive to CycleSelector.set_boolean ] -->
 <TouchSensor DEF='RIGHT_BUTTON1' description='touch to activate'/>
</Transform>
<Transform translation='-0.065 -0.09 0.025'>
<Shape USE='BUTTON'/>
</Transform>
<Transform translation='-0.035 -0.09 0.025'>
<Shape USE='BUTTON'/>
</Transform>
<Transform translation='0.035 -0.09 0.025'>
<Shape USE='BUTTON'/>
</Transform>
<Transform translation='0.065 -0.09 0.025'>
<Shape USE='BUTTON'/>
</Transform>
<Transform rotation='1.0 0.0 0.0 1.57' translation='-0.11 -0.085 0.025'>
<Shape DEF='KNOB'>
<Appearance>
<Material USE='GREEN_COLOR'/>
</Appearance>
<Cylinder height='0.02' radius='0.0125'/>
</Shape>
</Transform>
<Transform rotation='1.0 0.0 0.0 1.57' translation='0.11 -0.085 0.025'>
<Shape USE='KNOB'/>
</Transform>
</Group>
<!-- ROUTE information for CycleSelector node:  [from RIGHT_BUTTON1.isActive to set_boolean ] [from value_changed to MFD_SCREEN.set_whichChoice ] -->
 <Script DEF='CycleSelector'>
<field name='value' type='SFInt32' value='0' accessType='initializeOnly'/>
<field name='set_boolean' type='SFBool' accessType='inputOnly'/>
<field name='value_changed' type='SFInt32' accessType='outputOnly'/>
<![CDATA[

ecmascript:

function set_boolean(bool, eventTime)
{
	if (bool == false)
		return;
	if (value == 3)
		value = -1;
	value++;
	value_changed = value;
}
]]>
</Script>
<!-- ROUTE information for FiftyCalOnOffToggle node:  [from RIGHT_BUTTON2.isActive to set_boolean ] [from value_changed to FIFTY_CAL_SOUND.set_whichChoice ] -->
 <Script DEF='FiftyCalOnOffToggle'>
<field name='value' type='SFInt32' value='-1' accessType='initializeOnly'/>
<field name='set_boolean' type='SFBool' accessType='inputOnly'/>
<field name='value_changed' type='SFInt32' accessType='outputOnly'/>
<![CDATA[

ecmascript:
function set_boolean(bool, eventTime)
{
	if (bool == false)
		return;

	if (value == 0)
		value = -1;
	else
		value = 0;

	value_changed = value;
}
]]>
</Script>
<ROUTE fromNode='RIGHT_BUTTON1' fromField='isActive' toNode='CycleSelector' toField='set_boolean'/>
<ROUTE fromNode='CycleSelector' fromField='value_changed' toNode='MFD_SCREEN' toField='set_whichChoice'/>
<ROUTE fromNode='RIGHT_BUTTON2' fromField='isActive' toNode='FiftyCalOnOffToggle' toField='set_boolean'/>
<ROUTE fromNode='FiftyCalOnOffToggle' fromField='value_changed' toNode='FIFTY_CAL_SOUND' toField='set_whichChoice'/>
</Scene>
</X3D>
<!--
