<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.2//EN" "http://www.web3d.org/specifications/x3d-3.2.dtd">
<X3D profile='Immersive' version='3.2 xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation =' http://www.web3d.org/specifications/x3d-3.2.xsd '>
<head>
<meta name='titlecontent='PoolMontereyPeninsulaCollege.x3d'/>
<meta name='descriptioncontent='Monterey Peninsula College (MPC) swimming pool, built several different ways, author can choose one by Switch node selection'/>
<meta name='creatorcontent='Don Brutzman and MV3204 class'/>
<meta name='createdcontent='9 April 2010'/>
<meta name='modifiedcontent='20 October 2019'/>
<meta name=' error content=' The following image test snapshots show inconsistent support by X3D players. Xj3D did not render the textures, SwirlX3D player did not render the scene. '/>
<meta name='Imagecontent='TextureTransformViewBsContact.png'/>
<meta name='Imagecontent='TextureTransformViewInstantReality.png'/>
<meta name='Imagecontent='TextureTransformViewOctagaVS.png'/>
<meta name='Imagecontent='TextureTransformViewFreeWrl.png'/>
<meta name='Imagecontent='TextureTransformViewXj3d.png'/>
<meta name='infocontent='This scene includes trace diagnostic for changing user navigation from EXAMINE to FLY when binding/unbinding the initial overhead-perspective Viewpoint'/>
<meta name='drawingcontent='PoolMontereyPeninsulaCollegeSketch.png'/>
<meta name='Imagecontent='PoolMontereyPeninsulaCollegeDiagram.pdf'/>
<meta name='Imagecontent='PoolMontereyPeninsulaCollegeDiagram.png'/>
<meta name='Imagecontent='PoolMontereyPeninsulaCollegeDiagram.vsd'/>
<meta name='mapcontent='MontereyPeninsulaCollegeOpenStreetMap.png'/>

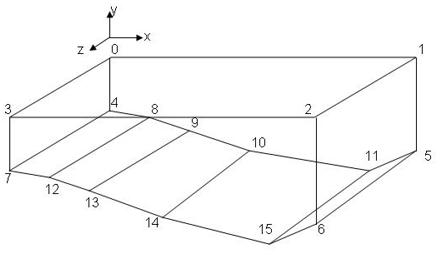

<meta name='drawingcontent='snapshots/PoolCoordinateIndexValues.jpg'/>
<meta name='drawingcontent='snapshots/PoolCoordinateIndexValuesSketch.jpg'/>
<meta name='Imagecontent='snapshots/PoolSnapshotBoxesAbove.png'/>
<meta name='Imagecontent='snapshots/PoolSnapshotBoxesBelow.png'/>
<meta name='Imagecontent='snapshots/PoolSnapshotIndexedFaceSetAbove.png'/>

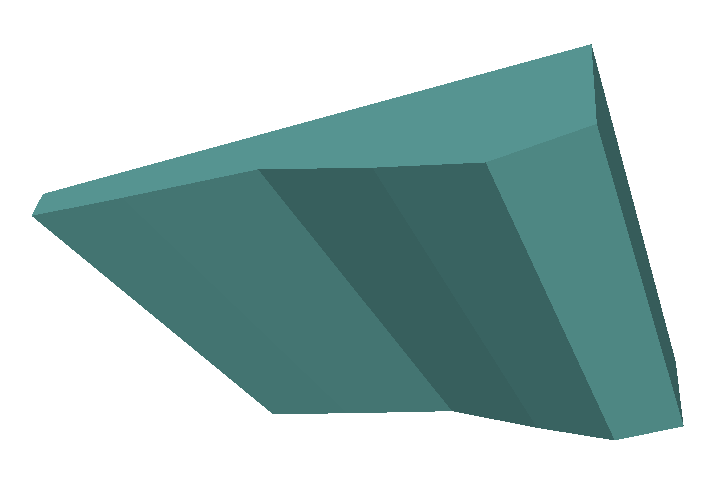

<meta name='Imagecontent='snapshots/PoolSnapshotIndexedFaceSetBelow.png'/>
<meta name='photocontent='snapshots/UltrasonicDistanceMeasurer.jpg'/>
<meta name='TODOcontent='information about ROV races'/>
<meta name='TODOcontent='photo(s) of pool'/>
<meta name='TODOcontent='document how to adjust Viewpoint centerOfRotation'/>
<meta name='subjectcontent='X3D swimming pool'/>
<meta name='referencecontent='PoolMontereyPeninsulaCollegeUsingBoxes.x3d'/>
<meta name='referencecontent=' http://mmog.ern.nps.edu/svn/mv3204/examples/PoolMontereyPeninsulaCollege.x3d '/>
<meta name='identifiercontent=' https://savage.nps.edu/Savage/Locations/MontereyPeninsulaCollege/PoolMontereyPeninsulaCollege.x3d '/>
<meta name='generatorcontent='X3D-Edit, https://savage.nps.edu/X3D-Edit'/>
<meta name='licensecontent=' ../../license.html'/>
</head>
<!-- -->
<Scene>
<WorldInfo title='PoolMontereyPeninsulaCollege.x3d'/>
<PointLight DEF='LitPoollocation='37.5 100 32'/>
<Background skyColor='1 1 1transparency='0'/>
<!-- Put CoordinateAxes with correct directional alignment at pool origin 0 0 0) -->
<Inline DEF='CoordinateAxesbboxCenter='0 0 0bboxSize='-1 -1 -1'
  url=' "../../Tools/Authoring/CoordinateAxes.x3d" "https://savage.nps.edu/Savage/Tools/Authoring/CoordinateAxes.x3d" "https://x3dgraphics.com/examples/X3dForWebAuthors/Chapter03Grouping/CoordinateAxes.x3d" "../../Tools/Authoring/CoordinateAxes.wrl" "https://savage.nps.edu/Savage/Tools/Authoring/CoordinateAxes.wrl" "https://x3dgraphics.com/examples/X3dForWebAuthors/Chapter03Grouping/CoordinateAxes.wrl" '/>

<!-- Only one NavInfo can be bound at a time. Include "ANY" to allow user override. -->
<!-- Note that our local units here are still meters. -->
<NavigationInfo DEF='NavigationExamineModeavatarSize='0.25 1.6 2speed='5type='"EXAMINE" "FLY" "ANY"'/>
<NavigationInfo DEF='NavigationWalkModeavatarSize='0.25 1.6 2speed='5type='"WALK" "ANY"'/>
<NavigationInfo DEF='NavigationFlyModeavatarSize='0.25 1.6 2speed='5type='"FLY" "ANY"'/>
<!-- All pool model measurements are recorded in feet, therefore scale them into meters. X is length, Y is height, Z is width. -->
<Transform DEF='ScaleFeetToMetersscale='0.3048 0.3048 0.3048bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<!-- Box centers are at local coordinate 0 0 0, this translation shifts them to put corner at pool coordinate 0 0 0 -->
<Group DEF='ViewingNavigationbboxCenter='0 0 0bboxSize='-1 -1 -1'>
<!-- Only one NavInfo can be bound at a time. Include "ANY" to allow user override. -->
<!-- Viewpoints are placed here since their position is recorded in feet using the pool coordinate system -->
<Transform center='37.5 100 32rotation='1 0 0 -1.5708bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Viewpoint DEF='ViewOverheadLongWaysAcrossdescription='High above pool, long-ways across, from 100 feetorientation='0 0 1 3.1416position='37.5 100 32'/>
</Transform>
<Transform center='37.5 120 32rotation='1 0 0 -1.5708bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<!-- ROUTE information for ViewOverhead node:  [from isBound to Trace_ROUTE_ViewOverhead.isBound_TO_NavigationExamineMode.set_bind.traceValue ] -->
<Viewpoint DEF='ViewOverheadcenterOfRotation='0 120 0description='High above pool, long-ways up, from 120 feetorientation='0 0 1 -1.5708position='37.5 120 32'/>
</Transform>
<!-- <ROUTE fromField='isBound' fromNode='ViewOverhead' toField='set_bind' toNode='NavigationExamineMode'/> -->
<Group bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<!-- ======= ROUTE Trace ============================================== -->
<!-- ROUTE information for Trace_ROUTE_ViewOverhead.isBound_TO_NavigationExamineMode.set_bind node:  [from ViewOverhead.isBound to traceValue ] -->
<Script DEF='Trace_ROUTE_ViewOverhead.isBound_TO_NavigationExamineMode.set_bindmustEvaluate='true'>
<!-- Trace ROUTEd values on X3D browser console -->
<field name='reportIntervaltype='SFTimevalue='1.0accessType='initializeOnly'
 appinfo='Sampling frequency in seconds (0 means all values)'/>

<field name='traceValuetype='SFBoolaccessType='inputOnly'/>
<field name='timeStampPreviousReporttype='SFTimevalue='-1accessType='initializeOnly'/>
<![CDATA[

ecmascript:
    function set_traceValue (eventValue, timeStamp)
    {
        Browser.println ('Script method set_traceValue invoked, which is now handing off to traceValueHandler()...');
        traceValueHandler (eventValue, timeStamp);
    }
    function traceValue (eventValue, timeStamp)
    {
        Browser.println ('Script method traceValue invoked, which is now handing off to traceValueHandler()...');
        traceValueHandler (eventValue, timeStamp);
    }
    function traceValueHandler (eventValue, timeStamp)
    {
      // input eventValue received for trace field
      if (timeStamp - timeStampPreviousReport >= reportInterval) {
        Browser.println ('Trace_ROUTE_ViewOverhead.isBound_TO_NavigationExamineMode.set_bind type=SFBool value=' + eventValue);
        timeStampPreviousReport = timeStamp;
        if  (eventValue == true)
             Browser.println ('User navigation should be EXAMINE');
        else Browser.println ('User navigation should be FLY');
      }
    }
    function timeOfDay (someTime) {
      hh = Math.floor (someTime /(60*60)) % 24;
      mm = Math.floor (someTime / 60)     % 60;
      ss = Math.floor (someTime)          % 60;
      if (hh < 9) hour   = '0' + hh;
      else        hour   =       hh;
      if (mm < 9) minute = '0' + mm;
      else        minute =       mm;
      if (ss < 9) second = '0' + ss;
      else        second =       ss;
      return '(' + hour + ':' + minute + ':' + second + ' GMT)';
    }


]]>
</Script>
<ROUTE fromNode='ViewOverheadfromField='isBoundtoNode='Trace_ROUTE_ViewOverhead.isBound_TO_NavigationExamineMode.set_bindtoField='traceValue'/>
<!-- ======= ROUTE Trace block complete ===================================================== -->
</Group>
<!-- other Viewpoints do not get EXAMINE navigation type -->
<Viewpoint description='Shallow end left side, from originorientation='0.0067 0.9998 0.0161 -2.3563position='-13 6 -13'/>
<Viewpoint description='Pool center left sideorientation='0 0.9955 0.0949 3.1413position='37.52 10 -20'/>
<Viewpoint description='Deep end left sideorientation='-0.0203 0.9988 0.0451 2.2984position='87 6 -12'/>
<Viewpoint description='Deep end centerorientation='-0.0857 0.9926 0.0857 1.5782position='95 10 32'/>
<Viewpoint description='Deep end right sideorientation='-0.1001 0.994 0.0449 0.8487position='87 6 76'/>
<Viewpoint description='Pool center right sideorientation='-1 0.002 0.0002 0.2235position='37.52 10 84'/>
<Viewpoint description='Shallow end right sideorientation='0.1001 0.994 0.0449 -0.8487position='-12 6 76'/>
<Viewpoint description='Shallow end centerorientation='0.0864 0.99251 0.0864 -1.578318position='-20 10 32'/>
</Group>
<!-- ROUTE information for SwitchWhichPool node:  [from PoolSequencer.value_changed to whichChoice ] -->
<Switch DEF='SwitchWhichPoolwhichChoice='2bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<!-- Select one of the pools as follows, otherwise turn on the PoolSwitcherClock -->
<!-- whichChoice=0: BoxPoolGroup, whichChoice=1: IfsPoolGroup, whichChoice=2: IfsPoolGroupTextured, whichChoice=3: SimpleElevationGridPoolGroup, whichChoice=4: DetailedElevationGridPoolGroup -->
<Group DEF='BoxPoolGroupbboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Transform DEF='ShiftBoxCornersToPoolCentertranslation='37.5 -12.75 32bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Shape DEF='PoolFloorbboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Box size='75 0.25 64solid='true'/>
<Appearance DEF='AppearanceWall'>
<Material diffuseColor='0.5 0.9 0.9'/>
</Appearance>
</Shape>
<Transform DEF='ShallowWalltranslation='-37.5 6.25 0bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Shape DEF='ShortWallbboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Box size='0.25 12.75 64solid='true'/>
<Appearance USE='AppearanceWall'/>
</Shape>
</Transform>
<Transform DEF='DeepWalltranslation='37.5 6.25 0bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Shape USE='ShortWallbboxCenter='0 0 0bboxSize='-1 -1 -1'/>
</Transform>
<Transform DEF='LeftWalltranslation='0 6.25 -32bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Shape DEF='LongWallbboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Box size='75 12.75 0.25solid='true'/>
<Appearance USE='AppearanceWall'/>
</Shape>
</Transform>
<Transform DEF='RightWalltranslation='0 6.25 32bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Shape USE='LongWallbboxCenter='0 0 0bboxSize='-1 -1 -1'/>
</Transform>
<Transform DEF='DeepFloorrotation='0 0 1 0.1732translation='32.5 .9 0bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Shape bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Box size='10.152 0.25 64solid='true'/>
<Appearance USE='AppearanceWall'/>
</Shape>
</Transform>
<Transform DEF='DeepFloor2rotation='0 0 1 -0.2085translation='21 1.4 0bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Shape bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Box size='13.288 0.25 64solid='true'/>
<Appearance USE='AppearanceWall'/>
</Shape>
</Transform>
<Transform DEF='DeepFloor3rotation='0 0 1 -0.2783translation='7.5 4.75 0bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Shape bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Box size='14.560 0.25 64solid='true'/>
<Appearance USE='AppearanceWall'/>
</Shape>
</Transform>
<Transform DEF='DeepFloor4rotation='0 0 1 -0.0476translation='-10 7.25 0bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Shape bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Box size='21.024 0.25 64solid='true'/>
<Appearance USE='AppearanceWall'/>
</Shape>
</Transform>
<Transform DEF='DeepFloor5rotation='0 0 1 -0.0588translation='-29 8.25 0bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Shape bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Box size='17.029 0.25 64solid='true'/>
<Appearance USE='AppearanceWall'/>
</Shape>
</Transform>
</Transform>
</Group>
<Group DEF='IfsPoolGroupbboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Shape bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<IndexedFaceSet DEF='IndexedFaceSetPoolconvex='falsesolid='falsecoordIndex='0 3 7 4 -1 1 5 6 2 -1 4 7 12 8 -1 8 12 13 9 -1 9 13 14 10 -1 10 14 15 11 -1 11 15 6 5 -1 0 1 5 11 10 9 8 4 -1 3 2 6 15 14 13 12 7 -1'>
<Coordinate DEF='PoolPointspoint='0 0 0 75 0 0 75 0 64 0 0 64 0 -4 0 75 -11 0 75 -11 64 0 -4 64 17 -5 0 38 -6 0 53 -10 0 65 -12.75 0 17 -5 64 38 -6 64 53 -10 64 65 -12.75 64'/>
</IndexedFaceSet>
<Appearance>
<Material diffuseColor='0.580392 1 0.976471'/>
</Appearance>
</Shape>
</Group>
<Group DEF='IfsPoolGroupTexturedbboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Shape bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<!-- note that right-hand rule normals point inward -->
<IndexedFaceSet DEF='IfsPoolSidesconvex='falsesolid='falsecoordIndex='0 3 7 4 -1 1 5 6 2 -1 0 4 8 9 10 11 5 1 -1 3 2 6 15 14 13 12 7 -1'>
<Coordinate USE='PoolPoints'/>
</IndexedFaceSet>
<Appearance>
<Material diffuseColor='0.580392 1 0.976471'/>
</Appearance>
</Shape>
<Shape bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<!-- note that right-hand rule normals point upward -->
<IndexedFaceSet DEF='IfsPoolBottomconvex='falsesolid='falsecoordIndex='4 7 12 8 -1 8 12 13 9 -1 9 13 14 10 -1 10 14 15 11 -1 11 15 6 5 -1'>
<Coordinate USE='PoolPoints'/>
</IndexedFaceSet>
<Appearance>
<Material diffuseColor='0.580392 1 0.976471'/>
<ImageTexture DEF='PoolDiagram'
  url=' "PoolMontereyPeninsulaCollegeDiagram.png" "https://savage.nps.edu/Savage/Locations/PoolMontereyPeninsulaCollegeDiagram.png" '/>

<TextureTransform DEF='CutUnusedPortionOfImagescale='-0.786 0.893translation='0.135 0.1335'/>
</Appearance>
</Shape>
</Group>
<Group DEF='SimpleElevationGridPoolGroupbboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Shape bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<!-- Add 2 elements in each direction to include the walls -->
<!-- TODO wrong size -->
<ElevationGrid solid='falsexDimension='7xSpacing='10zDimension='6zSpacing='10height='0 0 0 0 0 0 0 0 -4 -5 -6 -10 -12.75 0 0 -4 -5 -6 -10 -12.75 0 0 -4 -5 -6 -10 -12.75 0 0 -4 -5 -6 -10 -12.75 0 0 0 0 0 0 0 0'/>
<Appearance>
<Material diffuseColor='0.3 0.3 0.7'/>
</Appearance>
</Shape>
</Group>
<Group DEF='DetailedElevationGridPoolGroupbboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Shape bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<!-- Detailed Elevation Grid Pool Edited by C.H. Yang -->
<ElevationGrid solid='falsexDimension='77zDimension='65height='0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 -4 -4.0625 -4.125 -4.1875 -4.25 -4.3125 -4.375 -4.4375 -4.5 -4.5625 -4.625 -4.6875 -4.75 -4.8125 -4.875 -4.9375 -5 -5.05 -5.1 -5.15 -5.2 -5.25 -5.3 -5.35 -5.4 -5.45 -5.5 -5.55 -5.6 -5.65 -5.7 -5.75 -5.8 -5.85 -5.9 -5.95 -5.975 -6 -6.2666 -6.5332 -6.7998 -7.0664 -7.333 -7.5996 -7.8662 -8.1328 -8.3994 -8.666 -8.9326 -9.1992 -9.4658 -9.7324 -10 -10.25 -10.5 -10.75 -11 -11.25 -11.5 -11.75 -12 -12.25 -12.5 -12.625 -12.75 -12.575 -12.4 -12.225 -12.05 -11.875 -11.7 -11.525 -11.35 -11.175 -11 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0'/>
<!-- TODO detailed ElevationGrid version, perhaps copy/paste numerous values from a spreadsheet -->
<!-- Add 2 elements in each direction to include the walls -->
<Appearance>
<Material diffuseColor='0.3 0.3 0.7'/>
</Appearance>
</Shape>
</Group>
</Switch>
<Transform DEF='ShiftWaterSurfaceDowntranslation='0 -1 0bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Shape bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<!-- note that right-hand rule normals point upward -->
<IndexedFaceSet DEF='PoolSurfacesolid='falsecoordIndex='0 3 2 1 -1'>
<Coordinate USE='PoolPoints'/>
</IndexedFaceSet>
<Appearance>
<Material diffuseColor='0.2 0.8 0.9shininess='1transparency='0.9'/>
</Appearance>
</Shape>
</Transform>
<!-- Now add a deck around the edge of the pool to allow WALKing around, include scaled/transformed texture -->
<Group DEF='SidewalksbboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Shape DEF='BottomSidewalkbboxCenter='0 0 0bboxSize='-1 -1 -1'>
<!-- note that right-hand rule normals point upward -->
<IndexedFaceSet colorPerVertex='falsesolid='falsecolorIndex='0coordIndex='0 4 7 3 -1'>
<Coordinate DEF='SidewalkPointspoint='-10 0 -10 0 0 -10 75 0 -10 85 0 -10 -10 0 0 0 0 0 75 0 0 85 0 0 -10 0 64 0 0 64 75 0 64 85 0 64 -10 0 74 0 0 74 75 0 74 85 0 74'/>
<Color DEF='SandyColorcolor='0.99 0.99 0.2'/>
</IndexedFaceSet>
<Appearance>
<ImageTexture USE='PoolDiagram'/>
<TextureTransform scale='-1 1translation='0 0.012'/>
</Appearance>
</Shape>
<Shape DEF='TopSidewalkbboxCenter='0 0 0bboxSize='-1 -1 -1'>
<!-- note that right-hand rule normals point upward, with same relative ordering of points as first sidewalk -->
<IndexedFaceSet colorPerVertex='falsesolid='falsecolorIndex='0coordIndex='8 12 15 11 -1'>
<Coordinate USE='SidewalkPoints'/>
<Color USE='SandyColor'/>
</IndexedFaceSet>
<Appearance>
<ImageTexture USE='PoolDiagram'/>
<TextureTransform scale='-1 1translation='0 -0.105'/>
</Appearance>
</Shape>
<Shape DEF='LeftSidewalkbboxCenter='0 0 0bboxSize='-1 -1 -1'>
<!-- note that right-hand rule normals point upward, with same relative ordering of points as first sidewalk -->
<IndexedFaceSet colorPerVertex='falsesolid='falsecolorIndex='0coordIndex='6 10 11 7 -1'>
<Coordinate USE='SidewalkPoints'/>
<Color USE='SandyColor'/>
</IndexedFaceSet>
<Appearance>
<ImageTexture USE='PoolDiagram'/>
<!-- Scaling cropped sidewalk area to image: 74' / 64' = 1.15684' / 64' = 1.2666, 95' / 75' = 1.312 -->
<TextureTransform rotation='1.570796scale='0.695 0.78translation='0.15 1.284'/>
</Appearance>
</Shape>
<Shape DEF='RightSidewalkbboxCenter='0 0 0bboxSize='-1 -1 -1'>
<!-- note that right-hand rule normals point upward, with same relative ordering of points as first sidewalk -->
<IndexedFaceSet colorPerVertex='falsesolid='falsecolorIndex='0coordIndex='4 8 9 5 -1'>
<Coordinate USE='SidewalkPoints'/>
<Color USE='SandyColor'/>
</IndexedFaceSet>
<Appearance>
<ImageTexture USE='PoolDiagram'/>
<!-- Scaling cropped sidewalk area to image: 74' / 64' = 1.156 -->
<TextureTransform rotation='1.570796scale='0.697 0.777translation='0.1515 -0.0024'/>
</Appearance>
</Shape>
</Group>
<!-- Animation chain: set enabled='true' to see each of the different pool models, one after another -->
<!-- ROUTE information for PoolSwitcherClock node:  [from fraction_changed to PoolSequencer.set_fraction ] -->
<TimeSensor DEF='PoolSwitcherClockcycleInterval='24enabled='falseloop='true'/>
<!-- ROUTE information for PoolSequencer node:  [from PoolSwitcherClock.fraction_changed to set_fraction ] [from value_changed to SwitchWhichPool.whichChoice ] -->
<IntegerSequencer DEF='PoolSequencerkey='0 0.2 0.4 0.6 0.8 1keyValue='0 1 2 3 4 0containerField='children'/>
<ROUTE fromNode='PoolSwitcherClockfromField='fraction_changedtoNode='PoolSequencertoField='set_fraction'/>
<ROUTE fromNode='PoolSequencerfromField='value_changedtoNode='SwitchWhichPooltoField='whichChoice'/>
<!-- TODO Alternatively consider side by side view, perhaps with transformed DEF/USE Viewpoints -->
</Transform>
</Scene>
</X3D>
<!--

Index for DEF nodes : AppearanceWall, BottomSidewalk, BoxPoolGroup, CoordinateAxes, CutUnusedPortionOfImage, DeepFloor, DeepFloor2, DeepFloor3, DeepFloor4, DeepFloor5, DeepWall, DetailedElevationGridPoolGroup, IfsPoolBottom, IfsPoolGroup, IfsPoolGroupTextured, IfsPoolSides, IndexedFaceSetPool, LeftSidewalk, LeftWall, LitPool, LongWall, NavigationExamineMode, NavigationFlyMode, NavigationWalkMode, PoolDiagram, PoolFloor, PoolPoints, PoolSequencer, PoolSurface, PoolSwitcherClock, RightSidewalk, RightWall, SandyColor, ScaleFeetToMeters, ShallowWall, ShiftBoxCornersToPoolCenter, ShiftWaterSurfaceDown, ShortWall, SidewalkPoints, Sidewalks, SimpleElevationGridPoolGroup, SwitchWhichPool, TopSidewalk, Trace_ROUTE_ViewOverhead.isBound_TO_NavigationExamineMode.set_bind, ViewingNavigation, ViewOverhead, ViewOverheadLongWaysAcross

Index for Viewpoint images : Viewpoint_1, Viewpoint_2, Viewpoint_3, Viewpoint_4, Viewpoint_5, Viewpoint_6, Viewpoint_7, Viewpoint_8, ViewOverhead, ViewOverheadLongWaysAcross
-->

<!-- Color key: <X3dNode DEF='idName' field='value'/> matches <XmlElement DEF='idName' attribute='value'/>
(Light blue background: behavior node) (Grey background: inserted documentation) (Magenta background: X3D Extensibility)
-->

<!-- Additional help information about X3D scenes: X3D Resources, X3D Scene Authoring Hints and X3D Tooltips -->
