| 1 |
<?xml version="1.0" encoding="UTF-8"?>
|
| 2 |
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.0//EN" "https://www.web3d.org/specifications/x3d-3.0.dtd">
|
| 3 | <X3D profile='Immersive' version='3.0' xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.0.xsd'> |
| 4 | <head> |
| 5 | <meta name='title' content='Mk45.x3d'/> |
| 6 | <meta name='description' content='Mk45 main gun of Yavuz Class Frigate'/> |
| 7 | <meta name='creator' content='Ozan APAYDIN'/> |
| 8 | <meta name='created' content='17 September 2001'/> |
| 9 | <meta name='modified' content='20 October 2019'/> |
| 10 | <meta name='reference' content='https://www.fas.org/man/dod-101/sys/ship/weaps/mk-45.htm'/> |

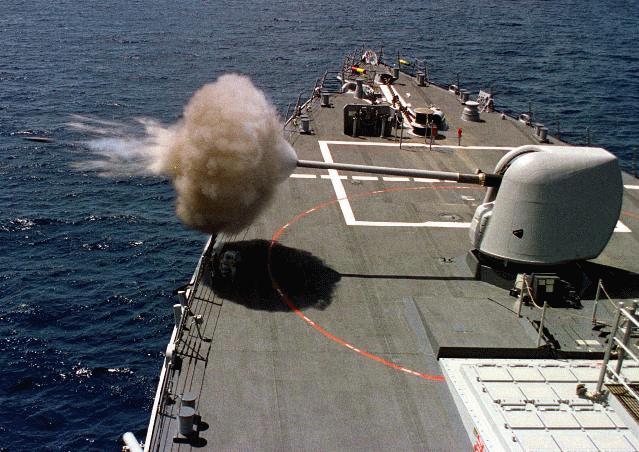

| 11 | <meta name='photo' content='mk45shot.jpg'/> |
| 12 | <meta name='identifier' content='https://savage.nps.edu/Savage/ShipsMilitary/FrigateYavuzTurkey/Mk45.x3d'/> |
| 13 | <meta name='generator' content='X3D-Edit 3.2, https://savage.nps.edu/X3D-Edit'/> |
| 14 | <meta name='license' content='../../license.html'/> |
| 15 | </head> |
Index for DEF nodes:
BoomMaterial,
BoomTimer,
BoomTransform,
CannonFireSound,
CannonSense,
CannonTrans,
FireButton,
FireButtonSensor,
GunColor,
Namlu,
NamluDondur,
NamluTrans,
ScaleInterp,
TransparencyInterp
| 16 | <Scene> |
| 17 | <WorldInfo title='Mk45.x3d'/> |
| 18 | <Background skyColor='0.7 0.7 0.7'/> |
| 19 | <Sound maxBack='100' maxFront='100' minBack='0.01' minFront='0.01'> |
| 20 |
<!-- ROUTE information for CannonFireSound node:
[from FireButtonSensor.touchTime to startTime
]
-->
<AudioClip DEF='CannonFireSound' url=' "CannonFire.wav" "https://savage.nps.edu/Savage/ShipsMilitary/FrigateYavuzTurkey/CannonFire.wav" '/> |
| 21 | </Sound> |
| 22 |
<!-- ROUTE information for CannonTrans node:
[from CannonSense.rotation_changed to set_rotation
]
-->
<Transform DEF='CannonTrans' center='0.75 0 0'> |
| 23 | <Shape> |
| 24 | <Extrusion convex='false' creaseAngle='.9' crossSection='-1.1 0.0 -1.0 0.5 0.5 1 2.2 1 2.6 0.5 3 0 2.6 -0.5 2.2 -1 0.5 -1 -1.0 -0.5 -1.1 0.0' scale='1.0 1.5 1.2 1.4 1.1 1.3 1.0 1.0 0.5 0.7 0.001 0.001' spine='0.0 -1.0 0.0 0.0 1.3 0.0 0.0 1.9 0.0 0.0 2.0 0.0 0.0 2.3 0.0 0.0 2.5 0.0'/> |
| 25 | |
| 26 | <Material diffuseColor='.7 .7 .8'/> |
| 27 | </Appearance> |
| 28 | </Shape> |
| 29 | <Transform translation='-1 0 0'> |
| 30 | <Shape> |
| 31 | <Extrusion crossSection='-0.75 0.78 0.75 0.78 0.75 -0.78 -0.75 -0.78 -0.75 0.78' scale='1.0 1.0 0.3 0.855' spine='0.0 -1.0 0.0 0.0 1.9 0.0'/> |
| 32 | <Appearance USE='GunColor'/> |
| 33 | </Shape> |
| 34 | <Transform rotation='0 0 1 -0.18' translation='-0.36 1.15 0'> |
| 35 | <Shape> |
| 36 | <Box size='0.01 1.5 0.8'/> |
| 37 | <Appearance> |
| 38 | <Material diffuseColor='0.1 0.1 0.1'/> |
| 39 | </Appearance> |
| 40 | </Shape> |
| 41 | </Transform> |
| 42 | </Transform> |
| 43 | <Transform rotation='1 0 0 -1.57'> |
| 44 |
<!-- ROUTE information for NamluDondur node:
[from rotation_changed to NamluTrans.set_rotation
]
-->
<CylinderSensor DEF='NamluDondur' maxAngle='0.45'/> |
| 45 |
<!-- ROUTE information for NamluTrans node:
[from NamluDondur.rotation_changed to set_rotation
]
-->
<Transform DEF='NamluTrans'> |
| 46 | <Transform rotation='1 0 0 1.57'> |
| 47 | <Transform rotation='0 0 1 1.57' translation='-1.5 0.99 0'> |
| 48 | <Group DEF='Namlu'> |
| 49 | <Shape> |
| 50 | <Cylinder height='0.5' radius='0.2'/> |
| 51 | <Appearance> |
| 52 | <Material diffuseColor='0.1 0.1 0.1'/> |
| 53 | </Appearance> |
| 54 | </Shape> |
| 55 | <Transform translation='0.0 0.2 0'> |
| 56 | <Shape> |
| 57 | <Cylinder height='0.6' radius='0.16'/> |
| 58 | <Appearance> |
| 59 | <Material diffuseColor='1 1 0' shininess='0.8'/> |
| 60 | </Appearance> |
| 61 | </Shape> |
| 62 | <Transform translation='0 2.5 0'> |
| 63 | <Shape> |
| 64 | <Cylinder height='4.5' radius='0.12'/> |
| 65 | <Appearance> |
| 66 | <Material diffuseColor='0.5 0.5 0.5' shininess='0.8'/> |
| 67 | </Appearance> |
| 68 | </Shape> |
| 69 | <Shape> |
| 70 | <Cylinder height='4.501' radius='0.08'/> |
| 71 | <Appearance> |
| 72 | <Material diffuseColor='0.1 0.1 0.1'/> |
| 73 | </Appearance> |
| 74 | </Shape> |
| 75 |
<!-- ROUTE information for BoomTransform node:
[from ScaleInterp.value_changed to set_scale
]
-->
<Transform DEF='BoomTransform' scale='0.00001 0.00001 0.00001' translation='0.0 3.1 0.0'> |
| 76 | <Shape> |
| 77 | <Extrusion beginCap='false' creaseAngle='1.57' crossSection='1.0 0.0 0.92 -0.38 0.71 -0.71 0.38 -0.92 0.0 -1.0 -0.38 -0.92 -0.71 -0.71 -0.92 -0.38 -1.0 -0.0 -0.92 0.38 -0.71 0.71 -0.38 0.92 0.0 1.0 0.38 0.92 0.71 0.71 0.92 0.38 1.0 0.0' endCap='false' spine='2.0 0.0 0.0 1.85 0.0 0.77 1.41 0.0 1.41 0.77 0.0 1.85 0.0 0.0 2.0 -0.77 0.0 1.85 -1.41 0.0 1.41 -1.85 0.0 0.77 -2.0 0.0 0.0 -1.85 0.0 -0.77 -1.41 0.0 -1.41 -0.77 0.0 -1.85 0.0 0.0 -2.0 0.77 0.0 -1.85 1.41 0.0 -1.41 1.85 0.0 -0.77 2.0 0.0 0.0'/> |
| 78 | <Appearance> |
| 79 |
<!-- ROUTE information for BoomMaterial node:
[from TransparencyInterp.value_changed to set_transparency
]
-->
<Material DEF='BoomMaterial'/> |
| 80 |
<ImageTexture
url=' "Boom1.jpg
" "https://savage.nps.edu/Savage/ShipsMilitary/FrigateYavuzTurkey/Boom1.jpg
" '/>
|
| 81 | </Appearance> |
| 82 | </Shape> |
| 83 |
<!-- ROUTE information for TransparencyInterp node:
[from BoomTimer.fraction_changed to set_fraction
]
[from value_changed to BoomMaterial.set_transparency
]
-->
<ScalarInterpolator DEF='TransparencyInterp' key='0 0.04 0.1 0.7 1.0' keyValue='1.0 0.2 0.3 1.0 1.0'/> |
| 84 |
<!-- ROUTE information for ScaleInterp node:
[from BoomTimer.fraction_changed to set_fraction
]
[from value_changed to BoomTransform.set_scale
]
-->
<PositionInterpolator DEF='ScaleInterp' key='0 0.04 0.1 0.7 1.0' keyValue='0.00001 0.00001 0.00001 0.05 0.4 0.05 0.4 0.6 0.4 0.5 0.9 0.5 0.00001 0.0001 0.00001'/> |
| 85 |
<!-- ROUTE information for BoomTimer node:
[from FireButtonSensor.touchTime to set_startTime
]
[from fraction_changed to ScaleInterp.set_fraction
]
[from fraction_changed to TransparencyInterp.set_fraction
]
-->
<TimeSensor DEF='BoomTimer' cycleInterval='5.0'/> |
| 86 | </Transform> |
| 87 | </Transform> |
| 88 | </Transform> |
| 89 | </Group> |
| 90 | </Transform> |
| 91 | </Transform> |
| 92 | </Transform> |
| 93 | <Transform rotation='0 0 1 1.57' translation='0.7 0 2.41'> |
| 94 | <Transform rotation='1 0 0 0.15'> |
| 95 | <Shape DEF='FireButton'> |
| 96 | <Box size='0.5 0.5 0.001'/> |
| 97 | <Appearance> |
| 98 |
<ImageTexture
url=' "FireButton.gif
" "https://savage.nps.edu/Savage/ShipsMilitary/FrigateYavuzTurkey/FireButton.gif
" '/>
|
| 99 | </Appearance> |
| 100 | </Shape> |
| 101 |
<!-- ROUTE information for FireButtonSensor node:
[from touchTime to BoomTimer.set_startTime
]
[from touchTime to CannonFireSound.startTime
]
-->
<TouchSensor DEF='FireButtonSensor'/> |
| 102 | </Transform> |
| 103 | </Transform> |
| 104 | </Transform> |
| 105 | <Transform translation='0.75 -1 0'> |
| 106 | <Shape> |
| 107 | <Cylinder height='0.8'/> |
| 108 | <Appearance USE='GunColor'/> |
| 109 | </Shape> |
| 110 | </Transform> |
| 111 |
<!-- ROUTE information for CannonSense node:
[from rotation_changed to CannonTrans.set_rotation
]
-->
<CylinderSensor DEF='CannonSense' maxAngle='1.7' minAngle='-1.7'/> |
| 112 | </Transform> |
| 113 | <Transform translation='0.75 -1.5 0'> |
| 114 | <Shape> |
| 115 | <Cylinder height='0.5' radius='1.8'/> |
| 116 | <Appearance USE='GunColor'/> |
| 117 | </Shape> |
| 118 | </Transform> |
| 119 | < ROUTE fromNode='CannonSense' fromField='rotation_changed' toNode='CannonTrans' toField='set_rotation'/> |
| 120 | < ROUTE fromNode='NamluDondur' fromField='rotation_changed' toNode='NamluTrans' toField='set_rotation'/> |
| 121 | < ROUTE fromNode='BoomTimer' fromField='fraction_changed' toNode='ScaleInterp' toField='set_fraction'/> |
| 122 | < ROUTE fromNode='ScaleInterp' fromField='value_changed' toNode='BoomTransform' toField='set_scale'/> |
| 123 | < ROUTE fromNode='BoomTimer' fromField='fraction_changed' toNode='TransparencyInterp' toField='set_fraction'/> |
| 124 | < ROUTE fromNode='TransparencyInterp' fromField='value_changed' toNode='BoomMaterial' toField='set_transparency'/> |
| 125 | < ROUTE fromNode='FireButtonSensor' fromField='touchTime' toNode='BoomTimer' toField='set_startTime'/> |
| 126 | < ROUTE fromNode='FireButtonSensor' fromField='touchTime' toNode='CannonFireSound' toField='startTime'/> |
| 127 | </Scene> |
| 128 | </X3D> |
Index for DEF nodes:
BoomMaterial,
BoomTimer,
BoomTransform,
CannonFireSound,
CannonSense,
CannonTrans,
FireButton,
FireButtonSensor,
GunColor,
Namlu,
NamluDondur,
NamluTrans,
ScaleInterp,
TransparencyInterp
Event Graph ROUTE Table entries with 8 ROUTE connections total, showing X3D event-model relationships for this scene.
Each row shows an event cascade that may occur during a single timestamp interval between frame renderings, as part of the X3D execution model.
|
FireButtonSensor
TouchSensor touchTime SFTime |
BoomTimer
TimeSensor set_startTime SFTime |
then
|
BoomTimer
TimeSensor fraction_changed SFFloat |
ScaleInterp
PositionInterpolator set_fraction SFFloat |
then
|
ScaleInterp
PositionInterpolator value_changed SFVec3f |
BoomTransform
Transform set_scale SFVec3f |
|||
|
then
|
BoomTimer
TimeSensor fraction_changed SFFloat |
TransparencyInterp
ScalarInterpolator set_fraction SFFloat |
then
|
TransparencyInterp
ScalarInterpolator value_changed SFFloat |
BoomMaterial
Material set_transparency SFFloat |
|||||
|
FireButtonSensor
TouchSensor touchTime SFTime |
CannonFireSound
AudioClip startTime SFTime |
|||||||||
|
CannonSense
CylinderSensor rotation_changed SFRotation |
CannonTrans
Transform set_rotation SFRotation |
|
NamluDondur
CylinderSensor rotation_changed SFRotation |
NamluTrans
Transform set_rotation SFRotation |
<!--
