<head>
<meta name='titlecontent='GridsExample.x3d'/>
<meta name='creatorcontent='Don Brutzman'/>
<meta name='createdcontent='11 October 2001'/>
<meta name='modifiedcontent='13 October 2013'/>

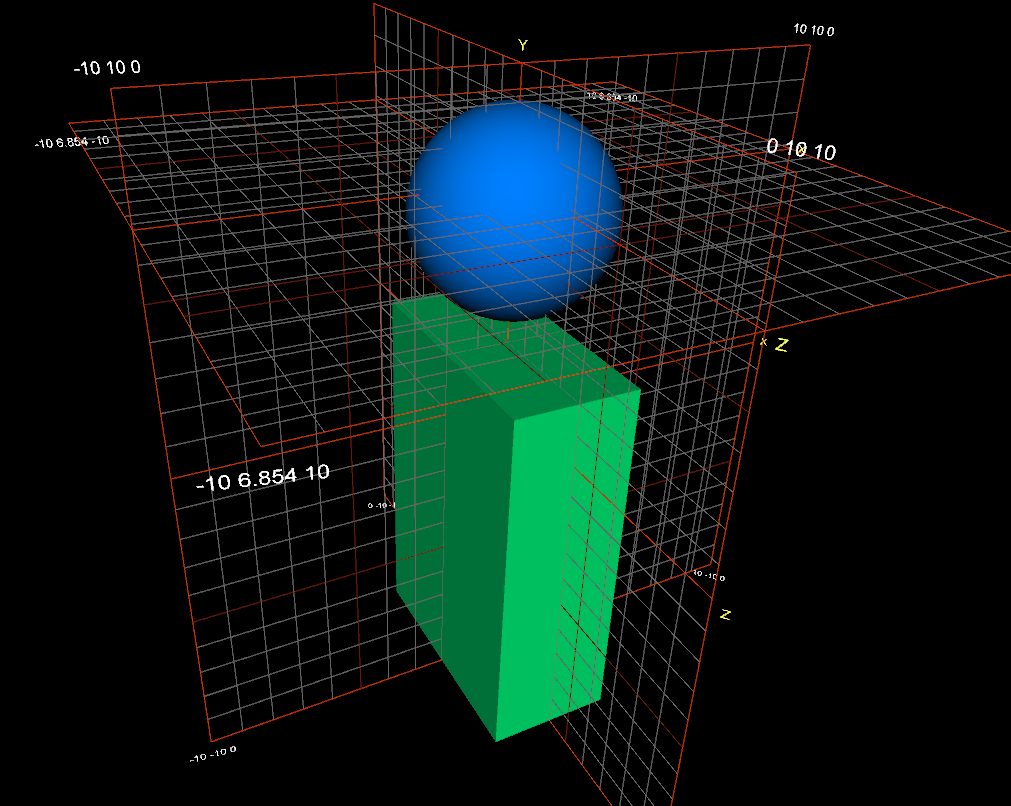

<meta name='descriptioncontent='Example showing all three line grid authoring tools to enable precise measurement of objects in 3D space. Select axis labels to drag any plane and move along axis, click numbers to hide individual grids.'/>
<meta name='Imagecontent='GridsExample.png'/>
<meta name='Imagecontent='GridsExampleMeasurement.png'/>
<meta name='Imagecontent='GridsExampleWithGridsMoved.png'/>
<meta name='identifiercontent=' https://savage.nps.edu/Savage/Tools/Authoring/GridsExample.x3d '/>
<meta name='generatorcontent='X3D-Edit 3.2, https://savage.nps.edu/X3D-Edit'/>
<meta name='licensecontent=' ../../license.html'/>
</head>
<!--

Index for Viewpoint images : Viewpoint_1, Viewpoint_2
-->
<Scene>
<!-- Entry viewpoints -->
<Transform rotation='0 1 0 0.78translation='15 12 15'>
<Viewpoint centerOfRotation='-15 -12 -15description='Drag grids along center axes to measure shapesorientation='1 0 0 -0.4'/>
</Transform>
<Transform rotation='0 1 0 -0.78translation='-15 12 15'>
<Viewpoint centerOfRotation='15 -12 -15description='Click numbers to hide a gridorientation='1 0 0 -0.4'/>
</Transform>
<!-- Inline movable grid examples to use them in any scene -->
<Inline
  url=' "GridXY_20x20Movable.x3d" "https://savage.nps.edu/Savage/Tools/Authoring/GridXY_20x20Movable.x3d" "GridXY_20x20Movable.wrl" "https://savage.nps.edu/Savage/Tools/Authoring/GridXY_20x20Movable.wrl" '/>

<Inline
  url=' "GridXZ_20x20Movable.x3d" "https://savage.nps.edu/Savage/Tools/Authoring/GridXZ_20x20Movable.x3d" "GridXZ_20x20Movable.wrl" "https://savage.nps.edu/Savage/Tools/Authoring/GridXZ_20x20Movable.wrl" '/>

<Inline
  url=' "GridYZ_20x20Movable.x3d" "https://savage.nps.edu/Savage/Tools/Authoring/GridYZ_20x20Movable.x3d" "GridYZ_20x20Movable.wrl" "https://savage.nps.edu/Savage/Tools/Authoring/GridYZ_20x20Movable.wrl" '/>

<!-- Simple example scene -->
<Transform translation='0 -4 0'>
<Shape>
<Box size='4 12 8'/>
<Appearance>
<Material diffuseColor='0 1 0.5'/>
</Appearance>
</Shape>
</Transform>
<Transform translation='0 6 0'>
<Shape>
<Sphere radius='3'/>
<Appearance>
<Material diffuseColor='0 0.5 1'/>
</Appearance>
</Shape>
</Transform>
</Scene>
</X3D>
<!--
