Schema DIS_7_2012.RichSemanticTrackSubset.xsd

schema location:	..\DIS_7_2012.RichSemanticTrackSubset.xsd
attributeFormDefault:	unqualified
elementFormDefault:	qualified

Elements	Complex types
CommentPdu	DeadReckoningParametersType
DIS	DomainType
EntityStatePdu	EntityIDType
head	EntityInformationInteractionFamilyPduType
meta	EntityMarkingType
	EntityTypeType
	EulerAnglesType

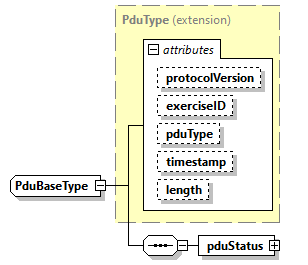

	PduBaseType
	PduStatusType
	PduType
	rootType
	SimulationAddressType
	SimulationIdentifierType

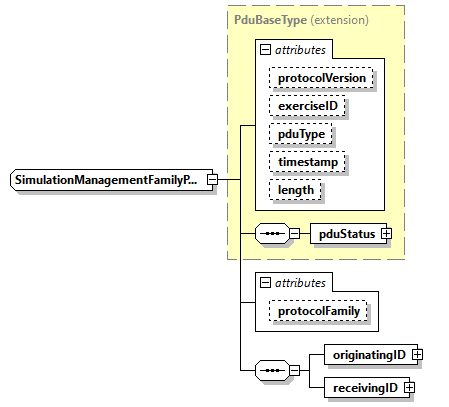

	SimulationManagementFamilyPduType
	VariableDatumType
	VariableParameterType
	Vector3DoubleType
	Vector3FloatType

element CommentPdu

diagram
type	extension of SimulationManagementFamilyPduType
properties	content  complex

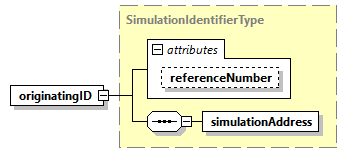

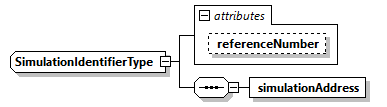

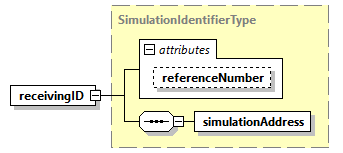

children	pduStatus originatingID receivingID VariableDatum
used by	element  DIS
attributes	Name   Type   Use   Default   Fixed   Annotation protocolVersion   xs:string            appinfo The version of the protocol. 5=DIS-1995, 6=DIS-1998, 7=DIS-2012 (SISO enumeration                      DISProtocolVersion uid 3)                   exerciseID   xs:unsignedByte            appinfo Exercise ID provides a unique identifier pduType   xs:string            appinfo Type of pdu, unique for each PDU class (SISO enumeration DisPduType uid 4) timestamp   xs:unsignedLong            appinfo Timestamp value length   xs:unsignedShort            appinfo Length, in bytes, of the PDU protocolFamily         DISProtocolFamily.SIMULATION_MANAGEMENT      family            SimulationManagementFamilyPduType   numberOfFixedDatumRecords   xs:unsignedLong            appinfo Number of fixed datum records, not used in this Pdu numberOfVariableDatumRecords   xs:unsignedLong            appinfo Number of variable datum records, handled automatically by marshaller at run time                         (and not modifiable by end-user programmers)
annotation	appinfo 7.5.13 Used to enter arbitrary messages (character strings, for example). See 5.6.5.13             (length of list found in field numberOfVariableDatumRecords)             <xs:attribute name="id" type="xs:integer" fixed="22"/>
source	<xs:element name="CommentPdu">   <xs:annotation>     <xs:appinfo>7.5.13 Used to enter arbitrary messages (character strings, for example). See 5.6.5.13             (length of list found in field numberOfVariableDatumRecords)             <xs:attribute name="id" type="xs:integer" fixed="22"/>     </xs:appinfo>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="SimulationManagementFamilyPduType">         <xs:sequence>           <!--Attribute (as element) CommentPdu variableDatums with objectlist classRef name=VariableDatum, type=VariableDatumType-->           <xs:sequence minOccurs="0" maxOccurs="unbounded">             <xs:annotation>               <xs:appinfo>Number of elements is determined by size fieldnumberOfVariableDatumRecords and can be 0 or greater.                            Ensure that the total PDU size does not exceed maximums allowed in IEEE DIS Specification.                         </xs:appinfo>               <xs:documentation>numberOfVariableDatumRecords</xs:documentation>             </xs:annotation>             <xs:element name="VariableDatum" type="VariableDatumType">               <xs:annotation>                 <xs:appinfo>variable length list of variable length datums (length of list found in field numberOfVariableDatumRecords)</xs:appinfo>               </xs:annotation>             </xs:element>           </xs:sequence>         </xs:sequence>         <xs:attribute name="family" fixed="SimulationManagementFamilyPduType"/>         <xs:attribute name="numberOfFixedDatumRecords" type="xs:unsignedLong">           <xs:annotation>             <xs:appinfo>Number of fixed datum records, not used in this Pdu</xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="numberOfVariableDatumRecords" type="xs:unsignedLong">           <xs:annotation>             <xs:appinfo>Number of variable datum records, handled automatically by marshaller at run time                         (and not modifiable by end-user programmers)                      </xs:appinfo>           </xs:annotation>         </xs:attribute>       </xs:extension>       <!-- ========== debug: divider between elements and attributes ========== -->     </xs:complexContent>   </xs:complexType> </xs:element>

attribute CommentPdu/@family

properties	fixed  SimulationManagementFamilyPduType
source	<xs:attribute name="family" fixed="SimulationManagementFamilyPduType"/>

attribute CommentPdu/@numberOfFixedDatumRecords

type	xs:unsignedLong
annotation	appinfo Number of fixed datum records, not used in this Pdu
source	<xs:attribute name="numberOfFixedDatumRecords" type="xs:unsignedLong">   <xs:annotation>     <xs:appinfo>Number of fixed datum records, not used in this Pdu</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute CommentPdu/@numberOfVariableDatumRecords

type	xs:unsignedLong
annotation	appinfo Number of variable datum records, handled automatically by marshaller at run time                         (and not modifiable by end-user programmers)
source	<xs:attribute name="numberOfVariableDatumRecords" type="xs:unsignedLong">   <xs:annotation>     <xs:appinfo>Number of variable datum records, handled automatically by marshaller at run time                         (and not modifiable by end-user programmers)                      </xs:appinfo>   </xs:annotation> </xs:attribute>

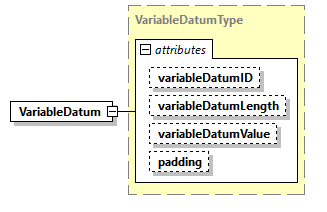

element CommentPdu/VariableDatum

diagram
type	VariableDatumType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation variableDatumID   xs:string            appinfo Type of variable datum to be transmitted. 32-bit enumeration defined in EBV (SISO                      enumeration VariableRecordType uid 66 Variable Record Type values are defined by VariableRecordType                      enumerations)                   variableDatumLength   xs:unsignedLong            appinfo Length, IN BITS, of the variable datum. variableDatumValue               appinfo This can be any number of bits long, depending on the datum. padding   xs:unsignedInt            appinfo zero-filled array of padding bits for byte alignment and consistent sizing of PDU                      data
annotation	appinfo variable length list of variable length datums (length of list found in field numberOfVariableDatumRecords)
source	<xs:element name="VariableDatum" type="VariableDatumType">   <xs:annotation>     <xs:appinfo>variable length list of variable length datums (length of list found in field numberOfVariableDatumRecords)</xs:appinfo>   </xs:annotation> </xs:element>

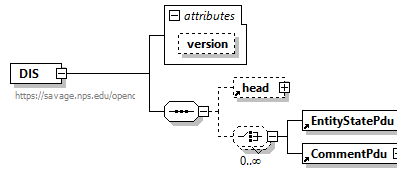

element DIS

diagram
properties	content  complex
children	head EntityStatePdu CommentPdu
attributes	Name   Type   Use   Default   Fixed   Annotation version   xs:string         7.0   appinfo Warning: version is required and must be specified in source document.
annotation	appinfo Root element for DIS PDU log, optionally contains head meta information documentation https://savage.nps.edu/opendis7-java/xml/SchemaDocumentation
source	<xs:element name="DIS">   <xs:annotation>     <xs:appinfo>Root element for DIS PDU log, optionally contains head meta information</xs:appinfo>     <xs:documentation>https://savage.nps.edu/opendis7-java/xml/SchemaDocumentation</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element ref="head" minOccurs="0"/>       <xs:choice minOccurs="0" maxOccurs="unbounded">         <xs:element ref="EntityStatePdu"/>         <xs:element ref="CommentPdu"/>       </xs:choice>     </xs:sequence>     <xs:attribute name="version" type="xs:string" fixed="7.0">       <xs:annotation>         <xs:appinfo>Warning: version is required and must be specified in source document.</xs:appinfo>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute DIS/@version

type	xs:string
properties	fixed  7.0
annotation	appinfo Warning: version is required and must be specified in source document.
source	<xs:attribute name="version" type="xs:string" fixed="7.0">   <xs:annotation>     <xs:appinfo>Warning: version is required and must be specified in source document.</xs:appinfo>   </xs:annotation> </xs:attribute>

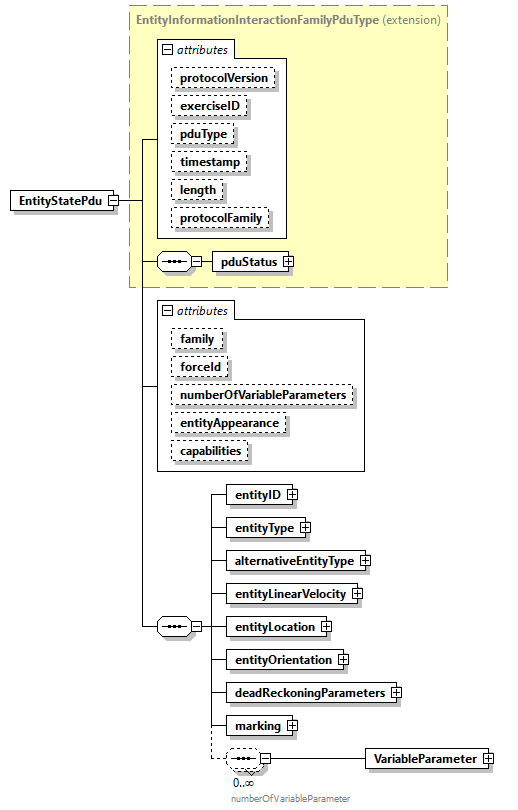

element EntityStatePdu

diagram
type	extension of EntityInformationInteractionFamilyPduType
properties	content  complex
children	pduStatus entityID entityType alternativeEntityType entityLinearVelocity entityLocation entityOrientation deadReckoningParameters marking VariableParameter
used by	element  DIS
attributes	Name   Type   Use   Default   Fixed   Annotation protocolVersion   xs:string            appinfo The version of the protocol. 5=DIS-1995, 6=DIS-1998, 7=DIS-2012 (SISO enumeration                      DISProtocolVersion uid 3)                   exerciseID   xs:unsignedByte            appinfo Exercise ID provides a unique identifier pduType   xs:string            appinfo Type of pdu, unique for each PDU class (SISO enumeration DisPduType uid 4) timestamp   xs:unsignedLong            appinfo Timestamp value length   xs:unsignedShort            appinfo Length, in bytes, of the PDU protocolFamily         DISProtocolFamily.ENTITY_INFORMATION_INTERACTION      family            EntityInformationInteractionFamilyPduType   forceId   xs:string            appinfo What force this entity is affiliated with, eg red, blue, neutral, etc (SISO enumeration                         ForceID uid 6)                      numberOfVariableParameters   xs:unsignedByte            appinfo How many variable parameters are in the variable length list. In earlier versions                         of DIS these were known as articulation parameters                      entityAppearance   xs:unsignedLong            appinfo a series of bit flags that are used to help draw the entity, such as smoking, on fire,                         etc.                      capabilities   xs:unsignedLong            appinfo a series of bit flags (SISO bitfield enumeration, size 32 bits, EntityCapabilities                         uid 55)
annotation	appinfo 7.2.2. Represents the position and state of one entity in the world. See 5.3.2. (length             of list found in field numberOfVariableParameters)             <xs:attribute name="id" type="xs:integer" fixed="1"/>
source	<xs:element name="EntityStatePdu">   <xs:annotation>     <xs:appinfo>7.2.2. Represents the position and state of one entity in the world. See 5.3.2. (length             of list found in field numberOfVariableParameters)             <xs:attribute name="id" type="xs:integer" fixed="1"/>     </xs:appinfo>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="EntityInformationInteractionFamilyPduType">         <xs:sequence>           <xs:element name="entityID" type="EntityIDType">             <xs:annotation>               <xs:appinfo>Unique ID for an entity that is tied to this state information</xs:appinfo>             </xs:annotation>           </xs:element>           <xs:element name="entityType" type="EntityTypeType">             <xs:annotation>               <xs:appinfo>Describes the type of entity in the world</xs:appinfo>             </xs:annotation>           </xs:element>           <xs:element name="alternativeEntityType" type="EntityTypeType"/>           <xs:element name="entityLinearVelocity" type="Vector3FloatType">             <xs:annotation>               <xs:appinfo>Describes the speed of the entity in the world</xs:appinfo>             </xs:annotation>           </xs:element>           <xs:element name="entityLocation" type="Vector3DoubleType">             <xs:annotation>               <xs:appinfo>describes the location of the entity in the world</xs:appinfo>             </xs:annotation>           </xs:element>           <xs:element name="entityOrientation" type="EulerAnglesType">             <xs:annotation>               <xs:appinfo>describes the orientation of the entity, in euler angles with units of radians</xs:appinfo>             </xs:annotation>           </xs:element>           <xs:element name="deadReckoningParameters" type="DeadReckoningParametersType">             <xs:annotation>               <xs:appinfo>parameters used for dead reckoning</xs:appinfo>             </xs:annotation>           </xs:element>           <xs:element name="marking" type="EntityMarkingType">             <xs:annotation>               <xs:appinfo>11 characters that can be used for entity identification, debugging, or to draw unique                            strings on the side of entities in the world                         </xs:appinfo>             </xs:annotation>           </xs:element>           <!--Attribute (as element) EntityStatePdu variableParameters with objectlist classRef name=VariableParameter, type=VariableParameterType-->           <xs:sequence minOccurs="0" maxOccurs="unbounded">             <xs:annotation>               <xs:appinfo>Number of elements is determined by size fieldnumberOfVariableParameters and can be 0 or greater.                            Ensure that the total PDU size does not exceed maximums allowed in IEEE DIS Specification.                         </xs:appinfo>               <xs:documentation>numberOfVariableParameters</xs:documentation>             </xs:annotation>             <xs:element name="VariableParameter" type="VariableParameterType">               <xs:annotation>                 <xs:appinfo>variable length list of variable parameters. In earlier DIS versions this was articulation                               parameters. (length of list found in field numberOfVariableParameters)                            </xs:appinfo>               </xs:annotation>             </xs:element>           </xs:sequence>         </xs:sequence>         <xs:attribute name="family" fixed="EntityInformationInteractionFamilyPduType"/>         <xs:attribute name="forceId" type="xs:string">           <xs:annotation>             <xs:appinfo>What force this entity is affiliated with, eg red, blue, neutral, etc (SISO enumeration                         ForceID uid 6)                      </xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="numberOfVariableParameters" type="xs:unsignedByte">           <xs:annotation>             <xs:appinfo>How many variable parameters are in the variable length list. In earlier versions                         of DIS these were known as articulation parameters                      </xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="entityAppearance" type="xs:unsignedLong">           <xs:annotation>             <xs:appinfo>a series of bit flags that are used to help draw the entity, such as smoking, on fire,                         etc.                      </xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="capabilities" type="xs:unsignedLong">           <xs:annotation>             <xs:appinfo>a series of bit flags (SISO bitfield enumeration, size 32 bits, EntityCapabilities                         uid 55)                      </xs:appinfo>           </xs:annotation>         </xs:attribute>       </xs:extension>       <!-- ========== debug: divider between elements and attributes ========== -->     </xs:complexContent>   </xs:complexType> </xs:element>

attribute EntityStatePdu/@family

properties	fixed  EntityInformationInteractionFamilyPduType
source	<xs:attribute name="family" fixed="EntityInformationInteractionFamilyPduType"/>

attribute EntityStatePdu/@forceId

type	xs:string
annotation	appinfo What force this entity is affiliated with, eg red, blue, neutral, etc (SISO enumeration                         ForceID uid 6)
source	<xs:attribute name="forceId" type="xs:string">   <xs:annotation>     <xs:appinfo>What force this entity is affiliated with, eg red, blue, neutral, etc (SISO enumeration                         ForceID uid 6)                      </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute EntityStatePdu/@numberOfVariableParameters

type	xs:unsignedByte
annotation	appinfo How many variable parameters are in the variable length list. In earlier versions                         of DIS these were known as articulation parameters
source	<xs:attribute name="numberOfVariableParameters" type="xs:unsignedByte">   <xs:annotation>     <xs:appinfo>How many variable parameters are in the variable length list. In earlier versions                         of DIS these were known as articulation parameters                      </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute EntityStatePdu/@entityAppearance

type	xs:unsignedLong
annotation	appinfo a series of bit flags that are used to help draw the entity, such as smoking, on fire,                         etc.
source	<xs:attribute name="entityAppearance" type="xs:unsignedLong">   <xs:annotation>     <xs:appinfo>a series of bit flags that are used to help draw the entity, such as smoking, on fire,                         etc.                      </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute EntityStatePdu/@capabilities

type	xs:unsignedLong
annotation	appinfo a series of bit flags (SISO bitfield enumeration, size 32 bits, EntityCapabilities                         uid 55)
source	<xs:attribute name="capabilities" type="xs:unsignedLong">   <xs:annotation>     <xs:appinfo>a series of bit flags (SISO bitfield enumeration, size 32 bits, EntityCapabilities                         uid 55)                      </xs:appinfo>   </xs:annotation> </xs:attribute>

element EntityStatePdu/entityID

diagram
type	EntityIDType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation siteID   xs:unsignedShort            appinfo Site ID values are unique identification number for originating site, often corresponding                      to an internet address. Site ID values are agreed upon by individual simulations.                   applicationID   xs:unsignedShort            appinfo Application ID values are unique identification number for originating application                      at a given site. Application ID values are sssigned by individual sites.                   entityID   xs:unsignedShort            appinfo Entity ID values are unique identification number for s givent entity in the originating                      application at a given site. Entity ID values are sssigned by individual simulation                      programs.
annotation	appinfo Unique ID for an entity that is tied to this state information
source	<xs:element name="entityID" type="EntityIDType">   <xs:annotation>     <xs:appinfo>Unique ID for an entity that is tied to this state information</xs:appinfo>   </xs:annotation> </xs:element>

element EntityStatePdu/entityType

diagram
type	EntityTypeType
properties	content  complex
children	domain
attributes	Name   Type   Use   Default   Fixed   Annotation entityKind   xs:string            appinfo Kind of entity (SISO enumeration EntityKind uid 7) country   xs:string            appinfo country to which the design of the entity is attributed (SISO enumeration Country                      uid 29)                   category   xs:unsignedByte            appinfo category of entity subCategory   xs:unsignedByte            appinfo subcategory based on category specific   xs:unsignedByte            appinfo specific info based on subcategory extra   xs:unsignedByte
annotation	appinfo Describes the type of entity in the world
source	<xs:element name="entityType" type="EntityTypeType">   <xs:annotation>     <xs:appinfo>Describes the type of entity in the world</xs:appinfo>   </xs:annotation> </xs:element>

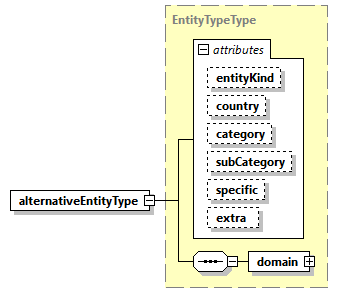

element EntityStatePdu/alternativeEntityType

diagram
type	EntityTypeType
properties	content  complex
children	domain
attributes	Name   Type   Use   Default   Fixed   Annotation entityKind   xs:string            appinfo Kind of entity (SISO enumeration EntityKind uid 7) country   xs:string            appinfo country to which the design of the entity is attributed (SISO enumeration Country                      uid 29)                   category   xs:unsignedByte            appinfo category of entity subCategory   xs:unsignedByte            appinfo subcategory based on category specific   xs:unsignedByte            appinfo specific info based on subcategory extra   xs:unsignedByte
source	<xs:element name="alternativeEntityType" type="EntityTypeType"/>

element EntityStatePdu/entityLinearVelocity

diagram
type	Vector3FloatType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation x   xs:float            appinfo X value y   xs:float            appinfo y Value z   xs:float            appinfo Z value
annotation	appinfo Describes the speed of the entity in the world
source	<xs:element name="entityLinearVelocity" type="Vector3FloatType">   <xs:annotation>     <xs:appinfo>Describes the speed of the entity in the world</xs:appinfo>   </xs:annotation> </xs:element>

element EntityStatePdu/entityLocation

diagram
type	Vector3DoubleType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation x   xs:double            appinfo X value y   xs:double            appinfo y Value z   xs:double            appinfo Z value
annotation	appinfo describes the location of the entity in the world
source	<xs:element name="entityLocation" type="Vector3DoubleType">   <xs:annotation>     <xs:appinfo>describes the location of the entity in the world</xs:appinfo>   </xs:annotation> </xs:element>

element EntityStatePdu/entityOrientation

diagram
type	EulerAnglesType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation psi   xs:float            theta   xs:float            phi   xs:float
annotation	appinfo describes the orientation of the entity, in euler angles with units of radians
source	<xs:element name="entityOrientation" type="EulerAnglesType">   <xs:annotation>     <xs:appinfo>describes the orientation of the entity, in euler angles with units of radians</xs:appinfo>   </xs:annotation> </xs:element>

element EntityStatePdu/deadReckoningParameters

diagram
type	DeadReckoningParametersType
properties	content  complex
children	entityLinearAcceleration entityAngularVelocity
attributes	Name   Type   Use   Default   Fixed   Annotation deadReckoningAlgorithm   xs:string            appinfo Algorithm to use in computing dead reckoning. See EBV doc. (SISO enumeration DeadReckoningAlgorithm                      uid 44)                   parameters               appinfo Dead reckoning parameters. Contents depends on algorithm.
annotation	appinfo parameters used for dead reckoning
source	<xs:element name="deadReckoningParameters" type="DeadReckoningParametersType">   <xs:annotation>     <xs:appinfo>parameters used for dead reckoning</xs:appinfo>   </xs:annotation> </xs:element>

element EntityStatePdu/marking

diagram
type	EntityMarkingType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation characterSet   xs:string            appinfo The character set (SISO enumeration EntityMarkingCharacterSet uid 45) characters               appinfo The characters
annotation	appinfo 11 characters that can be used for entity identification, debugging, or to draw unique                            strings on the side of entities in the world
source	<xs:element name="marking" type="EntityMarkingType">   <xs:annotation>     <xs:appinfo>11 characters that can be used for entity identification, debugging, or to draw unique                            strings on the side of entities in the world                         </xs:appinfo>   </xs:annotation> </xs:element>

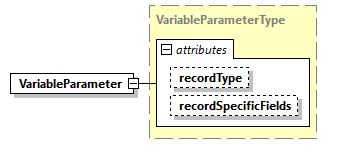

element EntityStatePdu/VariableParameter

diagram
type	VariableParameterType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation recordType   xs:string            appinfo The identification of the Variable Parameter record. Enumeration from EBV (SISO enumeration                      VariableParameterRecordType uid 56)                   recordSpecificFields               appinfo 120 bits
annotation	appinfo variable length list of variable parameters. In earlier DIS versions this was articulation                               parameters. (length of list found in field numberOfVariableParameters)
source	<xs:element name="VariableParameter" type="VariableParameterType">   <xs:annotation>     <xs:appinfo>variable length list of variable parameters. In earlier DIS versions this was articulation                               parameters. (length of list found in field numberOfVariableParameters)                            </xs:appinfo>   </xs:annotation> </xs:element>

element head

diagram
properties	content  complex
children	meta
used by	element  DIS
annotation	appinfo Functional summary: each DIS file includes an optional head statement that can contain             any number of meta statements.
source	<xs:element name="head">   <xs:annotation>     <xs:appinfo>Functional summary: each DIS file includes an optional head statement that can contain             any number of meta statements.          </xs:appinfo>     <xs:documentation source="https://www.web3d.org/documents/specifications/19776-1/V3.3/Part01/concepts.html#Header"/>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element ref="meta" minOccurs="0" maxOccurs="unbounded"/>     </xs:sequence>   </xs:complexType> </xs:element>

element meta

diagram
properties	content  complex
used by	element  head
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string   required         content   xs:string   required
annotation	appinfo Functional summary: the meta statement provides metadata information about a file,             where name and content attributes provide attribute=value metadata pairs.
source	<xs:element name="meta">   <xs:annotation>     <xs:appinfo>Functional summary: the meta statement provides metadata information about a file,             where name and content attributes provide attribute=value metadata pairs.          </xs:appinfo>     <xs:documentation source="https://www.web3d.org/documents/specifications/19776-1/V3.3/Part01/concepts.html#Header"/>   </xs:annotation>   <xs:complexType>     <xs:attribute name="name" type="xs:string" use="required">       <xs:annotation>         <xs:documentation source="http://www.dublincore.org/documents/dcmi-terms/#terms-description"/>       </xs:annotation>     </xs:attribute>     <xs:attribute name="content" type="xs:string" use="required">       <xs:annotation>         <xs:documentation source="http://www.w3.org/TR/html4/struct/global.html#adef-content"/>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute meta/@name

type	xs:string
properties	use  required
source	<xs:attribute name="name" type="xs:string" use="required">   <xs:annotation>     <xs:documentation source="http://www.dublincore.org/documents/dcmi-terms/#terms-description"/>   </xs:annotation> </xs:attribute>

attribute meta/@content

type	xs:string
properties	use  required
source	<xs:attribute name="content" type="xs:string" use="required">   <xs:annotation>     <xs:documentation source="http://www.w3.org/TR/html4/struct/global.html#adef-content"/>   </xs:annotation> </xs:attribute>

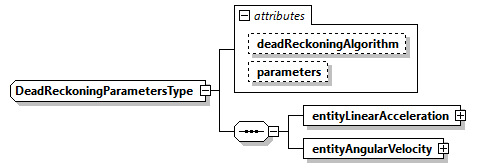

complexType DeadReckoningParametersType

diagram
type	extension of rootType
properties	base  rootType abstract  false
children	entityLinearAcceleration entityAngularVelocity
used by	element  EntityStatePdu/deadReckoningParameters
attributes	Name   Type   Use   Default   Fixed   Annotation deadReckoningAlgorithm   xs:string            appinfo Algorithm to use in computing dead reckoning. See EBV doc. (SISO enumeration DeadReckoningAlgorithm                      uid 44)                   parameters               appinfo Dead reckoning parameters. Contents depends on algorithm.
annotation	appinfo Not specified in the standard. This is used by the ESPDU
source	<xs:complexType name="DeadReckoningParametersType" abstract="false">   <xs:annotation>     <xs:appinfo>Not specified in the standard. This is used by the ESPDU</xs:appinfo>   </xs:annotation>   <xs:complexContent>     <xs:extension base="rootType">       <xs:sequence>         <xs:element name="entityLinearAcceleration" type="Vector3FloatType">           <xs:annotation>             <xs:appinfo>Linear acceleration of the entity</xs:appinfo>           </xs:annotation>         </xs:element>         <xs:element name="entityAngularVelocity" type="Vector3FloatType">           <xs:annotation>             <xs:appinfo>Angular velocity of the entity</xs:appinfo>           </xs:annotation>         </xs:element>       </xs:sequence>       <xs:attribute name="deadReckoningAlgorithm" type="xs:string">         <xs:annotation>           <xs:appinfo>Algorithm to use in computing dead reckoning. See EBV doc. (SISO enumeration DeadReckoningAlgorithm                      uid 44)                   </xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="parameters">         <xs:annotation>           <xs:appinfo>Dead reckoning parameters. Contents depends on algorithm.</xs:appinfo>         </xs:annotation>       </xs:attribute>     </xs:extension>     <!-- ========== debug: divider between elements and attributes ========== -->   </xs:complexContent>   <!--abstract='false' base='rootType'--> </xs:complexType>

attribute DeadReckoningParametersType/@deadReckoningAlgorithm

type	xs:string
annotation	appinfo Algorithm to use in computing dead reckoning. See EBV doc. (SISO enumeration DeadReckoningAlgorithm                      uid 44)
source	<xs:attribute name="deadReckoningAlgorithm" type="xs:string">   <xs:annotation>     <xs:appinfo>Algorithm to use in computing dead reckoning. See EBV doc. (SISO enumeration DeadReckoningAlgorithm                      uid 44)                   </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute DeadReckoningParametersType/@parameters

annotation	appinfo Dead reckoning parameters. Contents depends on algorithm.
source	<xs:attribute name="parameters">   <xs:annotation>     <xs:appinfo>Dead reckoning parameters. Contents depends on algorithm.</xs:appinfo>   </xs:annotation> </xs:attribute>

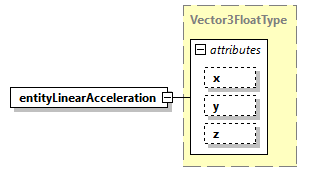

element DeadReckoningParametersType/entityLinearAcceleration

diagram
type	Vector3FloatType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation x   xs:float            appinfo X value y   xs:float            appinfo y Value z   xs:float            appinfo Z value
annotation	appinfo Linear acceleration of the entity
source	<xs:element name="entityLinearAcceleration" type="Vector3FloatType">   <xs:annotation>     <xs:appinfo>Linear acceleration of the entity</xs:appinfo>   </xs:annotation> </xs:element>

element DeadReckoningParametersType/entityAngularVelocity

diagram
type	Vector3FloatType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation x   xs:float            appinfo X value y   xs:float            appinfo y Value z   xs:float            appinfo Z value
annotation	appinfo Angular velocity of the entity
source	<xs:element name="entityAngularVelocity" type="Vector3FloatType">   <xs:annotation>     <xs:appinfo>Angular velocity of the entity</xs:appinfo>   </xs:annotation> </xs:element>

complexType DomainType

diagram
type	extension of rootType
properties	base  rootType abstract  false
used by	element  EntityTypeType/domain
attributes	Name   Type   Use   Default   Fixed   Annotation value   xs:unsignedByte            appinfo domain field containing enumeration value. See SISO enumerations for PlatformDomain                      uid 8, MunitionDomain uid 14 and SupplyDomain uid 600.
annotation	appinfo A special class to contain and act as a super class for Domain enumerations.
source	<xs:complexType name="DomainType" abstract="false">   <xs:annotation>     <xs:appinfo>A special class to contain and act as a super class for Domain enumerations.</xs:appinfo>   </xs:annotation>   <xs:complexContent>     <xs:extension base="rootType">       <xs:attribute name="value" type="xs:unsignedByte">         <xs:annotation>           <xs:appinfo>domain field containing enumeration value. See SISO enumerations for PlatformDomain                      uid 8, MunitionDomain uid 14 and SupplyDomain uid 600.                   </xs:appinfo>         </xs:annotation>       </xs:attribute>     </xs:extension>   </xs:complexContent>   <!--abstract='false' base='rootType'--> </xs:complexType>

attribute DomainType/@value

type	xs:unsignedByte
annotation	appinfo domain field containing enumeration value. See SISO enumerations for PlatformDomain                      uid 8, MunitionDomain uid 14 and SupplyDomain uid 600.
source	<xs:attribute name="value" type="xs:unsignedByte">   <xs:annotation>     <xs:appinfo>domain field containing enumeration value. See SISO enumerations for PlatformDomain                      uid 8, MunitionDomain uid 14 and SupplyDomain uid 600.                   </xs:appinfo>   </xs:annotation> </xs:attribute>

complexType EntityIDType

diagram
type	extension of rootType
properties	base  rootType abstract  false
used by	element  EntityStatePdu/entityID
attributes	Name   Type   Use   Default   Fixed   Annotation siteID   xs:unsignedShort            appinfo Site ID values are unique identification number for originating site, often corresponding                      to an internet address. Site ID values are agreed upon by individual simulations.                   applicationID   xs:unsignedShort            appinfo Application ID values are unique identification number for originating application                      at a given site. Application ID values are sssigned by individual sites.                   entityID   xs:unsignedShort            appinfo Entity ID values are unique identification number for s givent entity in the originating                      application at a given site. Entity ID values are sssigned by individual simulation                      programs.
annotation	appinfo Unique identifier triplet for this entity. Also referred to as EntityIdentifier
source	<xs:complexType name="EntityIDType" abstract="false">   <xs:annotation>     <xs:appinfo>Unique identifier triplet for this entity. Also referred to as EntityIdentifier</xs:appinfo>   </xs:annotation>   <xs:complexContent>     <xs:extension base="rootType">       <xs:attribute name="siteID" type="xs:unsignedShort">         <xs:annotation>           <xs:appinfo>Site ID values are unique identification number for originating site, often corresponding                      to an internet address. Site ID values are agreed upon by individual simulations.                   </xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="applicationID" type="xs:unsignedShort">         <xs:annotation>           <xs:appinfo>Application ID values are unique identification number for originating application                      at a given site. Application ID values are sssigned by individual sites.                   </xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="entityID" type="xs:unsignedShort">         <xs:annotation>           <xs:appinfo>Entity ID values are unique identification number for s givent entity in the originating                      application at a given site. Entity ID values are sssigned by individual simulation                      programs.                   </xs:appinfo>         </xs:annotation>       </xs:attribute>     </xs:extension>   </xs:complexContent>   <!--abstract='false' base='rootType'--> </xs:complexType>

attribute EntityIDType/@siteID

type	xs:unsignedShort
annotation	appinfo Site ID values are unique identification number for originating site, often corresponding                      to an internet address. Site ID values are agreed upon by individual simulations.
source	<xs:attribute name="siteID" type="xs:unsignedShort">   <xs:annotation>     <xs:appinfo>Site ID values are unique identification number for originating site, often corresponding                      to an internet address. Site ID values are agreed upon by individual simulations.                   </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute EntityIDType/@applicationID

type	xs:unsignedShort
annotation	appinfo Application ID values are unique identification number for originating application                      at a given site. Application ID values are sssigned by individual sites.
source	<xs:attribute name="applicationID" type="xs:unsignedShort">   <xs:annotation>     <xs:appinfo>Application ID values are unique identification number for originating application                      at a given site. Application ID values are sssigned by individual sites.                   </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute EntityIDType/@entityID

type	xs:unsignedShort
annotation	appinfo Entity ID values are unique identification number for s givent entity in the originating                      application at a given site. Entity ID values are sssigned by individual simulation                      programs.
source	<xs:attribute name="entityID" type="xs:unsignedShort">   <xs:annotation>     <xs:appinfo>Entity ID values are unique identification number for s givent entity in the originating                      application at a given site. Entity ID values are sssigned by individual simulation                      programs.                   </xs:appinfo>   </xs:annotation> </xs:attribute>

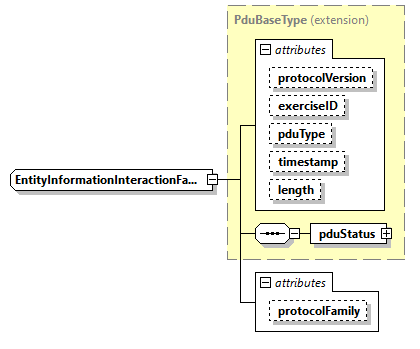

complexType EntityInformationInteractionFamilyPduType

diagram
type	extension of PduBaseType
properties	base  PduBaseType abstract  true
children	pduStatus
used by	element  EntityStatePdu
attributes	Name   Type   Use   Default   Fixed   Annotation protocolVersion   xs:string            appinfo The version of the protocol. 5=DIS-1995, 6=DIS-1998, 7=DIS-2012 (SISO enumeration                      DISProtocolVersion uid 3)                   exerciseID   xs:unsignedByte            appinfo Exercise ID provides a unique identifier pduType   xs:string            appinfo Type of pdu, unique for each PDU class (SISO enumeration DisPduType uid 4) timestamp   xs:unsignedLong            appinfo Timestamp value length   xs:unsignedShort            appinfo Length, in bytes, of the PDU protocolFamily         DISProtocolFamily.ENTITY_INFORMATION_INTERACTION
annotation	appinfo Section 5.3.3. Common superclass for EntityState, Collision, collision-elastic, and             entity state update PDUs.             <xs:attribute name="id" type="xs:integer" fixed="1"/>
source	<xs:complexType name="EntityInformationInteractionFamilyPduType" abstract="true">   <xs:annotation>     <xs:appinfo>Section 5.3.3. Common superclass for EntityState, Collision, collision-elastic, and             entity state update PDUs.             <xs:attribute name="id" type="xs:integer" fixed="1"/>     </xs:appinfo>   </xs:annotation>   <xs:complexContent>     <xs:extension base="PduBaseType">       <xs:attribute name="protocolFamily" default="DISProtocolFamily.ENTITY_INFORMATION_INTERACTION"/>     </xs:extension>   </xs:complexContent> </xs:complexType>

attribute EntityInformationInteractionFamilyPduType/@protocolFamily

properties	default  DISProtocolFamily.ENTITY_INFORMATION_INTERACTION
source	<xs:attribute name="protocolFamily" default="DISProtocolFamily.ENTITY_INFORMATION_INTERACTION"/>

complexType EntityMarkingType

diagram
type	extension of rootType
properties	base  rootType abstract  false
used by	element  EntityStatePdu/marking
attributes	Name   Type   Use   Default   Fixed   Annotation characterSet   xs:string            appinfo The character set (SISO enumeration EntityMarkingCharacterSet uid 45) characters               appinfo The characters
annotation	appinfo Specifies the character set used in the first byte, followed by 11 characters of text             data. Section 6.29
source	<xs:complexType name="EntityMarkingType" abstract="false">   <xs:annotation>     <xs:appinfo>Specifies the character set used in the first byte, followed by 11 characters of text             data. Section 6.29          </xs:appinfo>   </xs:annotation>   <xs:complexContent>     <xs:extension base="rootType">       <xs:attribute name="characterSet" type="xs:string">         <xs:annotation>           <xs:appinfo>The character set (SISO enumeration EntityMarkingCharacterSet uid 45)</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="characters">         <xs:annotation>           <xs:appinfo>The characters</xs:appinfo>         </xs:annotation>       </xs:attribute>     </xs:extension>   </xs:complexContent>   <!--abstract='false' base='rootType'--> </xs:complexType>

attribute EntityMarkingType/@characterSet

type	xs:string
annotation	appinfo The character set (SISO enumeration EntityMarkingCharacterSet uid 45)
source	<xs:attribute name="characterSet" type="xs:string">   <xs:annotation>     <xs:appinfo>The character set (SISO enumeration EntityMarkingCharacterSet uid 45)</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute EntityMarkingType/@characters

annotation	appinfo The characters
source	<xs:attribute name="characters">   <xs:annotation>     <xs:appinfo>The characters</xs:appinfo>   </xs:annotation> </xs:attribute>

complexType EntityTypeType

diagram
type	extension of rootType
properties	base  rootType abstract  false
children	domain
used by	elements  EntityStatePdu/alternativeEntityType EntityStatePdu/entityType
attributes	Name   Type   Use   Default   Fixed   Annotation entityKind   xs:string            appinfo Kind of entity (SISO enumeration EntityKind uid 7) country   xs:string            appinfo country to which the design of the entity is attributed (SISO enumeration Country                      uid 29)                   category   xs:unsignedByte            appinfo category of entity subCategory   xs:unsignedByte            appinfo subcategory based on category specific   xs:unsignedByte            appinfo specific info based on subcategory extra   xs:unsignedByte
annotation	appinfo Identifies the type of Entity
source	<xs:complexType name="EntityTypeType" abstract="false">   <xs:annotation>     <xs:appinfo>Identifies the type of Entity</xs:appinfo>   </xs:annotation>   <xs:complexContent>     <xs:extension base="rootType">       <xs:sequence>         <xs:element name="domain" type="DomainType">           <xs:annotation>             <xs:appinfo>Domain of entity (air, surface, subsurface, space, etc.)</xs:appinfo>           </xs:annotation>         </xs:element>       </xs:sequence>       <xs:attribute name="entityKind" type="xs:string">         <xs:annotation>           <xs:appinfo>Kind of entity (SISO enumeration EntityKind uid 7)</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="country" type="xs:string">         <xs:annotation>           <xs:appinfo>country to which the design of the entity is attributed (SISO enumeration Country                      uid 29)                   </xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="category" type="xs:unsignedByte">         <xs:annotation>           <xs:appinfo>category of entity</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="subCategory" type="xs:unsignedByte">         <xs:annotation>           <xs:appinfo>subcategory based on category</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="specific" type="xs:unsignedByte">         <xs:annotation>           <xs:appinfo>specific info based on subcategory</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="extra" type="xs:unsignedByte"/>     </xs:extension>     <!-- ========== debug: divider between elements and attributes ========== -->   </xs:complexContent>   <!--abstract='false' base='rootType'--> </xs:complexType>

attribute EntityTypeType/@entityKind

type	xs:string
annotation	appinfo Kind of entity (SISO enumeration EntityKind uid 7)
source	<xs:attribute name="entityKind" type="xs:string">   <xs:annotation>     <xs:appinfo>Kind of entity (SISO enumeration EntityKind uid 7)</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute EntityTypeType/@country

type	xs:string
annotation	appinfo country to which the design of the entity is attributed (SISO enumeration Country                      uid 29)
source	<xs:attribute name="country" type="xs:string">   <xs:annotation>     <xs:appinfo>country to which the design of the entity is attributed (SISO enumeration Country                      uid 29)                   </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute EntityTypeType/@category

type	xs:unsignedByte
annotation	appinfo category of entity
source	<xs:attribute name="category" type="xs:unsignedByte">   <xs:annotation>     <xs:appinfo>category of entity</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute EntityTypeType/@subCategory

type	xs:unsignedByte
annotation	appinfo subcategory based on category
source	<xs:attribute name="subCategory" type="xs:unsignedByte">   <xs:annotation>     <xs:appinfo>subcategory based on category</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute EntityTypeType/@specific

type	xs:unsignedByte
annotation	appinfo specific info based on subcategory
source	<xs:attribute name="specific" type="xs:unsignedByte">   <xs:annotation>     <xs:appinfo>specific info based on subcategory</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute EntityTypeType/@extra

type	xs:unsignedByte
source	<xs:attribute name="extra" type="xs:unsignedByte"/>

element EntityTypeType/domain

diagram
type	DomainType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation value   xs:unsignedByte            appinfo domain field containing enumeration value. See SISO enumerations for PlatformDomain                      uid 8, MunitionDomain uid 14 and SupplyDomain uid 600.
annotation	appinfo Domain of entity (air, surface, subsurface, space, etc.)
source	<xs:element name="domain" type="DomainType">   <xs:annotation>     <xs:appinfo>Domain of entity (air, surface, subsurface, space, etc.)</xs:appinfo>   </xs:annotation> </xs:element>

complexType EulerAnglesType

diagram
type	extension of rootType
properties	base  rootType abstract  false
used by	element  EntityStatePdu/entityOrientation
attributes	Name   Type   Use   Default   Fixed   Annotation psi   xs:float            theta   xs:float            phi   xs:float
annotation	appinfo Three floating point values representing an orientation, psi, theta, and phi, aka             the euler angles, in radians. Section 6.2.33
source	<xs:complexType name="EulerAnglesType" abstract="false">   <xs:annotation>     <xs:appinfo>Three floating point values representing an orientation, psi, theta, and phi, aka             the euler angles, in radians. Section 6.2.33          </xs:appinfo>   </xs:annotation>   <xs:complexContent>     <xs:extension base="rootType">       <xs:attribute name="psi" type="xs:float"/>       <xs:attribute name="theta" type="xs:float"/>       <xs:attribute name="phi" type="xs:float"/>     </xs:extension>   </xs:complexContent>   <!--abstract='false' base='rootType'--> </xs:complexType>

attribute EulerAnglesType/@psi

type	xs:float
source	<xs:attribute name="psi" type="xs:float"/>

attribute EulerAnglesType/@theta

type	xs:float
source	<xs:attribute name="theta" type="xs:float"/>

attribute EulerAnglesType/@phi

type	xs:float
source	<xs:attribute name="phi" type="xs:float"/>

complexType PduBaseType

diagram
type	extension of PduType
properties	base  PduType abstract  true
children	pduStatus
used by	complexTypes  EntityInformationInteractionFamilyPduType SimulationManagementFamilyPduType
attributes	Name   Type   Use   Default   Fixed   Annotation protocolVersion   xs:string            appinfo The version of the protocol. 5=DIS-1995, 6=DIS-1998, 7=DIS-2012 (SISO enumeration                      DISProtocolVersion uid 3)                   exerciseID   xs:unsignedByte            appinfo Exercise ID provides a unique identifier pduType   xs:string            appinfo Type of pdu, unique for each PDU class (SISO enumeration DisPduType uid 4) timestamp   xs:unsignedLong            appinfo Timestamp value length   xs:unsignedShort            appinfo Length, in bytes, of the PDU
annotation	appinfo The superclass for all PDUs except LiveEntity. This incorporates the PduHeader record,             section 7.2.2
source	<xs:complexType name="PduBaseType" abstract="true">   <xs:annotation>     <xs:appinfo>The superclass for all PDUs except LiveEntity. This incorporates the PduHeader record,             section 7.2.2          </xs:appinfo>   </xs:annotation>   <xs:complexContent>     <xs:extension base="PduType">       <xs:sequence>         <xs:element name="pduStatus" type="PduStatusType">           <xs:annotation>             <xs:appinfo>PDU Status Record. Described in 6.2.67. This field is not present in earlier DIS versions</xs:appinfo>           </xs:annotation>         </xs:element>       </xs:sequence>     </xs:extension>     <!-- ========== debug: divider between elements and attributes ========== -->     <!--xs:attribute padding is defined in subclasses for PduBase rather than here, in order to avoid inheritance collisions.-->   </xs:complexContent>   <!--abstract='true' base='PduType'--> </xs:complexType>

element PduBaseType/pduStatus

diagram
type	PduStatusType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation value   xs:unsignedByte            appinfo PDU Status Record value containing bitmasked field
annotation	appinfo PDU Status Record. Described in 6.2.67. This field is not present in earlier DIS versions
source	<xs:element name="pduStatus" type="PduStatusType">   <xs:annotation>     <xs:appinfo>PDU Status Record. Described in 6.2.67. This field is not present in earlier DIS versions</xs:appinfo>   </xs:annotation> </xs:element>

complexType PduStatusType

diagram
type	extension of rootType
properties	base  rootType abstract  true
used by	element  PduBaseType/pduStatus
attributes	Name   Type   Use   Default   Fixed   Annotation value   xs:unsignedByte            appinfo PDU Status Record value containing bitmasked field
annotation	appinfo PduStatus provides a set of bit-masked indicator values, section 6.2.67. Bit fields             include Transferred Entity Indicator (TEI), LVC Indicator (LVC), Coupled Extension             Indicator (CEI), Fire Type Indicator (FTI), Detonation Type Indicator (DTI), Radio             Attached Indicator (RAI), Intercom Attached Indicator (IAI), IFF Simulation Mode (ISM)             and Active Interrogation Indicator (AII).
source	<xs:complexType name="PduStatusType" abstract="true">   <xs:annotation>     <xs:appinfo>PduStatus provides a set of bit-masked indicator values, section 6.2.67. Bit fields             include Transferred Entity Indicator (TEI), LVC Indicator (LVC), Coupled Extension             Indicator (CEI), Fire Type Indicator (FTI), Detonation Type Indicator (DTI), Radio             Attached Indicator (RAI), Intercom Attached Indicator (IAI), IFF Simulation Mode (ISM)             and Active Interrogation Indicator (AII).          </xs:appinfo>   </xs:annotation>   <xs:complexContent>     <xs:extension base="rootType">       <xs:attribute name="value" type="xs:unsignedByte">         <xs:annotation>           <xs:appinfo>PDU Status Record value containing bitmasked field</xs:appinfo>         </xs:annotation>       </xs:attribute>     </xs:extension>   </xs:complexContent>   <!--abstract='true' base='rootType'--> </xs:complexType>

attribute PduStatusType/@value

type	xs:unsignedByte
annotation	appinfo PDU Status Record value containing bitmasked field
source	<xs:attribute name="value" type="xs:unsignedByte">   <xs:annotation>     <xs:appinfo>PDU Status Record value containing bitmasked field</xs:appinfo>   </xs:annotation> </xs:attribute>

complexType PduType

diagram
type	extension of rootType
properties	base  rootType abstract  true
used by	complexType  PduBaseType
attributes	Name   Type   Use   Default   Fixed   Annotation protocolVersion   xs:string            appinfo The version of the protocol. 5=DIS-1995, 6=DIS-1998, 7=DIS-2012 (SISO enumeration                      DISProtocolVersion uid 3)                   exerciseID   xs:unsignedByte            appinfo Exercise ID provides a unique identifier pduType   xs:string            appinfo Type of pdu, unique for each PDU class (SISO enumeration DisPduType uid 4) timestamp   xs:unsignedLong            appinfo Timestamp value length   xs:unsignedShort            appinfo Length, in bytes, of the PDU
annotation	appinfo Base class of PduBase and LiveEntityPdu
source	<xs:complexType name="PduType" abstract="true">   <xs:annotation>     <xs:appinfo>Base class of PduBase and LiveEntityPdu</xs:appinfo>   </xs:annotation>   <xs:complexContent>     <xs:extension base="rootType">       <xs:attribute name="protocolVersion" type="xs:string">         <xs:annotation>           <xs:appinfo>The version of the protocol. 5=DIS-1995, 6=DIS-1998, 7=DIS-2012 (SISO enumeration                      DISProtocolVersion uid 3)                   </xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="exerciseID" type="xs:unsignedByte">         <xs:annotation>           <xs:appinfo>Exercise ID provides a unique identifier</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="pduType" type="xs:string">         <xs:annotation>           <xs:appinfo>Type of pdu, unique for each PDU class (SISO enumeration DisPduType uid 4)</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="timestamp" type="xs:unsignedLong">         <xs:annotation>           <xs:appinfo>Timestamp value</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="length" type="xs:unsignedShort">         <xs:annotation>           <xs:appinfo>Length, in bytes, of the PDU</xs:appinfo>         </xs:annotation>       </xs:attribute>     </xs:extension>     <!--xs:attribute protocolFamily is defined in subclasses for Pdu rather than here, in order to avoid inheritance collisions.-->   </xs:complexContent>   <!--abstract='true' base='rootType'--> </xs:complexType>

attribute PduType/@protocolVersion

type	xs:string
annotation	appinfo The version of the protocol. 5=DIS-1995, 6=DIS-1998, 7=DIS-2012 (SISO enumeration                      DISProtocolVersion uid 3)
source	<xs:attribute name="protocolVersion" type="xs:string">   <xs:annotation>     <xs:appinfo>The version of the protocol. 5=DIS-1995, 6=DIS-1998, 7=DIS-2012 (SISO enumeration                      DISProtocolVersion uid 3)                   </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute PduType/@exerciseID

type	xs:unsignedByte
annotation	appinfo Exercise ID provides a unique identifier
source	<xs:attribute name="exerciseID" type="xs:unsignedByte">   <xs:annotation>     <xs:appinfo>Exercise ID provides a unique identifier</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute PduType/@pduType

type	xs:string
annotation	appinfo Type of pdu, unique for each PDU class (SISO enumeration DisPduType uid 4)
source	<xs:attribute name="pduType" type="xs:string">   <xs:annotation>     <xs:appinfo>Type of pdu, unique for each PDU class (SISO enumeration DisPduType uid 4)</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute PduType/@timestamp

type	xs:unsignedLong
annotation	appinfo Timestamp value
source	<xs:attribute name="timestamp" type="xs:unsignedLong">   <xs:annotation>     <xs:appinfo>Timestamp value</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute PduType/@length

type	xs:unsignedShort
annotation	appinfo Length, in bytes, of the PDU
source	<xs:attribute name="length" type="xs:unsignedShort">   <xs:annotation>     <xs:appinfo>Length, in bytes, of the PDU</xs:appinfo>   </xs:annotation> </xs:attribute>

complexType rootType

diagram
properties	abstract  true
used by	complexTypes  DeadReckoningParametersType DomainType EntityIDType EntityMarkingType EntityTypeType EulerAnglesType PduStatusType PduType SimulationAddressType SimulationIdentifierType VariableDatumType VariableParameterType Vector3DoubleType Vector3FloatType
source	<xs:complexType name="rootType" abstract="true"/>

complexType SimulationAddressType

diagram
type	extension of rootType
properties	base  rootType abstract  false
used by	element  SimulationIdentifierType/simulationAddress
annotation	appinfo A Simulation Address record shall consist of the Site Identification number and the             Application Identification number. Section 6.2.79
source	<xs:complexType name="SimulationAddressType" abstract="false">   <xs:annotation>     <xs:appinfo>A Simulation Address record shall consist of the Site Identification number and the             Application Identification number. Section 6.2.79          </xs:appinfo>   </xs:annotation>   <xs:complexContent>     <xs:extension base="rootType"/>   </xs:complexContent>   <!--abstract='false' base='rootType'--> </xs:complexType>

complexType SimulationIdentifierType

diagram
type	extension of rootType
properties	base  rootType abstract  false
children	simulationAddress
used by	elements  SimulationManagementFamilyPduType/originatingID SimulationManagementFamilyPduType/receivingID
attributes	Name   Type   Use   Default   Fixed   Annotation referenceNumber   xs:unsignedShort            appinfo This field shall be set to zero as there is no reference number associated with a                      Simulation Identifier.
annotation	appinfo The unique designation of a simulation when using the 48-bit identifier format shall             be specified by the Sim- ulation Identifier record. The reason that the 48-bit format             is required in addition to the 32-bit simulation address format that actually identifies             a specific simulation is because some 48-bit identifier fields in PDUs may contain             either an Object Identifier, such as an Entity ID, or a Simulation Identifier. Section             6.2.80
source	<xs:complexType name="SimulationIdentifierType" abstract="false">   <xs:annotation>     <xs:appinfo>The unique designation of a simulation when using the 48-bit identifier format shall             be specified by the Sim- ulation Identifier record. The reason that the 48-bit format             is required in addition to the 32-bit simulation address format that actually identifies             a specific simulation is because some 48-bit identifier fields in PDUs may contain             either an Object Identifier, such as an Entity ID, or a Simulation Identifier. Section             6.2.80          </xs:appinfo>   </xs:annotation>   <xs:complexContent>     <xs:extension base="rootType">       <xs:sequence>         <xs:element name="simulationAddress" type="SimulationAddressType">           <xs:annotation>             <xs:appinfo>Simulation address</xs:appinfo>           </xs:annotation>         </xs:element>       </xs:sequence>       <xs:attribute name="referenceNumber" type="xs:unsignedShort">         <xs:annotation>           <xs:appinfo>This field shall be set to zero as there is no reference number associated with a                      Simulation Identifier.                   </xs:appinfo>         </xs:annotation>       </xs:attribute>     </xs:extension>     <!-- ========== debug: divider between elements and attributes ========== -->   </xs:complexContent>   <!--abstract='false' base='rootType'--> </xs:complexType>

attribute SimulationIdentifierType/@referenceNumber

type	xs:unsignedShort
annotation	appinfo This field shall be set to zero as there is no reference number associated with a                      Simulation Identifier.
source	<xs:attribute name="referenceNumber" type="xs:unsignedShort">   <xs:annotation>     <xs:appinfo>This field shall be set to zero as there is no reference number associated with a                      Simulation Identifier.                   </xs:appinfo>   </xs:annotation> </xs:attribute>

element SimulationIdentifierType/simulationAddress

diagram
type	SimulationAddressType
properties	content  complex
annotation	appinfo Simulation address
source	<xs:element name="simulationAddress" type="SimulationAddressType">   <xs:annotation>     <xs:appinfo>Simulation address</xs:appinfo>   </xs:annotation> </xs:element>

complexType SimulationManagementFamilyPduType

diagram
type	extension of PduBaseType
properties	base  PduBaseType abstract  true
children	pduStatus originatingID receivingID
used by	element  CommentPdu
attributes	Name   Type   Use   Default   Fixed   Annotation protocolVersion   xs:string            appinfo The version of the protocol. 5=DIS-1995, 6=DIS-1998, 7=DIS-2012 (SISO enumeration                      DISProtocolVersion uid 3)                   exerciseID   xs:unsignedByte            appinfo Exercise ID provides a unique identifier pduType   xs:string            appinfo Type of pdu, unique for each PDU class (SISO enumeration DisPduType uid 4) timestamp   xs:unsignedLong            appinfo Timestamp value length   xs:unsignedShort            appinfo Length, in bytes, of the PDU protocolFamily         DISProtocolFamily.SIMULATION_MANAGEMENT
annotation	appinfo First part of a simulation management (SIMAN) PDU and SIMAN-Reliability (SIMAN-R)             PDU. Sectionn 6.2.81             <xs:attribute name="id" type="xs:integer" fixed="5"/>
source	<xs:complexType name="SimulationManagementFamilyPduType" abstract="true">   <xs:annotation>     <xs:appinfo>First part of a simulation management (SIMAN) PDU and SIMAN-Reliability (SIMAN-R)             PDU. Sectionn 6.2.81             <xs:attribute name="id" type="xs:integer" fixed="5"/>     </xs:appinfo>   </xs:annotation>   <xs:complexContent>     <xs:extension base="PduBaseType">       <xs:sequence>         <xs:element name="originatingID" type="SimulationIdentifierType">           <xs:annotation>             <xs:appinfo>IDs the simulation or entity, either a simulation or an entity. Either 6.2.80 or 6.2.28</xs:appinfo>           </xs:annotation>         </xs:element>         <xs:element name="receivingID" type="SimulationIdentifierType">           <xs:annotation>             <xs:appinfo>simulation, all simulations, a special ID, or an entity. See 5.6.5 and 5.12.4</xs:appinfo>           </xs:annotation>         </xs:element>       </xs:sequence>       <xs:attribute name="protocolFamily" default="DISProtocolFamily.SIMULATION_MANAGEMENT"/>     </xs:extension>   </xs:complexContent> </xs:complexType>

attribute SimulationManagementFamilyPduType/@protocolFamily

properties	default  DISProtocolFamily.SIMULATION_MANAGEMENT
source	<xs:attribute name="protocolFamily" default="DISProtocolFamily.SIMULATION_MANAGEMENT"/>

element SimulationManagementFamilyPduType/originatingID

diagram
type	SimulationIdentifierType
properties	content  complex
children	simulationAddress
attributes	Name   Type   Use   Default   Fixed   Annotation referenceNumber   xs:unsignedShort            appinfo This field shall be set to zero as there is no reference number associated with a                      Simulation Identifier.
annotation	appinfo IDs the simulation or entity, either a simulation or an entity. Either 6.2.80 or 6.2.28
source	<xs:element name="originatingID" type="SimulationIdentifierType">   <xs:annotation>     <xs:appinfo>IDs the simulation or entity, either a simulation or an entity. Either 6.2.80 or 6.2.28</xs:appinfo>   </xs:annotation> </xs:element>

element SimulationManagementFamilyPduType/receivingID

diagram
type	SimulationIdentifierType
properties	content  complex
children	simulationAddress
attributes	Name   Type   Use   Default   Fixed   Annotation referenceNumber   xs:unsignedShort            appinfo This field shall be set to zero as there is no reference number associated with a                      Simulation Identifier.
annotation	appinfo simulation, all simulations, a special ID, or an entity. See 5.6.5 and 5.12.4
source	<xs:element name="receivingID" type="SimulationIdentifierType">   <xs:annotation>     <xs:appinfo>simulation, all simulations, a special ID, or an entity. See 5.6.5 and 5.12.4</xs:appinfo>   </xs:annotation> </xs:element>

complexType VariableDatumType

diagram
type	extension of rootType
properties	base  rootType abstract  false
used by	element  CommentPdu/VariableDatum
attributes	Name   Type   Use   Default   Fixed   Annotation variableDatumID   xs:string            appinfo Type of variable datum to be transmitted. 32-bit enumeration defined in EBV (SISO                      enumeration VariableRecordType uid 66 Variable Record Type values are defined by VariableRecordType                      enumerations)                   variableDatumLength   xs:unsignedLong            appinfo Length, IN BITS, of the variable datum. variableDatumValue               appinfo This can be any number of bits long, depending on the datum. padding   xs:unsignedInt            appinfo zero-filled array of padding bits for byte alignment and consistent sizing of PDU                      data
annotation	appinfo The variable datum type, the datum length, and the value for that variable datum type.             Section 6.2.93
source	<xs:complexType name="VariableDatumType" abstract="false">   <xs:annotation>     <xs:appinfo>The variable datum type, the datum length, and the value for that variable datum type.             Section 6.2.93          </xs:appinfo>   </xs:annotation>   <xs:complexContent>     <xs:extension base="rootType">       <xs:attribute name="variableDatumID" type="xs:string">         <xs:annotation>           <xs:appinfo>Type of variable datum to be transmitted. 32-bit enumeration defined in EBV (SISO                      enumeration VariableRecordType uid 66 Variable Record Type values are defined by VariableRecordType                      enumerations)                   </xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="variableDatumLength" type="xs:unsignedLong">         <xs:annotation>           <xs:appinfo>Length, IN BITS, of the variable datum.</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="variableDatumValue">         <xs:annotation>           <xs:appinfo>This can be any number of bits long, depending on the datum.</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="padding" type="xs:unsignedInt">         <xs:annotation>           <xs:appinfo>zero-filled array of padding bits for byte alignment and consistent sizing of PDU                      data                   </xs:appinfo>         </xs:annotation>       </xs:attribute>     </xs:extension>   </xs:complexContent>   <!--abstract='false' base='rootType'--> </xs:complexType>

attribute VariableDatumType/@variableDatumID

type	xs:string
annotation	appinfo Type of variable datum to be transmitted. 32-bit enumeration defined in EBV (SISO                      enumeration VariableRecordType uid 66 Variable Record Type values are defined by VariableRecordType                      enumerations)
source	<xs:attribute name="variableDatumID" type="xs:string">   <xs:annotation>     <xs:appinfo>Type of variable datum to be transmitted. 32-bit enumeration defined in EBV (SISO                      enumeration VariableRecordType uid 66 Variable Record Type values are defined by VariableRecordType                      enumerations)                   </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute VariableDatumType/@variableDatumLength

type	xs:unsignedLong
annotation	appinfo Length, IN BITS, of the variable datum.
source	<xs:attribute name="variableDatumLength" type="xs:unsignedLong">   <xs:annotation>     <xs:appinfo>Length, IN BITS, of the variable datum.</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute VariableDatumType/@variableDatumValue

annotation	appinfo This can be any number of bits long, depending on the datum.
source	<xs:attribute name="variableDatumValue">   <xs:annotation>     <xs:appinfo>This can be any number of bits long, depending on the datum.</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute VariableDatumType/@padding

type	xs:unsignedInt
annotation	appinfo zero-filled array of padding bits for byte alignment and consistent sizing of PDU                      data
source	<xs:attribute name="padding" type="xs:unsignedInt">   <xs:annotation>     <xs:appinfo>zero-filled array of padding bits for byte alignment and consistent sizing of PDU                      data                   </xs:appinfo>   </xs:annotation> </xs:attribute>

complexType VariableParameterType

diagram
type	extension of rootType
properties	base  rootType abstract  false
used by	element  EntityStatePdu/VariableParameter
attributes	Name   Type   Use   Default   Fixed   Annotation recordType   xs:string            appinfo The identification of the Variable Parameter record. Enumeration from EBV (SISO enumeration                      VariableParameterRecordType uid 56)                   recordSpecificFields               appinfo 120 bits
annotation	appinfo used in DetonationPdu, ArticulatedPartsPdu among others
source	<xs:complexType name="VariableParameterType" abstract="false">   <xs:annotation>     <xs:appinfo>used in DetonationPdu, ArticulatedPartsPdu among others</xs:appinfo>   </xs:annotation>   <xs:complexContent>     <xs:extension base="rootType">       <xs:attribute name="recordType" type="xs:string">         <xs:annotation>           <xs:appinfo>The identification of the Variable Parameter record. Enumeration from EBV (SISO enumeration                      VariableParameterRecordType uid 56)                   </xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="recordSpecificFields">         <xs:annotation>           <xs:appinfo>120 bits</xs:appinfo>         </xs:annotation>       </xs:attribute>     </xs:extension>   </xs:complexContent>   <!--abstract='false' base='rootType'--> </xs:complexType>

attribute VariableParameterType/@recordType

type	xs:string
annotation	appinfo The identification of the Variable Parameter record. Enumeration from EBV (SISO enumeration                      VariableParameterRecordType uid 56)
source	<xs:attribute name="recordType" type="xs:string">   <xs:annotation>     <xs:appinfo>The identification of the Variable Parameter record. Enumeration from EBV (SISO enumeration                      VariableParameterRecordType uid 56)                   </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute VariableParameterType/@recordSpecificFields

annotation	appinfo 120 bits
source	<xs:attribute name="recordSpecificFields">   <xs:annotation>     <xs:appinfo>120 bits</xs:appinfo>   </xs:annotation> </xs:attribute>

complexType Vector3DoubleType

diagram
type	extension of rootType
properties	base  rootType abstract  false
used by	element  EntityStatePdu/entityLocation
attributes	Name   Type   Use   Default   Fixed   Annotation x   xs:double            appinfo X value y   xs:double            appinfo y Value z   xs:double            appinfo Z value
annotation	appinfo Three double precision floating point values, x, y, and z. Used for world coordinates             Section 6.2.97.
source	<xs:complexType name="Vector3DoubleType" abstract="false">   <xs:annotation>     <xs:appinfo>Three double precision floating point values, x, y, and z. Used for world coordinates             Section 6.2.97.          </xs:appinfo>   </xs:annotation>   <xs:complexContent>     <xs:extension base="rootType">       <xs:attribute name="x" type="xs:double">         <xs:annotation>           <xs:appinfo>X value</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="y" type="xs:double">         <xs:annotation>           <xs:appinfo>y Value</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="z" type="xs:double">         <xs:annotation>           <xs:appinfo>Z value</xs:appinfo>         </xs:annotation>       </xs:attribute>     </xs:extension>   </xs:complexContent>   <!--abstract='false' base='rootType'--> </xs:complexType>

attribute Vector3DoubleType/@x

type	xs:double
annotation	appinfo X value
source	<xs:attribute name="x" type="xs:double">   <xs:annotation>     <xs:appinfo>X value</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute Vector3DoubleType/@y

type	xs:double
annotation	appinfo y Value
source	<xs:attribute name="y" type="xs:double">   <xs:annotation>     <xs:appinfo>y Value</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute Vector3DoubleType/@z

type	xs:double
annotation	appinfo Z value
source	<xs:attribute name="z" type="xs:double">   <xs:annotation>     <xs:appinfo>Z value</xs:appinfo>   </xs:annotation> </xs:attribute>

complexType Vector3FloatType

diagram
type	extension of rootType
properties	base  rootType abstract  false
used by	elements  DeadReckoningParametersType/entityAngularVelocity DeadReckoningParametersType/entityLinearAcceleration EntityStatePdu/entityLinearVelocity
attributes	Name   Type   Use   Default   Fixed   Annotation x   xs:float            appinfo X value y   xs:float            appinfo y Value z   xs:float            appinfo Z value
annotation	appinfo Three floating point values, x, y, and z. Section 6.2.95
source	<xs:complexType name="Vector3FloatType" abstract="false">   <xs:annotation>     <xs:appinfo>Three floating point values, x, y, and z. Section 6.2.95</xs:appinfo>   </xs:annotation>   <xs:complexContent>     <xs:extension base="rootType">       <xs:attribute name="x" type="xs:float">         <xs:annotation>           <xs:appinfo>X value</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="y" type="xs:float">         <xs:annotation>           <xs:appinfo>y Value</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="z" type="xs:float">         <xs:annotation>           <xs:appinfo>Z value</xs:appinfo>         </xs:annotation>       </xs:attribute>     </xs:extension>   </xs:complexContent>   <!--abstract='false' base='rootType'--> </xs:complexType>

attribute Vector3FloatType/@x

type	xs:float
annotation	appinfo X value
source	<xs:attribute name="x" type="xs:float">   <xs:annotation>     <xs:appinfo>X value</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute Vector3FloatType/@y

type	xs:float
annotation	appinfo y Value
source	<xs:attribute name="y" type="xs:float">   <xs:annotation>     <xs:appinfo>y Value</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute Vector3FloatType/@z

type	xs:float
annotation	appinfo Z value
source	<xs:attribute name="z" type="xs:float">   <xs:annotation>     <xs:appinfo>Z value</xs:appinfo>   </xs:annotation> </xs:attribute>

XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
