element Configuration

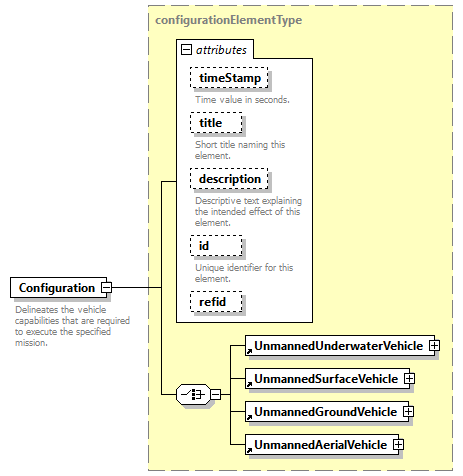

diagram
type	configurationElementType
properties	content  complex
children	UnmannedUnderwaterVehicle UnmannedSurfaceVehicle UnmannedGroundVehicle UnmannedAerialVehicle
used by	complexType  missionCommandsElementType
attributes	Name   Type   Use   Default   Fixed   Annotation timeStamp   nonNegativeScalarType   optional         documentation Time value in seconds. title   xsd:string   optional         documentation Short title naming this element. description   xsd:string   optional         documentation Descriptive text explaining the intended effect of this element. id   xsd:ID   optional         documentation Unique identifier for this element. refid   xsd:IDREF   optional
annotation	documentation Delineates the vehicle capabilities that are required to execute the specified mission.
source	<xsd:element name="Configuration" type="configurationElementType">   <xsd:annotation>     <xsd:documentation>Delineates the vehicle capabilities that are required to execute the specified mission.</xsd:documentation>   </xsd:annotation> </xsd:element>
