complexType missionCommandsElementType

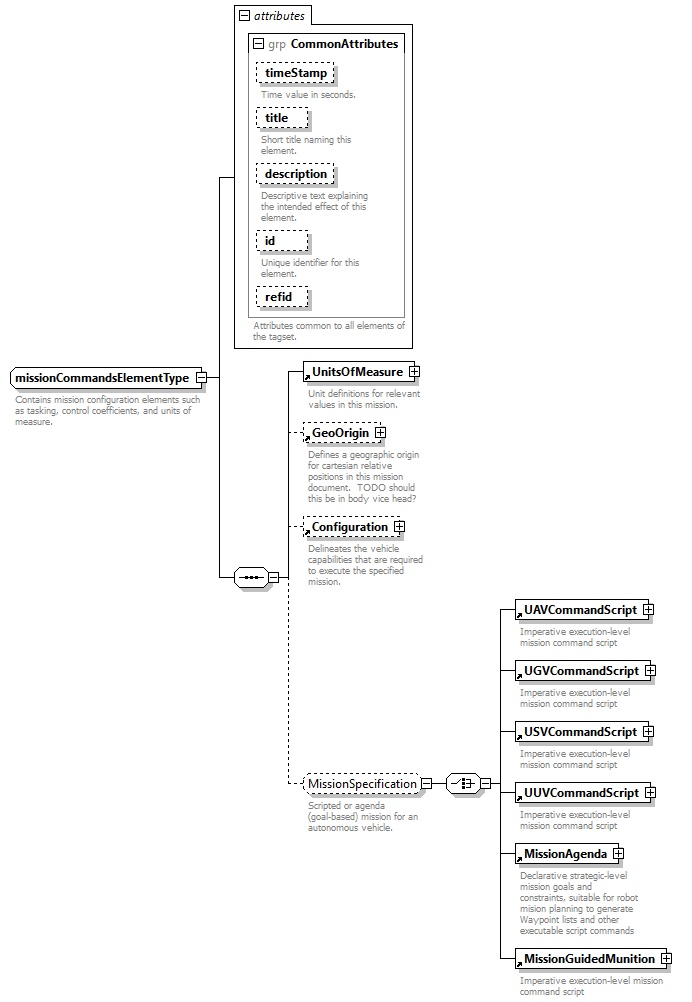

diagram
children	UnitsOfMeasure GeoOrigin Configuration UAVCommandScript UGVCommandScript USVCommandScript UUVCommandScript MissionAgenda MissionGuidedMunition
used by	elements  MissionCommands MissionPreparation
attributes	Name   Type   Use   Default   Fixed   Annotation timeStamp   nonNegativeScalarType   optional         documentation Time value in seconds. title   xsd:string   optional         documentation Short title naming this element. description   xsd:string   optional         documentation Descriptive text explaining the intended effect of this element. id   xsd:ID   optional         documentation Unique identifier for this element. refid   xsd:IDREF   optional
annotation	documentation Contains mission configuration elements such as tasking, control coefficients, and units of measure.
source	<xsd:complexType name="missionCommandsElementType">   <xsd:annotation>     <xsd:documentation>Contains mission configuration elements such as tasking, control coefficients, and units of measure.</xsd:documentation>   </xsd:annotation>   <xsd:sequence>     <xsd:element ref="UnitsOfMeasure"/>     <xsd:element ref="GeoOrigin" minOccurs="0"/>     <xsd:element ref="Configuration" minOccurs="0"/>     <xsd:group ref="MissionSpecification" minOccurs="0"/>   </xsd:sequence>   <xsd:attributeGroup ref="CommonAttributes"/> </xsd:complexType>

XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
