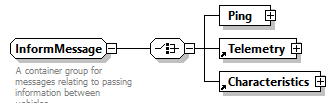

group InformMessage

diagram
children	Ping Telemetry Characteristics
used by	group  MessageBodyContent
annotation	documentation A container group for messages relating to passing information between vehicles.
source	<xsd:group name="InformMessage">   <xsd:annotation>     <xsd:documentation>A container group for messages relating to passing information between vehicles.</xsd:documentation>   </xsd:annotation>   <xsd:choice>     <xsd:element name="Ping" type="noValueElementType"/>     <xsd:element ref="Telemetry"/>     <xsd:element ref="Characteristics"/>   </xsd:choice> </xsd:group>

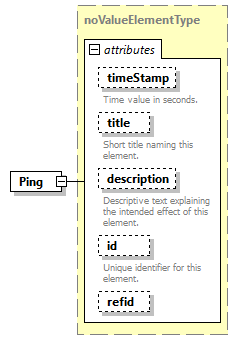

element InformMessage/Ping

diagram
type	noValueElementType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation timeStamp   nonNegativeScalarType   optional         documentation Time value in seconds. title   xsd:string   optional         documentation Short title naming this element. description   xsd:string   optional         documentation Descriptive text explaining the intended effect of this element. id   xsd:ID   optional         documentation Unique identifier for this element. refid   xsd:IDREF   optional
source	<xsd:element name="Ping" type="noValueElementType"/>
