group SensorElements

diagram
children	ActiveSonar ImagingSonar BlazedArraySonar SyntheticApertureSonar PassiveSonar Radar DopplerRadar SyntheticApertureRadar TrackWhileScanRadar EarlyWarningRadar AcquisitionRadar TrackingRadar FireControlRadar SurfaceSearchRadar ESM PassiveSoundDetection ChemicalBiologicalRadiologicalDetection Video FLIR MotionSensor
used by	complexType  sensorElementType

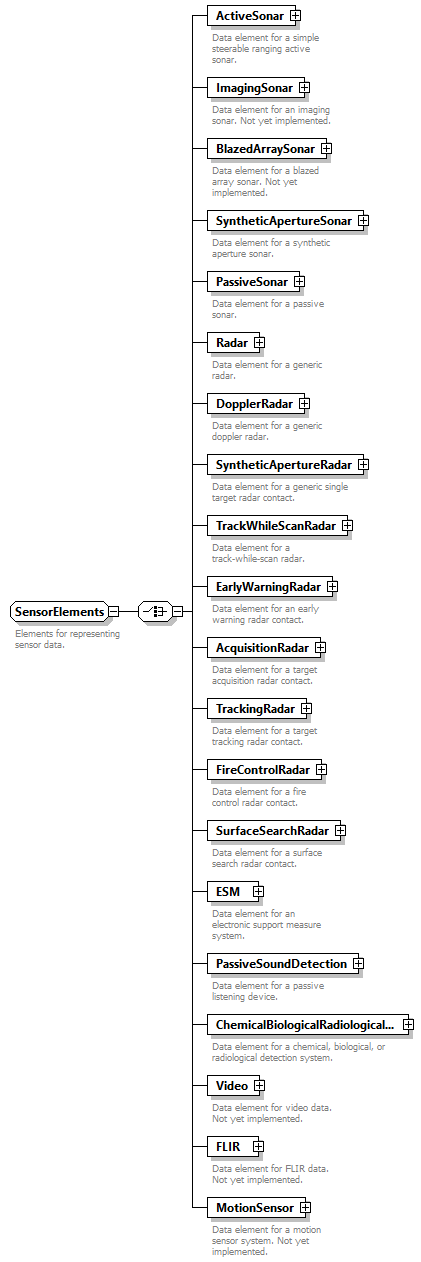

annotation	documentation Elements for representing sensor data.
source	<xsd:group name="SensorElements">   <xsd:annotation>     <xsd:documentation>Elements for representing sensor data.</xsd:documentation>   </xsd:annotation>   <xsd:choice>     <!-- TODO: Unique element here, resolve for global exposure -->     <xsd:element name="ActiveSonar">       <xsd:annotation>         <xsd:documentation>Data element for a simple steerable ranging active sonar.</xsd:documentation>       </xsd:annotation>       <xsd:complexType>         <xsd:attribute name="model" type="xsd:string" use="required"/>         <xsd:attribute name="range" type="xsd:double" use="required"/>         <xsd:attribute name="bearing" type="xsd:double" use="required"/>         <xsd:attribute name="elevation" type="xsd:double" use="optional"/>         <xsd:attribute name="strength" type="xsd:double" use="optional"/>         <xsd:attributeGroup ref="CommonAttributes"/>       </xsd:complexType>     </xsd:element>     <!-- TODO: Unique element here, resolve for global exposure -->     <xsd:element name="ImagingSonar">       <xsd:annotation>         <xsd:documentation>Data element for an imaging sonar. Not yet implemented.</xsd:documentation>       </xsd:annotation>       <xsd:complexType>         <xsd:attribute name="model" type="xsd:string" use="required"/>         <xsd:attributeGroup ref="CommonAttributes"/>       </xsd:complexType>     </xsd:element>     <!-- TODO: Unique element here, resolve for global exposure -->     <xsd:element name="BlazedArraySonar">       <xsd:annotation>         <xsd:documentation>Data element for a blazed array sonar. Not yet implemented.</xsd:documentation>       </xsd:annotation>       <xsd:complexType>         <xsd:attribute name="model" type="xsd:string" use="required"/>         <xsd:attributeGroup ref="CommonAttributes"/>       </xsd:complexType>     </xsd:element>     <!-- TODO: Unique element here, resolve for global exposure -->     <xsd:element name="SyntheticApertureSonar">       <xsd:annotation>         <xsd:documentation>Data element for a synthetic aperture sonar.</xsd:documentation>       </xsd:annotation>       <xsd:complexType>         <xsd:attribute name="model" type="xsd:string" use="required"/>         <xsd:attributeGroup ref="CommonAttributes"/>       </xsd:complexType>     </xsd:element>     <!-- TODO: Unique element here, resolve for global exposure -->     <xsd:element name="PassiveSonar">       <xsd:annotation>         <xsd:documentation>Data element for a passive sonar.</xsd:documentation>       </xsd:annotation>       <xsd:complexType>         <xsd:attribute name="model" type="xsd:string" use="required"/>         <xsd:attribute name="frequency" type="xsd:double" use="required"/>         <xsd:attribute name="strength" type="xsd:double" use="optional"/>         <xsd:attribute name="bearing" type="xsd:double" use="optional"/>         <xsd:attributeGroup ref="CommonAttributes"/>       </xsd:complexType>     </xsd:element>     <!-- TODO: Unique element here, resolve for global exposure -->     <xsd:element name="Radar">       <xsd:annotation>         <xsd:documentation>Data element for a generic radar.</xsd:documentation>       </xsd:annotation>       <xsd:complexType>         <xsd:attribute name="model" type="xsd:string" use="required"/>         <xsd:attribute name="range" type="xsd:double" use="optional"/>         <xsd:attribute name="bearing" type="xsd:double" use="optional"/>         <xsd:attribute name="elevation" type="xsd:double" use="optional"/>         <xsd:attribute name="altitude" type="xsd:double" use="optional"/>         <xsd:attribute name="velocity" type="xsd:double" use="optional"/>         <xsd:attribute name="heading" type="xsd:double" use="optional"/>         <xsd:attributeGroup ref="IffAttributes"/>         <xsd:attributeGroup ref="CommonAttributes"/>       </xsd:complexType>     </xsd:element>     <!-- TODO: Unique element here, resolve for global exposure -->     <xsd:element name="DopplerRadar">       <xsd:annotation>         <xsd:documentation>Data element for a generic doppler radar.</xsd:documentation>       </xsd:annotation>       <xsd:complexType>         <xsd:attribute name="model" type="xsd:string" use="optional"/>         <xsd:attribute name="range" type="xsd:double" use="optional"/>         <xsd:attribute name="bearing" type="xsd:double" use="optional"/>         <xsd:attribute name="elevation" type="xsd:double" use="optional"/>         <xsd:attribute name="altitude" type="xsd:double" use="optional"/>         <xsd:attribute name="velocity" type="xsd:double" use="optional"/>         <xsd:attribute name="heading" type="xsd:double" use="optional"/>         <xsd:attributeGroup ref="IffAttributes"/>         <xsd:attributeGroup ref="CommonAttributes"/>       </xsd:complexType>     </xsd:element>     <!-- TODO: Unique element here, resolve for global exposure -->     <xsd:element name="SyntheticApertureRadar">       <xsd:annotation>         <xsd:documentation>Data element for a generic single target radar contact.</xsd:documentation>       </xsd:annotation>       <xsd:complexType>         <xsd:attribute name="model" type="xsd:string" use="required"/>         <xsd:attribute name="range" type="xsd:double" use="optional"/>         <xsd:attribute name="bearing" type="xsd:double" use="optional"/>         <xsd:attribute name="elevation" type="xsd:double" use="optional"/>         <xsd:attribute name="altitude" type="xsd:double" use="optional"/>         <xsd:attribute name="velocity" type="xsd:double" use="optional"/>         <xsd:attribute name="heading" type="xsd:double" use="optional"/>         <xsd:attributeGroup ref="IffAttributes"/>         <xsd:attributeGroup ref="CommonAttributes"/>       </xsd:complexType>     </xsd:element>     <!-- TODO: Unique element here, resolve for global exposure -->     <xsd:element name="TrackWhileScanRadar">       <xsd:annotation>         <xsd:documentation>Data element for a track-while-scan radar.</xsd:documentation>       </xsd:annotation>       <xsd:complexType>         <xsd:sequence>           <!-- TODO: Unique element here, reconcile/resolve for global exposure -->           <xsd:element name="Track" maxOccurs="unbounded">             <xsd:annotation>               <xsd:documentation>Individual track of a track-while-scan radar.</xsd:documentation>             </xsd:annotation>             <xsd:complexType>               <xsd:attribute name="trackID" type="xsd:string" use="required"/>               <xsd:attribute name="range" type="xsd:double" use="required"/>               <xsd:attribute name="bearing" type="xsd:double" use="required"/>               <xsd:attribute name="altitude" type="xsd:double" use="optional"/>               <xsd:attribute name="velocity" type="xsd:double" use="required"/>               <xsd:attribute name="heading" type="xsd:double" use="required"/>               <xsd:attributeGroup ref="IffAttributes"/>             </xsd:complexType>           </xsd:element>         </xsd:sequence>         <xsd:attribute name="model" type="xsd:string" use="required"/>         <xsd:attributeGroup ref="CommonAttributes"/>       </xsd:complexType>     </xsd:element>     <!-- TODO: Unique element here, resolve for global exposure -->     <xsd:element name="EarlyWarningRadar">       <xsd:annotation>         <xsd:documentation>Data element for an early warning radar contact.</xsd:documentation>       </xsd:annotation>       <xsd:complexType>         <xsd:attribute name="model" type="xsd:string" use="required"/>         <xsd:attribute name="range" type="xsd:double" use="required"/>         <xsd:attribute name="bearing" type="xsd:double" use="required"/>         <xsd:attribute name="altitude" type="xsd:double" use="optional"/>         <xsd:attribute name="velocity" type="xsd:double" use="optional"/>         <xsd:attribute name="heading" type="xsd:double" use="optional"/>         <xsd:attributeGroup ref="IffAttributes"/>         <xsd:attributeGroup ref="CommonAttributes"/>       </xsd:complexType>     </xsd:element>     <!-- TODO: Unique element here, resolve for global exposure -->     <xsd:element name="AcquisitionRadar">       <xsd:annotation>         <xsd:documentation>Data element for a target acquisition radar contact.</xsd:documentation>       </xsd:annotation>       <xsd:complexType>         <xsd:attribute name="model" type="xsd:string" use="required"/>         <xsd:attribute name="range" type="xsd:double" use="required"/>         <xsd:attribute name="bearing" type="xsd:double" use="required"/>         <xsd:attribute name="altitude" type="xsd:double" use="optional"/>         <xsd:attribute name="velocity" type="xsd:double" use="optional"/>         <xsd:attribute name="heading" type="xsd:double" use="optional"/>         <xsd:attributeGroup ref="IffAttributes"/>         <xsd:attributeGroup ref="CommonAttributes"/>       </xsd:complexType>     </xsd:element>     <!-- TODO: Unique element here, resolve for global exposure -->     <xsd:element name="TrackingRadar">       <xsd:annotation>         <xsd:documentation>Data element for a target tracking radar contact.</xsd:documentation>       </xsd:annotation>       <xsd:complexType>         <xsd:attribute name="model" type="xsd:string" use="required"/>         <xsd:attribute name="range" type="xsd:double" use="required"/>         <xsd:attribute name="bearing" type="xsd:double" use="required"/>         <xsd:attribute name="altitude" type="xsd:double" use="required"/>         <xsd:attribute name="velocity" type="xsd:double" use="required"/>         <xsd:attribute name="heading" type="xsd:double" use="required"/>         <xsd:attributeGroup ref="IffAttributes"/>         <xsd:attributeGroup ref="CommonAttributes"/>       </xsd:complexType>     </xsd:element>     <!-- TODO: Unique element here, resolve for global exposure -->     <xsd:element name="FireControlRadar">       <xsd:annotation>         <xsd:documentation>Data element for a fire control radar contact.</xsd:documentation>       </xsd:annotation>       <xsd:complexType>         <xsd:attribute name="model" type="xsd:string" use="required"/>         <xsd:attribute name="range" type="xsd:double" use="required"/>         <xsd:attribute name="bearing" type="xsd:double" use="required"/>         <xsd:attribute name="altitude" type="xsd:double" use="required"/>         <xsd:attribute name="velocity" type="xsd:double" use="required"/>         <xsd:attribute name="heading" type="xsd:double" use="required"/>         <xsd:attributeGroup ref="IffAttributes"/>         <xsd:attributeGroup ref="CommonAttributes"/>       </xsd:complexType>     </xsd:element>     <!-- TODO: Unique element here, resolve for global exposure -->     <xsd:element name="SurfaceSearchRadar">       <xsd:annotation>         <xsd:documentation>Data element for a surface search radar contact.</xsd:documentation>       </xsd:annotation>       <xsd:complexType>         <xsd:attribute name="model" type="xsd:string" use="required"/>         <xsd:attribute name="range" type="xsd:double" use="required"/>         <xsd:attribute name="bearing" type="xsd:double" use="required"/>         <xsd:attribute name="velocity" type="xsd:double" use="required"/>         <xsd:attribute name="heading" type="xsd:double" use="required"/>         <xsd:attributeGroup ref="IffAttributes"/>         <xsd:attributeGroup ref="CommonAttributes"/>       </xsd:complexType>     </xsd:element>     <!-- TODO: Unique element here, resolve for global exposure -->     <xsd:element name="ESM">       <xsd:annotation>         <xsd:documentation>Data element for an electronic support measure system.</xsd:documentation>       </xsd:annotation>       <xsd:complexType>         <xsd:attribute name="model" type="xsd:string" use="required"/>         <xsd:attribute name="frequency" type="xsd:double" use="required"/>         <xsd:attribute name="strength" type="xsd:double" use="optional"/>         <xsd:attribute name="bearing" type="xsd:double" use="optional"/>         <xsd:attributeGroup ref="CommonAttributes"/>       </xsd:complexType>     </xsd:element>     <!-- TODO: Unique element here, resolve for global exposure -->     <xsd:element name="PassiveSoundDetection">       <xsd:annotation>         <xsd:documentation>Data element for a passive listening device.</xsd:documentation>       </xsd:annotation>       <xsd:complexType>         <xsd:attribute name="model" type="xsd:string" use="required"/>         <xsd:attribute name="frequency" type="xsd:double" use="required"/>         <xsd:attribute name="strength" type="xsd:double" use="optional"/>         <xsd:attribute name="bearing" type="xsd:double" use="optional"/>         <xsd:attributeGroup ref="CommonAttributes"/>       </xsd:complexType>     </xsd:element>     <!-- TODO: Unique element here, resolve for global exposure -->     <xsd:element name="ChemicalBiologicalRadiologicalDetection">       <xsd:annotation>         <xsd:documentation>Data element for a chemical, biological, or radiological detection system.</xsd:documentation>       </xsd:annotation>       <xsd:complexType>         <xsd:attribute name="model" type="xsd:string" use="required"/>         <xsd:attribute name="substance" type="xsd:string" use="required"/>         <xsd:attribute name="magnitude" type="xsd:double" use="optional"/>         <xsd:attributeGroup ref="CommonAttributes"/>       </xsd:complexType>     </xsd:element>     <!-- TODO: Unique element here, resolve for global exposure -->     <xsd:element name="Video">       <xsd:annotation>         <xsd:documentation>Data element for video data. Not yet implemented.</xsd:documentation>       </xsd:annotation>       <xsd:complexType>         <xsd:attribute name="model" type="xsd:string" use="required"/>         <xsd:attributeGroup ref="CommonAttributes"/>       </xsd:complexType>     </xsd:element>     <!-- TODO: Unique element here, resolve for global exposure -->     <xsd:element name="FLIR">       <xsd:annotation>         <xsd:documentation>Data element for FLIR data. Not yet implemented.</xsd:documentation>       </xsd:annotation>       <xsd:complexType>         <xsd:attribute name="model" type="xsd:string" use="required"/>         <xsd:attributeGroup ref="CommonAttributes"/>       </xsd:complexType>     </xsd:element>     <!-- TODO: Unique element here, resolve for global exposure -->     <xsd:element name="MotionSensor">       <xsd:annotation>         <xsd:documentation>Data element for a motion sensor system. Not yet implemented.</xsd:documentation>       </xsd:annotation>       <xsd:complexType>         <xsd:attribute name="model" type="xsd:string" use="required"/>         <xsd:attributeGroup ref="CommonAttributes"/>       </xsd:complexType>     </xsd:element>   </xsd:choice> </xsd:group>

element SensorElements/ActiveSonar

diagram
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation model   xsd:string   required         range   xsd:double   required         bearing   xsd:double   required         elevation   xsd:double   optional         strength   xsd:double   optional         timeStamp   nonNegativeScalarType   optional         documentation Time value in seconds. title   xsd:string   optional         documentation Short title naming this element. description   xsd:string   optional         documentation Descriptive text explaining the intended effect of this element. id   xsd:ID   optional         documentation Unique identifier for this element. refid   xsd:IDREF   optional

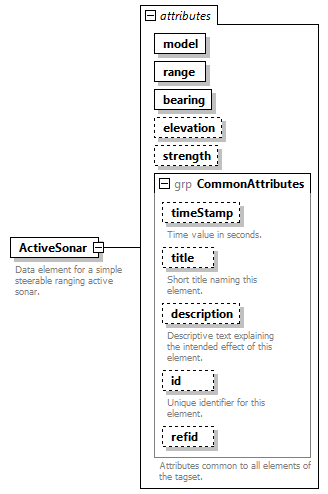

annotation	documentation Data element for a simple steerable ranging active sonar.
source	<xsd:element name="ActiveSonar">   <xsd:annotation>     <xsd:documentation>Data element for a simple steerable ranging active sonar.</xsd:documentation>   </xsd:annotation>   <xsd:complexType>     <xsd:attribute name="model" type="xsd:string" use="required"/>     <xsd:attribute name="range" type="xsd:double" use="required"/>     <xsd:attribute name="bearing" type="xsd:double" use="required"/>     <xsd:attribute name="elevation" type="xsd:double" use="optional"/>     <xsd:attribute name="strength" type="xsd:double" use="optional"/>     <xsd:attributeGroup ref="CommonAttributes"/>   </xsd:complexType> </xsd:element>

attribute SensorElements/ActiveSonar/@model

type	xsd:string
properties	use  required
source	<xsd:attribute name="model" type="xsd:string" use="required"/>

attribute SensorElements/ActiveSonar/@range

type	xsd:double
properties	use  required
source	<xsd:attribute name="range" type="xsd:double" use="required"/>

attribute SensorElements/ActiveSonar/@bearing

type	xsd:double
properties	use  required
source	<xsd:attribute name="bearing" type="xsd:double" use="required"/>

attribute SensorElements/ActiveSonar/@elevation

type	xsd:double
properties	use  optional
source	<xsd:attribute name="elevation" type="xsd:double" use="optional"/>

attribute SensorElements/ActiveSonar/@strength

type	xsd:double
properties	use  optional
source	<xsd:attribute name="strength" type="xsd:double" use="optional"/>

element SensorElements/ImagingSonar

diagram
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation model   xsd:string   required         timeStamp   nonNegativeScalarType   optional         documentation Time value in seconds. title   xsd:string   optional         documentation Short title naming this element. description   xsd:string   optional         documentation Descriptive text explaining the intended effect of this element. id   xsd:ID   optional         documentation Unique identifier for this element. refid   xsd:IDREF   optional

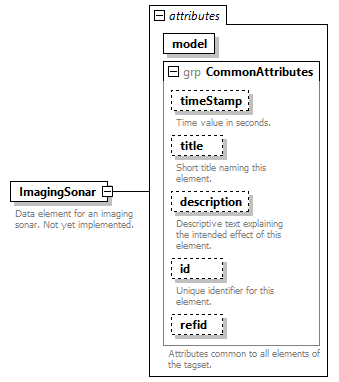

annotation	documentation Data element for an imaging sonar. Not yet implemented.
source	<xsd:element name="ImagingSonar">   <xsd:annotation>     <xsd:documentation>Data element for an imaging sonar. Not yet implemented.</xsd:documentation>   </xsd:annotation>   <xsd:complexType>     <xsd:attribute name="model" type="xsd:string" use="required"/>     <xsd:attributeGroup ref="CommonAttributes"/>   </xsd:complexType> </xsd:element>

attribute SensorElements/ImagingSonar/@model

type	xsd:string
properties	use  required
source	<xsd:attribute name="model" type="xsd:string" use="required"/>

element SensorElements/BlazedArraySonar

diagram
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation model   xsd:string   required         timeStamp   nonNegativeScalarType   optional         documentation Time value in seconds. title   xsd:string   optional         documentation Short title naming this element. description   xsd:string   optional         documentation Descriptive text explaining the intended effect of this element. id   xsd:ID   optional         documentation Unique identifier for this element. refid   xsd:IDREF   optional

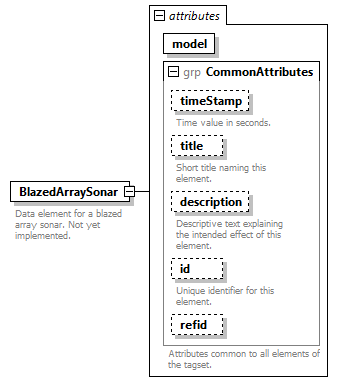

annotation	documentation Data element for a blazed array sonar. Not yet implemented.
source	<xsd:element name="BlazedArraySonar">   <xsd:annotation>     <xsd:documentation>Data element for a blazed array sonar. Not yet implemented.</xsd:documentation>   </xsd:annotation>   <xsd:complexType>     <xsd:attribute name="model" type="xsd:string" use="required"/>     <xsd:attributeGroup ref="CommonAttributes"/>   </xsd:complexType> </xsd:element>

attribute SensorElements/BlazedArraySonar/@model

type	xsd:string
properties	use  required
source	<xsd:attribute name="model" type="xsd:string" use="required"/>

element SensorElements/SyntheticApertureSonar

diagram
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation model   xsd:string   required         timeStamp   nonNegativeScalarType   optional         documentation Time value in seconds. title   xsd:string   optional         documentation Short title naming this element. description   xsd:string   optional         documentation Descriptive text explaining the intended effect of this element. id   xsd:ID   optional         documentation Unique identifier for this element. refid   xsd:IDREF   optional

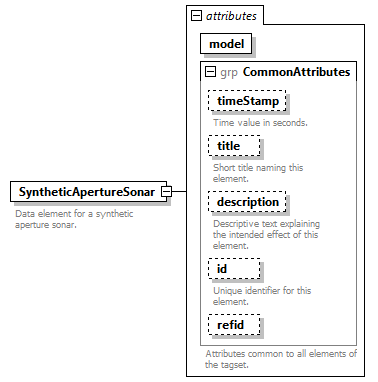

annotation	documentation Data element for a synthetic aperture sonar.
source	<xsd:element name="SyntheticApertureSonar">   <xsd:annotation>     <xsd:documentation>Data element for a synthetic aperture sonar.</xsd:documentation>   </xsd:annotation>   <xsd:complexType>     <xsd:attribute name="model" type="xsd:string" use="required"/>     <xsd:attributeGroup ref="CommonAttributes"/>   </xsd:complexType> </xsd:element>

attribute SensorElements/SyntheticApertureSonar/@model

type	xsd:string
properties	use  required
source	<xsd:attribute name="model" type="xsd:string" use="required"/>

element SensorElements/PassiveSonar

diagram
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation model   xsd:string   required         frequency   xsd:double   required         strength   xsd:double   optional         bearing   xsd:double   optional         timeStamp   nonNegativeScalarType   optional         documentation Time value in seconds. title   xsd:string   optional         documentation Short title naming this element. description   xsd:string   optional         documentation Descriptive text explaining the intended effect of this element. id   xsd:ID   optional         documentation Unique identifier for this element. refid   xsd:IDREF   optional

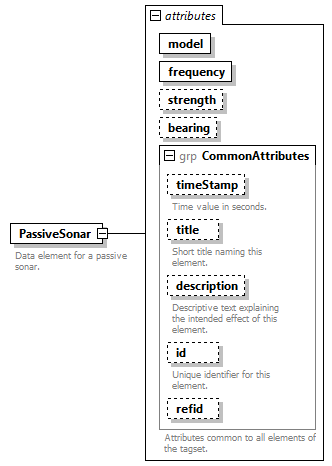

annotation	documentation Data element for a passive sonar.
source	<xsd:element name="PassiveSonar">   <xsd:annotation>     <xsd:documentation>Data element for a passive sonar.</xsd:documentation>   </xsd:annotation>   <xsd:complexType>     <xsd:attribute name="model" type="xsd:string" use="required"/>     <xsd:attribute name="frequency" type="xsd:double" use="required"/>     <xsd:attribute name="strength" type="xsd:double" use="optional"/>     <xsd:attribute name="bearing" type="xsd:double" use="optional"/>     <xsd:attributeGroup ref="CommonAttributes"/>   </xsd:complexType> </xsd:element>

attribute SensorElements/PassiveSonar/@model

type	xsd:string
properties	use  required
source	<xsd:attribute name="model" type="xsd:string" use="required"/>

attribute SensorElements/PassiveSonar/@frequency

type	xsd:double
properties	use  required
source	<xsd:attribute name="frequency" type="xsd:double" use="required"/>

attribute SensorElements/PassiveSonar/@strength

type	xsd:double
properties	use  optional
source	<xsd:attribute name="strength" type="xsd:double" use="optional"/>

attribute SensorElements/PassiveSonar/@bearing

type	xsd:double
properties	use  optional
source	<xsd:attribute name="bearing" type="xsd:double" use="optional"/>

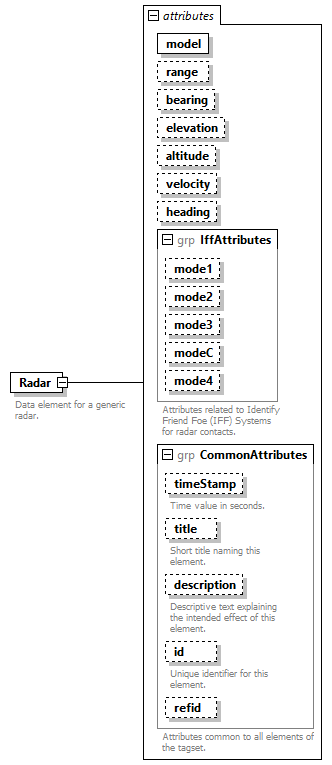

element SensorElements/Radar

diagram
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation model   xsd:string   required         range   xsd:double   optional         bearing   xsd:double   optional         elevation   xsd:double   optional         altitude   xsd:double   optional         velocity   xsd:double   optional         heading   xsd:double   optional         mode1   xsd:int   optional         mode2   xsd:int   optional         mode3   xsd:int   optional         modeC   xsd:int   optional         mode4   xsd:boolean   optional         timeStamp   nonNegativeScalarType   optional         documentation Time value in seconds. title   xsd:string   optional         documentation Short title naming this element. description   xsd:string   optional         documentation Descriptive text explaining the intended effect of this element. id   xsd:ID   optional         documentation Unique identifier for this element. refid   xsd:IDREF   optional
annotation	documentation Data element for a generic radar.
source	<xsd:element name="Radar">   <xsd:annotation>     <xsd:documentation>Data element for a generic radar.</xsd:documentation>   </xsd:annotation>   <xsd:complexType>     <xsd:attribute name="model" type="xsd:string" use="required"/>     <xsd:attribute name="range" type="xsd:double" use="optional"/>     <xsd:attribute name="bearing" type="xsd:double" use="optional"/>     <xsd:attribute name="elevation" type="xsd:double" use="optional"/>     <xsd:attribute name="altitude" type="xsd:double" use="optional"/>     <xsd:attribute name="velocity" type="xsd:double" use="optional"/>     <xsd:attribute name="heading" type="xsd:double" use="optional"/>     <xsd:attributeGroup ref="IffAttributes"/>     <xsd:attributeGroup ref="CommonAttributes"/>   </xsd:complexType> </xsd:element>

attribute SensorElements/Radar/@model

type	xsd:string
properties	use  required
source	<xsd:attribute name="model" type="xsd:string" use="required"/>

attribute SensorElements/Radar/@range

type	xsd:double
properties	use  optional
source	<xsd:attribute name="range" type="xsd:double" use="optional"/>

attribute SensorElements/Radar/@bearing

type	xsd:double
properties	use  optional
source	<xsd:attribute name="bearing" type="xsd:double" use="optional"/>

attribute SensorElements/Radar/@elevation

type	xsd:double
properties	use  optional
source	<xsd:attribute name="elevation" type="xsd:double" use="optional"/>

attribute SensorElements/Radar/@altitude

type	xsd:double
properties	use  optional
source	<xsd:attribute name="altitude" type="xsd:double" use="optional"/>

attribute SensorElements/Radar/@velocity

type	xsd:double
properties	use  optional
source	<xsd:attribute name="velocity" type="xsd:double" use="optional"/>

attribute SensorElements/Radar/@heading

type	xsd:double
properties	use  optional
source	<xsd:attribute name="heading" type="xsd:double" use="optional"/>

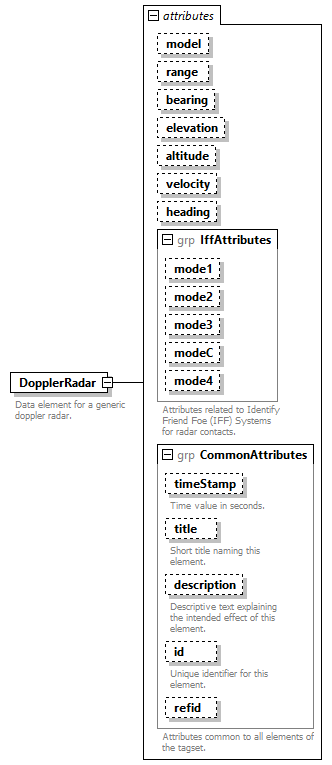

element SensorElements/DopplerRadar

diagram
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation model   xsd:string   optional         range   xsd:double   optional         bearing   xsd:double   optional         elevation   xsd:double   optional         altitude   xsd:double   optional         velocity   xsd:double   optional         heading   xsd:double   optional         mode1   xsd:int   optional         mode2   xsd:int   optional         mode3   xsd:int   optional         modeC   xsd:int   optional         mode4   xsd:boolean   optional         timeStamp   nonNegativeScalarType   optional         documentation Time value in seconds. title   xsd:string   optional         documentation Short title naming this element. description   xsd:string   optional         documentation Descriptive text explaining the intended effect of this element. id   xsd:ID   optional         documentation Unique identifier for this element. refid   xsd:IDREF   optional
annotation	documentation Data element for a generic doppler radar.
source	<xsd:element name="DopplerRadar">   <xsd:annotation>     <xsd:documentation>Data element for a generic doppler radar.</xsd:documentation>   </xsd:annotation>   <xsd:complexType>     <xsd:attribute name="model" type="xsd:string" use="optional"/>     <xsd:attribute name="range" type="xsd:double" use="optional"/>     <xsd:attribute name="bearing" type="xsd:double" use="optional"/>     <xsd:attribute name="elevation" type="xsd:double" use="optional"/>     <xsd:attribute name="altitude" type="xsd:double" use="optional"/>     <xsd:attribute name="velocity" type="xsd:double" use="optional"/>     <xsd:attribute name="heading" type="xsd:double" use="optional"/>     <xsd:attributeGroup ref="IffAttributes"/>     <xsd:attributeGroup ref="CommonAttributes"/>   </xsd:complexType> </xsd:element>

attribute SensorElements/DopplerRadar/@model

type	xsd:string
properties	use  optional
source	<xsd:attribute name="model" type="xsd:string" use="optional"/>

attribute SensorElements/DopplerRadar/@range

type	xsd:double
properties	use  optional
source	<xsd:attribute name="range" type="xsd:double" use="optional"/>

attribute SensorElements/DopplerRadar/@bearing

type	xsd:double
properties	use  optional
source	<xsd:attribute name="bearing" type="xsd:double" use="optional"/>

attribute SensorElements/DopplerRadar/@elevation

type	xsd:double
properties	use  optional
source	<xsd:attribute name="elevation" type="xsd:double" use="optional"/>

attribute SensorElements/DopplerRadar/@altitude

type	xsd:double
properties	use  optional
source	<xsd:attribute name="altitude" type="xsd:double" use="optional"/>

attribute SensorElements/DopplerRadar/@velocity

type	xsd:double
properties	use  optional
source	<xsd:attribute name="velocity" type="xsd:double" use="optional"/>

attribute SensorElements/DopplerRadar/@heading

type	xsd:double
properties	use  optional
source	<xsd:attribute name="heading" type="xsd:double" use="optional"/>

element SensorElements/SyntheticApertureRadar

diagram
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation model   xsd:string   required         range   xsd:double   optional         bearing   xsd:double   optional         elevation   xsd:double   optional         altitude   xsd:double   optional         velocity   xsd:double   optional         heading   xsd:double   optional         mode1   xsd:int   optional         mode2   xsd:int   optional         mode3   xsd:int   optional         modeC   xsd:int   optional         mode4   xsd:boolean   optional         timeStamp   nonNegativeScalarType   optional         documentation Time value in seconds. title   xsd:string   optional         documentation Short title naming this element. description   xsd:string   optional         documentation Descriptive text explaining the intended effect of this element. id   xsd:ID   optional         documentation Unique identifier for this element. refid   xsd:IDREF   optional

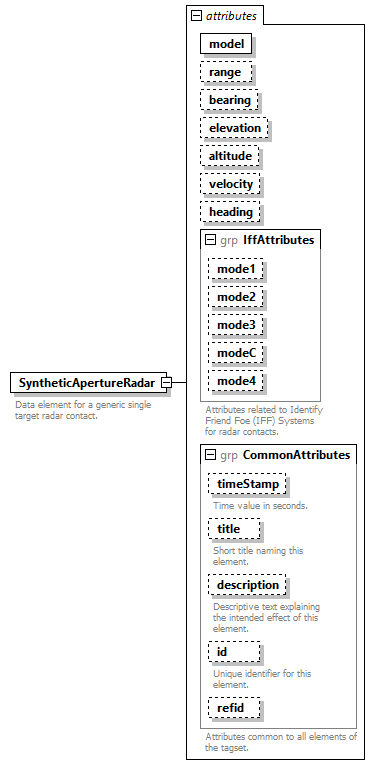

annotation	documentation Data element for a generic single target radar contact.
source	<xsd:element name="SyntheticApertureRadar">   <xsd:annotation>     <xsd:documentation>Data element for a generic single target radar contact.</xsd:documentation>   </xsd:annotation>   <xsd:complexType>     <xsd:attribute name="model" type="xsd:string" use="required"/>     <xsd:attribute name="range" type="xsd:double" use="optional"/>     <xsd:attribute name="bearing" type="xsd:double" use="optional"/>     <xsd:attribute name="elevation" type="xsd:double" use="optional"/>     <xsd:attribute name="altitude" type="xsd:double" use="optional"/>     <xsd:attribute name="velocity" type="xsd:double" use="optional"/>     <xsd:attribute name="heading" type="xsd:double" use="optional"/>     <xsd:attributeGroup ref="IffAttributes"/>     <xsd:attributeGroup ref="CommonAttributes"/>   </xsd:complexType> </xsd:element>

attribute SensorElements/SyntheticApertureRadar/@model

type	xsd:string
properties	use  required
source	<xsd:attribute name="model" type="xsd:string" use="required"/>

attribute SensorElements/SyntheticApertureRadar/@range

type	xsd:double
properties	use  optional
source	<xsd:attribute name="range" type="xsd:double" use="optional"/>

attribute SensorElements/SyntheticApertureRadar/@bearing

type	xsd:double
properties	use  optional
source	<xsd:attribute name="bearing" type="xsd:double" use="optional"/>

attribute SensorElements/SyntheticApertureRadar/@elevation

type	xsd:double
properties	use  optional
source	<xsd:attribute name="elevation" type="xsd:double" use="optional"/>

attribute SensorElements/SyntheticApertureRadar/@altitude

type	xsd:double
properties	use  optional
source	<xsd:attribute name="altitude" type="xsd:double" use="optional"/>

attribute SensorElements/SyntheticApertureRadar/@velocity

type	xsd:double
properties	use  optional
source	<xsd:attribute name="velocity" type="xsd:double" use="optional"/>

attribute SensorElements/SyntheticApertureRadar/@heading

type	xsd:double
properties	use  optional
source	<xsd:attribute name="heading" type="xsd:double" use="optional"/>

element SensorElements/TrackWhileScanRadar

diagram
properties	content  complex
children	Track
attributes	Name   Type   Use   Default   Fixed   Annotation model   xsd:string   required         timeStamp   nonNegativeScalarType   optional         documentation Time value in seconds. title   xsd:string   optional         documentation Short title naming this element. description   xsd:string   optional         documentation Descriptive text explaining the intended effect of this element. id   xsd:ID   optional         documentation Unique identifier for this element. refid   xsd:IDREF   optional

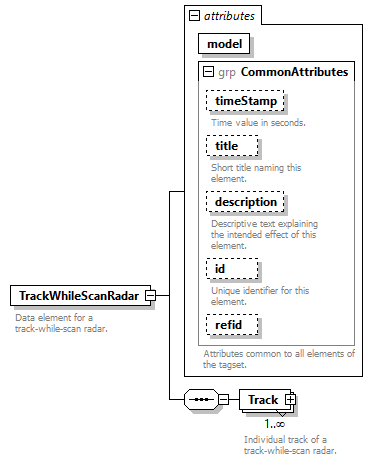

annotation	documentation Data element for a track-while-scan radar.
source	<xsd:element name="TrackWhileScanRadar">   <xsd:annotation>     <xsd:documentation>Data element for a track-while-scan radar.</xsd:documentation>   </xsd:annotation>   <xsd:complexType>     <xsd:sequence>       <!-- TODO: Unique element here, reconcile/resolve for global exposure -->       <xsd:element name="Track" maxOccurs="unbounded">         <xsd:annotation>           <xsd:documentation>Individual track of a track-while-scan radar.</xsd:documentation>         </xsd:annotation>         <xsd:complexType>           <xsd:attribute name="trackID" type="xsd:string" use="required"/>           <xsd:attribute name="range" type="xsd:double" use="required"/>           <xsd:attribute name="bearing" type="xsd:double" use="required"/>           <xsd:attribute name="altitude" type="xsd:double" use="optional"/>           <xsd:attribute name="velocity" type="xsd:double" use="required"/>           <xsd:attribute name="heading" type="xsd:double" use="required"/>           <xsd:attributeGroup ref="IffAttributes"/>         </xsd:complexType>       </xsd:element>     </xsd:sequence>     <xsd:attribute name="model" type="xsd:string" use="required"/>     <xsd:attributeGroup ref="CommonAttributes"/>   </xsd:complexType> </xsd:element>

attribute SensorElements/TrackWhileScanRadar/@model

type	xsd:string
properties	use  required
source	<xsd:attribute name="model" type="xsd:string" use="required"/>

element SensorElements/TrackWhileScanRadar/Track

diagram
properties	minOcc  1 maxOcc  unbounded content  complex
used by	complexType  setSonarCommandType
attributes	Name   Type   Use   Default   Fixed   Annotation trackID   xsd:string   required         range   xsd:double   required         bearing   xsd:double   required         altitude   xsd:double   optional         velocity   xsd:double   required         heading   xsd:double   required         mode1   xsd:int   optional         mode2   xsd:int   optional         mode3   xsd:int   optional         modeC   xsd:int   optional         mode4   xsd:boolean   optional

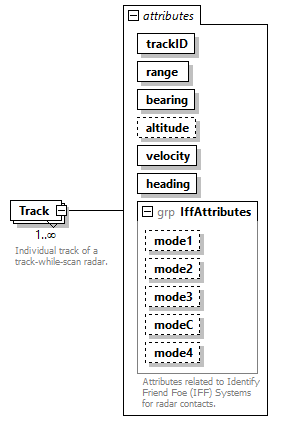

annotation	documentation Individual track of a track-while-scan radar.
source	<xsd:element name="Track" maxOccurs="unbounded">   <xsd:annotation>     <xsd:documentation>Individual track of a track-while-scan radar.</xsd:documentation>   </xsd:annotation>   <xsd:complexType>     <xsd:attribute name="trackID" type="xsd:string" use="required"/>     <xsd:attribute name="range" type="xsd:double" use="required"/>     <xsd:attribute name="bearing" type="xsd:double" use="required"/>     <xsd:attribute name="altitude" type="xsd:double" use="optional"/>     <xsd:attribute name="velocity" type="xsd:double" use="required"/>     <xsd:attribute name="heading" type="xsd:double" use="required"/>     <xsd:attributeGroup ref="IffAttributes"/>   </xsd:complexType> </xsd:element>

attribute SensorElements/TrackWhileScanRadar/Track/@trackID

type	xsd:string
properties	use  required
source	<xsd:attribute name="trackID" type="xsd:string" use="required"/>

attribute SensorElements/TrackWhileScanRadar/Track/@range

type	xsd:double
properties	use  required
source	<xsd:attribute name="range" type="xsd:double" use="required"/>

attribute SensorElements/TrackWhileScanRadar/Track/@bearing

type	xsd:double
properties	use  required
source	<xsd:attribute name="bearing" type="xsd:double" use="required"/>

attribute SensorElements/TrackWhileScanRadar/Track/@altitude

type	xsd:double
properties	use  optional
source	<xsd:attribute name="altitude" type="xsd:double" use="optional"/>

attribute SensorElements/TrackWhileScanRadar/Track/@velocity

type	xsd:double
properties	use  required
source	<xsd:attribute name="velocity" type="xsd:double" use="required"/>

attribute SensorElements/TrackWhileScanRadar/Track/@heading

type	xsd:double
properties	use  required
source	<xsd:attribute name="heading" type="xsd:double" use="required"/>

element SensorElements/EarlyWarningRadar

diagram
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation model   xsd:string   required         range   xsd:double   required         bearing   xsd:double   required         altitude   xsd:double   optional         velocity   xsd:double   optional         heading   xsd:double   optional         mode1   xsd:int   optional         mode2   xsd:int   optional         mode3   xsd:int   optional         modeC   xsd:int   optional         mode4   xsd:boolean   optional         timeStamp   nonNegativeScalarType   optional         documentation Time value in seconds. title   xsd:string   optional         documentation Short title naming this element. description   xsd:string   optional         documentation Descriptive text explaining the intended effect of this element. id   xsd:ID   optional         documentation Unique identifier for this element. refid   xsd:IDREF   optional

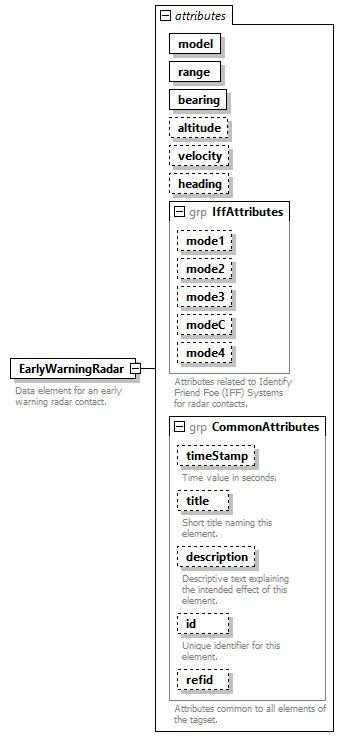

annotation	documentation Data element for an early warning radar contact.
source	<xsd:element name="EarlyWarningRadar">   <xsd:annotation>     <xsd:documentation>Data element for an early warning radar contact.</xsd:documentation>   </xsd:annotation>   <xsd:complexType>     <xsd:attribute name="model" type="xsd:string" use="required"/>     <xsd:attribute name="range" type="xsd:double" use="required"/>     <xsd:attribute name="bearing" type="xsd:double" use="required"/>     <xsd:attribute name="altitude" type="xsd:double" use="optional"/>     <xsd:attribute name="velocity" type="xsd:double" use="optional"/>     <xsd:attribute name="heading" type="xsd:double" use="optional"/>     <xsd:attributeGroup ref="IffAttributes"/>     <xsd:attributeGroup ref="CommonAttributes"/>   </xsd:complexType> </xsd:element>

attribute SensorElements/EarlyWarningRadar/@model

type	xsd:string
properties	use  required
source	<xsd:attribute name="model" type="xsd:string" use="required"/>

attribute SensorElements/EarlyWarningRadar/@range

type	xsd:double
properties	use  required
source	<xsd:attribute name="range" type="xsd:double" use="required"/>

attribute SensorElements/EarlyWarningRadar/@bearing

type	xsd:double
properties	use  required
source	<xsd:attribute name="bearing" type="xsd:double" use="required"/>

attribute SensorElements/EarlyWarningRadar/@altitude

type	xsd:double
properties	use  optional
source	<xsd:attribute name="altitude" type="xsd:double" use="optional"/>

attribute SensorElements/EarlyWarningRadar/@velocity

type	xsd:double
properties	use  optional
source	<xsd:attribute name="velocity" type="xsd:double" use="optional"/>

attribute SensorElements/EarlyWarningRadar/@heading

type	xsd:double
properties	use  optional
source	<xsd:attribute name="heading" type="xsd:double" use="optional"/>

element SensorElements/AcquisitionRadar

diagram
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation model   xsd:string   required         range   xsd:double   required         bearing   xsd:double   required         altitude   xsd:double   optional         velocity   xsd:double   optional         heading   xsd:double   optional         mode1   xsd:int   optional         mode2   xsd:int   optional         mode3   xsd:int   optional         modeC   xsd:int   optional         mode4   xsd:boolean   optional         timeStamp   nonNegativeScalarType   optional         documentation Time value in seconds. title   xsd:string   optional         documentation Short title naming this element. description   xsd:string   optional         documentation Descriptive text explaining the intended effect of this element. id   xsd:ID   optional         documentation Unique identifier for this element. refid   xsd:IDREF   optional

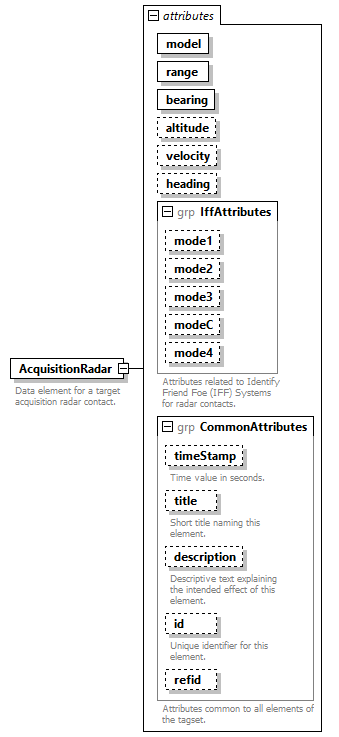

annotation	documentation Data element for a target acquisition radar contact.
source	<xsd:element name="AcquisitionRadar">   <xsd:annotation>     <xsd:documentation>Data element for a target acquisition radar contact.</xsd:documentation>   </xsd:annotation>   <xsd:complexType>     <xsd:attribute name="model" type="xsd:string" use="required"/>     <xsd:attribute name="range" type="xsd:double" use="required"/>     <xsd:attribute name="bearing" type="xsd:double" use="required"/>     <xsd:attribute name="altitude" type="xsd:double" use="optional"/>     <xsd:attribute name="velocity" type="xsd:double" use="optional"/>     <xsd:attribute name="heading" type="xsd:double" use="optional"/>     <xsd:attributeGroup ref="IffAttributes"/>     <xsd:attributeGroup ref="CommonAttributes"/>   </xsd:complexType> </xsd:element>

attribute SensorElements/AcquisitionRadar/@model

type	xsd:string
properties	use  required
source	<xsd:attribute name="model" type="xsd:string" use="required"/>

attribute SensorElements/AcquisitionRadar/@range

type	xsd:double
properties	use  required
source	<xsd:attribute name="range" type="xsd:double" use="required"/>

attribute SensorElements/AcquisitionRadar/@bearing

type	xsd:double
properties	use  required
source	<xsd:attribute name="bearing" type="xsd:double" use="required"/>

attribute SensorElements/AcquisitionRadar/@altitude

type	xsd:double
properties	use  optional
source	<xsd:attribute name="altitude" type="xsd:double" use="optional"/>

attribute SensorElements/AcquisitionRadar/@velocity

type	xsd:double
properties	use  optional
source	<xsd:attribute name="velocity" type="xsd:double" use="optional"/>

attribute SensorElements/AcquisitionRadar/@heading

type	xsd:double
properties	use  optional
source	<xsd:attribute name="heading" type="xsd:double" use="optional"/>

element SensorElements/TrackingRadar

diagram
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation model   xsd:string   required         range   xsd:double   required         bearing   xsd:double   required         altitude   xsd:double   required         velocity   xsd:double   required         heading   xsd:double   required         mode1   xsd:int   optional         mode2   xsd:int   optional         mode3   xsd:int   optional         modeC   xsd:int   optional         mode4   xsd:boolean   optional         timeStamp   nonNegativeScalarType   optional         documentation Time value in seconds. title   xsd:string   optional         documentation Short title naming this element. description   xsd:string   optional         documentation Descriptive text explaining the intended effect of this element. id   xsd:ID   optional         documentation Unique identifier for this element. refid   xsd:IDREF   optional

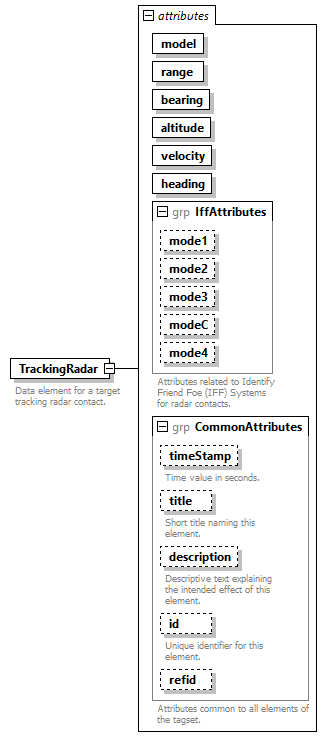

annotation	documentation Data element for a target tracking radar contact.
source	<xsd:element name="TrackingRadar">   <xsd:annotation>     <xsd:documentation>Data element for a target tracking radar contact.</xsd:documentation>   </xsd:annotation>   <xsd:complexType>     <xsd:attribute name="model" type="xsd:string" use="required"/>     <xsd:attribute name="range" type="xsd:double" use="required"/>     <xsd:attribute name="bearing" type="xsd:double" use="required"/>     <xsd:attribute name="altitude" type="xsd:double" use="required"/>     <xsd:attribute name="velocity" type="xsd:double" use="required"/>     <xsd:attribute name="heading" type="xsd:double" use="required"/>     <xsd:attributeGroup ref="IffAttributes"/>     <xsd:attributeGroup ref="CommonAttributes"/>   </xsd:complexType> </xsd:element>

attribute SensorElements/TrackingRadar/@model

type	xsd:string
properties	use  required
source	<xsd:attribute name="model" type="xsd:string" use="required"/>

attribute SensorElements/TrackingRadar/@range

type	xsd:double
properties	use  required
source	<xsd:attribute name="range" type="xsd:double" use="required"/>

attribute SensorElements/TrackingRadar/@bearing

type	xsd:double
properties	use  required
source	<xsd:attribute name="bearing" type="xsd:double" use="required"/>

attribute SensorElements/TrackingRadar/@altitude

type	xsd:double
properties	use  required
source	<xsd:attribute name="altitude" type="xsd:double" use="required"/>

attribute SensorElements/TrackingRadar/@velocity

type	xsd:double
properties	use  required
source	<xsd:attribute name="velocity" type="xsd:double" use="required"/>

attribute SensorElements/TrackingRadar/@heading

type	xsd:double
properties	use  required
source	<xsd:attribute name="heading" type="xsd:double" use="required"/>

element SensorElements/FireControlRadar

diagram
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation model   xsd:string   required         range   xsd:double   required         bearing   xsd:double   required         altitude   xsd:double   required         velocity   xsd:double   required         heading   xsd:double   required         mode1   xsd:int   optional         mode2   xsd:int   optional         mode3   xsd:int   optional         modeC   xsd:int   optional         mode4   xsd:boolean   optional         timeStamp   nonNegativeScalarType   optional         documentation Time value in seconds. title   xsd:string   optional         documentation Short title naming this element. description   xsd:string   optional         documentation Descriptive text explaining the intended effect of this element. id   xsd:ID   optional         documentation Unique identifier for this element. refid   xsd:IDREF   optional

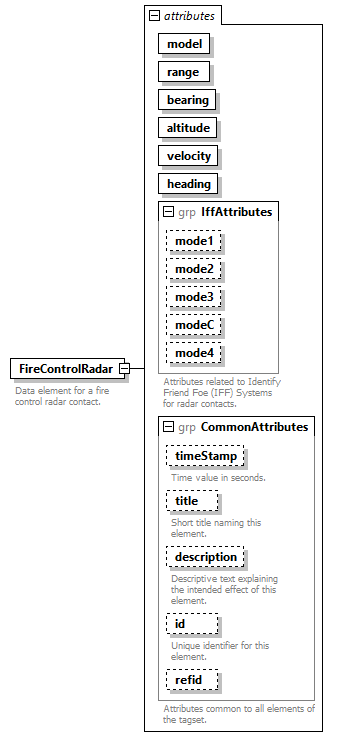

annotation	documentation Data element for a fire control radar contact.
source	<xsd:element name="FireControlRadar">   <xsd:annotation>     <xsd:documentation>Data element for a fire control radar contact.</xsd:documentation>   </xsd:annotation>   <xsd:complexType>     <xsd:attribute name="model" type="xsd:string" use="required"/>     <xsd:attribute name="range" type="xsd:double" use="required"/>     <xsd:attribute name="bearing" type="xsd:double" use="required"/>     <xsd:attribute name="altitude" type="xsd:double" use="required"/>     <xsd:attribute name="velocity" type="xsd:double" use="required"/>     <xsd:attribute name="heading" type="xsd:double" use="required"/>     <xsd:attributeGroup ref="IffAttributes"/>     <xsd:attributeGroup ref="CommonAttributes"/>   </xsd:complexType> </xsd:element>

attribute SensorElements/FireControlRadar/@model

type	xsd:string
properties	use  required
source	<xsd:attribute name="model" type="xsd:string" use="required"/>

attribute SensorElements/FireControlRadar/@range

type	xsd:double
properties	use  required
source	<xsd:attribute name="range" type="xsd:double" use="required"/>

attribute SensorElements/FireControlRadar/@bearing

type	xsd:double
properties	use  required
source	<xsd:attribute name="bearing" type="xsd:double" use="required"/>

attribute SensorElements/FireControlRadar/@altitude

type	xsd:double
properties	use  required
source	<xsd:attribute name="altitude" type="xsd:double" use="required"/>

attribute SensorElements/FireControlRadar/@velocity

type	xsd:double
properties	use  required
source	<xsd:attribute name="velocity" type="xsd:double" use="required"/>

attribute SensorElements/FireControlRadar/@heading

type	xsd:double
properties	use  required
source	<xsd:attribute name="heading" type="xsd:double" use="required"/>

element SensorElements/SurfaceSearchRadar

diagram
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation model   xsd:string   required         range   xsd:double   required         bearing   xsd:double   required         velocity   xsd:double   required         heading   xsd:double   required         mode1   xsd:int   optional         mode2   xsd:int   optional         mode3   xsd:int   optional         modeC   xsd:int   optional         mode4   xsd:boolean   optional         timeStamp   nonNegativeScalarType   optional         documentation Time value in seconds. title   xsd:string   optional         documentation Short title naming this element. description   xsd:string   optional         documentation Descriptive text explaining the intended effect of this element. id   xsd:ID   optional         documentation Unique identifier for this element. refid   xsd:IDREF   optional

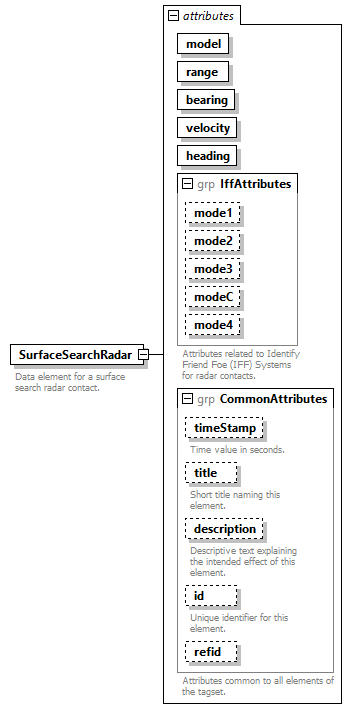

annotation	documentation Data element for a surface search radar contact.
source	<xsd:element name="SurfaceSearchRadar">   <xsd:annotation>     <xsd:documentation>Data element for a surface search radar contact.</xsd:documentation>   </xsd:annotation>   <xsd:complexType>     <xsd:attribute name="model" type="xsd:string" use="required"/>     <xsd:attribute name="range" type="xsd:double" use="required"/>     <xsd:attribute name="bearing" type="xsd:double" use="required"/>     <xsd:attribute name="velocity" type="xsd:double" use="required"/>     <xsd:attribute name="heading" type="xsd:double" use="required"/>     <xsd:attributeGroup ref="IffAttributes"/>     <xsd:attributeGroup ref="CommonAttributes"/>   </xsd:complexType> </xsd:element>

attribute SensorElements/SurfaceSearchRadar/@model

type	xsd:string
properties	use  required
source	<xsd:attribute name="model" type="xsd:string" use="required"/>

attribute SensorElements/SurfaceSearchRadar/@range

type	xsd:double
properties	use  required
source	<xsd:attribute name="range" type="xsd:double" use="required"/>

attribute SensorElements/SurfaceSearchRadar/@bearing

type	xsd:double
properties	use  required
source	<xsd:attribute name="bearing" type="xsd:double" use="required"/>

attribute SensorElements/SurfaceSearchRadar/@velocity

type	xsd:double
properties	use  required
source	<xsd:attribute name="velocity" type="xsd:double" use="required"/>

attribute SensorElements/SurfaceSearchRadar/@heading

type	xsd:double
properties	use  required
source	<xsd:attribute name="heading" type="xsd:double" use="required"/>

element SensorElements/ESM

diagram
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation model   xsd:string   required         frequency   xsd:double   required         strength   xsd:double   optional         bearing   xsd:double   optional         timeStamp   nonNegativeScalarType   optional         documentation Time value in seconds. title   xsd:string   optional         documentation Short title naming this element. description   xsd:string   optional         documentation Descriptive text explaining the intended effect of this element. id   xsd:ID   optional         documentation Unique identifier for this element. refid   xsd:IDREF   optional

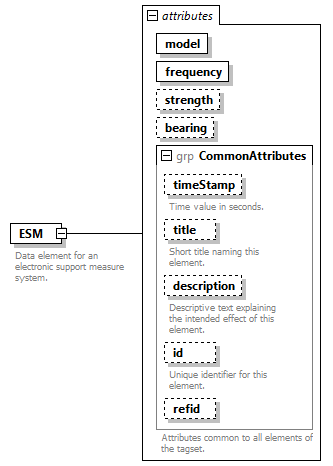

annotation	documentation Data element for an electronic support measure system.
source	<xsd:element name="ESM">   <xsd:annotation>     <xsd:documentation>Data element for an electronic support measure system.</xsd:documentation>   </xsd:annotation>   <xsd:complexType>     <xsd:attribute name="model" type="xsd:string" use="required"/>     <xsd:attribute name="frequency" type="xsd:double" use="required"/>     <xsd:attribute name="strength" type="xsd:double" use="optional"/>     <xsd:attribute name="bearing" type="xsd:double" use="optional"/>     <xsd:attributeGroup ref="CommonAttributes"/>   </xsd:complexType> </xsd:element>

attribute SensorElements/ESM/@model

type	xsd:string
properties	use  required
source	<xsd:attribute name="model" type="xsd:string" use="required"/>

attribute SensorElements/ESM/@frequency

type	xsd:double
properties	use  required
source	<xsd:attribute name="frequency" type="xsd:double" use="required"/>

attribute SensorElements/ESM/@strength

type	xsd:double
properties	use  optional
source	<xsd:attribute name="strength" type="xsd:double" use="optional"/>

attribute SensorElements/ESM/@bearing

type	xsd:double
properties	use  optional
source	<xsd:attribute name="bearing" type="xsd:double" use="optional"/>

element SensorElements/PassiveSoundDetection

diagram
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation model   xsd:string   required         frequency   xsd:double   required         strength   xsd:double   optional         bearing   xsd:double   optional         timeStamp   nonNegativeScalarType   optional         documentation Time value in seconds. title   xsd:string   optional         documentation Short title naming this element. description   xsd:string   optional         documentation Descriptive text explaining the intended effect of this element. id   xsd:ID   optional         documentation Unique identifier for this element. refid   xsd:IDREF   optional

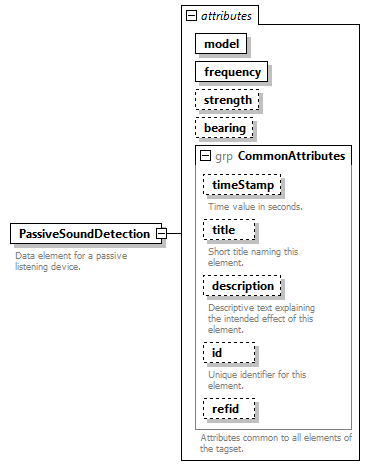

annotation	documentation Data element for a passive listening device.
source	<xsd:element name="PassiveSoundDetection">   <xsd:annotation>     <xsd:documentation>Data element for a passive listening device.</xsd:documentation>   </xsd:annotation>   <xsd:complexType>     <xsd:attribute name="model" type="xsd:string" use="required"/>     <xsd:attribute name="frequency" type="xsd:double" use="required"/>     <xsd:attribute name="strength" type="xsd:double" use="optional"/>     <xsd:attribute name="bearing" type="xsd:double" use="optional"/>     <xsd:attributeGroup ref="CommonAttributes"/>   </xsd:complexType> </xsd:element>

attribute SensorElements/PassiveSoundDetection/@model

type	xsd:string
properties	use  required
source	<xsd:attribute name="model" type="xsd:string" use="required"/>

attribute SensorElements/PassiveSoundDetection/@frequency

type	xsd:double
properties	use  required
source	<xsd:attribute name="frequency" type="xsd:double" use="required"/>

attribute SensorElements/PassiveSoundDetection/@strength

type	xsd:double
properties	use  optional
source	<xsd:attribute name="strength" type="xsd:double" use="optional"/>

attribute SensorElements/PassiveSoundDetection/@bearing

type	xsd:double
properties	use  optional
source	<xsd:attribute name="bearing" type="xsd:double" use="optional"/>

element SensorElements/ChemicalBiologicalRadiologicalDetection

diagram
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation model   xsd:string   required         substance   xsd:string   required         magnitude   xsd:double   optional         timeStamp   nonNegativeScalarType   optional         documentation Time value in seconds. title   xsd:string   optional         documentation Short title naming this element. description   xsd:string   optional         documentation Descriptive text explaining the intended effect of this element. id   xsd:ID   optional         documentation Unique identifier for this element. refid   xsd:IDREF   optional

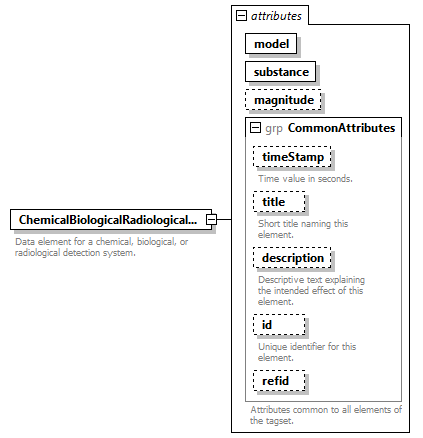

annotation	documentation Data element for a chemical, biological, or radiological detection system.
source	<xsd:element name="ChemicalBiologicalRadiologicalDetection">   <xsd:annotation>     <xsd:documentation>Data element for a chemical, biological, or radiological detection system.</xsd:documentation>   </xsd:annotation>   <xsd:complexType>     <xsd:attribute name="model" type="xsd:string" use="required"/>     <xsd:attribute name="substance" type="xsd:string" use="required"/>     <xsd:attribute name="magnitude" type="xsd:double" use="optional"/>     <xsd:attributeGroup ref="CommonAttributes"/>   </xsd:complexType> </xsd:element>

attribute SensorElements/ChemicalBiologicalRadiologicalDetection/@model

type	xsd:string
properties	use  required
source	<xsd:attribute name="model" type="xsd:string" use="required"/>

attribute SensorElements/ChemicalBiologicalRadiologicalDetection/@substance

type	xsd:string
properties	use  required
source	<xsd:attribute name="substance" type="xsd:string" use="required"/>

attribute SensorElements/ChemicalBiologicalRadiologicalDetection/@magnitude

type	xsd:double
properties	use  optional
source	<xsd:attribute name="magnitude" type="xsd:double" use="optional"/>

element SensorElements/Video

diagram
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation model   xsd:string   required         timeStamp   nonNegativeScalarType   optional         documentation Time value in seconds. title   xsd:string   optional         documentation Short title naming this element. description   xsd:string   optional         documentation Descriptive text explaining the intended effect of this element. id   xsd:ID   optional         documentation Unique identifier for this element. refid   xsd:IDREF   optional

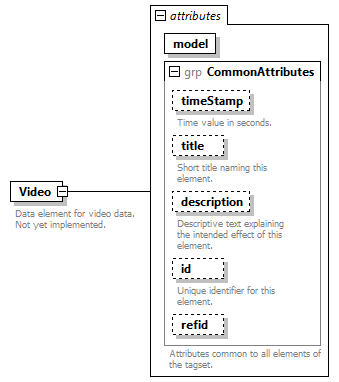

annotation	documentation Data element for video data. Not yet implemented.
source	<xsd:element name="Video">   <xsd:annotation>     <xsd:documentation>Data element for video data. Not yet implemented.</xsd:documentation>   </xsd:annotation>   <xsd:complexType>     <xsd:attribute name="model" type="xsd:string" use="required"/>     <xsd:attributeGroup ref="CommonAttributes"/>   </xsd:complexType> </xsd:element>

attribute SensorElements/Video/@model

type	xsd:string
properties	use  required
source	<xsd:attribute name="model" type="xsd:string" use="required"/>

element SensorElements/FLIR

diagram
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation model   xsd:string   required         timeStamp   nonNegativeScalarType   optional         documentation Time value in seconds. title   xsd:string   optional         documentation Short title naming this element. description   xsd:string   optional         documentation Descriptive text explaining the intended effect of this element. id   xsd:ID   optional         documentation Unique identifier for this element. refid   xsd:IDREF   optional

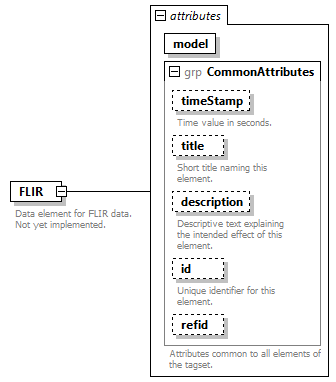

annotation	documentation Data element for FLIR data. Not yet implemented.
source	<xsd:element name="FLIR">   <xsd:annotation>     <xsd:documentation>Data element for FLIR data. Not yet implemented.</xsd:documentation>   </xsd:annotation>   <xsd:complexType>     <xsd:attribute name="model" type="xsd:string" use="required"/>     <xsd:attributeGroup ref="CommonAttributes"/>   </xsd:complexType> </xsd:element>

attribute SensorElements/FLIR/@model

type	xsd:string
properties	use  required
source	<xsd:attribute name="model" type="xsd:string" use="required"/>

element SensorElements/MotionSensor

diagram
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation model   xsd:string   required         timeStamp   nonNegativeScalarType   optional         documentation Time value in seconds. title   xsd:string   optional         documentation Short title naming this element. description   xsd:string   optional         documentation Descriptive text explaining the intended effect of this element. id   xsd:ID   optional         documentation Unique identifier for this element. refid   xsd:IDREF   optional

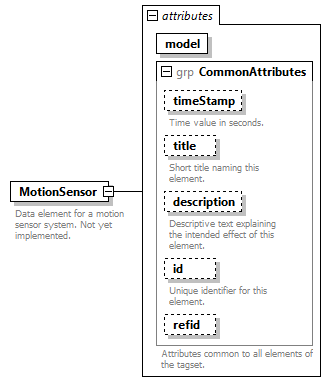

annotation	documentation Data element for a motion sensor system. Not yet implemented.
source	<xsd:element name="MotionSensor">   <xsd:annotation>     <xsd:documentation>Data element for a motion sensor system. Not yet implemented.</xsd:documentation>   </xsd:annotation>   <xsd:complexType>     <xsd:attribute name="model" type="xsd:string" use="required"/>     <xsd:attributeGroup ref="CommonAttributes"/>   </xsd:complexType> </xsd:element>

attribute SensorElements/MotionSensor/@model

type	xsd:string
properties	use  required
source	<xsd:attribute name="model" type="xsd:string" use="required"/>

XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
