element WaypointUSV

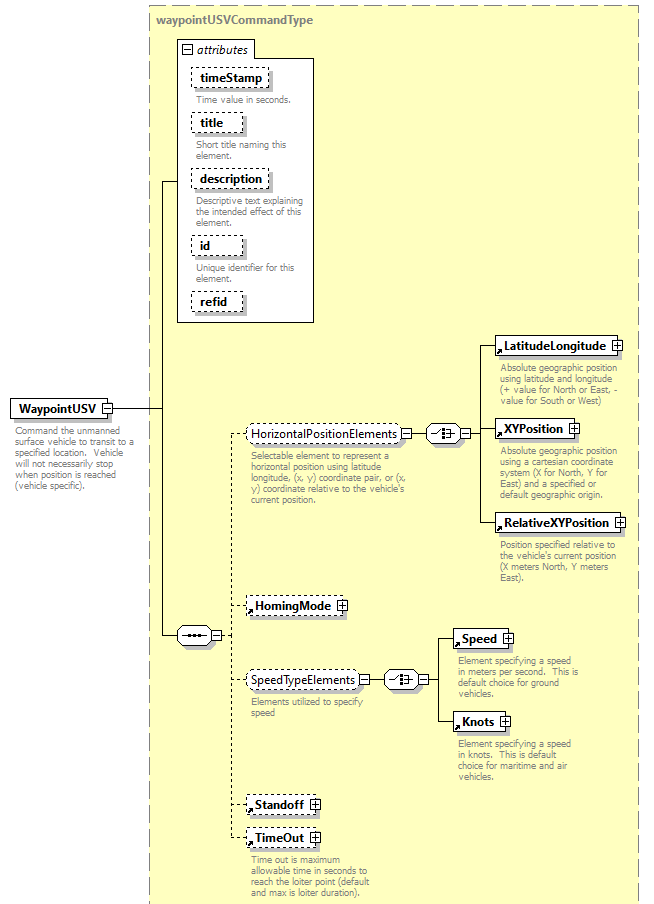

diagram
type	waypointUSVCommandType
properties	content  complex
children	LatitudeLongitude XYPosition RelativeXYPosition HomingMode Speed Knots Standoff TimeOut
used by	complexType  usvScriptCommandsType
attributes	Name   Type   Use   Default   Fixed   Annotation timeStamp   nonNegativeScalarType   optional         documentation Time value in seconds. title   xsd:string   optional         documentation Short title naming this element. description   xsd:string   optional         documentation Descriptive text explaining the intended effect of this element. id   xsd:ID   optional         documentation Unique identifier for this element. refid   xsd:IDREF   optional
annotation	documentation Command the unmanned surface vehicle to transit to a specified location.  Vehicle will not necessarily stop when position is reached (vehicle specific).
source	<xsd:element name="WaypointUSV" type="waypointUSVCommandType">   <xsd:annotation>     <xsd:documentation>Command the unmanned surface vehicle to transit to a specified location.  Vehicle will not necessarily stop when position is reached (vehicle specific).</xsd:documentation>   </xsd:annotation> </xsd:element>
