complexType absoluteTimingElementType

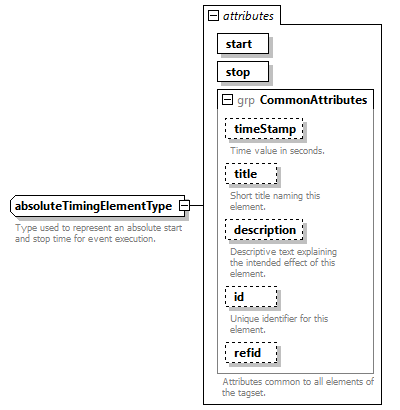

diagram
used by	element  Timing
attributes	Name   Type   Use   Default   Fixed   Annotation start   nonNegativeScalarType   required         stop   positiveScalarType   required         timeStamp   nonNegativeScalarType   optional         documentation Time value in seconds. title   xsd:string   optional         documentation Short title naming this element. description   xsd:string   optional         documentation Descriptive text explaining the intended effect of this element. id   xsd:ID   optional         documentation Unique identifier for this element. refid   xsd:IDREF   optional
annotation	documentation Type used to represent an absolute start and stop time for event execution.
source	<xsd:complexType name="absoluteTimingElementType">   <xsd:annotation>     <xsd:documentation>Type used to represent an absolute start and stop time for event execution.</xsd:documentation>   </xsd:annotation>   <xsd:attribute name="start" type="nonNegativeScalarType" use="required"/>   <xsd:attribute name="stop" type="positiveScalarType" use="required"/>   <xsd:attributeGroup ref="CommonAttributes"/> </xsd:complexType>

attribute absoluteTimingElementType/@start

type	nonNegativeScalarType
properties	use  required
facets	Kind  Value  Annotation minInclusive  0
source	<xsd:attribute name="start" type="nonNegativeScalarType" use="required"/>

attribute absoluteTimingElementType/@stop

type	positiveScalarType
properties	use  required
facets	Kind  Value  Annotation minExclusive  0
source	<xsd:attribute name="stop" type="positiveScalarType" use="required"/>
