complexType booleanElementType

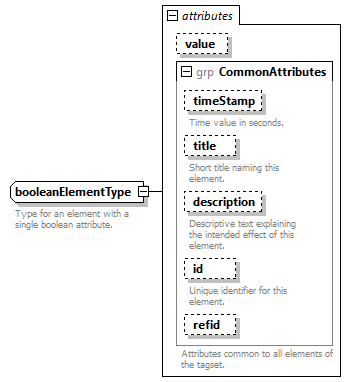

diagram
used by	elements  ObtainGps Realtime Thrusters Trace complexType  gpsFixCommandType
attributes	Name   Type   Use   Default   Fixed   Annotation value   xsd:boolean   optional   false      timeStamp   nonNegativeScalarType   optional         documentation Time value in seconds. title   xsd:string   optional         documentation Short title naming this element. description   xsd:string   optional         documentation Descriptive text explaining the intended effect of this element. id   xsd:ID   optional         documentation Unique identifier for this element. refid   xsd:IDREF   optional
annotation	documentation Type for an element with a single boolean attribute.
source	<xsd:complexType name="booleanElementType">   <xsd:annotation>     <xsd:documentation>Type for an element with a single boolean attribute.</xsd:documentation>   </xsd:annotation>   <xsd:attribute name="value" type="xsd:boolean" use="optional" default="false"/>   <xsd:attributeGroup ref="CommonAttributes"/> </xsd:complexType>

attribute booleanElementType/@value

type	xsd:boolean
properties	use  optional default  false
source	<xsd:attribute name="value" type="xsd:boolean" use="optional" default="false"/>
