complexType dateTimeGroupElementType

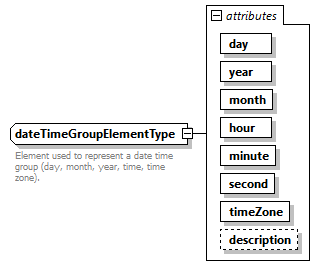

diagram
used by	element  MissionStartTime
attributes	Name   Type   Use   Default   Fixed   Annotation day   calendarDaysType   required         year   positiveIntegerType   required         month   monthsType   required         hour   clockHoursType   required         minute   clockMinutesOrSecondsType   required         second   clockMinutesOrSecondsType   required         timeZone   timeZoneType   required         description   xsd:string   optional
annotation	documentation Element used to represent a date time group (day, month, year, time, time zone).
source	<xsd:complexType name="dateTimeGroupElementType">   <xsd:annotation>     <xsd:documentation>Element used to represent a date time group (day, month, year, time, time zone).</xsd:documentation>   </xsd:annotation>   <xsd:attribute name="day" type="calendarDaysType" use="required"/>   <xsd:attribute name="year" type="positiveIntegerType" use="required"/>   <xsd:attribute name="month" type="monthsType" use="required"/>   <xsd:attribute name="hour" type="clockHoursType" use="required"/>   <xsd:attribute name="minute" type="clockMinutesOrSecondsType" use="required"/>   <xsd:attribute name="second" type="clockMinutesOrSecondsType" use="required"/>   <xsd:attribute name="timeZone" type="timeZoneType" use="required"/>   <xsd:attribute name="description" type="xsd:string" use="optional"/> </xsd:complexType>

attribute dateTimeGroupElementType/@day

type	calendarDaysType
properties	use  required
facets	Kind  Value  Annotation maxInclusive  31 minExclusive  0
source	<xsd:attribute name="day" type="calendarDaysType" use="required"/>

attribute dateTimeGroupElementType/@year

type	positiveIntegerType
properties	use  required
facets	Kind  Value  Annotation minExclusive  0
source	<xsd:attribute name="year" type="positiveIntegerType" use="required"/>

attribute dateTimeGroupElementType/@month

type	monthsType
properties	use  required
facets	Kind  Value  Annotation enumeration  January enumeration  February enumeration  March enumeration  April enumeration  May enumeration  June enumeration  July enumeration  August enumeration  September enumeration  October enumeration  November enumeration  December
source	<xsd:attribute name="month" type="monthsType" use="required"/>

attribute dateTimeGroupElementType/@hour

type	clockHoursType
properties	use  required
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  23
source	<xsd:attribute name="hour" type="clockHoursType" use="required"/>

attribute dateTimeGroupElementType/@minute

type	clockMinutesOrSecondsType
properties	use  required
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  59
source	<xsd:attribute name="minute" type="clockMinutesOrSecondsType" use="required"/>

attribute dateTimeGroupElementType/@second

type	clockMinutesOrSecondsType
properties	use  required
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  59
source	<xsd:attribute name="second" type="clockMinutesOrSecondsType" use="required"/>

attribute dateTimeGroupElementType/@timeZone

type	timeZoneType
properties	use  required
facets	Kind  Value  Annotation minInclusive  -12 maxInclusive  12
source	<xsd:attribute name="timeZone" type="timeZoneType" use="required"/>

attribute dateTimeGroupElementType/@description

type	xsd:string
properties	use  optional
source	<xsd:attribute name="description" type="xsd:string" use="optional"/>
