complexType expandingSquareType

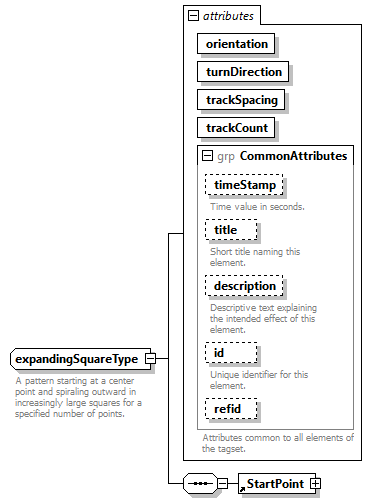

diagram
children	StartPoint
used by	element  ExpandingSquare
attributes	Name   Type   Use   Default   Fixed   Annotation orientation   headingType   required         turnDirection   turnDirectionType   required         trackSpacing   positiveScalarType   required         trackCount   positiveIntegerType   required         timeStamp   nonNegativeScalarType   optional         documentation Time value in seconds. title   xsd:string   optional         documentation Short title naming this element. description   xsd:string   optional         documentation Descriptive text explaining the intended effect of this element. id   xsd:ID   optional         documentation Unique identifier for this element. refid   xsd:IDREF   optional
annotation	documentation A pattern starting at a center point and spiraling outward in increasingly large squares for a specified number of points.
source	<xsd:complexType name="expandingSquareType">   <xsd:annotation>     <xsd:documentation>A pattern starting at a center point and spiraling outward in increasingly large squares for a specified number of points.</xsd:documentation>   </xsd:annotation>   <xsd:sequence>     <xsd:element ref="StartPoint"/>   </xsd:sequence>   <xsd:attribute name="orientation" type="headingType" use="required"/>   <xsd:attribute name="turnDirection" type="turnDirectionType" use="required"/>   <xsd:attribute name="trackSpacing" type="positiveScalarType" use="required"/>   <xsd:attribute name="trackCount" type="positiveIntegerType" use="required"/>   <xsd:attributeGroup ref="CommonAttributes"/> </xsd:complexType>

attribute expandingSquareType/@orientation

type	headingType
properties	use  required
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  360
source	<xsd:attribute name="orientation" type="headingType" use="required"/>

attribute expandingSquareType/@turnDirection

type	turnDirectionType
properties	use  required
facets	Kind  Value  Annotation enumeration  left enumeration  right enumeration  port enumeration  starboard
source	<xsd:attribute name="turnDirection" type="turnDirectionType" use="required"/>

attribute expandingSquareType/@trackSpacing

type	positiveScalarType
properties	use  required
facets	Kind  Value  Annotation minExclusive  0
source	<xsd:attribute name="trackSpacing" type="positiveScalarType" use="required"/>

attribute expandingSquareType/@trackCount

type	positiveIntegerType
properties	use  required
facets	Kind  Value  Annotation minExclusive  0
source	<xsd:attribute name="trackCount" type="positiveIntegerType" use="required"/>
