complexType frequencyRangeElementType

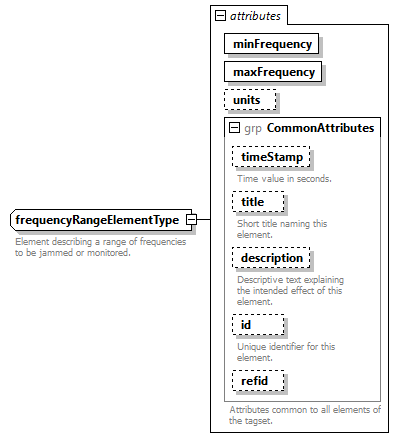

diagram
used by	element  FrequencyRange
attributes	Name   Type   Use   Default   Fixed   Annotation minFrequency   nonNegativeScalarType   required         maxFrequency   positiveScalarType   required         units   frequencyUnitType   optional   Hz      timeStamp   nonNegativeScalarType   optional         documentation Time value in seconds. title   xsd:string   optional         documentation Short title naming this element. description   xsd:string   optional         documentation Descriptive text explaining the intended effect of this element. id   xsd:ID   optional         documentation Unique identifier for this element. refid   xsd:IDREF   optional
annotation	documentation Element describing a range of frequencies to be jammed or monitored.
source	<xsd:complexType name="frequencyRangeElementType">   <xsd:annotation>     <xsd:documentation>Element describing a range of frequencies to be jammed or monitored.</xsd:documentation>   </xsd:annotation>   <xsd:attribute name="minFrequency" type="nonNegativeScalarType" use="required"/>   <xsd:attribute name="maxFrequency" type="positiveScalarType" use="required"/>   <xsd:attribute name="units" type="frequencyUnitType" use="optional" default="Hz"/>   <xsd:attributeGroup ref="CommonAttributes"/> </xsd:complexType>

attribute frequencyRangeElementType/@minFrequency

type	nonNegativeScalarType
properties	use  required
facets	Kind  Value  Annotation minInclusive  0
source	<xsd:attribute name="minFrequency" type="nonNegativeScalarType" use="required"/>

attribute frequencyRangeElementType/@maxFrequency

type	positiveScalarType
properties	use  required
facets	Kind  Value  Annotation minExclusive  0
source	<xsd:attribute name="maxFrequency" type="positiveScalarType" use="required"/>

attribute frequencyRangeElementType/@units

type	frequencyUnitType
properties	use  optional default  Hz
facets	Kind  Value  Annotation enumeration  Hz enumeration  KHz enumeration  MHz enumeration  GHz
source	<xsd:attribute name="units" type="frequencyUnitType" use="optional" default="Hz"/>
