complexType geoOriginElementType

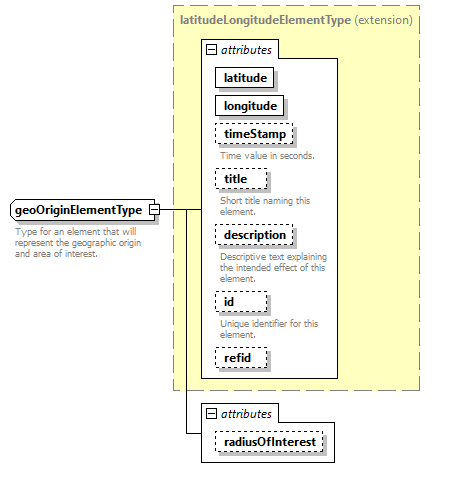

diagram
type	extension of latitudeLongitudeElementType
properties	base  latitudeLongitudeElementType
used by	element  GeoOrigin
attributes	Name   Type   Use   Default   Fixed   Annotation latitude   longitudeType   required         longitude   longitudeType   required         timeStamp   nonNegativeScalarType   optional         documentation Time value in seconds. title   xsd:string   optional         documentation Short title naming this element. description   xsd:string   optional         documentation Descriptive text explaining the intended effect of this element. id   xsd:ID   optional         documentation Unique identifier for this element. refid   xsd:IDREF   optional         radiusOfInterest   positiveScalarType   optional
annotation	documentation Type for an element that will represent the geographic origin and area of interest.
source	<xsd:complexType name="geoOriginElementType">   <xsd:annotation>     <xsd:documentation>Type for an element that will represent the geographic origin and area of interest.</xsd:documentation>   </xsd:annotation>   <xsd:complexContent>     <xsd:extension base="latitudeLongitudeElementType">       <xsd:attribute name="radiusOfInterest" type="positiveScalarType" use="optional"/>     </xsd:extension>   </xsd:complexContent> </xsd:complexType>

attribute geoOriginElementType/@radiusOfInterest

type	positiveScalarType
properties	use  optional
facets	Kind  Value  Annotation minExclusive  0
source	<xsd:attribute name="radiusOfInterest" type="positiveScalarType" use="optional"/>
