complexType illuminatorElementType

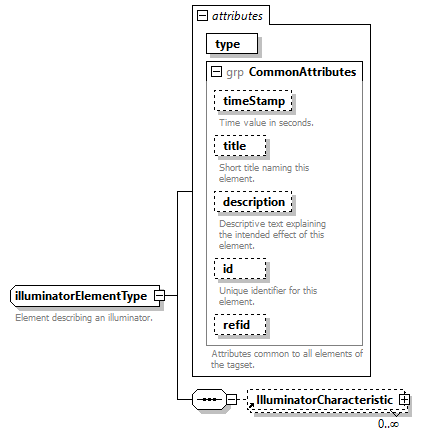

diagram
children	IlluminatorCharacteristic
used by	element  Illuminator
attributes	Name   Type   Use   Default   Fixed   Annotation type   illuminatorType   required         timeStamp   nonNegativeScalarType   optional         documentation Time value in seconds. title   xsd:string   optional         documentation Short title naming this element. description   xsd:string   optional         documentation Descriptive text explaining the intended effect of this element. id   xsd:ID   optional         documentation Unique identifier for this element. refid   xsd:IDREF   optional
annotation	documentation Element describing an illuminator.
source	<xsd:complexType name="illuminatorElementType">   <xsd:annotation>     <xsd:documentation>Element describing an illuminator.</xsd:documentation>   </xsd:annotation>   <xsd:sequence>     <xsd:element ref="IlluminatorCharacteristic" minOccurs="0" maxOccurs="unbounded"/>   </xsd:sequence>   <xsd:attribute name="type" type="illuminatorType" use="required"/>   <xsd:attributeGroup ref="CommonAttributes"/> </xsd:complexType>

attribute illuminatorElementType/@type

type	illuminatorType
properties	use  required
facets	Kind  Value  Annotation enumeration  pyrotechnics enumeration  spotlight enumeration  floodlight
source	<xsd:attribute name="type" type="illuminatorType" use="required"/>
