complexType informationRequestElementType

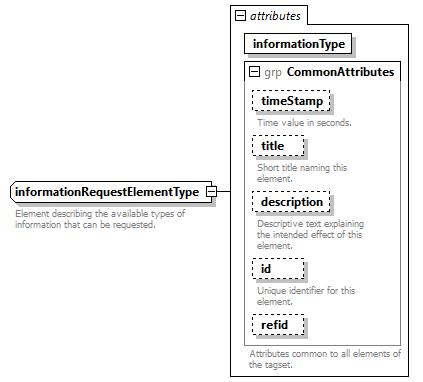

diagram
used by	element  InformationRequest
attributes	Name   Type   Use   Default   Fixed   Annotation informationType   informationRequestType   required         timeStamp   nonNegativeScalarType   optional         documentation Time value in seconds. title   xsd:string   optional         documentation Short title naming this element. description   xsd:string   optional         documentation Descriptive text explaining the intended effect of this element. id   xsd:ID   optional         documentation Unique identifier for this element. refid   xsd:IDREF   optional
annotation	documentation Element describing the available types of information that can be requested.
source	<xsd:complexType name="informationRequestElementType">   <xsd:annotation>     <xsd:documentation>Element describing the available types of information that can be requested.</xsd:documentation>   </xsd:annotation>   <xsd:attribute name="informationType" type="informationRequestType" use="required"/>   <xsd:attributeGroup ref="CommonAttributes"/> </xsd:complexType>

attribute informationRequestElementType/@informationType

type	informationRequestType
properties	use  required
facets	Kind  Value  Annotation enumeration  ping documentation Request for a communications check. enumeration  telemetry documentation Request for the receiving vehicle to provide it's telemetry (position and velocity). enumeration  operating characteristics documentation Request for the receiving vehicle to provide a summary of its operating characteristics or capabilities.
source	<xsd:attribute name="informationType" type="informationRequestType" use="required"/>
