complexType rendezvousElementType

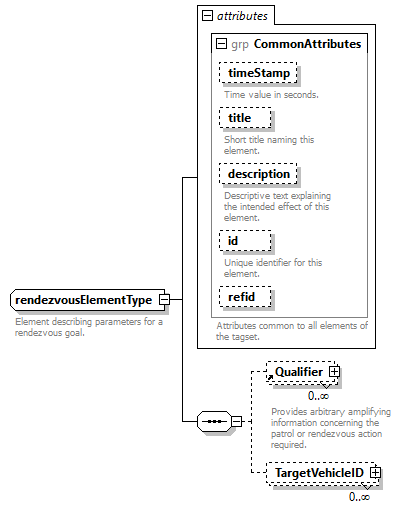

diagram
children	Qualifier TargetVehicleID
used by	element  Rendezvous
attributes	Name   Type   Use   Default   Fixed   Annotation timeStamp   nonNegativeScalarType   optional         documentation Time value in seconds. title   xsd:string   optional         documentation Short title naming this element. description   xsd:string   optional         documentation Descriptive text explaining the intended effect of this element. id   xsd:ID   optional         documentation Unique identifier for this element. refid   xsd:IDREF   optional
annotation	documentation Element describing parameters for a rendezvous goal.
source	<xsd:complexType name="rendezvousElementType">   <xsd:annotation>     <xsd:documentation>Element describing parameters for a rendezvous goal.</xsd:documentation>   </xsd:annotation>   <xsd:sequence>     <xsd:element ref="Qualifier" minOccurs="0" maxOccurs="unbounded"/>     <xsd:element name="TargetVehicleID" type="integerElementType" minOccurs="0" maxOccurs="unbounded"/>   </xsd:sequence>   <xsd:attributeGroup ref="CommonAttributes"/> </xsd:complexType>

element rendezvousElementType/TargetVehicleID

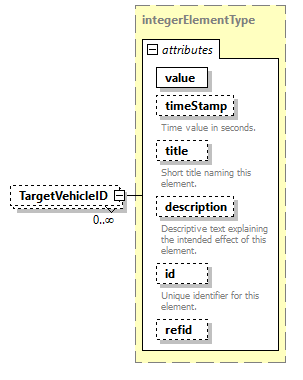

diagram
type	integerElementType
properties	minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation value   xsd:int   required         timeStamp   nonNegativeScalarType   optional         documentation Time value in seconds. title   xsd:string   optional         documentation Short title naming this element. description   xsd:string   optional         documentation Descriptive text explaining the intended effect of this element. id   xsd:ID   optional         documentation Unique identifier for this element. refid   xsd:IDREF   optional
source	<xsd:element name="TargetVehicleID" type="integerElementType" minOccurs="0" maxOccurs="unbounded"/>
