complexType setPositionUAVCommandType

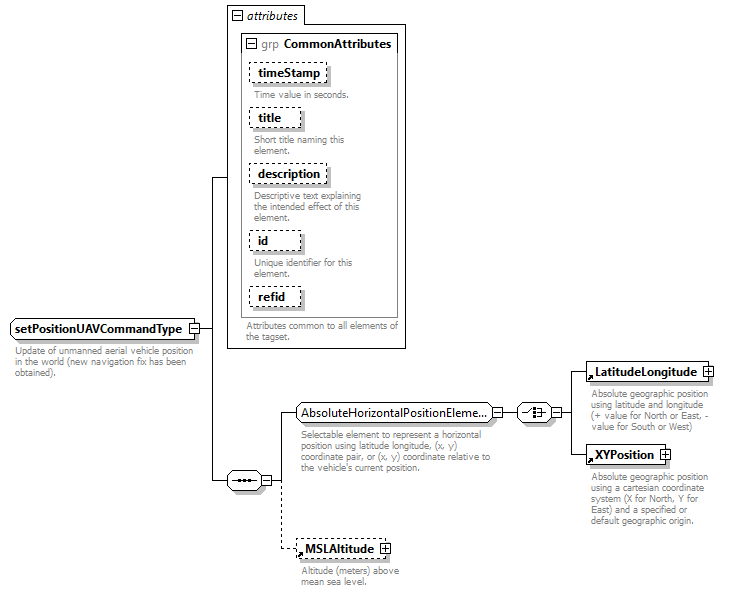

diagram
children	LatitudeLongitude XYPosition MSLAltitude
used by	element  SetPositionUAV
attributes	Name   Type   Use   Default   Fixed   Annotation timeStamp   nonNegativeScalarType   optional         documentation Time value in seconds. title   xsd:string   optional         documentation Short title naming this element. description   xsd:string   optional         documentation Descriptive text explaining the intended effect of this element. id   xsd:ID   optional         documentation Unique identifier for this element. refid   xsd:IDREF   optional
annotation	documentation Update of unmanned aerial vehicle position in the world (new navigation fix has been obtained).
source	<xsd:complexType name="setPositionUAVCommandType">   <xsd:annotation>     <xsd:documentation>Update of unmanned aerial vehicle position in the world (new navigation fix has been obtained).</xsd:documentation>   </xsd:annotation>   <xsd:sequence>     <xsd:group ref="AbsoluteHorizontalPositionElements"/>     <xsd:element ref="MSLAltitude" minOccurs="0"/>   </xsd:sequence>   <xsd:attributeGroup ref="CommonAttributes"/> </xsd:complexType>
