complexType speedElementType

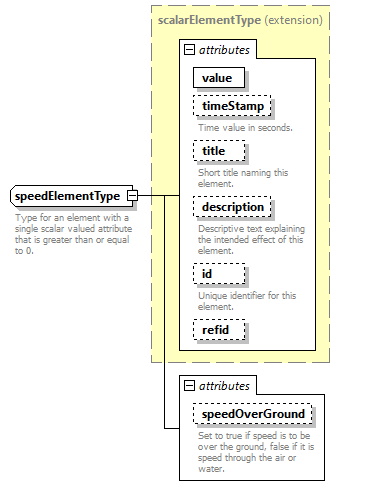

diagram
type	extension of scalarElementType
properties	base  scalarElementType
used by	elements  MakeClimbRate MakeKnots MakeSpeed
attributes	Name   Type   Use   Default   Fixed   Annotation value   xsd:double   required         timeStamp   nonNegativeScalarType   optional         documentation Time value in seconds. title   xsd:string   optional         documentation Short title naming this element. description   xsd:string   optional         documentation Descriptive text explaining the intended effect of this element. id   xsd:ID   optional         documentation Unique identifier for this element. refid   xsd:IDREF   optional         speedOverGround   xsd:boolean   optional   false      documentation Set to true if speed is to be over the ground, false if it is speed through the air or water.
annotation	documentation Type for an element with a single scalar valued attribute that is greater than or equal to 0.
source	<xsd:complexType name="speedElementType">   <xsd:annotation>     <xsd:documentation>Type for an element with a single scalar valued attribute that is greater than or equal to 0.</xsd:documentation>   </xsd:annotation>   <xsd:complexContent>     <xsd:extension base="scalarElementType">       <xsd:attribute name="speedOverGround" type="xsd:boolean" use="optional" default="false">         <xsd:annotation>           <xsd:documentation>Set to true if speed is to be over the ground, false if it is speed through the air or water.</xsd:documentation>         </xsd:annotation>       </xsd:attribute>     </xsd:extension>   </xsd:complexContent> </xsd:complexType>

attribute speedElementType/@speedOverGround

type	xsd:boolean
properties	use  optional default  false
annotation	documentation Set to true if speed is to be over the ground, false if it is speed through the air or water.
source	<xsd:attribute name="speedOverGround" type="xsd:boolean" use="optional" default="false">   <xsd:annotation>     <xsd:documentation>Set to true if speed is to be over the ground, false if it is speed through the air or water.</xsd:documentation>   </xsd:annotation> </xsd:attribute>
