complexType uuvBodyThrustersOrderElementType

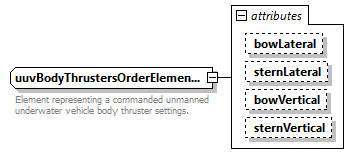

diagram
used by	element  BodyThrusters
attributes	Name   Type   Use   Default   Fixed   Annotation bowLateral   signedPercentType   optional         sternLateral   signedPercentType   optional         bowVertical   signedPercentType   optional         sternVertical   signedPercentType   optional
annotation	documentation Element representing a commanded unmanned underwater vehicle body thruster settings.
source	<xsd:complexType name="uuvBodyThrustersOrderElementType">   <xsd:annotation>     <xsd:documentation>Element representing a commanded unmanned underwater vehicle body thruster settings.</xsd:documentation>   </xsd:annotation>   <xsd:attribute name="bowLateral" type="signedPercentType" use="optional"/>   <xsd:attribute name="sternLateral" type="signedPercentType" use="optional"/>   <xsd:attribute name="bowVertical" type="signedPercentType" use="optional"/>   <xsd:attribute name="sternVertical" type="signedPercentType" use="optional"/> </xsd:complexType>

attribute uuvBodyThrustersOrderElementType/@bowLateral

type	signedPercentType
properties	use  optional
facets	Kind  Value  Annotation minInclusive  -100 maxInclusive  100
source	<xsd:attribute name="bowLateral" type="signedPercentType" use="optional"/>

attribute uuvBodyThrustersOrderElementType/@sternLateral

type	signedPercentType
properties	use  optional
facets	Kind  Value  Annotation minInclusive  -100 maxInclusive  100
source	<xsd:attribute name="sternLateral" type="signedPercentType" use="optional"/>

attribute uuvBodyThrustersOrderElementType/@bowVertical

type	signedPercentType
properties	use  optional
facets	Kind  Value  Annotation minInclusive  -100 maxInclusive  100
source	<xsd:attribute name="bowVertical" type="signedPercentType" use="optional"/>

attribute uuvBodyThrustersOrderElementType/@sternVertical

type	signedPercentType
properties	use  optional
facets	Kind  Value  Annotation minInclusive  -100 maxInclusive  100
source	<xsd:attribute name="sternVertical" type="signedPercentType" use="optional"/>
