complexType BeamAntennaPatternType

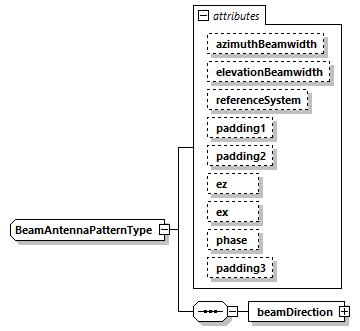

diagram
type	extension of rootType
properties	base  rootType abstract  false
children	beamDirection
used by	element  DirectedEnergyAreaAimpointType/BeamAntennaPattern
attributes	Name   Type   Use   Default   Fixed   Annotation azimuthBeamwidth   xs:float            appinfo Full width of the beam to the -3dB power density points in the x-y plane of the beam                      coordinnate system. Elevation beamwidth is represented by a 32-bit floating point                      number in units of radians.                   elevationBeamwidth   xs:float            appinfo This field shall specify the full width of the beam to the –3 dB power density points                      in the x-z plane of the beam coordinate system. Elevation beamwidth shall be represented                      by a 32-bit floating point number in units of radians.                   referenceSystem   xs:string            appinfo The reference coordinate system wrt which beam direction is specified. This field                      should not change over the duration of an exercise. World coordindate systemis prefered                      for exercises. The entity coordinate system should be used only when highly directional                      antennas must be precisely modeled. (SISO enumeration TransmitterAntennaPatternReferenceSystem                      uid 168)                   padding1   xs:unsignedByte            appinfo Padding padding2   xs:unsignedShort            appinfo Padding ez   xs:float            appinfo This field shall specify the magnitude of the Z-component (in beam coordinates) of                      the Electrical field at some arbitrary single point in the main beam and in the far                      field of the antenna.                   ex   xs:float            appinfo This field shall specify the magnitude of the X-component (in beam coordinates) of                      the Electri- cal field at some arbitrary single point in the main beam and in the                      far field of the antenna.                   phase   xs:float            appinfo This field shall specify the phase angle between EZ and EX in radians. If fully omni-direc-                      tional antenna is modeled using beam pattern type one, the omni-directional antenna                      shall be repre- sented by beam direction Euler angles psi, theta, and phi of zero,                      an azimuth beamwidth of 2PI, and an elevation beamwidth of PI                   padding3   xs:unsignedLong            appinfo padding
annotation	appinfo Used when the antenna pattern type field has a value of 1. Specifies the direction,             pattern, and polarization of radiation from an antenna. Section 6.2.9.2
source	<xs:complexType name="BeamAntennaPatternType" abstract="false">   <xs:annotation>     <xs:appinfo>Used when the antenna pattern type field has a value of 1. Specifies the direction,             pattern, and polarization of radiation from an antenna. Section 6.2.9.2          </xs:appinfo>   </xs:annotation>   <xs:complexContent>     <xs:extension base="rootType">       <xs:sequence>         <xs:element name="beamDirection" type="EulerAnglesType">           <xs:annotation>             <xs:appinfo>The rotation that transforms the reference coordinate sytem into the beam coordinate                         system. Either world coordinates or entity coordinates may be used as the reference                         coordinate system, as specified by the reference system field of the antenna pattern                         record.                      </xs:appinfo>           </xs:annotation>         </xs:element>       </xs:sequence>       <xs:attribute name="azimuthBeamwidth" type="xs:float">         <xs:annotation>           <xs:appinfo>Full width of the beam to the -3dB power density points in the x-y plane of the beam                      coordinnate system. Elevation beamwidth is represented by a 32-bit floating point                      number in units of radians.                   </xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="elevationBeamwidth" type="xs:float">         <xs:annotation>           <xs:appinfo>This field shall specify the full width of the beam to the –3 dB power density points                      in the x-z plane of the beam coordinate system. Elevation beamwidth shall be represented                      by a 32-bit floating point number in units of radians.                   </xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="referenceSystem" type="xs:string">         <xs:annotation>           <xs:appinfo>The reference coordinate system wrt which beam direction is specified. This field                      should not change over the duration of an exercise. World coordindate systemis prefered                      for exercises. The entity coordinate system should be used only when highly directional                      antennas must be precisely modeled. (SISO enumeration TransmitterAntennaPatternReferenceSystem                      uid 168)                   </xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="padding1" type="xs:unsignedByte">         <xs:annotation>           <xs:appinfo>Padding</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="padding2" type="xs:unsignedShort">         <xs:annotation>           <xs:appinfo>Padding</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="ez" type="xs:float">         <xs:annotation>           <xs:appinfo>This field shall specify the magnitude of the Z-component (in beam coordinates) of                      the Electrical field at some arbitrary single point in the main beam and in the far                      field of the antenna.                   </xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="ex" type="xs:float">         <xs:annotation>           <xs:appinfo>This field shall specify the magnitude of the X-component (in beam coordinates) of                      the Electri- cal field at some arbitrary single point in the main beam and in the                      far field of the antenna.                   </xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="phase" type="xs:float">         <xs:annotation>           <xs:appinfo>This field shall specify the phase angle between EZ and EX in radians. If fully omni-direc-                      tional antenna is modeled using beam pattern type one, the omni-directional antenna                      shall be repre- sented by beam direction Euler angles psi, theta, and phi of zero,                      an azimuth beamwidth of 2PI, and an elevation beamwidth of PI                   </xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="padding3" type="xs:unsignedLong">         <xs:annotation>           <xs:appinfo>padding</xs:appinfo>         </xs:annotation>       </xs:attribute>     </xs:extension>     <!-- ========== debug: divider between elements and attributes ========== -->   </xs:complexContent>   <!--abstract='false' base='rootType'--> </xs:complexType>

attribute BeamAntennaPatternType/@azimuthBeamwidth

type	xs:float
annotation	appinfo Full width of the beam to the -3dB power density points in the x-y plane of the beam                      coordinnate system. Elevation beamwidth is represented by a 32-bit floating point                      number in units of radians.
source	<xs:attribute name="azimuthBeamwidth" type="xs:float">   <xs:annotation>     <xs:appinfo>Full width of the beam to the -3dB power density points in the x-y plane of the beam                      coordinnate system. Elevation beamwidth is represented by a 32-bit floating point                      number in units of radians.                   </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute BeamAntennaPatternType/@elevationBeamwidth

type	xs:float
annotation	appinfo This field shall specify the full width of the beam to the –3 dB power density points                      in the x-z plane of the beam coordinate system. Elevation beamwidth shall be represented                      by a 32-bit floating point number in units of radians.
source	<xs:attribute name="elevationBeamwidth" type="xs:float">   <xs:annotation>     <xs:appinfo>This field shall specify the full width of the beam to the –3 dB power density points                      in the x-z plane of the beam coordinate system. Elevation beamwidth shall be represented                      by a 32-bit floating point number in units of radians.                   </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute BeamAntennaPatternType/@referenceSystem

type	xs:string
annotation	appinfo The reference coordinate system wrt which beam direction is specified. This field                      should not change over the duration of an exercise. World coordindate systemis prefered                      for exercises. The entity coordinate system should be used only when highly directional                      antennas must be precisely modeled. (SISO enumeration TransmitterAntennaPatternReferenceSystem                      uid 168)
source	<xs:attribute name="referenceSystem" type="xs:string">   <xs:annotation>     <xs:appinfo>The reference coordinate system wrt which beam direction is specified. This field                      should not change over the duration of an exercise. World coordindate systemis prefered                      for exercises. The entity coordinate system should be used only when highly directional                      antennas must be precisely modeled. (SISO enumeration TransmitterAntennaPatternReferenceSystem                      uid 168)                   </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute BeamAntennaPatternType/@padding1

type	xs:unsignedByte
annotation	appinfo Padding
source	<xs:attribute name="padding1" type="xs:unsignedByte">   <xs:annotation>     <xs:appinfo>Padding</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute BeamAntennaPatternType/@padding2

type	xs:unsignedShort
annotation	appinfo Padding
source	<xs:attribute name="padding2" type="xs:unsignedShort">   <xs:annotation>     <xs:appinfo>Padding</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute BeamAntennaPatternType/@ez

type	xs:float
annotation	appinfo This field shall specify the magnitude of the Z-component (in beam coordinates) of                      the Electrical field at some arbitrary single point in the main beam and in the far                      field of the antenna.
source	<xs:attribute name="ez" type="xs:float">   <xs:annotation>     <xs:appinfo>This field shall specify the magnitude of the Z-component (in beam coordinates) of                      the Electrical field at some arbitrary single point in the main beam and in the far                      field of the antenna.                   </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute BeamAntennaPatternType/@ex

type	xs:float
annotation	appinfo This field shall specify the magnitude of the X-component (in beam coordinates) of                      the Electri- cal field at some arbitrary single point in the main beam and in the                      far field of the antenna.
source	<xs:attribute name="ex" type="xs:float">   <xs:annotation>     <xs:appinfo>This field shall specify the magnitude of the X-component (in beam coordinates) of                      the Electri- cal field at some arbitrary single point in the main beam and in the                      far field of the antenna.                   </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute BeamAntennaPatternType/@phase

type	xs:float
annotation	appinfo This field shall specify the phase angle between EZ and EX in radians. If fully omni-direc-                      tional antenna is modeled using beam pattern type one, the omni-directional antenna                      shall be repre- sented by beam direction Euler angles psi, theta, and phi of zero,                      an azimuth beamwidth of 2PI, and an elevation beamwidth of PI
source	<xs:attribute name="phase" type="xs:float">   <xs:annotation>     <xs:appinfo>This field shall specify the phase angle between EZ and EX in radians. If fully omni-direc-                      tional antenna is modeled using beam pattern type one, the omni-directional antenna                      shall be repre- sented by beam direction Euler angles psi, theta, and phi of zero,                      an azimuth beamwidth of 2PI, and an elevation beamwidth of PI                   </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute BeamAntennaPatternType/@padding3

type	xs:unsignedLong
annotation	appinfo padding
source	<xs:attribute name="padding3" type="xs:unsignedLong">   <xs:annotation>     <xs:appinfo>padding</xs:appinfo>   </xs:annotation> </xs:attribute>

element BeamAntennaPatternType/beamDirection

diagram
type	EulerAnglesType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation psi   xs:float            theta   xs:float            phi   xs:float
annotation	appinfo The rotation that transforms the reference coordinate sytem into the beam coordinate                         system. Either world coordinates or entity coordinates may be used as the reference                         coordinate system, as specified by the reference system field of the antenna pattern                         record.
source	<xs:element name="beamDirection" type="EulerAnglesType">   <xs:annotation>     <xs:appinfo>The rotation that transforms the reference coordinate sytem into the beam coordinate                         system. Either world coordinates or entity coordinates may be used as the reference                         coordinate system, as specified by the reference system field of the antenna pattern                         record.                      </xs:appinfo>   </xs:annotation> </xs:element>
