element CollisionPdu

diagram
type	extension of EntityInformationInteractionFamilyPduType
properties	content  complex
children	pduStatus issuingEntityID collidingEntityID eventID velocity location
used by	element  DIS
attributes	Name   Type   Use   Default   Fixed   Annotation protocolVersion   xs:string            appinfo The version of the protocol. 5=DIS-1995, 6=DIS-1998, 7=DIS-2012 (SISO enumeration                      DISProtocolVersion uid 3)                   exerciseID   xs:unsignedByte            appinfo Exercise ID provides a unique identifier pduType   xs:string            appinfo Type of pdu, unique for each PDU class (SISO enumeration DisPduType uid 4) timestamp   xs:unsignedLong            appinfo Timestamp value length   xs:unsignedShort            appinfo Length, in bytes, of the PDU protocolFamily         DISProtocolFamily.ENTITY_INFORMATION_INTERACTION      family            EntityInformationInteractionFamilyPduType   collisionType   xs:string            appinfo This field shall identify the type of collision. The Collision Type field shall be                         represented by an 8-bit record of enumerations (SISO enumeration CollisionType uid                         189)                      pad   xs:unsignedByte            appinfo some padding mass   xs:float            appinfo This field shall contain the mass of the issuing entity, and shall be represented                         by a 32-bit floating point number representing kilograms.
annotation	appinfo 7.2.3 Collisions between entities shall be communicated by issuing a Collision PDU.             See 5.3.3.             <xs:attribute name="id" type="xs:integer" fixed="4"/>
source	<xs:element name="CollisionPdu">   <xs:annotation>     <xs:appinfo>7.2.3 Collisions between entities shall be communicated by issuing a Collision PDU.             See 5.3.3.             <xs:attribute name="id" type="xs:integer" fixed="4"/>     </xs:appinfo>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="EntityInformationInteractionFamilyPduType">         <xs:sequence>           <xs:element name="issuingEntityID" type="EntityIDType">             <xs:annotation>               <xs:appinfo>This field shall identify the entity that is issuing the PDU, and shall be represented                            by an Entity Identifier record (see 6.2.28).                         </xs:appinfo>             </xs:annotation>           </xs:element>           <xs:element name="collidingEntityID" type="EntityIDType">             <xs:annotation>               <xs:appinfo>This field shall identify the entity that has collided with the issuing entity (see                            5.3.3.4). This field shall be represented by an Entity Identifier record (see 6.2.28).                         </xs:appinfo>             </xs:annotation>           </xs:element>           <xs:element name="eventID" type="EventIdentifierType">             <xs:annotation>               <xs:appinfo>This field shall contain an identification generated by the issuing simulation application                            to associate related collision events. This field shall be represented by an Event                            Identifier record (see 6.2.34).                         </xs:appinfo>             </xs:annotation>           </xs:element>           <xs:element name="velocity" type="Vector3FloatType">             <xs:annotation>               <xs:appinfo>This field shall contain the velocity (at the time the collision is detected) of the                            issuing entity. The velocity shall be represented in world coordinates. This field                            shall be represented by the Linear Velocity Vector record [see 6.2.95 item c)].                         </xs:appinfo>             </xs:annotation>           </xs:element>           <xs:element name="location" type="Vector3FloatType">             <xs:annotation>               <xs:appinfo>This field shall specify the location of the collision with respect to the entity                            with which the issuing entity collided. The Location field shall be represented by                            an Entity Coordinate Vector record [see 6.2.95 item a)].                         </xs:appinfo>             </xs:annotation>           </xs:element>         </xs:sequence>         <xs:attribute name="family" fixed="EntityInformationInteractionFamilyPduType"/>         <xs:attribute name="collisionType" type="xs:string">           <xs:annotation>             <xs:appinfo>This field shall identify the type of collision. The Collision Type field shall be                         represented by an 8-bit record of enumerations (SISO enumeration CollisionType uid                         189)                      </xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="pad" type="xs:unsignedByte">           <xs:annotation>             <xs:appinfo>some padding</xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="mass" type="xs:float">           <xs:annotation>             <xs:appinfo>This field shall contain the mass of the issuing entity, and shall be represented                         by a 32-bit floating point number representing kilograms.                      </xs:appinfo>           </xs:annotation>         </xs:attribute>       </xs:extension>       <!-- ========== debug: divider between elements and attributes ========== -->     </xs:complexContent>   </xs:complexType> </xs:element>

attribute CollisionPdu/@family

properties	fixed  EntityInformationInteractionFamilyPduType
source	<xs:attribute name="family" fixed="EntityInformationInteractionFamilyPduType"/>

attribute CollisionPdu/@collisionType

type	xs:string
annotation	appinfo This field shall identify the type of collision. The Collision Type field shall be                         represented by an 8-bit record of enumerations (SISO enumeration CollisionType uid                         189)
source	<xs:attribute name="collisionType" type="xs:string">   <xs:annotation>     <xs:appinfo>This field shall identify the type of collision. The Collision Type field shall be                         represented by an 8-bit record of enumerations (SISO enumeration CollisionType uid                         189)                      </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute CollisionPdu/@pad

type	xs:unsignedByte
annotation	appinfo some padding
source	<xs:attribute name="pad" type="xs:unsignedByte">   <xs:annotation>     <xs:appinfo>some padding</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute CollisionPdu/@mass

type	xs:float
annotation	appinfo This field shall contain the mass of the issuing entity, and shall be represented                         by a 32-bit floating point number representing kilograms.
source	<xs:attribute name="mass" type="xs:float">   <xs:annotation>     <xs:appinfo>This field shall contain the mass of the issuing entity, and shall be represented                         by a 32-bit floating point number representing kilograms.                      </xs:appinfo>   </xs:annotation> </xs:attribute>

element CollisionPdu/issuingEntityID

diagram
type	EntityIDType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation siteID   xs:unsignedShort            appinfo Site ID values are unique identification number for originating site, often corresponding                      to an internet address. Site ID values are agreed upon by individual simulations.                   applicationID   xs:unsignedShort            appinfo Application ID values are unique identification number for originating application                      at a given site. Application ID values are sssigned by individual sites.                   entityID   xs:unsignedShort            appinfo Entity ID values are unique identification number for s givent entity in the originating                      application at a given site. Entity ID values are sssigned by individual simulation                      programs.
annotation	appinfo This field shall identify the entity that is issuing the PDU, and shall be represented                            by an Entity Identifier record (see 6.2.28).
source	<xs:element name="issuingEntityID" type="EntityIDType">   <xs:annotation>     <xs:appinfo>This field shall identify the entity that is issuing the PDU, and shall be represented                            by an Entity Identifier record (see 6.2.28).                         </xs:appinfo>   </xs:annotation> </xs:element>

element CollisionPdu/collidingEntityID

diagram
type	EntityIDType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation siteID   xs:unsignedShort            appinfo Site ID values are unique identification number for originating site, often corresponding                      to an internet address. Site ID values are agreed upon by individual simulations.                   applicationID   xs:unsignedShort            appinfo Application ID values are unique identification number for originating application                      at a given site. Application ID values are sssigned by individual sites.                   entityID   xs:unsignedShort            appinfo Entity ID values are unique identification number for s givent entity in the originating                      application at a given site. Entity ID values are sssigned by individual simulation                      programs.
annotation	appinfo This field shall identify the entity that has collided with the issuing entity (see                            5.3.3.4). This field shall be represented by an Entity Identifier record (see 6.2.28).
source	<xs:element name="collidingEntityID" type="EntityIDType">   <xs:annotation>     <xs:appinfo>This field shall identify the entity that has collided with the issuing entity (see                            5.3.3.4). This field shall be represented by an Entity Identifier record (see 6.2.28).                         </xs:appinfo>   </xs:annotation> </xs:element>

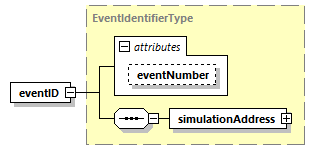

element CollisionPdu/eventID

diagram
type	EventIdentifierType
properties	content  complex
children	simulationAddress
attributes	Name   Type   Use   Default   Fixed   Annotation eventNumber   xs:unsignedShort
annotation	appinfo This field shall contain an identification generated by the issuing simulation application                            to associate related collision events. This field shall be represented by an Event                            Identifier record (see 6.2.34).
source	<xs:element name="eventID" type="EventIdentifierType">   <xs:annotation>     <xs:appinfo>This field shall contain an identification generated by the issuing simulation application                            to associate related collision events. This field shall be represented by an Event                            Identifier record (see 6.2.34).                         </xs:appinfo>   </xs:annotation> </xs:element>

element CollisionPdu/velocity

diagram
type	Vector3FloatType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation x   xs:float            appinfo X value y   xs:float            appinfo y Value z   xs:float            appinfo Z value
annotation	appinfo This field shall contain the velocity (at the time the collision is detected) of the                            issuing entity. The velocity shall be represented in world coordinates. This field                            shall be represented by the Linear Velocity Vector record [see 6.2.95 item c)].
source	<xs:element name="velocity" type="Vector3FloatType">   <xs:annotation>     <xs:appinfo>This field shall contain the velocity (at the time the collision is detected) of the                            issuing entity. The velocity shall be represented in world coordinates. This field                            shall be represented by the Linear Velocity Vector record [see 6.2.95 item c)].                         </xs:appinfo>   </xs:annotation> </xs:element>

element CollisionPdu/location

diagram
type	Vector3FloatType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation x   xs:float            appinfo X value y   xs:float            appinfo y Value z   xs:float            appinfo Z value
annotation	appinfo This field shall specify the location of the collision with respect to the entity                            with which the issuing entity collided. The Location field shall be represented by                            an Entity Coordinate Vector record [see 6.2.95 item a)].
source	<xs:element name="location" type="Vector3FloatType">   <xs:annotation>     <xs:appinfo>This field shall specify the location of the collision with respect to the entity                            with which the issuing entity collided. The Location field shall be represented by                            an Entity Coordinate Vector record [see 6.2.95 item a)].                         </xs:appinfo>   </xs:annotation> </xs:element>
