element DirectedEnergyFirePdu

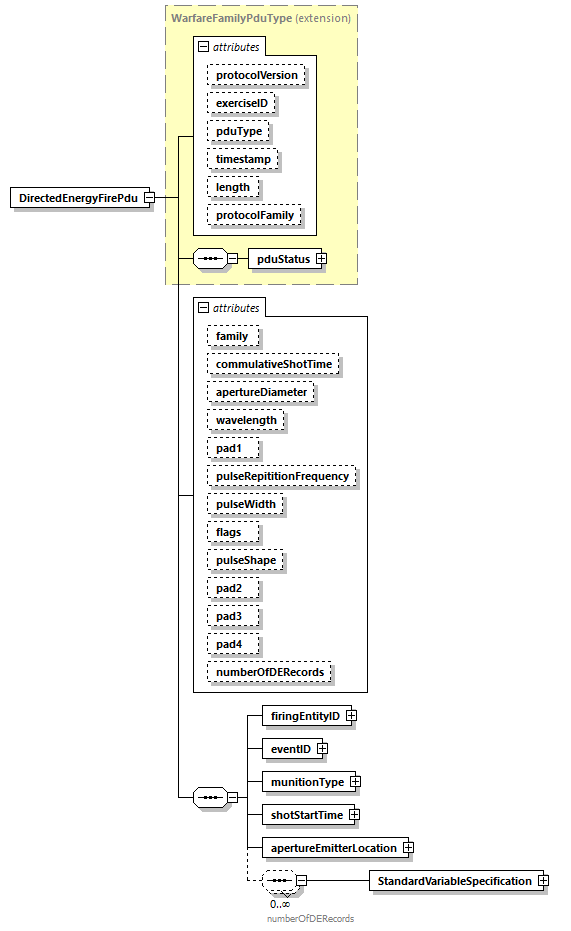

diagram
type	extension of WarfareFamilyPduType
properties	content  complex
children	pduStatus firingEntityID eventID munitionType shotStartTime apertureEmitterLocation StandardVariableSpecification
used by	element  DIS
attributes	Name   Type   Use   Default   Fixed   Annotation protocolVersion   xs:string            appinfo The version of the protocol. 5=DIS-1995, 6=DIS-1998, 7=DIS-2012 (SISO enumeration                      DISProtocolVersion uid 3)                   exerciseID   xs:unsignedByte            appinfo Exercise ID provides a unique identifier pduType   xs:string            appinfo Type of pdu, unique for each PDU class (SISO enumeration DisPduType uid 4) timestamp   xs:unsignedLong            appinfo Timestamp value length   xs:unsignedShort            appinfo Length, in bytes, of the PDU protocolFamily         DISProtocolFamily.WARFARE      family            WarfareFamilyPduType   commulativeShotTime   xs:float            appinfo Field shall indicate the current cumulative duration of the shot, Section 7.3.4 apertureDiameter   xs:float            appinfo Field shall identify the beam diameter at the aperture/emitter, Section 7.3.4 wavelength   xs:float            appinfo Field shall identify the emissions wavelength in units of meters, Section 7.3.4 pad1   xs:unsignedLong            pulseRepititionFrequency   xs:float            pulseWidth   xs:float            appinfo field shall identify the pulse width emissions in units of seconds, Section 7.3.4 flags   xs:unsignedShort            appinfo 16bit Boolean field shall contain various flags to indicate status information needed                         to process a DE, Section 7.3.4 (SISO bitfield enumeration, size 16 bits, DEFireFlags                         uid 313)                      pulseShape   xs:string            appinfo Field shall identify the pulse shape and shall be represented as an 8-bit enumeration,                         Section 7.3.4 (SISO enumeration DEFirePulseShape uid 312)                      pad2   xs:unsignedByte            pad3   xs:unsignedLong            pad4   xs:unsignedShort            numberOfDERecords   xs:unsignedShort            appinfo Field shall specify the number of DE records, Section 7.3.4
annotation	appinfo 7.3.4 Used to communicate the firing of a directed energy weapon. (length of list             found in field numberOfDERecords)             <xs:attribute name="id" type="xs:integer" fixed="68"/>
source	<xs:element name="DirectedEnergyFirePdu">   <xs:annotation>     <xs:appinfo>7.3.4 Used to communicate the firing of a directed energy weapon. (length of list             found in field numberOfDERecords)             <xs:attribute name="id" type="xs:integer" fixed="68"/>     </xs:appinfo>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="WarfareFamilyPduType">         <xs:sequence>           <xs:element name="firingEntityID" type="EntityIDType">             <xs:annotation>               <xs:appinfo>ID of the entity that shot</xs:appinfo>             </xs:annotation>           </xs:element>           <xs:element name="eventID" type="EventIdentifierType"/>           <xs:element name="munitionType" type="EntityTypeType">             <xs:annotation>               <xs:appinfo>Field shall identify the munition type enumeration for the DE weapon beam, Section                            7.3.4                         </xs:appinfo>             </xs:annotation>           </xs:element>           <xs:element name="shotStartTime" type="ClockTimeType">             <xs:annotation>               <xs:appinfo>Field shall indicate the simulation time at start of the shot, Section 7.3.4</xs:appinfo>             </xs:annotation>           </xs:element>           <xs:element name="apertureEmitterLocation" type="Vector3FloatType">             <xs:annotation>               <xs:appinfo>Field shall identify the location of the DE weapon aperture/emitter, Section 7.3.4</xs:appinfo>             </xs:annotation>           </xs:element>           <!--Attribute (as element) DirectedEnergyFirePdu dERecords with objectlist classRef name=StandardVariableSpecification, type=StandardVariableSpecificationType-->           <xs:sequence minOccurs="0" maxOccurs="unbounded">             <xs:annotation>               <xs:appinfo>Number of elements is determined by size fieldnumberOfDERecords and can be 0 or greater.                            Ensure that the total PDU size does not exceed maximums allowed in IEEE DIS Specification.                         </xs:appinfo>               <xs:documentation>numberOfDERecords</xs:documentation>             </xs:annotation>             <xs:element name="StandardVariableSpecification" type="StandardVariableSpecificationType">               <xs:annotation>                 <xs:appinfo>Fields shall contain one or more DE records, records shall conform to the variable                               record format (Section6.2.82), Section 7.3.4 (length of list found in field numberOfDERecords)                            </xs:appinfo>               </xs:annotation>             </xs:element>           </xs:sequence>         </xs:sequence>         <xs:attribute name="family" fixed="WarfareFamilyPduType"/>         <xs:attribute name="commulativeShotTime" type="xs:float">           <xs:annotation>             <xs:appinfo>Field shall indicate the current cumulative duration of the shot, Section 7.3.4</xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="apertureDiameter" type="xs:float">           <xs:annotation>             <xs:appinfo>Field shall identify the beam diameter at the aperture/emitter, Section 7.3.4</xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="wavelength" type="xs:float">           <xs:annotation>             <xs:appinfo>Field shall identify the emissions wavelength in units of meters, Section 7.3.4</xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="pad1" type="xs:unsignedLong"/>         <xs:attribute name="pulseRepititionFrequency" type="xs:float"/>         <xs:attribute name="pulseWidth" type="xs:float">           <xs:annotation>             <xs:appinfo>field shall identify the pulse width emissions in units of seconds, Section 7.3.4</xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="flags" type="xs:unsignedShort">           <xs:annotation>             <xs:appinfo>16bit Boolean field shall contain various flags to indicate status information needed                         to process a DE, Section 7.3.4 (SISO bitfield enumeration, size 16 bits, DEFireFlags                         uid 313)                      </xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="pulseShape" type="xs:string">           <xs:annotation>             <xs:appinfo>Field shall identify the pulse shape and shall be represented as an 8-bit enumeration,                         Section 7.3.4 (SISO enumeration DEFirePulseShape uid 312)                      </xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="pad2" type="xs:unsignedByte"/>         <xs:attribute name="pad3" type="xs:unsignedLong"/>         <xs:attribute name="pad4" type="xs:unsignedShort"/>         <xs:attribute name="numberOfDERecords" type="xs:unsignedShort">           <xs:annotation>             <xs:appinfo>Field shall specify the number of DE records, Section 7.3.4</xs:appinfo>           </xs:annotation>         </xs:attribute>       </xs:extension>       <!-- ========== debug: divider between elements and attributes ========== -->     </xs:complexContent>   </xs:complexType> </xs:element>

attribute DirectedEnergyFirePdu/@family

properties	fixed  WarfareFamilyPduType
source	<xs:attribute name="family" fixed="WarfareFamilyPduType"/>

attribute DirectedEnergyFirePdu/@commulativeShotTime

type	xs:float
annotation	appinfo Field shall indicate the current cumulative duration of the shot, Section 7.3.4
source	<xs:attribute name="commulativeShotTime" type="xs:float">   <xs:annotation>     <xs:appinfo>Field shall indicate the current cumulative duration of the shot, Section 7.3.4</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute DirectedEnergyFirePdu/@apertureDiameter

type	xs:float
annotation	appinfo Field shall identify the beam diameter at the aperture/emitter, Section 7.3.4
source	<xs:attribute name="apertureDiameter" type="xs:float">   <xs:annotation>     <xs:appinfo>Field shall identify the beam diameter at the aperture/emitter, Section 7.3.4</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute DirectedEnergyFirePdu/@wavelength

type	xs:float
annotation	appinfo Field shall identify the emissions wavelength in units of meters, Section 7.3.4
source	<xs:attribute name="wavelength" type="xs:float">   <xs:annotation>     <xs:appinfo>Field shall identify the emissions wavelength in units of meters, Section 7.3.4</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute DirectedEnergyFirePdu/@pad1

type	xs:unsignedLong
source	<xs:attribute name="pad1" type="xs:unsignedLong"/>

attribute DirectedEnergyFirePdu/@pulseRepititionFrequency

type	xs:float
source	<xs:attribute name="pulseRepititionFrequency" type="xs:float"/>

attribute DirectedEnergyFirePdu/@pulseWidth

type	xs:float
annotation	appinfo field shall identify the pulse width emissions in units of seconds, Section 7.3.4
source	<xs:attribute name="pulseWidth" type="xs:float">   <xs:annotation>     <xs:appinfo>field shall identify the pulse width emissions in units of seconds, Section 7.3.4</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute DirectedEnergyFirePdu/@flags

type	xs:unsignedShort
annotation	appinfo 16bit Boolean field shall contain various flags to indicate status information needed                         to process a DE, Section 7.3.4 (SISO bitfield enumeration, size 16 bits, DEFireFlags                         uid 313)
source	<xs:attribute name="flags" type="xs:unsignedShort">   <xs:annotation>     <xs:appinfo>16bit Boolean field shall contain various flags to indicate status information needed                         to process a DE, Section 7.3.4 (SISO bitfield enumeration, size 16 bits, DEFireFlags                         uid 313)                      </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute DirectedEnergyFirePdu/@pulseShape

type	xs:string
annotation	appinfo Field shall identify the pulse shape and shall be represented as an 8-bit enumeration,                         Section 7.3.4 (SISO enumeration DEFirePulseShape uid 312)
source	<xs:attribute name="pulseShape" type="xs:string">   <xs:annotation>     <xs:appinfo>Field shall identify the pulse shape and shall be represented as an 8-bit enumeration,                         Section 7.3.4 (SISO enumeration DEFirePulseShape uid 312)                      </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute DirectedEnergyFirePdu/@pad2

type	xs:unsignedByte
source	<xs:attribute name="pad2" type="xs:unsignedByte"/>

attribute DirectedEnergyFirePdu/@pad3

type	xs:unsignedLong
source	<xs:attribute name="pad3" type="xs:unsignedLong"/>

attribute DirectedEnergyFirePdu/@pad4

type	xs:unsignedShort
source	<xs:attribute name="pad4" type="xs:unsignedShort"/>

attribute DirectedEnergyFirePdu/@numberOfDERecords

type	xs:unsignedShort
annotation	appinfo Field shall specify the number of DE records, Section 7.3.4
source	<xs:attribute name="numberOfDERecords" type="xs:unsignedShort">   <xs:annotation>     <xs:appinfo>Field shall specify the number of DE records, Section 7.3.4</xs:appinfo>   </xs:annotation> </xs:attribute>

element DirectedEnergyFirePdu/firingEntityID

diagram
type	EntityIDType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation siteID   xs:unsignedShort            appinfo Site ID values are unique identification number for originating site, often corresponding                      to an internet address. Site ID values are agreed upon by individual simulations.                   applicationID   xs:unsignedShort            appinfo Application ID values are unique identification number for originating application                      at a given site. Application ID values are sssigned by individual sites.                   entityID   xs:unsignedShort            appinfo Entity ID values are unique identification number for s givent entity in the originating                      application at a given site. Entity ID values are sssigned by individual simulation                      programs.
annotation	appinfo ID of the entity that shot
source	<xs:element name="firingEntityID" type="EntityIDType">   <xs:annotation>     <xs:appinfo>ID of the entity that shot</xs:appinfo>   </xs:annotation> </xs:element>

element DirectedEnergyFirePdu/eventID

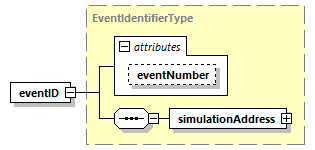

diagram
type	EventIdentifierType
properties	content  complex
children	simulationAddress
attributes	Name   Type   Use   Default   Fixed   Annotation eventNumber   xs:unsignedShort
source	<xs:element name="eventID" type="EventIdentifierType"/>

element DirectedEnergyFirePdu/munitionType

diagram
type	EntityTypeType
properties	content  complex
children	domain
attributes	Name   Type   Use   Default   Fixed   Annotation entityKind   xs:string            appinfo Kind of entity (SISO enumeration EntityKind uid 7) country   xs:string            appinfo country to which the design of the entity is attributed (SISO enumeration Country                      uid 29)                   category   xs:unsignedByte            appinfo category of entity subCategory   xs:unsignedByte            appinfo subcategory based on category specific   xs:unsignedByte            appinfo specific info based on subcategory extra   xs:unsignedByte
annotation	appinfo Field shall identify the munition type enumeration for the DE weapon beam, Section                            7.3.4
source	<xs:element name="munitionType" type="EntityTypeType">   <xs:annotation>     <xs:appinfo>Field shall identify the munition type enumeration for the DE weapon beam, Section                            7.3.4                         </xs:appinfo>   </xs:annotation> </xs:element>

element DirectedEnergyFirePdu/shotStartTime

diagram
type	ClockTimeType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation hour   xs:unsignedLong            appinfo Hours in UTC timePastHour   xs:unsignedLong            appinfo Time past the hour
annotation	appinfo Field shall indicate the simulation time at start of the shot, Section 7.3.4
source	<xs:element name="shotStartTime" type="ClockTimeType">   <xs:annotation>     <xs:appinfo>Field shall indicate the simulation time at start of the shot, Section 7.3.4</xs:appinfo>   </xs:annotation> </xs:element>

element DirectedEnergyFirePdu/apertureEmitterLocation

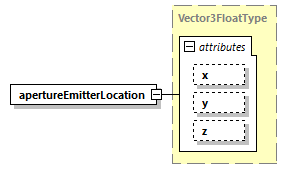

diagram
type	Vector3FloatType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation x   xs:float            appinfo X value y   xs:float            appinfo y Value z   xs:float            appinfo Z value
annotation	appinfo Field shall identify the location of the DE weapon aperture/emitter, Section 7.3.4
source	<xs:element name="apertureEmitterLocation" type="Vector3FloatType">   <xs:annotation>     <xs:appinfo>Field shall identify the location of the DE weapon aperture/emitter, Section 7.3.4</xs:appinfo>   </xs:annotation> </xs:element>

element DirectedEnergyFirePdu/StandardVariableSpecification

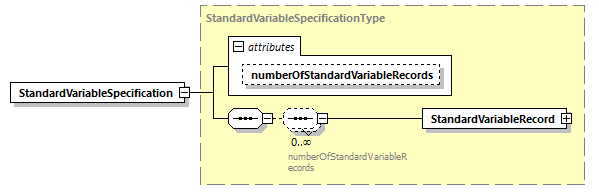

diagram
type	StandardVariableSpecificationType
properties	content  complex
children	StandardVariableRecord
attributes	Name   Type   Use   Default   Fixed   Annotation numberOfStandardVariableRecords   xs:unsignedShort            appinfo Number of static variable records
annotation	appinfo Fields shall contain one or more DE records, records shall conform to the variable                               record format (Section6.2.82), Section 7.3.4 (length of list found in field numberOfDERecords)
source	<xs:element name="StandardVariableSpecification" type="StandardVariableSpecificationType">   <xs:annotation>     <xs:appinfo>Fields shall contain one or more DE records, records shall conform to the variable                               record format (Section6.2.82), Section 7.3.4 (length of list found in field numberOfDERecords)                            </xs:appinfo>   </xs:annotation> </xs:element>
