complexType EventIdentifierLiveEntityType

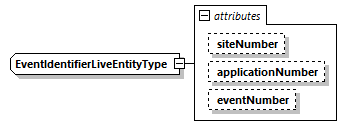

diagram
type	extension of rootType
properties	base  rootType abstract  false
attributes	Name   Type   Use   Default   Fixed   Annotation siteNumber   xs:unsignedByte            applicationNumber   xs:unsignedByte            eventNumber   xs:unsignedShort
annotation	appinfo Identifies an event in the world. Use this format for ONLY the LiveEntityPdu. Section             6.2.34.
source	<xs:complexType name="EventIdentifierLiveEntityType" abstract="false">   <xs:annotation>     <xs:appinfo>Identifies an event in the world. Use this format for ONLY the LiveEntityPdu. Section             6.2.34.          </xs:appinfo>   </xs:annotation>   <xs:complexContent>     <xs:extension base="rootType">       <xs:attribute name="siteNumber" type="xs:unsignedByte"/>       <xs:attribute name="applicationNumber" type="xs:unsignedByte"/>       <xs:attribute name="eventNumber" type="xs:unsignedShort"/>     </xs:extension>   </xs:complexContent>   <!--abstract='false' base='rootType'--> </xs:complexType>

attribute EventIdentifierLiveEntityType/@siteNumber

type	xs:unsignedByte
source	<xs:attribute name="siteNumber" type="xs:unsignedByte"/>

attribute EventIdentifierLiveEntityType/@applicationNumber

type	xs:unsignedByte
source	<xs:attribute name="applicationNumber" type="xs:unsignedByte"/>

attribute EventIdentifierLiveEntityType/@eventNumber

type	xs:unsignedShort
source	<xs:attribute name="eventNumber" type="xs:unsignedShort"/>
