element EventReportReliablePdu

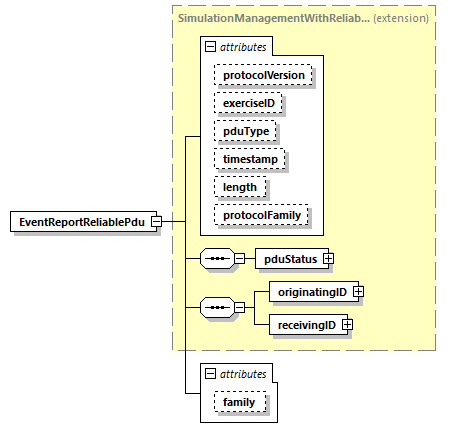

diagram DIS_7_2012.autogenerated_diagrams/DIS_7_2012.autogenerated_p137.png
type extension of SimulationManagementWithReliabilityFamilyPduType
properties
content complex
children pduStatus originatingID receivingID
used by
element DIS
attributes
Name  Type  Use  Default  Fixed  Annotation
protocolVersion  xs:string
appinfo
The version of the protocol. 5=DIS-1995, 6=DIS-1998, 7=DIS-2012 (SISO enumeration
                     DISProtocolVersion uid 3)

exerciseID  xs:unsignedByte
appinfo
Exercise ID provides a unique identifier
pduType  xs:string
appinfo
Type of pdu, unique for each PDU class (SISO enumeration DisPduType uid 4)
timestamp  xs:unsignedLong
appinfo
Timestamp value
length  xs:unsignedShort
appinfo
Length, in bytes, of the PDU
protocolFamily      DISProtocolFamily.SIMULATION_MANAGEMENT_WITH_RELIABILITY
family        SimulationManagementWithReliabilityFamilyPduType
annotation
appinfo
alias, more descriptive name for a EventReportRPdu.
            <xs:attribute name="aliasFor" type="xs:string" fixed="EventReportRPdu"/>
<xs:attribute name="id" type="xs:integer" fixed="61"/>
source <xs:element name="EventReportReliablePdu">
  <xs:annotation>
    <xs:appinfo>alias, more descriptive name for a EventReportRPdu.
            <xs:attribute name="aliasFor" type="xs:string" fixed="EventReportRPdu"/>
      <xs:attribute name="id" type="xs:integer" fixed="61"/>
    </xs:appinfo>
  </xs:annotation>
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="SimulationManagementWithReliabilityFamilyPduType">
        <xs:attribute name="family" fixed="SimulationManagementWithReliabilityFamilyPduType"/>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

attribute EventReportReliablePdu/@family
properties
fixed SimulationManagementWithReliabilityFamilyPduType
source <xs:attribute name="family" fixed="SimulationManagementWithReliabilityFamilyPduType"/>
