complexType FalseTargetsAttributeType

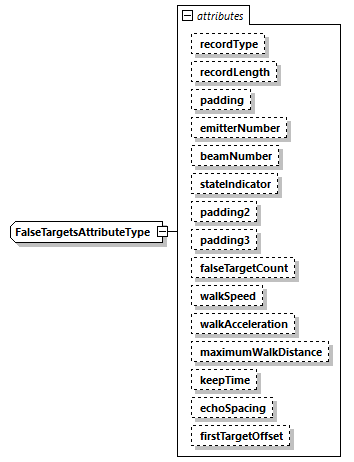

diagram
type	extension of rootType
properties	base  rootType abstract  false
attributes	Name   Type   Use   Default   Fixed   Annotation recordType   xs:unsignedLong            appinfo record type recordLength   xs:unsignedShort            appinfo The length of the record in octets. padding   xs:unsignedShort            appinfo zero-filled array of padding bits for byte alignment and consistent sizing of PDU                      data                   emitterNumber   xs:unsignedByte            appinfo This field indicates the emitter system generating the false targets. beamNumber   xs:unsignedByte            appinfo This field indicates the jamming beam generating the false targets. stateIndicator   xs:string            appinfo This field shall be used to indicate if false target data have changed since issuance                      of the last False Targets attribute record for this beam, if the False Targets attribute                      record is part of a heartbeat update to meet periodic update requirements or if false                      target data for the beam has ceased. (SISO enumeration EEAttributeStateIndicator uid                      300)                   padding2   xs:unsignedByte            appinfo padding padding3   xs:unsignedShort            falseTargetCount   xs:unsignedShort            appinfo This field indicates the jamming beam generating the false targets. walkSpeed   xs:float            appinfo This field shall specify the speed (in meters per second) at which false targets move                      toward the victim radar. Negative values shall indicate a velocity away from the victim                      radar.                   walkAcceleration   xs:float            appinfo This field shall specify the rate (in meters per second squared) at which false tar-                      gets accelerate toward the victim radar. Negative values shall indicate an acceleration                      direction away from the victim radar.                   maximumWalkDistance   xs:float            appinfo This field shall specify the distance (in meters) that a false target is to walk before                      it pauses in range.                   keepTime   xs:float            appinfo This field shall specify the time (in seconds) that a false target is to be held at                      the Maxi- mum Walk Distance before it resets to its initial position.                   echoSpacing   xs:float            appinfo This field shall specify the distance between false targets in meters. Positive values                      for this field shall indicate that second and subsequent false targets are initially                      placed at increasing ranges from the victim radar.                   firstTargetOffset   xs:float            appinfo Sets the position of the first false target relative to the jamming entity in meters.
annotation	appinfo The False Targets attribute record shall be used to communicate discrete values that             are associated with false targets jamming that cannot be referenced to an emitter             mode. The values provided in the False Targets attri- bute record shall be considered             valid only for the victim radar beams listed in the jamming beam's Track/Jam Data             records (provided in the associated Electromagnetic Emission PDU). Section 6.2.21.3
source	<xs:complexType name="FalseTargetsAttributeType" abstract="false">   <xs:annotation>     <xs:appinfo>The False Targets attribute record shall be used to communicate discrete values that             are associated with false targets jamming that cannot be referenced to an emitter             mode. The values provided in the False Targets attri- bute record shall be considered             valid only for the victim radar beams listed in the jamming beam's Track/Jam Data             records (provided in the associated Electromagnetic Emission PDU). Section 6.2.21.3          </xs:appinfo>   </xs:annotation>   <xs:complexContent>     <xs:extension base="rootType">       <xs:attribute name="recordType" type="xs:unsignedLong">         <xs:annotation>           <xs:appinfo>record type</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="recordLength" type="xs:unsignedShort">         <xs:annotation>           <xs:appinfo>The length of the record in octets.</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="padding" type="xs:unsignedShort">         <xs:annotation>           <xs:appinfo>zero-filled array of padding bits for byte alignment and consistent sizing of PDU                      data                   </xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="emitterNumber" type="xs:unsignedByte">         <xs:annotation>           <xs:appinfo>This field indicates the emitter system generating the false targets.</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="beamNumber" type="xs:unsignedByte">         <xs:annotation>           <xs:appinfo>This field indicates the jamming beam generating the false targets.</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="stateIndicator" type="xs:string">         <xs:annotation>           <xs:appinfo>This field shall be used to indicate if false target data have changed since issuance                      of the last False Targets attribute record for this beam, if the False Targets attribute                      record is part of a heartbeat update to meet periodic update requirements or if false                      target data for the beam has ceased. (SISO enumeration EEAttributeStateIndicator uid                      300)                   </xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="padding2" type="xs:unsignedByte">         <xs:annotation>           <xs:appinfo>padding</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="padding3" type="xs:unsignedShort"/>       <xs:attribute name="falseTargetCount" type="xs:unsignedShort">         <xs:annotation>           <xs:appinfo>This field indicates the jamming beam generating the false targets.</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="walkSpeed" type="xs:float">         <xs:annotation>           <xs:appinfo>This field shall specify the speed (in meters per second) at which false targets move                      toward the victim radar. Negative values shall indicate a velocity away from the victim                      radar.                   </xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="walkAcceleration" type="xs:float">         <xs:annotation>           <xs:appinfo>This field shall specify the rate (in meters per second squared) at which false tar-                      gets accelerate toward the victim radar. Negative values shall indicate an acceleration                      direction away from the victim radar.                   </xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="maximumWalkDistance" type="xs:float">         <xs:annotation>           <xs:appinfo>This field shall specify the distance (in meters) that a false target is to walk before                      it pauses in range.                   </xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="keepTime" type="xs:float">         <xs:annotation>           <xs:appinfo>This field shall specify the time (in seconds) that a false target is to be held at                      the Maxi- mum Walk Distance before it resets to its initial position.                   </xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="echoSpacing" type="xs:float">         <xs:annotation>           <xs:appinfo>This field shall specify the distance between false targets in meters. Positive values                      for this field shall indicate that second and subsequent false targets are initially                      placed at increasing ranges from the victim radar.                   </xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="firstTargetOffset" type="xs:float">         <xs:annotation>           <xs:appinfo>Sets the position of the first false target relative to the jamming entity in meters.</xs:appinfo>         </xs:annotation>       </xs:attribute>     </xs:extension>   </xs:complexContent>   <!--abstract='false' base='rootType'--> </xs:complexType>

attribute FalseTargetsAttributeType/@recordType

type	xs:unsignedLong
annotation	appinfo record type
source	<xs:attribute name="recordType" type="xs:unsignedLong">   <xs:annotation>     <xs:appinfo>record type</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute FalseTargetsAttributeType/@recordLength

type	xs:unsignedShort
annotation	appinfo The length of the record in octets.
source	<xs:attribute name="recordLength" type="xs:unsignedShort">   <xs:annotation>     <xs:appinfo>The length of the record in octets.</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute FalseTargetsAttributeType/@padding

type	xs:unsignedShort
annotation	appinfo zero-filled array of padding bits for byte alignment and consistent sizing of PDU                      data
source	<xs:attribute name="padding" type="xs:unsignedShort">   <xs:annotation>     <xs:appinfo>zero-filled array of padding bits for byte alignment and consistent sizing of PDU                      data                   </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute FalseTargetsAttributeType/@emitterNumber

type	xs:unsignedByte
annotation	appinfo This field indicates the emitter system generating the false targets.
source	<xs:attribute name="emitterNumber" type="xs:unsignedByte">   <xs:annotation>     <xs:appinfo>This field indicates the emitter system generating the false targets.</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute FalseTargetsAttributeType/@beamNumber

type	xs:unsignedByte
annotation	appinfo This field indicates the jamming beam generating the false targets.
source	<xs:attribute name="beamNumber" type="xs:unsignedByte">   <xs:annotation>     <xs:appinfo>This field indicates the jamming beam generating the false targets.</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute FalseTargetsAttributeType/@stateIndicator

type	xs:string
annotation	appinfo This field shall be used to indicate if false target data have changed since issuance                      of the last False Targets attribute record for this beam, if the False Targets attribute                      record is part of a heartbeat update to meet periodic update requirements or if false                      target data for the beam has ceased. (SISO enumeration EEAttributeStateIndicator uid                      300)
source	<xs:attribute name="stateIndicator" type="xs:string">   <xs:annotation>     <xs:appinfo>This field shall be used to indicate if false target data have changed since issuance                      of the last False Targets attribute record for this beam, if the False Targets attribute                      record is part of a heartbeat update to meet periodic update requirements or if false                      target data for the beam has ceased. (SISO enumeration EEAttributeStateIndicator uid                      300)                   </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute FalseTargetsAttributeType/@padding2

type	xs:unsignedByte
annotation	appinfo padding
source	<xs:attribute name="padding2" type="xs:unsignedByte">   <xs:annotation>     <xs:appinfo>padding</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute FalseTargetsAttributeType/@padding3

type	xs:unsignedShort
source	<xs:attribute name="padding3" type="xs:unsignedShort"/>

attribute FalseTargetsAttributeType/@falseTargetCount

type	xs:unsignedShort
annotation	appinfo This field indicates the jamming beam generating the false targets.
source	<xs:attribute name="falseTargetCount" type="xs:unsignedShort">   <xs:annotation>     <xs:appinfo>This field indicates the jamming beam generating the false targets.</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute FalseTargetsAttributeType/@walkSpeed

type	xs:float
annotation	appinfo This field shall specify the speed (in meters per second) at which false targets move                      toward the victim radar. Negative values shall indicate a velocity away from the victim                      radar.
source	<xs:attribute name="walkSpeed" type="xs:float">   <xs:annotation>     <xs:appinfo>This field shall specify the speed (in meters per second) at which false targets move                      toward the victim radar. Negative values shall indicate a velocity away from the victim                      radar.                   </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute FalseTargetsAttributeType/@walkAcceleration

type	xs:float
annotation	appinfo This field shall specify the rate (in meters per second squared) at which false tar-                      gets accelerate toward the victim radar. Negative values shall indicate an acceleration                      direction away from the victim radar.
source	<xs:attribute name="walkAcceleration" type="xs:float">   <xs:annotation>     <xs:appinfo>This field shall specify the rate (in meters per second squared) at which false tar-                      gets accelerate toward the victim radar. Negative values shall indicate an acceleration                      direction away from the victim radar.                   </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute FalseTargetsAttributeType/@maximumWalkDistance

type	xs:float
annotation	appinfo This field shall specify the distance (in meters) that a false target is to walk before                      it pauses in range.
source	<xs:attribute name="maximumWalkDistance" type="xs:float">   <xs:annotation>     <xs:appinfo>This field shall specify the distance (in meters) that a false target is to walk before                      it pauses in range.                   </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute FalseTargetsAttributeType/@keepTime

type	xs:float
annotation	appinfo This field shall specify the time (in seconds) that a false target is to be held at                      the Maxi- mum Walk Distance before it resets to its initial position.
source	<xs:attribute name="keepTime" type="xs:float">   <xs:annotation>     <xs:appinfo>This field shall specify the time (in seconds) that a false target is to be held at                      the Maxi- mum Walk Distance before it resets to its initial position.                   </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute FalseTargetsAttributeType/@echoSpacing

type	xs:float
annotation	appinfo This field shall specify the distance between false targets in meters. Positive values                      for this field shall indicate that second and subsequent false targets are initially                      placed at increasing ranges from the victim radar.
source	<xs:attribute name="echoSpacing" type="xs:float">   <xs:annotation>     <xs:appinfo>This field shall specify the distance between false targets in meters. Positive values                      for this field shall indicate that second and subsequent false targets are initially                      placed at increasing ranges from the victim radar.                   </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute FalseTargetsAttributeType/@firstTargetOffset

type	xs:float
annotation	appinfo Sets the position of the first false target relative to the jamming entity in meters.
source	<xs:attribute name="firstTargetOffset" type="xs:float">   <xs:annotation>     <xs:appinfo>Sets the position of the first false target relative to the jamming entity in meters.</xs:appinfo>   </xs:annotation> </xs:attribute>
