element InformationOperationsActionPdu

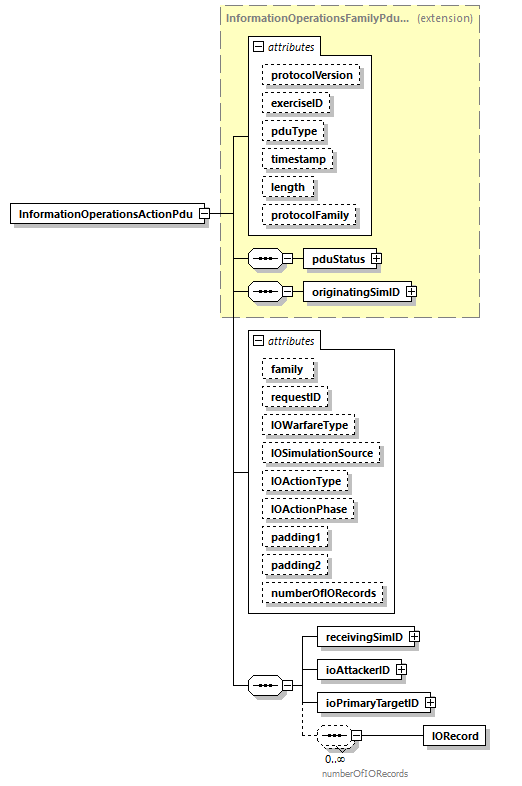

diagram
type	extension of InformationOperationsFamilyPduType
properties	content  complex
children	pduStatus originatingSimID receivingSimID ioAttackerID ioPrimaryTargetID IORecord
used by	element  DIS
attributes	Name   Type   Use   Default   Fixed   Annotation protocolVersion   xs:string            appinfo The version of the protocol. 5=DIS-1995, 6=DIS-1998, 7=DIS-2012 (SISO enumeration                      DISProtocolVersion uid 3)                   exerciseID   xs:unsignedByte            appinfo Exercise ID provides a unique identifier pduType   xs:string            appinfo Type of pdu, unique for each PDU class (SISO enumeration DisPduType uid 4) timestamp   xs:unsignedLong            appinfo Timestamp value length   xs:unsignedShort            appinfo Length, in bytes, of the PDU protocolFamily         DISProtocolFamily.INFORMATION_OPERATIONS      family            InformationOperationsFamilyPduType   requestID   xs:unsignedLong            appinfo request ID provides a unique identifier IOWarfareType   xs:string            appinfo (SISO enumeration IOActionIOWarfareType uid 285) IOSimulationSource   xs:string            appinfo (SISO enumeration IOActionIOSimulationSource uid 286) IOActionType   xs:string            appinfo (SISO enumeration IOActionIOActionType uid 287) IOActionPhase   xs:string            appinfo (SISO enumeration IOActionIOActionPhase uid 288) padding1   xs:unsignedLong            padding2   xs:unsignedShort            numberOfIORecords   xs:unsignedShort
annotation	appinfo 5.13.3.1 Used to communicate an IO attack or the effects of an IO attack on one or             more target entities. (length of list found in field numberOfIORecords)             <xs:attribute name="id" type="xs:integer" fixed="70"/>
source	<xs:element name="InformationOperationsActionPdu">   <xs:annotation>     <xs:appinfo>5.13.3.1 Used to communicate an IO attack or the effects of an IO attack on one or             more target entities. (length of list found in field numberOfIORecords)             <xs:attribute name="id" type="xs:integer" fixed="70"/>     </xs:appinfo>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="InformationOperationsFamilyPduType">         <xs:sequence>           <xs:element name="receivingSimID" type="EntityIDType">             <xs:annotation>               <xs:appinfo>the simulation to which this PDU is addressed</xs:appinfo>             </xs:annotation>           </xs:element>           <xs:element name="ioAttackerID" type="EntityIDType"/>           <xs:element name="ioPrimaryTargetID" type="EntityIDType"/>           <!--Attribute (as element) InformationOperationsActionPdu ioRecords with objectlist classRef name=IORecord, type=IORecordType-->           <xs:sequence minOccurs="0" maxOccurs="unbounded">             <xs:annotation>               <xs:appinfo>Number of elements is determined by size fieldnumberOfIORecords and can be 0 or greater.                            Ensure that the total PDU size does not exceed maximums allowed in IEEE DIS Specification.                         </xs:appinfo>               <xs:documentation>numberOfIORecords</xs:documentation>             </xs:annotation>             <xs:element name="IORecord" type="IORecordType">               <xs:annotation>                 <xs:appinfo>(length of list found in field numberOfIORecords)</xs:appinfo>               </xs:annotation>             </xs:element>           </xs:sequence>         </xs:sequence>         <xs:attribute name="family" fixed="InformationOperationsFamilyPduType"/>         <xs:attribute name="requestID" type="xs:unsignedLong">           <xs:annotation>             <xs:appinfo>request ID provides a unique identifier</xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="IOWarfareType" type="xs:string">           <xs:annotation>             <xs:appinfo>(SISO enumeration IOActionIOWarfareType uid 285)</xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="IOSimulationSource" type="xs:string">           <xs:annotation>             <xs:appinfo>(SISO enumeration IOActionIOSimulationSource uid 286)</xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="IOActionType" type="xs:string">           <xs:annotation>             <xs:appinfo>(SISO enumeration IOActionIOActionType uid 287)</xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="IOActionPhase" type="xs:string">           <xs:annotation>             <xs:appinfo>(SISO enumeration IOActionIOActionPhase uid 288)</xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="padding1" type="xs:unsignedLong"/>         <xs:attribute name="padding2" type="xs:unsignedShort"/>         <xs:attribute name="numberOfIORecords" type="xs:unsignedShort"/>       </xs:extension>       <!-- ========== debug: divider between elements and attributes ========== -->     </xs:complexContent>   </xs:complexType> </xs:element>

attribute InformationOperationsActionPdu/@family

properties	fixed  InformationOperationsFamilyPduType
source	<xs:attribute name="family" fixed="InformationOperationsFamilyPduType"/>

attribute InformationOperationsActionPdu/@requestID

type	xs:unsignedLong
annotation	appinfo request ID provides a unique identifier
source	<xs:attribute name="requestID" type="xs:unsignedLong">   <xs:annotation>     <xs:appinfo>request ID provides a unique identifier</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute InformationOperationsActionPdu/@IOWarfareType

type	xs:string
annotation	appinfo (SISO enumeration IOActionIOWarfareType uid 285)
source	<xs:attribute name="IOWarfareType" type="xs:string">   <xs:annotation>     <xs:appinfo>(SISO enumeration IOActionIOWarfareType uid 285)</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute InformationOperationsActionPdu/@IOSimulationSource

type	xs:string
annotation	appinfo (SISO enumeration IOActionIOSimulationSource uid 286)
source	<xs:attribute name="IOSimulationSource" type="xs:string">   <xs:annotation>     <xs:appinfo>(SISO enumeration IOActionIOSimulationSource uid 286)</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute InformationOperationsActionPdu/@IOActionType

type	xs:string
annotation	appinfo (SISO enumeration IOActionIOActionType uid 287)
source	<xs:attribute name="IOActionType" type="xs:string">   <xs:annotation>     <xs:appinfo>(SISO enumeration IOActionIOActionType uid 287)</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute InformationOperationsActionPdu/@IOActionPhase

type	xs:string
annotation	appinfo (SISO enumeration IOActionIOActionPhase uid 288)
source	<xs:attribute name="IOActionPhase" type="xs:string">   <xs:annotation>     <xs:appinfo>(SISO enumeration IOActionIOActionPhase uid 288)</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute InformationOperationsActionPdu/@padding1

type	xs:unsignedLong
source	<xs:attribute name="padding1" type="xs:unsignedLong"/>

attribute InformationOperationsActionPdu/@padding2

type	xs:unsignedShort
source	<xs:attribute name="padding2" type="xs:unsignedShort"/>

attribute InformationOperationsActionPdu/@numberOfIORecords

type	xs:unsignedShort
source	<xs:attribute name="numberOfIORecords" type="xs:unsignedShort"/>

element InformationOperationsActionPdu/receivingSimID

diagram
type	EntityIDType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation siteID   xs:unsignedShort            appinfo Site ID values are unique identification number for originating site, often corresponding                      to an internet address. Site ID values are agreed upon by individual simulations.                   applicationID   xs:unsignedShort            appinfo Application ID values are unique identification number for originating application                      at a given site. Application ID values are sssigned by individual sites.                   entityID   xs:unsignedShort            appinfo Entity ID values are unique identification number for s givent entity in the originating                      application at a given site. Entity ID values are sssigned by individual simulation                      programs.
annotation	appinfo the simulation to which this PDU is addressed
source	<xs:element name="receivingSimID" type="EntityIDType">   <xs:annotation>     <xs:appinfo>the simulation to which this PDU is addressed</xs:appinfo>   </xs:annotation> </xs:element>

element InformationOperationsActionPdu/ioAttackerID

diagram
type	EntityIDType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation siteID   xs:unsignedShort            appinfo Site ID values are unique identification number for originating site, often corresponding                      to an internet address. Site ID values are agreed upon by individual simulations.                   applicationID   xs:unsignedShort            appinfo Application ID values are unique identification number for originating application                      at a given site. Application ID values are sssigned by individual sites.                   entityID   xs:unsignedShort            appinfo Entity ID values are unique identification number for s givent entity in the originating                      application at a given site. Entity ID values are sssigned by individual simulation                      programs.
source	<xs:element name="ioAttackerID" type="EntityIDType"/>

element InformationOperationsActionPdu/ioPrimaryTargetID

diagram
type	EntityIDType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation siteID   xs:unsignedShort            appinfo Site ID values are unique identification number for originating site, often corresponding                      to an internet address. Site ID values are agreed upon by individual simulations.                   applicationID   xs:unsignedShort            appinfo Application ID values are unique identification number for originating application                      at a given site. Application ID values are sssigned by individual sites.                   entityID   xs:unsignedShort            appinfo Entity ID values are unique identification number for s givent entity in the originating                      application at a given site. Entity ID values are sssigned by individual simulation                      programs.
source	<xs:element name="ioPrimaryTargetID" type="EntityIDType"/>

element InformationOperationsActionPdu/IORecord

diagram
type	IORecordType
properties	content  complex
annotation	appinfo (length of list found in field numberOfIORecords)
source	<xs:element name="IORecord" type="IORecordType">   <xs:annotation>     <xs:appinfo>(length of list found in field numberOfIORecords)</xs:appinfo>   </xs:annotation> </xs:element>
