complexType LiveDeadReckoningParametersType

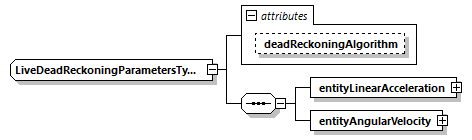

diagram
type	extension of rootType
properties	base  rootType abstract  false
children	entityLinearAcceleration entityAngularVelocity
used by	element  TSPIPdu/deadReckoningParameters
attributes	Name   Type   Use   Default   Fixed   Annotation deadReckoningAlgorithm   xs:string            appinfo (SISO enumeration DeadReckoningAlgorithm uid 44)
annotation	appinfo 16-bit fixed binaries
source	<xs:complexType name="LiveDeadReckoningParametersType" abstract="false">   <xs:annotation>     <xs:appinfo>16-bit fixed binaries</xs:appinfo>   </xs:annotation>   <xs:complexContent>     <xs:extension base="rootType">       <xs:sequence>         <xs:element name="entityLinearAcceleration" type="LEVector3FixedByteType"/>         <xs:element name="entityAngularVelocity" type="LEVector3FixedByteType"/>       </xs:sequence>       <xs:attribute name="deadReckoningAlgorithm" type="xs:string">         <xs:annotation>           <xs:appinfo>(SISO enumeration DeadReckoningAlgorithm uid 44)</xs:appinfo>         </xs:annotation>       </xs:attribute>     </xs:extension>     <!-- ========== debug: divider between elements and attributes ========== -->   </xs:complexContent>   <!--abstract='false' base='rootType'--> </xs:complexType>

attribute LiveDeadReckoningParametersType/@deadReckoningAlgorithm

type	xs:string
annotation	appinfo (SISO enumeration DeadReckoningAlgorithm uid 44)
source	<xs:attribute name="deadReckoningAlgorithm" type="xs:string">   <xs:annotation>     <xs:appinfo>(SISO enumeration DeadReckoningAlgorithm uid 44)</xs:appinfo>   </xs:annotation> </xs:attribute>

element LiveDeadReckoningParametersType/entityLinearAcceleration

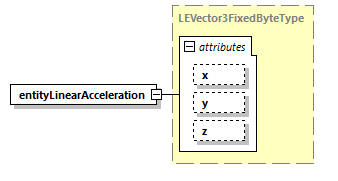

diagram
type	LEVector3FixedByteType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation x   xs:unsignedByte            appinfo X value y   xs:unsignedByte            appinfo y Value z   xs:unsignedByte            appinfo Z value
source	<xs:element name="entityLinearAcceleration" type="LEVector3FixedByteType"/>

element LiveDeadReckoningParametersType/entityAngularVelocity

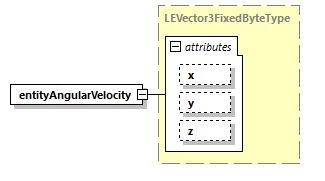

diagram
type	LEVector3FixedByteType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation x   xs:unsignedByte            appinfo X value y   xs:unsignedByte            appinfo y Value z   xs:unsignedByte            appinfo Z value
source	<xs:element name="entityAngularVelocity" type="LEVector3FixedByteType"/>
