complexType LogisticsFamilyPduType

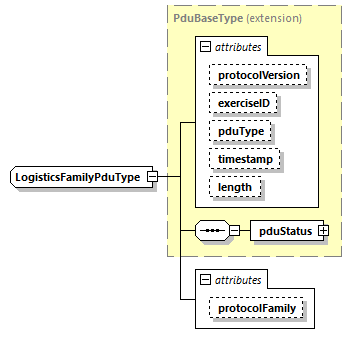

diagram
type	extension of PduBaseType
properties	base  PduBaseType abstract  true
children	pduStatus
used by	elements  RepairCompletePdu RepairResponsePdu ResupplyCancelPdu ResupplyOfferPdu ResupplyReceivedPdu ServiceRequestPdu
attributes	Name   Type   Use   Default   Fixed   Annotation protocolVersion   xs:string            appinfo The version of the protocol. 5=DIS-1995, 6=DIS-1998, 7=DIS-2012 (SISO enumeration                      DISProtocolVersion uid 3)                   exerciseID   xs:unsignedByte            appinfo Exercise ID provides a unique identifier pduType   xs:string            appinfo Type of pdu, unique for each PDU class (SISO enumeration DisPduType uid 4) timestamp   xs:unsignedLong            appinfo Timestamp value length   xs:unsignedShort            appinfo Length, in bytes, of the PDU protocolFamily         DISProtocolFamily.LOGISTICS
annotation	appinfo Abstract superclass for logistics PDUs. Section 7.4             <xs:attribute name="id" type="xs:integer" fixed="3"/>
source	<xs:complexType name="LogisticsFamilyPduType" abstract="true">   <xs:annotation>     <xs:appinfo>Abstract superclass for logistics PDUs. Section 7.4             <xs:attribute name="id" type="xs:integer" fixed="3"/>     </xs:appinfo>   </xs:annotation>   <xs:complexContent>     <xs:extension base="PduBaseType">       <xs:attribute name="protocolFamily" default="DISProtocolFamily.LOGISTICS"/>     </xs:extension>   </xs:complexContent> </xs:complexType>

attribute LogisticsFamilyPduType/@protocolFamily

properties	default  DISProtocolFamily.LOGISTICS
source	<xs:attribute name="protocolFamily" default="DISProtocolFamily.LOGISTICS"/>
