element MinefieldQueryPdu

diagram
type	extension of MinefieldFamilyPduType
properties	content  complex
children	pduStatus minefieldID requestingEntityID dataFilter requestedMineType Vector2Float MinefieldSensorType
used by	element  DIS
attributes	Name   Type   Use   Default   Fixed   Annotation protocolVersion   xs:string            appinfo The version of the protocol. 5=DIS-1995, 6=DIS-1998, 7=DIS-2012 (SISO enumeration                      DISProtocolVersion uid 3)                   exerciseID   xs:unsignedByte            appinfo Exercise ID provides a unique identifier pduType   xs:string            appinfo Type of pdu, unique for each PDU class (SISO enumeration DisPduType uid 4) timestamp   xs:unsignedLong            appinfo Timestamp value length   xs:unsignedShort            appinfo Length, in bytes, of the PDU protocolFamily         DISProtocolFamily.MINEFIELD      family            MinefieldFamilyPduType   requestID   xs:unsignedByte            appinfo request ID provides a unique identifier numberOfPerimeterPoints   xs:unsignedByte            appinfo Number of perimeter points for the minefield padding   xs:unsignedByte            appinfo zero-filled array of padding bits for byte alignment and consistent sizing of PDU                         data                      numberOfSensorTypes   xs:unsignedByte            appinfo Number of sensor types
annotation	appinfo 5.10.3 Contains information about the requesting entity and the region and mine types             of interest to the requesting entity. (length of list found in field numberOfPerimeterPoints             numberOfSensorTypes)             <xs:attribute name="id" type="xs:integer" fixed="38"/>
source	<xs:element name="MinefieldQueryPdu">   <xs:annotation>     <xs:appinfo>5.10.3 Contains information about the requesting entity and the region and mine types             of interest to the requesting entity. (length of list found in field numberOfPerimeterPoints             numberOfSensorTypes)             <xs:attribute name="id" type="xs:integer" fixed="38"/>     </xs:appinfo>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="MinefieldFamilyPduType">         <xs:sequence>           <xs:element name="minefieldID" type="MinefieldIdentifierType">             <xs:annotation>               <xs:appinfo>Minefield ID provides a unique identifier</xs:appinfo>             </xs:annotation>           </xs:element>           <xs:element name="requestingEntityID" type="EntityIDType">             <xs:annotation>               <xs:appinfo>EID of entity making the request</xs:appinfo>             </xs:annotation>           </xs:element>           <xs:element name="dataFilter" type="DataFilterRecordType">             <xs:annotation>               <xs:appinfo>data filter, 32 boolean fields</xs:appinfo>             </xs:annotation>           </xs:element>           <xs:element name="requestedMineType" type="EntityTypeType">             <xs:annotation>               <xs:appinfo>Entity type of mine being requested</xs:appinfo>             </xs:annotation>           </xs:element>           <!--Attribute (as element) MinefieldQueryPdu requestedPerimeterPoints with objectlist classRef name=Vector2Float, type=Vector2FloatType-->           <xs:sequence minOccurs="0" maxOccurs="unbounded">             <xs:annotation>               <xs:appinfo>Number of elements is determined by size fieldnumberOfPerimeterPoints and can be 0 or greater.                            Ensure that the total PDU size does not exceed maximums allowed in IEEE DIS Specification.                         </xs:appinfo>               <xs:documentation>numberOfPerimeterPoints</xs:documentation>             </xs:annotation>             <xs:element name="Vector2Float" type="Vector2FloatType">               <xs:annotation>                 <xs:appinfo>perimeter points of request (length of list found in field numberOfPerimeterPoints)</xs:appinfo>               </xs:annotation>             </xs:element>           </xs:sequence>           <!--Attribute (as element) MinefieldQueryPdu sensorTypes with objectlist classRef name=MinefieldSensorType, type=MinefieldSensorTypeType-->           <xs:sequence minOccurs="0" maxOccurs="unbounded">             <xs:annotation>               <xs:appinfo>Number of elements is determined by size fieldnumberOfSensorTypes and can be 0 or greater.                            Ensure that the total PDU size does not exceed maximums allowed in IEEE DIS Specification.                         </xs:appinfo>               <xs:documentation>numberOfSensorTypes</xs:documentation>             </xs:annotation>             <xs:element name="MinefieldSensorType" type="MinefieldSensorTypeType">               <xs:annotation>                 <xs:appinfo>Sensor types, each 16-bits long (length of list found in field numberOfSensorTypes)</xs:appinfo>               </xs:annotation>             </xs:element>           </xs:sequence>         </xs:sequence>         <xs:attribute name="family" fixed="MinefieldFamilyPduType"/>         <xs:attribute name="requestID" type="xs:unsignedByte">           <xs:annotation>             <xs:appinfo>request ID provides a unique identifier</xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="numberOfPerimeterPoints" type="xs:unsignedByte">           <xs:annotation>             <xs:appinfo>Number of perimeter points for the minefield</xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="padding" type="xs:unsignedByte">           <xs:annotation>             <xs:appinfo>zero-filled array of padding bits for byte alignment and consistent sizing of PDU                         data                      </xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="numberOfSensorTypes" type="xs:unsignedByte">           <xs:annotation>             <xs:appinfo>Number of sensor types</xs:appinfo>           </xs:annotation>         </xs:attribute>       </xs:extension>       <!-- ========== debug: divider between elements and attributes ========== -->     </xs:complexContent>   </xs:complexType> </xs:element>

attribute MinefieldQueryPdu/@family

properties	fixed  MinefieldFamilyPduType
source	<xs:attribute name="family" fixed="MinefieldFamilyPduType"/>

attribute MinefieldQueryPdu/@requestID

type	xs:unsignedByte
annotation	appinfo request ID provides a unique identifier
source	<xs:attribute name="requestID" type="xs:unsignedByte">   <xs:annotation>     <xs:appinfo>request ID provides a unique identifier</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute MinefieldQueryPdu/@numberOfPerimeterPoints

type	xs:unsignedByte
annotation	appinfo Number of perimeter points for the minefield
source	<xs:attribute name="numberOfPerimeterPoints" type="xs:unsignedByte">   <xs:annotation>     <xs:appinfo>Number of perimeter points for the minefield</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute MinefieldQueryPdu/@padding

type	xs:unsignedByte
annotation	appinfo zero-filled array of padding bits for byte alignment and consistent sizing of PDU                         data
source	<xs:attribute name="padding" type="xs:unsignedByte">   <xs:annotation>     <xs:appinfo>zero-filled array of padding bits for byte alignment and consistent sizing of PDU                         data                      </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute MinefieldQueryPdu/@numberOfSensorTypes

type	xs:unsignedByte
annotation	appinfo Number of sensor types
source	<xs:attribute name="numberOfSensorTypes" type="xs:unsignedByte">   <xs:annotation>     <xs:appinfo>Number of sensor types</xs:appinfo>   </xs:annotation> </xs:attribute>

element MinefieldQueryPdu/minefieldID

diagram
type	MinefieldIdentifierType
properties	content  complex
children	simulationAddress
attributes	Name   Type   Use   Default   Fixed   Annotation minefieldNumber   xs:unsignedShort
annotation	appinfo Minefield ID provides a unique identifier
source	<xs:element name="minefieldID" type="MinefieldIdentifierType">   <xs:annotation>     <xs:appinfo>Minefield ID provides a unique identifier</xs:appinfo>   </xs:annotation> </xs:element>

element MinefieldQueryPdu/requestingEntityID

diagram
type	EntityIDType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation siteID   xs:unsignedShort            appinfo Site ID values are unique identification number for originating site, often corresponding                      to an internet address. Site ID values are agreed upon by individual simulations.                   applicationID   xs:unsignedShort            appinfo Application ID values are unique identification number for originating application                      at a given site. Application ID values are sssigned by individual sites.                   entityID   xs:unsignedShort            appinfo Entity ID values are unique identification number for s givent entity in the originating                      application at a given site. Entity ID values are sssigned by individual simulation                      programs.
annotation	appinfo EID of entity making the request
source	<xs:element name="requestingEntityID" type="EntityIDType">   <xs:annotation>     <xs:appinfo>EID of entity making the request</xs:appinfo>   </xs:annotation> </xs:element>

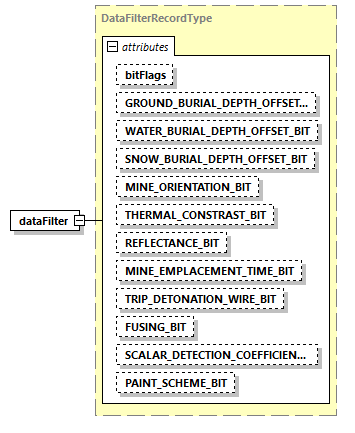

element MinefieldQueryPdu/dataFilter

diagram
type	DataFilterRecordType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation bitFlags   xs:unsignedLong            appinfo Bitflags field GROUND_BURIAL_DEPTH_OFFSET_BIT   xs:unsignedLong         0   WATER_BURIAL_DEPTH_OFFSET_BIT   xs:unsignedLong         1   SNOW_BURIAL_DEPTH_OFFSET_BIT   xs:unsignedLong         2   MINE_ORIENTATION_BIT   xs:unsignedLong         3   THERMAL_CONSTRAST_BIT   xs:unsignedLong         4   REFLECTANCE_BIT   xs:unsignedLong         5   MINE_EMPLACEMENT_TIME_BIT   xs:unsignedLong         6   TRIP_DETONATION_WIRE_BIT   xs:unsignedLong         7   FUSING_BIT   xs:unsignedLong         8   SCALAR_DETECTION_COEFFICIENT_BIT   xs:unsignedLong         9   PAINT_SCHEME_BIT   xs:unsignedLong         10
annotation	appinfo data filter, 32 boolean fields
source	<xs:element name="dataFilter" type="DataFilterRecordType">   <xs:annotation>     <xs:appinfo>data filter, 32 boolean fields</xs:appinfo>   </xs:annotation> </xs:element>

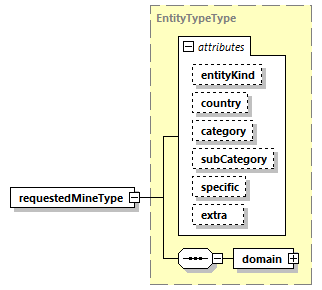

element MinefieldQueryPdu/requestedMineType

diagram
type	EntityTypeType
properties	content  complex
children	domain
attributes	Name   Type   Use   Default   Fixed   Annotation entityKind   xs:string            appinfo Kind of entity (SISO enumeration EntityKind uid 7) country   xs:string            appinfo country to which the design of the entity is attributed (SISO enumeration Country                      uid 29)                   category   xs:unsignedByte            appinfo category of entity subCategory   xs:unsignedByte            appinfo subcategory based on category specific   xs:unsignedByte            appinfo specific info based on subcategory extra   xs:unsignedByte
annotation	appinfo Entity type of mine being requested
source	<xs:element name="requestedMineType" type="EntityTypeType">   <xs:annotation>     <xs:appinfo>Entity type of mine being requested</xs:appinfo>   </xs:annotation> </xs:element>

element MinefieldQueryPdu/Vector2Float

diagram
type	Vector2FloatType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation x   xs:float            appinfo X value y   xs:float            appinfo y Value
annotation	appinfo perimeter points of request (length of list found in field numberOfPerimeterPoints)
source	<xs:element name="Vector2Float" type="Vector2FloatType">   <xs:annotation>     <xs:appinfo>perimeter points of request (length of list found in field numberOfPerimeterPoints)</xs:appinfo>   </xs:annotation> </xs:element>

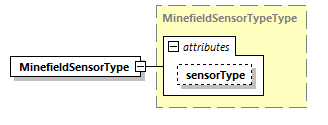

element MinefieldQueryPdu/MinefieldSensorType

diagram
type	MinefieldSensorTypeType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation sensorType   xs:unsignedShort            appinfo sensor type. bit fields 0-3 are the type category, 4-15 are teh subcategory
annotation	appinfo Sensor types, each 16-bits long (length of list found in field numberOfSensorTypes)
source	<xs:element name="MinefieldSensorType" type="MinefieldSensorTypeType">   <xs:annotation>     <xs:appinfo>Sensor types, each 16-bits long (length of list found in field numberOfSensorTypes)</xs:appinfo>   </xs:annotation> </xs:element>
