complexType SilentEntitySystemType

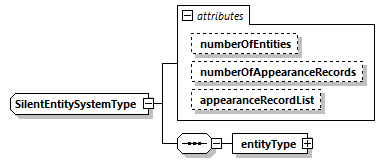

diagram
type	extension of rootType
properties	base  rootType abstract  false
children	entityType
attributes	Name   Type   Use   Default   Fixed   Annotation numberOfEntities   xs:unsignedShort            appinfo number of the type specified by the entity type field numberOfAppearanceRecords   xs:unsignedShort            appinfo number of entity appearance records that follow appearanceRecordList   derived by: xs:list            appinfo Variable length list of appearance records (length of list found in field numberOfAppearanceRecords)
annotation	appinfo information abou an enitity not producing espdus. Section 6.2.79 (length of list found             in field numberOfAppearanceRecords)
source	<xs:complexType name="SilentEntitySystemType" abstract="false">   <xs:annotation>     <xs:appinfo>information abou an enitity not producing espdus. Section 6.2.79 (length of list found             in field numberOfAppearanceRecords)          </xs:appinfo>   </xs:annotation>   <xs:complexContent>     <xs:extension base="rootType">       <xs:sequence>         <xs:element name="entityType" type="EntityTypeType">           <xs:annotation>             <xs:appinfo>Entity type</xs:appinfo>           </xs:annotation>         </xs:element>       </xs:sequence>       <xs:attribute name="numberOfEntities" type="xs:unsignedShort">         <xs:annotation>           <xs:appinfo>number of the type specified by the entity type field</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="numberOfAppearanceRecords" type="xs:unsignedShort">         <xs:annotation>           <xs:appinfo>number of entity appearance records that follow</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="appearanceRecordList">         <xs:annotation>           <xs:appinfo>Variable length list of appearance records (length of list found in field numberOfAppearanceRecords)</xs:appinfo>         </xs:annotation>         <xs:simpleType>           <xs:annotation>             <xs:appinfo>Attribute numberOfAppearanceRecords determines the length of this list.</xs:appinfo>           </xs:annotation>           <xs:restriction>             <xs:simpleType>               <xs:list itemType="xs:unsignedLong"/>             </xs:simpleType>             <xs:length value="0" fixed="false"/>           </xs:restriction>         </xs:simpleType>       </xs:attribute>     </xs:extension>     <!-- ========== debug: divider between elements and attributes ========== -->   </xs:complexContent>   <!--abstract='false' base='rootType'--> </xs:complexType>

attribute SilentEntitySystemType/@numberOfEntities

type	xs:unsignedShort
annotation	appinfo number of the type specified by the entity type field
source	<xs:attribute name="numberOfEntities" type="xs:unsignedShort">   <xs:annotation>     <xs:appinfo>number of the type specified by the entity type field</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute SilentEntitySystemType/@numberOfAppearanceRecords

type	xs:unsignedShort
annotation	appinfo number of entity appearance records that follow
source	<xs:attribute name="numberOfAppearanceRecords" type="xs:unsignedShort">   <xs:annotation>     <xs:appinfo>number of entity appearance records that follow</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute SilentEntitySystemType/@appearanceRecordList

type	restriction of (list of xs:unsignedLong)
facets	Kind  Value  Annotation length  0
annotation	appinfo Variable length list of appearance records (length of list found in field numberOfAppearanceRecords)
source	<xs:attribute name="appearanceRecordList">   <xs:annotation>     <xs:appinfo>Variable length list of appearance records (length of list found in field numberOfAppearanceRecords)</xs:appinfo>   </xs:annotation>   <xs:simpleType>     <xs:annotation>       <xs:appinfo>Attribute numberOfAppearanceRecords determines the length of this list.</xs:appinfo>     </xs:annotation>     <xs:restriction>       <xs:simpleType>         <xs:list itemType="xs:unsignedLong"/>       </xs:simpleType>       <xs:length value="0" fixed="false"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

element SilentEntitySystemType/entityType

diagram
type	EntityTypeType
properties	content  complex
children	domain
attributes	Name   Type   Use   Default   Fixed   Annotation entityKind   xs:string            appinfo Kind of entity (SISO enumeration EntityKind uid 7) country   xs:string            appinfo country to which the design of the entity is attributed (SISO enumeration Country                      uid 29)                   category   xs:unsignedByte            appinfo category of entity subCategory   xs:unsignedByte            appinfo subcategory based on category specific   xs:unsignedByte            appinfo specific info based on subcategory extra   xs:unsignedByte
annotation	appinfo Entity type
source	<xs:element name="entityType" type="EntityTypeType">   <xs:annotation>     <xs:appinfo>Entity type</xs:appinfo>   </xs:annotation> </xs:element>
