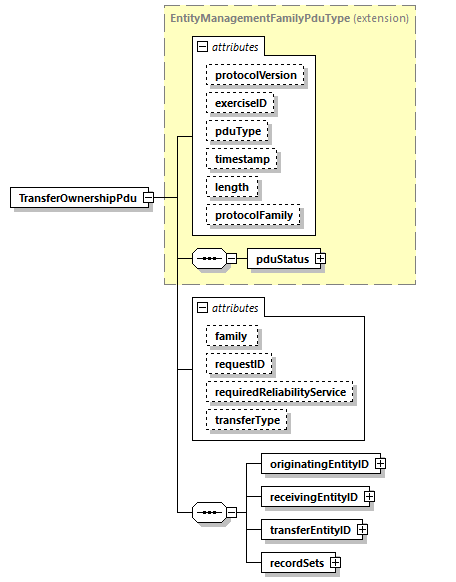

element TransferOwnershipPdu

diagram
type	extension of EntityManagementFamilyPduType
properties	content  complex
children	pduStatus originatingEntityID receivingEntityID transferEntityID recordSets
used by	element  DIS
attributes	Name   Type   Use   Default   Fixed   Annotation protocolVersion   xs:string            appinfo The version of the protocol. 5=DIS-1995, 6=DIS-1998, 7=DIS-2012 (SISO enumeration                      DISProtocolVersion uid 3)                   exerciseID   xs:unsignedByte            appinfo Exercise ID provides a unique identifier pduType   xs:string            appinfo Type of pdu, unique for each PDU class (SISO enumeration DisPduType uid 4) timestamp   xs:unsignedLong            appinfo Timestamp value length   xs:unsignedShort            appinfo Length, in bytes, of the PDU protocolFamily         DISProtocolFamily.ENTITY_MANAGEMENT      family            EntityManagementFamilyPduType   requestID   xs:unsignedLong            appinfo ID of request requiredReliabilityService   xs:string            appinfo required level of reliability service. (SISO enumeration RequiredReliabilityService                         uid 74)                      transferType   xs:string            appinfo type of transfer desired (SISO enumeration TransferControlTransferType uid 224)
annotation	appinfo Information initiating the dyanic allocation and control of simulation entities between             two simulation applications.             <xs:attribute name="id" type="xs:integer" fixed="35"/>
source	<xs:element name="TransferOwnershipPdu">   <xs:annotation>     <xs:appinfo>Information initiating the dyanic allocation and control of simulation entities between             two simulation applications.             <xs:attribute name="id" type="xs:integer" fixed="35"/>     </xs:appinfo>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="EntityManagementFamilyPduType">         <xs:sequence>           <xs:element name="originatingEntityID" type="EntityIDType">             <xs:annotation>               <xs:appinfo>ID of entity originating request</xs:appinfo>             </xs:annotation>           </xs:element>           <xs:element name="receivingEntityID" type="EntityIDType">             <xs:annotation>               <xs:appinfo>ID of entity receiving request</xs:appinfo>             </xs:annotation>           </xs:element>           <xs:element name="transferEntityID" type="EntityIDType">             <xs:annotation>               <xs:appinfo>The entity for which control is being requested to transfer</xs:appinfo>             </xs:annotation>           </xs:element>           <xs:element name="recordSets" type="RecordSpecificationType"/>         </xs:sequence>         <xs:attribute name="family" fixed="EntityManagementFamilyPduType"/>         <xs:attribute name="requestID" type="xs:unsignedLong">           <xs:annotation>             <xs:appinfo>ID of request</xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="requiredReliabilityService" type="xs:string">           <xs:annotation>             <xs:appinfo>required level of reliability service. (SISO enumeration RequiredReliabilityService                         uid 74)                      </xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="transferType" type="xs:string">           <xs:annotation>             <xs:appinfo>type of transfer desired (SISO enumeration TransferControlTransferType uid 224)</xs:appinfo>           </xs:annotation>         </xs:attribute>       </xs:extension>       <!-- ========== debug: divider between elements and attributes ========== -->     </xs:complexContent>   </xs:complexType> </xs:element>

attribute TransferOwnershipPdu/@family

properties	fixed  EntityManagementFamilyPduType
source	<xs:attribute name="family" fixed="EntityManagementFamilyPduType"/>

attribute TransferOwnershipPdu/@requestID

type	xs:unsignedLong
annotation	appinfo ID of request
source	<xs:attribute name="requestID" type="xs:unsignedLong">   <xs:annotation>     <xs:appinfo>ID of request</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute TransferOwnershipPdu/@requiredReliabilityService

type	xs:string
annotation	appinfo required level of reliability service. (SISO enumeration RequiredReliabilityService                         uid 74)
source	<xs:attribute name="requiredReliabilityService" type="xs:string">   <xs:annotation>     <xs:appinfo>required level of reliability service. (SISO enumeration RequiredReliabilityService                         uid 74)                      </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute TransferOwnershipPdu/@transferType

type	xs:string
annotation	appinfo type of transfer desired (SISO enumeration TransferControlTransferType uid 224)
source	<xs:attribute name="transferType" type="xs:string">   <xs:annotation>     <xs:appinfo>type of transfer desired (SISO enumeration TransferControlTransferType uid 224)</xs:appinfo>   </xs:annotation> </xs:attribute>

element TransferOwnershipPdu/originatingEntityID

diagram
type	EntityIDType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation siteID   xs:unsignedShort            appinfo Site ID values are unique identification number for originating site, often corresponding                      to an internet address. Site ID values are agreed upon by individual simulations.                   applicationID   xs:unsignedShort            appinfo Application ID values are unique identification number for originating application                      at a given site. Application ID values are sssigned by individual sites.                   entityID   xs:unsignedShort            appinfo Entity ID values are unique identification number for s givent entity in the originating                      application at a given site. Entity ID values are sssigned by individual simulation                      programs.
annotation	appinfo ID of entity originating request
source	<xs:element name="originatingEntityID" type="EntityIDType">   <xs:annotation>     <xs:appinfo>ID of entity originating request</xs:appinfo>   </xs:annotation> </xs:element>

element TransferOwnershipPdu/receivingEntityID

diagram
type	EntityIDType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation siteID   xs:unsignedShort            appinfo Site ID values are unique identification number for originating site, often corresponding                      to an internet address. Site ID values are agreed upon by individual simulations.                   applicationID   xs:unsignedShort            appinfo Application ID values are unique identification number for originating application                      at a given site. Application ID values are sssigned by individual sites.                   entityID   xs:unsignedShort            appinfo Entity ID values are unique identification number for s givent entity in the originating                      application at a given site. Entity ID values are sssigned by individual simulation                      programs.
annotation	appinfo ID of entity receiving request
source	<xs:element name="receivingEntityID" type="EntityIDType">   <xs:annotation>     <xs:appinfo>ID of entity receiving request</xs:appinfo>   </xs:annotation> </xs:element>

element TransferOwnershipPdu/transferEntityID

diagram
type	EntityIDType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation siteID   xs:unsignedShort            appinfo Site ID values are unique identification number for originating site, often corresponding                      to an internet address. Site ID values are agreed upon by individual simulations.                   applicationID   xs:unsignedShort            appinfo Application ID values are unique identification number for originating application                      at a given site. Application ID values are sssigned by individual sites.                   entityID   xs:unsignedShort            appinfo Entity ID values are unique identification number for s givent entity in the originating                      application at a given site. Entity ID values are sssigned by individual simulation                      programs.
annotation	appinfo The entity for which control is being requested to transfer
source	<xs:element name="transferEntityID" type="EntityIDType">   <xs:annotation>     <xs:appinfo>The entity for which control is being requested to transfer</xs:appinfo>   </xs:annotation> </xs:element>

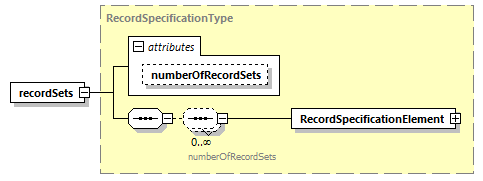

element TransferOwnershipPdu/recordSets

diagram
type	RecordSpecificationType
properties	content  complex
children	RecordSpecificationElement
attributes	Name   Type   Use   Default   Fixed   Annotation numberOfRecordSets   xs:unsignedLong            appinfo The number of record sets
source	<xs:element name="recordSets" type="RecordSpecificationType"/>
