element ActionResponseReliablePdu

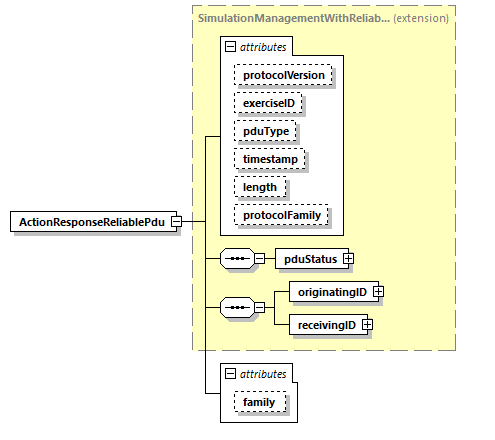

diagram
type	extension of SimulationManagementWithReliabilityFamilyPduType
properties	content  complex
children	pduStatus originatingID receivingID
used by	element  DIS
attributes	Name   Type   Use   Default   Fixed   Annotation protocolVersion   xs:string            appinfo The version of the protocol. 5=DIS-1995, 6=DIS-1998, 7=DIS-2012 (SISO enumeration                      DISProtocolVersion uid 3)                   exerciseID   xs:unsignedByte            appinfo Exercise ID provides a unique identifier pduType   xs:string            appinfo Type of pdu, unique for each PDU class (SISO enumeration DisPduType uid 4) timestamp   xs:unsignedLong            appinfo Timestamp value length   xs:unsignedShort            appinfo Length, in bytes, of the PDU protocolFamily         DISProtocolFamily.SIMULATION_MANAGEMENT_WITH_RELIABILITY      family            SimulationManagementWithReliabilityFamilyPduType
annotation	appinfo alias, more descriptive name for a ActionResponseRPdu.             <xs:attribute name="aliasFor" type="xs:string" fixed="ActionResponseRPdu"/> <xs:attribute name="id" type="xs:integer" fixed="57"/>
source	<xs:element name="ActionResponseReliablePdu">   <xs:annotation>     <xs:appinfo>alias, more descriptive name for a ActionResponseRPdu.             <xs:attribute name="aliasFor" type="xs:string" fixed="ActionResponseRPdu"/>       <xs:attribute name="id" type="xs:integer" fixed="57"/>     </xs:appinfo>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="SimulationManagementWithReliabilityFamilyPduType">         <xs:attribute name="family" fixed="SimulationManagementWithReliabilityFamilyPduType"/>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

attribute ActionResponseReliablePdu/@family

properties	fixed  SimulationManagementWithReliabilityFamilyPduType
source	<xs:attribute name="family" fixed="SimulationManagementWithReliabilityFamilyPduType"/>
