complexType AggregateIdentifierType

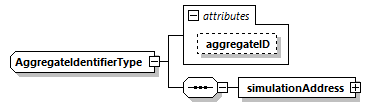

diagram
type	extension of rootType
properties	base  rootType abstract  false
children	simulationAddress
used by	elements  AggregateStatePdu/aggregateID AggregateStatePdu/AggregateIdentifier
attributes	Name   Type   Use   Default   Fixed   Annotation aggregateID   xs:unsignedShort            appinfo The aggregate ID provides a unique identifier
annotation	appinfo The unique designation of each aggregate in an exercise is specified by an aggregate             identifier record. The aggregate ID is not an entity and shall not be treated as such.             Section 6.2.3.
source	<xs:complexType name="AggregateIdentifierType" abstract="false">   <xs:annotation>     <xs:appinfo>The unique designation of each aggregate in an exercise is specified by an aggregate             identifier record. The aggregate ID is not an entity and shall not be treated as such.             Section 6.2.3.          </xs:appinfo>   </xs:annotation>   <xs:complexContent>     <xs:extension base="rootType">       <xs:sequence>         <xs:element name="simulationAddress" type="SimulationAddressType">           <xs:annotation>             <xs:appinfo>Simulation address, i.e. site and application, the first two fields of the entity                         ID provides a unique identifier                      </xs:appinfo>           </xs:annotation>         </xs:element>       </xs:sequence>       <xs:attribute name="aggregateID" type="xs:unsignedShort">         <xs:annotation>           <xs:appinfo>The aggregate ID provides a unique identifier</xs:appinfo>         </xs:annotation>       </xs:attribute>     </xs:extension>     <!-- ========== debug: divider between elements and attributes ========== -->   </xs:complexContent>   <!--abstract='false' base='rootType'--> </xs:complexType>

attribute AggregateIdentifierType/@aggregateID

type	xs:unsignedShort
annotation	appinfo The aggregate ID provides a unique identifier
source	<xs:attribute name="aggregateID" type="xs:unsignedShort">   <xs:annotation>     <xs:appinfo>The aggregate ID provides a unique identifier</xs:appinfo>   </xs:annotation> </xs:attribute>

element AggregateIdentifierType/simulationAddress

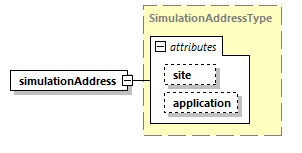

diagram
type	SimulationAddressType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation site   xs:unsignedShort            appinfo A site is defined as a facility, installation, organizational unit or a geographic                      location that has one or more simulation applications capable of participating in                      a distributed event.                   application   xs:unsignedShort            appinfo An application is defined as a software program that is used to generate and process                      distributed simulation data including live, virtual and constructive data.
annotation	appinfo Simulation address, i.e. site and application, the first two fields of the entity                         ID provides a unique identifier
source	<xs:element name="simulationAddress" type="SimulationAddressType">   <xs:annotation>     <xs:appinfo>Simulation address, i.e. site and application, the first two fields of the entity                         ID provides a unique identifier                      </xs:appinfo>   </xs:annotation> </xs:element>
