complexType AntennaLocationType

diagram
type	extension of rootType
properties	base  rootType abstract  false
children	antennaLocation relativeAntennaLocation
annotation	appinfo Location of the radiating portion of the antenna, specified in world coordinates and             entity coordinates. Section 6.2.8
source	<xs:complexType name="AntennaLocationType" abstract="false">   <xs:annotation>     <xs:appinfo>Location of the radiating portion of the antenna, specified in world coordinates and             entity coordinates. Section 6.2.8          </xs:appinfo>   </xs:annotation>   <xs:complexContent>     <xs:extension base="rootType">       <xs:sequence>         <xs:element name="antennaLocation" type="Vector3DoubleType">           <xs:annotation>             <xs:appinfo>Location of the radiating portion of the antenna in world coordinates</xs:appinfo>           </xs:annotation>         </xs:element>         <xs:element name="relativeAntennaLocation" type="Vector3FloatType">           <xs:annotation>             <xs:appinfo>Location of the radiating portion of the antenna in entity coordinates</xs:appinfo>           </xs:annotation>         </xs:element>       </xs:sequence>     </xs:extension>   </xs:complexContent>   <!--abstract='false' base='rootType'--> </xs:complexType>

element AntennaLocationType/antennaLocation

diagram
type	Vector3DoubleType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation x   xs:double            appinfo X value y   xs:double            appinfo y Value z   xs:double            appinfo Z value
annotation	appinfo Location of the radiating portion of the antenna in world coordinates
source	<xs:element name="antennaLocation" type="Vector3DoubleType">   <xs:annotation>     <xs:appinfo>Location of the radiating portion of the antenna in world coordinates</xs:appinfo>   </xs:annotation> </xs:element>

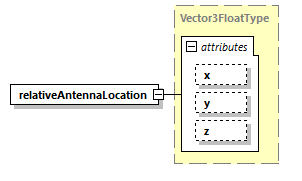

element AntennaLocationType/relativeAntennaLocation

diagram
type	Vector3FloatType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation x   xs:float            appinfo X value y   xs:float            appinfo y Value z   xs:float            appinfo Z value
annotation	appinfo Location of the radiating portion of the antenna in entity coordinates
source	<xs:element name="relativeAntennaLocation" type="Vector3FloatType">   <xs:annotation>     <xs:appinfo>Location of the radiating portion of the antenna in entity coordinates</xs:appinfo>   </xs:annotation> </xs:element>
