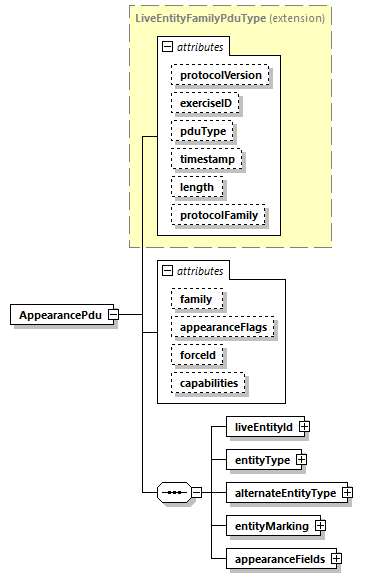

element AppearancePdu

diagram
type	extension of LiveEntityFamilyPduType
properties	content  complex
children	liveEntityId entityType alternateEntityType entityMarking appearanceFields
used by	element  DIS
attributes	Name   Type   Use   Default   Fixed   Annotation protocolVersion   xs:string            appinfo The version of the protocol. 5=DIS-1995, 6=DIS-1998, 7=DIS-2012 (SISO enumeration                      DISProtocolVersion uid 3)                   exerciseID   xs:unsignedByte            appinfo Exercise ID provides a unique identifier pduType   xs:string            appinfo Type of pdu, unique for each PDU class (SISO enumeration DisPduType uid 4) timestamp   xs:unsignedLong            appinfo Timestamp value length   xs:unsignedShort            appinfo Length, in bytes, of the PDU protocolFamily         DISProtocolFamily.LIVE_ENTITY_LE_INFORMATION_INTERACTION      family            LiveEntityFamilyPduType   appearanceFlags   xs:unsignedShort            appinfo 16-bit bit field forceId   xs:string            appinfo (SISO enumeration ForceID uid 6) capabilities   xs:unsignedLong            appinfo (SISO bitfield enumeration, size 32 bits, EntityCapabilities uid 55)
annotation	appinfo 9.4.3 Communicate information about the appearance of a live entity.             <xs:attribute name="id" type="xs:integer" fixed="47"/>
source	<xs:element name="AppearancePdu">   <xs:annotation>     <xs:appinfo>9.4.3 Communicate information about the appearance of a live entity.             <xs:attribute name="id" type="xs:integer" fixed="47"/>     </xs:appinfo>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="LiveEntityFamilyPduType">         <xs:sequence>           <xs:element name="liveEntityId" type="EntityIDType"/>           <xs:element name="entityType" type="EntityTypeType"/>           <xs:element name="alternateEntityType" type="EntityTypeType"/>           <xs:element name="entityMarking" type="EntityMarkingType"/>           <xs:element name="appearanceFields" type="AppearanceType"/>         </xs:sequence>         <xs:attribute name="family" fixed="LiveEntityFamilyPduType"/>         <xs:attribute name="appearanceFlags" type="xs:unsignedShort">           <xs:annotation>             <xs:appinfo>16-bit bit field</xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="forceId" type="xs:string">           <xs:annotation>             <xs:appinfo>(SISO enumeration ForceID uid 6)</xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="capabilities" type="xs:unsignedLong">           <xs:annotation>             <xs:appinfo>(SISO bitfield enumeration, size 32 bits, EntityCapabilities uid 55)</xs:appinfo>           </xs:annotation>         </xs:attribute>       </xs:extension>       <!-- ========== debug: divider between elements and attributes ========== -->     </xs:complexContent>   </xs:complexType> </xs:element>

attribute AppearancePdu/@family

properties	fixed  LiveEntityFamilyPduType
source	<xs:attribute name="family" fixed="LiveEntityFamilyPduType"/>

attribute AppearancePdu/@appearanceFlags

type	xs:unsignedShort
annotation	appinfo 16-bit bit field
source	<xs:attribute name="appearanceFlags" type="xs:unsignedShort">   <xs:annotation>     <xs:appinfo>16-bit bit field</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute AppearancePdu/@forceId

type	xs:string
annotation	appinfo (SISO enumeration ForceID uid 6)
source	<xs:attribute name="forceId" type="xs:string">   <xs:annotation>     <xs:appinfo>(SISO enumeration ForceID uid 6)</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute AppearancePdu/@capabilities

type	xs:unsignedLong
annotation	appinfo (SISO bitfield enumeration, size 32 bits, EntityCapabilities uid 55)
source	<xs:attribute name="capabilities" type="xs:unsignedLong">   <xs:annotation>     <xs:appinfo>(SISO bitfield enumeration, size 32 bits, EntityCapabilities uid 55)</xs:appinfo>   </xs:annotation> </xs:attribute>

element AppearancePdu/liveEntityId

diagram
type	EntityIDType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation siteID   xs:unsignedShort            appinfo Site ID values are unique identification number for originating site, often corresponding                      to an internet address. Site ID values are agreed upon by individual simulations.                   applicationID   xs:unsignedShort            appinfo Application ID values are unique identification number for originating application                      at a given site. Application ID values are sssigned by individual sites.                   entityID   xs:unsignedShort            appinfo Entity ID values are unique identification number for s givent entity in the originating                      application at a given site. Entity ID values are sssigned by individual simulation                      programs.
source	<xs:element name="liveEntityId" type="EntityIDType"/>

element AppearancePdu/entityType

diagram
type	EntityTypeType
properties	content  complex
children	domain
attributes	Name   Type   Use   Default   Fixed   Annotation entityKind   xs:string            appinfo Kind of entity (SISO enumeration EntityKind uid 7) country   xs:string            appinfo country to which the design of the entity is attributed (SISO enumeration Country                      uid 29)                   category   xs:unsignedByte            appinfo category of entity subCategory   xs:unsignedByte            appinfo subcategory based on category specific   xs:unsignedByte            appinfo specific info based on subcategory extra   xs:unsignedByte
source	<xs:element name="entityType" type="EntityTypeType"/>

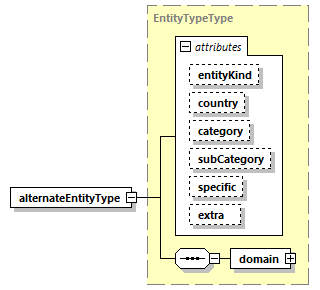

element AppearancePdu/alternateEntityType

diagram
type	EntityTypeType
properties	content  complex
children	domain
attributes	Name   Type   Use   Default   Fixed   Annotation entityKind   xs:string            appinfo Kind of entity (SISO enumeration EntityKind uid 7) country   xs:string            appinfo country to which the design of the entity is attributed (SISO enumeration Country                      uid 29)                   category   xs:unsignedByte            appinfo category of entity subCategory   xs:unsignedByte            appinfo subcategory based on category specific   xs:unsignedByte            appinfo specific info based on subcategory extra   xs:unsignedByte
source	<xs:element name="alternateEntityType" type="EntityTypeType"/>

element AppearancePdu/entityMarking

diagram
type	EntityMarkingType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation characterSet   xs:string            appinfo The character set (SISO enumeration EntityMarkingCharacterSet uid 45) characters               appinfo The characters
source	<xs:element name="entityMarking" type="EntityMarkingType"/>

element AppearancePdu/appearanceFields

diagram
type	AppearanceType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation visual   xs:unsignedLong            ir   xs:unsignedLong            em   xs:unsignedLong            audio   xs:unsignedLong
source	<xs:element name="appearanceFields" type="AppearanceType"/>
