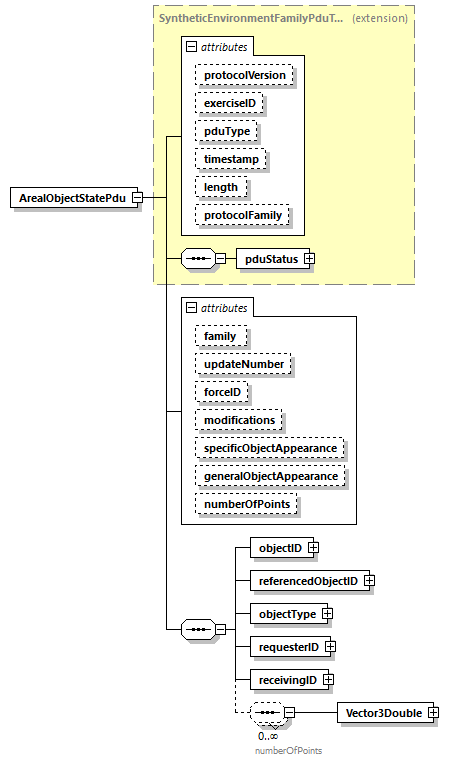

element ArealObjectStatePdu

diagram
type	extension of SyntheticEnvironmentFamilyPduType
properties	content  complex
children	pduStatus objectID referencedObjectID objectType requesterID receivingID Vector3Double
used by	element  DIS
attributes	Name   Type   Use   Default   Fixed   Annotation protocolVersion   xs:string            appinfo The version of the protocol. 5=DIS-1995, 6=DIS-1998, 7=DIS-2012 (SISO enumeration                      DISProtocolVersion uid 3)                   exerciseID   xs:unsignedByte            appinfo Exercise ID provides a unique identifier pduType   xs:string            appinfo Type of pdu, unique for each PDU class (SISO enumeration DisPduType uid 4) timestamp   xs:unsignedLong            appinfo Timestamp value length   xs:unsignedShort            appinfo Length, in bytes, of the PDU protocolFamily         DISProtocolFamily.SYNTHETIC_ENVIRONMENT      family            SyntheticEnvironmentFamilyPduType   updateNumber   xs:unsignedShort            appinfo unique update number of each state transition of an object forceID   xs:string            appinfo force ID provides a unique identifier (SISO enumeration ForceID uid 6) modifications   xs:unsignedByte            appinfo modifications enumeration (SISO bitfield enumeration, size 8 bits, ObjectStateModificationArealObject                         uid 242)                      specificObjectAppearance   xs:unsignedLong            appinfo Object appearance generalObjectAppearance   xs:unsignedShort            appinfo Object appearance numberOfPoints   xs:unsignedShort            appinfo Number of points
annotation	appinfo 7.10.6 Used to communicate detailed information about the addition/modification of             a synthetic environment object that is geometrically anchored to the terrain with             a set of three or more points that come to a closure. (length of list found in field             numberOfPoints)             <xs:attribute name="id" type="xs:integer" fixed="45"/>
source	<xs:element name="ArealObjectStatePdu">   <xs:annotation>     <xs:appinfo>7.10.6 Used to communicate detailed information about the addition/modification of             a synthetic environment object that is geometrically anchored to the terrain with             a set of three or more points that come to a closure. (length of list found in field             numberOfPoints)             <xs:attribute name="id" type="xs:integer" fixed="45"/>     </xs:appinfo>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="SyntheticEnvironmentFamilyPduType">         <xs:sequence>           <xs:element name="objectID" type="ObjectIdentifierType">             <xs:annotation>               <xs:appinfo>Object in synthetic environment</xs:appinfo>             </xs:annotation>           </xs:element>           <xs:element name="referencedObjectID" type="ObjectIdentifierType">             <xs:annotation>               <xs:appinfo>Object with which this point object is associated</xs:appinfo>             </xs:annotation>           </xs:element>           <xs:element name="objectType" type="ObjectTypeType">             <xs:annotation>               <xs:appinfo>Object type</xs:appinfo>             </xs:annotation>           </xs:element>           <xs:element name="requesterID" type="SimulationAddressType">             <xs:annotation>               <xs:appinfo>requesterID</xs:appinfo>             </xs:annotation>           </xs:element>           <xs:element name="receivingID" type="SimulationAddressType">             <xs:annotation>               <xs:appinfo>receiver ID provides a unique identifier</xs:appinfo>             </xs:annotation>           </xs:element>           <!--Attribute (as element) ArealObjectStatePdu objectLocation with objectlist classRef name=Vector3Double, type=Vector3DoubleType-->           <xs:sequence minOccurs="0" maxOccurs="unbounded">             <xs:annotation>               <xs:appinfo>Number of elements is determined by size fieldnumberOfPoints and can be 0 or greater.                            Ensure that the total PDU size does not exceed maximums allowed in IEEE DIS Specification.                         </xs:appinfo>               <xs:documentation>numberOfPoints</xs:documentation>             </xs:annotation>             <xs:element name="Vector3Double" type="Vector3DoubleType">               <xs:annotation>                 <xs:appinfo>location of object (length of list found in field numberOfPoints)</xs:appinfo>               </xs:annotation>             </xs:element>           </xs:sequence>         </xs:sequence>         <xs:attribute name="family" fixed="SyntheticEnvironmentFamilyPduType"/>         <xs:attribute name="updateNumber" type="xs:unsignedShort">           <xs:annotation>             <xs:appinfo>unique update number of each state transition of an object</xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="forceID" type="xs:string">           <xs:annotation>             <xs:appinfo>force ID provides a unique identifier (SISO enumeration ForceID uid 6)</xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="modifications" type="xs:unsignedByte">           <xs:annotation>             <xs:appinfo>modifications enumeration (SISO bitfield enumeration, size 8 bits, ObjectStateModificationArealObject                         uid 242)                      </xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="specificObjectAppearance" type="xs:unsignedLong">           <xs:annotation>             <xs:appinfo>Object appearance</xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="generalObjectAppearance" type="xs:unsignedShort">           <xs:annotation>             <xs:appinfo>Object appearance</xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="numberOfPoints" type="xs:unsignedShort">           <xs:annotation>             <xs:appinfo>Number of points</xs:appinfo>           </xs:annotation>         </xs:attribute>       </xs:extension>       <!-- ========== debug: divider between elements and attributes ========== -->     </xs:complexContent>   </xs:complexType> </xs:element>

attribute ArealObjectStatePdu/@family

properties	fixed  SyntheticEnvironmentFamilyPduType
source	<xs:attribute name="family" fixed="SyntheticEnvironmentFamilyPduType"/>

attribute ArealObjectStatePdu/@updateNumber

type	xs:unsignedShort
annotation	appinfo unique update number of each state transition of an object
source	<xs:attribute name="updateNumber" type="xs:unsignedShort">   <xs:annotation>     <xs:appinfo>unique update number of each state transition of an object</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute ArealObjectStatePdu/@forceID

type	xs:string
annotation	appinfo force ID provides a unique identifier (SISO enumeration ForceID uid 6)
source	<xs:attribute name="forceID" type="xs:string">   <xs:annotation>     <xs:appinfo>force ID provides a unique identifier (SISO enumeration ForceID uid 6)</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute ArealObjectStatePdu/@modifications

type	xs:unsignedByte
annotation	appinfo modifications enumeration (SISO bitfield enumeration, size 8 bits, ObjectStateModificationArealObject                         uid 242)
source	<xs:attribute name="modifications" type="xs:unsignedByte">   <xs:annotation>     <xs:appinfo>modifications enumeration (SISO bitfield enumeration, size 8 bits, ObjectStateModificationArealObject                         uid 242)                      </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute ArealObjectStatePdu/@specificObjectAppearance

type	xs:unsignedLong
annotation	appinfo Object appearance
source	<xs:attribute name="specificObjectAppearance" type="xs:unsignedLong">   <xs:annotation>     <xs:appinfo>Object appearance</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute ArealObjectStatePdu/@generalObjectAppearance

type	xs:unsignedShort
annotation	appinfo Object appearance
source	<xs:attribute name="generalObjectAppearance" type="xs:unsignedShort">   <xs:annotation>     <xs:appinfo>Object appearance</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute ArealObjectStatePdu/@numberOfPoints

type	xs:unsignedShort
annotation	appinfo Number of points
source	<xs:attribute name="numberOfPoints" type="xs:unsignedShort">   <xs:annotation>     <xs:appinfo>Number of points</xs:appinfo>   </xs:annotation> </xs:attribute>

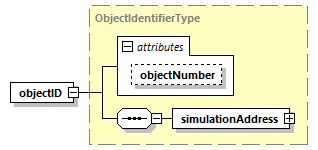

element ArealObjectStatePdu/objectID

diagram
type	ObjectIdentifierType
properties	content  complex
children	simulationAddress
attributes	Name   Type   Use   Default   Fixed   Annotation objectNumber   xs:unsignedShort            appinfo object number
annotation	appinfo Object in synthetic environment
source	<xs:element name="objectID" type="ObjectIdentifierType">   <xs:annotation>     <xs:appinfo>Object in synthetic environment</xs:appinfo>   </xs:annotation> </xs:element>

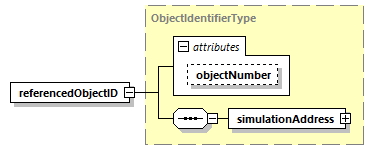

element ArealObjectStatePdu/referencedObjectID

diagram
type	ObjectIdentifierType
properties	content  complex
children	simulationAddress
attributes	Name   Type   Use   Default   Fixed   Annotation objectNumber   xs:unsignedShort            appinfo object number
annotation	appinfo Object with which this point object is associated
source	<xs:element name="referencedObjectID" type="ObjectIdentifierType">   <xs:annotation>     <xs:appinfo>Object with which this point object is associated</xs:appinfo>   </xs:annotation> </xs:element>

element ArealObjectStatePdu/objectType

diagram
type	ObjectTypeType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation domain   xs:string            appinfo Domain of entity (air, surface, subsurface, space, etc.) (SISO enumeration PlatformDomain                      uid 8)                   objectKind   xs:string            appinfo country to which the design of the entity is attributed (SISO enumeration ObjectKind                      uid 225)                   category   xs:unsignedByte            appinfo category of entity subCategory   xs:unsignedByte            appinfo subcategory of entity
annotation	appinfo Object type
source	<xs:element name="objectType" type="ObjectTypeType">   <xs:annotation>     <xs:appinfo>Object type</xs:appinfo>   </xs:annotation> </xs:element>

element ArealObjectStatePdu/requesterID

diagram
type	SimulationAddressType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation site   xs:unsignedShort            appinfo A site is defined as a facility, installation, organizational unit or a geographic                      location that has one or more simulation applications capable of participating in                      a distributed event.                   application   xs:unsignedShort            appinfo An application is defined as a software program that is used to generate and process                      distributed simulation data including live, virtual and constructive data.
annotation	appinfo requesterID
source	<xs:element name="requesterID" type="SimulationAddressType">   <xs:annotation>     <xs:appinfo>requesterID</xs:appinfo>   </xs:annotation> </xs:element>

element ArealObjectStatePdu/receivingID

diagram
type	SimulationAddressType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation site   xs:unsignedShort            appinfo A site is defined as a facility, installation, organizational unit or a geographic                      location that has one or more simulation applications capable of participating in                      a distributed event.                   application   xs:unsignedShort            appinfo An application is defined as a software program that is used to generate and process                      distributed simulation data including live, virtual and constructive data.
annotation	appinfo receiver ID provides a unique identifier
source	<xs:element name="receivingID" type="SimulationAddressType">   <xs:annotation>     <xs:appinfo>receiver ID provides a unique identifier</xs:appinfo>   </xs:annotation> </xs:element>

element ArealObjectStatePdu/Vector3Double

diagram
type	Vector3DoubleType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation x   xs:double            appinfo X value y   xs:double            appinfo y Value z   xs:double            appinfo Z value
annotation	appinfo location of object (length of list found in field numberOfPoints)
source	<xs:element name="Vector3Double" type="Vector3DoubleType">   <xs:annotation>     <xs:appinfo>location of object (length of list found in field numberOfPoints)</xs:appinfo>   </xs:annotation> </xs:element>
