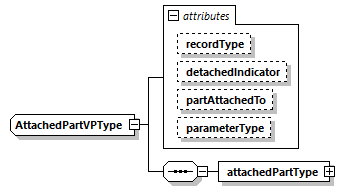

complexType AttachedPartVPType

diagram
type	extension of rootType
properties	base  rootType abstract  false
children	attachedPartType
attributes	Name   Type   Use   Default   Fixed   Annotation recordType   xs:string            appinfo The identification of the Variable Parameter record. Enumeration from EBV (SISO enumeration                      VariableParameterRecordType uid 56)                   detachedIndicator   xs:string            appinfo 0 = attached, 1 = detached. See I.2.3.1 for state transition diagram (SISO enumeration                      AttachedPartDetachedIndicator uid 415)                   partAttachedTo   xs:unsignedShort            appinfo The identification of the articulated part to which this articulation parameter is                      attached. This field shall be specified by a 16-bit unsigned integer. This field shall                      contain the value zero if the articulated part is attached directly to the entity.                   parameterType   xs:string            appinfo The location or station to which the part is attached (SISO enumeration AttachedParts                      uid 57)
annotation	appinfo Removable parts that may be attached to an entity. Section 6.2.93.3
source	<xs:complexType name="AttachedPartVPType" abstract="false">   <xs:annotation>     <xs:appinfo>Removable parts that may be attached to an entity. Section 6.2.93.3</xs:appinfo>   </xs:annotation>   <xs:complexContent>     <xs:extension base="rootType">       <xs:sequence>         <xs:element name="attachedPartType" type="EntityTypeType">           <xs:annotation>             <xs:appinfo>The definition of the 64-bits shall be determined based on the type of parameter specified                         in the Parameter Type field                      </xs:appinfo>           </xs:annotation>         </xs:element>       </xs:sequence>       <xs:attribute name="recordType" type="xs:string">         <xs:annotation>           <xs:appinfo>The identification of the Variable Parameter record. Enumeration from EBV (SISO enumeration                      VariableParameterRecordType uid 56)                   </xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="detachedIndicator" type="xs:string">         <xs:annotation>           <xs:appinfo>0 = attached, 1 = detached. See I.2.3.1 for state transition diagram (SISO enumeration                      AttachedPartDetachedIndicator uid 415)                   </xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="partAttachedTo" type="xs:unsignedShort">         <xs:annotation>           <xs:appinfo>The identification of the articulated part to which this articulation parameter is                      attached. This field shall be specified by a 16-bit unsigned integer. This field shall                      contain the value zero if the articulated part is attached directly to the entity.                   </xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="parameterType" type="xs:string">         <xs:annotation>           <xs:appinfo>The location or station to which the part is attached (SISO enumeration AttachedParts                      uid 57)                   </xs:appinfo>         </xs:annotation>       </xs:attribute>     </xs:extension>     <!-- ========== debug: divider between elements and attributes ========== -->   </xs:complexContent>   <!--abstract='false' base='rootType'--> </xs:complexType>

attribute AttachedPartVPType/@recordType

type	xs:string
annotation	appinfo The identification of the Variable Parameter record. Enumeration from EBV (SISO enumeration                      VariableParameterRecordType uid 56)
source	<xs:attribute name="recordType" type="xs:string">   <xs:annotation>     <xs:appinfo>The identification of the Variable Parameter record. Enumeration from EBV (SISO enumeration                      VariableParameterRecordType uid 56)                   </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute AttachedPartVPType/@detachedIndicator

type	xs:string
annotation	appinfo 0 = attached, 1 = detached. See I.2.3.1 for state transition diagram (SISO enumeration                      AttachedPartDetachedIndicator uid 415)
source	<xs:attribute name="detachedIndicator" type="xs:string">   <xs:annotation>     <xs:appinfo>0 = attached, 1 = detached. See I.2.3.1 for state transition diagram (SISO enumeration                      AttachedPartDetachedIndicator uid 415)                   </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute AttachedPartVPType/@partAttachedTo

type	xs:unsignedShort
annotation	appinfo The identification of the articulated part to which this articulation parameter is                      attached. This field shall be specified by a 16-bit unsigned integer. This field shall                      contain the value zero if the articulated part is attached directly to the entity.
source	<xs:attribute name="partAttachedTo" type="xs:unsignedShort">   <xs:annotation>     <xs:appinfo>The identification of the articulated part to which this articulation parameter is                      attached. This field shall be specified by a 16-bit unsigned integer. This field shall                      contain the value zero if the articulated part is attached directly to the entity.                   </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute AttachedPartVPType/@parameterType

type	xs:string
annotation	appinfo The location or station to which the part is attached (SISO enumeration AttachedParts                      uid 57)
source	<xs:attribute name="parameterType" type="xs:string">   <xs:annotation>     <xs:appinfo>The location or station to which the part is attached (SISO enumeration AttachedParts                      uid 57)                   </xs:appinfo>   </xs:annotation> </xs:attribute>

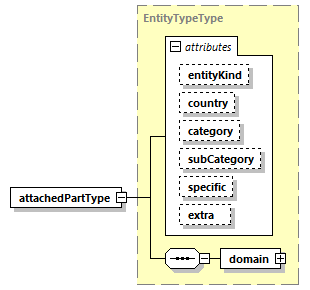

element AttachedPartVPType/attachedPartType

diagram
type	EntityTypeType
properties	content  complex
children	domain
attributes	Name   Type   Use   Default   Fixed   Annotation entityKind   xs:string            appinfo Kind of entity (SISO enumeration EntityKind uid 7) country   xs:string            appinfo country to which the design of the entity is attributed (SISO enumeration Country                      uid 29)                   category   xs:unsignedByte            appinfo category of entity subCategory   xs:unsignedByte            appinfo subcategory based on category specific   xs:unsignedByte            appinfo specific info based on subcategory extra   xs:unsignedByte
annotation	appinfo The definition of the 64-bits shall be determined based on the type of parameter specified                         in the Parameter Type field
source	<xs:element name="attachedPartType" type="EntityTypeType">   <xs:annotation>     <xs:appinfo>The definition of the 64-bits shall be determined based on the type of parameter specified                         in the Parameter Type field                      </xs:appinfo>   </xs:annotation> </xs:element>
