complexType CommunicationsNodeIDType

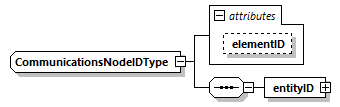

diagram
type	extension of rootType
properties	base  rootType abstract  false
children	entityID
used by	element  IOCommsNodeRecordType/commsNodeId
attributes	Name   Type   Use   Default   Fixed   Annotation elementID   xs:unsignedShort
annotation	appinfo Identity of a communications node. Section 6.2.48.4
source	<xs:complexType name="CommunicationsNodeIDType" abstract="false">   <xs:annotation>     <xs:appinfo>Identity of a communications node. Section 6.2.48.4</xs:appinfo>   </xs:annotation>   <xs:complexContent>     <xs:extension base="rootType">       <xs:sequence>         <xs:element name="entityID" type="EntityIDType"/>       </xs:sequence>       <xs:attribute name="elementID" type="xs:unsignedShort"/>     </xs:extension>     <!-- ========== debug: divider between elements and attributes ========== -->   </xs:complexContent>   <!--abstract='false' base='rootType'--> </xs:complexType>

attribute CommunicationsNodeIDType/@elementID

type	xs:unsignedShort
source	<xs:attribute name="elementID" type="xs:unsignedShort"/>

element CommunicationsNodeIDType/entityID

diagram
type	EntityIDType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation siteID   xs:unsignedShort            appinfo Site ID values are unique identification number for originating site, often corresponding                      to an internet address. Site ID values are agreed upon by individual simulations.                   applicationID   xs:unsignedShort            appinfo Application ID values are unique identification number for originating application                      at a given site. Application ID values are sssigned by individual sites.                   entityID   xs:unsignedShort            appinfo Entity ID values are unique identification number for s givent entity in the originating                      application at a given site. Entity ID values are sssigned by individual simulation                      programs.
source	<xs:element name="entityID" type="EntityIDType"/>
