element CreateEntityRPdu

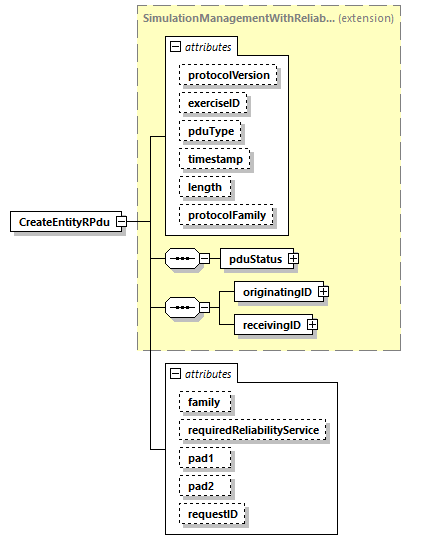

diagram DIS_7_2012.autogenerated_diagrams/DIS_7_2012.autogenerated_p68.png
type extension of SimulationManagementWithReliabilityFamilyPduType
properties
content complex
children pduStatus originatingID receivingID
used by
element DIS
attributes
Name  Type  Use  Default  Fixed  Annotation
protocolVersion  xs:string
appinfo
The version of the protocol. 5=DIS-1995, 6=DIS-1998, 7=DIS-2012 (SISO enumeration
                     DISProtocolVersion uid 3)

exerciseID  xs:unsignedByte
appinfo
Exercise ID provides a unique identifier
pduType  xs:string
appinfo
Type of pdu, unique for each PDU class (SISO enumeration DisPduType uid 4)
timestamp  xs:unsignedLong
appinfo
Timestamp value
length  xs:unsignedShort
appinfo
Length, in bytes, of the PDU
protocolFamily      DISProtocolFamily.SIMULATION_MANAGEMENT_WITH_RELIABILITY
family        SimulationManagementWithReliabilityFamilyPduType
requiredReliabilityService  xs:string
appinfo
level of reliability service used for this transaction (SISO enumeration RequiredReliabilityService
                        uid 74)

pad1  xs:unsignedByte
pad2  xs:unsignedShort
requestID  xs:unsignedLong
appinfo
Request ID provides a unique identifier
annotation
appinfo
5.12.4.2 Serves the same function as the Create Entity PDU but with the addition of
            reliability service levels.
            <xs:attribute name="id" type="xs:integer" fixed="51"/>
source <xs:element name="CreateEntityRPdu">
  <xs:annotation>
    <xs:appinfo>5.12.4.2 Serves the same function as the Create Entity PDU but with the addition of
            reliability service levels.
            <xs:attribute name="id" type="xs:integer" fixed="51"/>
    </xs:appinfo>
  </xs:annotation>
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="SimulationManagementWithReliabilityFamilyPduType">
        <xs:attribute name="family" fixed="SimulationManagementWithReliabilityFamilyPduType"/>
        <xs:attribute name="requiredReliabilityService" type="xs:string">
          <xs:annotation>
            <xs:appinfo>level of reliability service used for this transaction (SISO enumeration RequiredReliabilityService
                        uid 74)
                     </xs:appinfo>
          </xs:annotation>
        </xs:attribute>
        <xs:attribute name="pad1" type="xs:unsignedByte"/>
        <xs:attribute name="pad2" type="xs:unsignedShort"/>
        <xs:attribute name="requestID" type="xs:unsignedLong">
          <xs:annotation>
            <xs:appinfo>Request ID provides a unique identifier</xs:appinfo>
          </xs:annotation>
        </xs:attribute>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

attribute CreateEntityRPdu/@family
properties
fixed SimulationManagementWithReliabilityFamilyPduType
source <xs:attribute name="family" fixed="SimulationManagementWithReliabilityFamilyPduType"/>

attribute CreateEntityRPdu/@requiredReliabilityService
type xs:string
annotation
appinfo
level of reliability service used for this transaction (SISO enumeration RequiredReliabilityService
                        uid 74)

source <xs:attribute name="requiredReliabilityService" type="xs:string">
  <xs:annotation>
    <xs:appinfo>level of reliability service used for this transaction (SISO enumeration RequiredReliabilityService
                        uid 74)
                     </xs:appinfo>
  </xs:annotation>
</xs:attribute>

attribute CreateEntityRPdu/@pad1
type xs:unsignedByte
source <xs:attribute name="pad1" type="xs:unsignedByte"/>

attribute CreateEntityRPdu/@pad2
type xs:unsignedShort
source <xs:attribute name="pad2" type="xs:unsignedShort"/>

attribute CreateEntityRPdu/@requestID
type xs:unsignedLong
annotation
appinfo
Request ID provides a unique identifier
source <xs:attribute name="requestID" type="xs:unsignedLong">
  <xs:annotation>
    <xs:appinfo>Request ID provides a unique identifier</xs:appinfo>
  </xs:annotation>
</xs:attribute>
