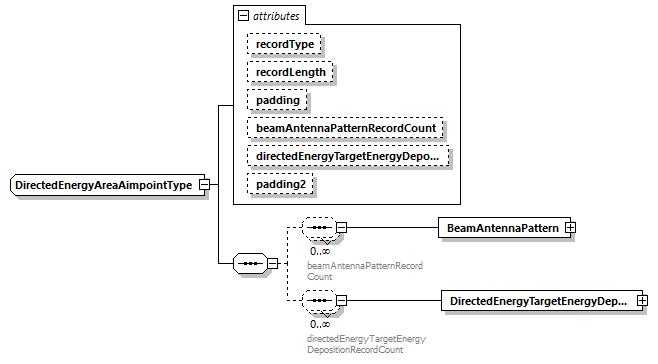

complexType DirectedEnergyAreaAimpointType

diagram
type	extension of rootType
properties	base  rootType abstract  false
children	BeamAntennaPattern DirectedEnergyTargetEnergyDeposition
attributes	Name   Type   Use   Default   Fixed   Annotation recordType   xs:unsignedLong            appinfo Type of Record enumeration recordLength   xs:unsignedShort            appinfo Length of Record padding   xs:unsignedShort            appinfo zero-filled array of padding bits for byte alignment and consistent sizing of PDU                      data                   beamAntennaPatternRecordCount   xs:unsignedShort            appinfo Number of beam antenna pattern records directedEnergyTargetEnergyDepositionRecordCount   xs:unsignedShort            appinfo Number of DE target energy depositon records padding2   xs:unsignedInt
annotation	appinfo DE Precision Aimpoint Record. Section 6.2.20.2 (length of list found in field beamAntennaPatternRecordCount             directedEnergyTargetEnergyDepositionRecordCount)
source	<xs:complexType name="DirectedEnergyAreaAimpointType" abstract="false">   <xs:annotation>     <xs:appinfo>DE Precision Aimpoint Record. Section 6.2.20.2 (length of list found in field beamAntennaPatternRecordCount             directedEnergyTargetEnergyDepositionRecordCount)          </xs:appinfo>   </xs:annotation>   <xs:complexContent>     <xs:extension base="rootType">       <xs:sequence>         <!--Attribute (as element) DirectedEnergyAreaAimpoint beamAntennaParameterList with objectlist classRef name=BeamAntennaPattern, type=BeamAntennaPatternType-->         <xs:sequence minOccurs="0" maxOccurs="unbounded">           <xs:annotation>             <xs:appinfo>Number of elements is determined by size fieldbeamAntennaPatternRecordCount and can be 0 or greater.                         Ensure that the total PDU size does not exceed maximums allowed in IEEE DIS Specification.                      </xs:appinfo>             <xs:documentation>beamAntennaPatternRecordCount</xs:documentation>           </xs:annotation>           <xs:element name="BeamAntennaPattern" type="BeamAntennaPatternType">             <xs:annotation>               <xs:appinfo>list of beam antenna records. See 6.2.9.2 (length of list found in field beamAntennaPatternRecordCount)</xs:appinfo>             </xs:annotation>           </xs:element>         </xs:sequence>         <!--Attribute (as element) DirectedEnergyAreaAimpoint directedEnergyTargetEnergyDepositionRecordList with objectlist classRef name=DirectedEnergyTargetEnergyDeposition, type=DirectedEnergyTargetEnergyDepositionType-->         <xs:sequence minOccurs="0" maxOccurs="unbounded">           <xs:annotation>             <xs:appinfo>Number of elements is determined by size fielddirectedEnergyTargetEnergyDepositionRecordCount and can be 0 or greater.                         Ensure that the total PDU size does not exceed maximums allowed in IEEE DIS Specification.                      </xs:appinfo>             <xs:documentation>directedEnergyTargetEnergyDepositionRecordCount</xs:documentation>           </xs:annotation>           <xs:element name="DirectedEnergyTargetEnergyDeposition" type="DirectedEnergyTargetEnergyDepositionType">             <xs:annotation>               <xs:appinfo>list of DE target deposition records. See 6.2.21.4 (length of list found in field                            directedEnergyTargetEnergyDepositionRecordCount)                         </xs:appinfo>             </xs:annotation>           </xs:element>         </xs:sequence>       </xs:sequence>       <xs:attribute name="recordType" type="xs:unsignedLong">         <xs:annotation>           <xs:appinfo>Type of Record enumeration</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="recordLength" type="xs:unsignedShort">         <xs:annotation>           <xs:appinfo>Length of Record</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="padding" type="xs:unsignedShort">         <xs:annotation>           <xs:appinfo>zero-filled array of padding bits for byte alignment and consistent sizing of PDU                      data                   </xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="beamAntennaPatternRecordCount" type="xs:unsignedShort">         <xs:annotation>           <xs:appinfo>Number of beam antenna pattern records</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="directedEnergyTargetEnergyDepositionRecordCount" type="xs:unsignedShort">         <xs:annotation>           <xs:appinfo>Number of DE target energy depositon records</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="padding2" type="xs:unsignedInt"/>     </xs:extension>     <!-- ========== debug: divider between elements and attributes ========== -->   </xs:complexContent>   <!--abstract='false' base='rootType'--> </xs:complexType>

attribute DirectedEnergyAreaAimpointType/@recordType

type	xs:unsignedLong
annotation	appinfo Type of Record enumeration
source	<xs:attribute name="recordType" type="xs:unsignedLong">   <xs:annotation>     <xs:appinfo>Type of Record enumeration</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute DirectedEnergyAreaAimpointType/@recordLength

type	xs:unsignedShort
annotation	appinfo Length of Record
source	<xs:attribute name="recordLength" type="xs:unsignedShort">   <xs:annotation>     <xs:appinfo>Length of Record</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute DirectedEnergyAreaAimpointType/@padding

type	xs:unsignedShort
annotation	appinfo zero-filled array of padding bits for byte alignment and consistent sizing of PDU                      data
source	<xs:attribute name="padding" type="xs:unsignedShort">   <xs:annotation>     <xs:appinfo>zero-filled array of padding bits for byte alignment and consistent sizing of PDU                      data                   </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute DirectedEnergyAreaAimpointType/@beamAntennaPatternRecordCount

type	xs:unsignedShort
annotation	appinfo Number of beam antenna pattern records
source	<xs:attribute name="beamAntennaPatternRecordCount" type="xs:unsignedShort">   <xs:annotation>     <xs:appinfo>Number of beam antenna pattern records</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute DirectedEnergyAreaAimpointType/@directedEnergyTargetEnergyDepositionRecordCount

type	xs:unsignedShort
annotation	appinfo Number of DE target energy depositon records
source	<xs:attribute name="directedEnergyTargetEnergyDepositionRecordCount" type="xs:unsignedShort">   <xs:annotation>     <xs:appinfo>Number of DE target energy depositon records</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute DirectedEnergyAreaAimpointType/@padding2

type	xs:unsignedInt
source	<xs:attribute name="padding2" type="xs:unsignedInt"/>

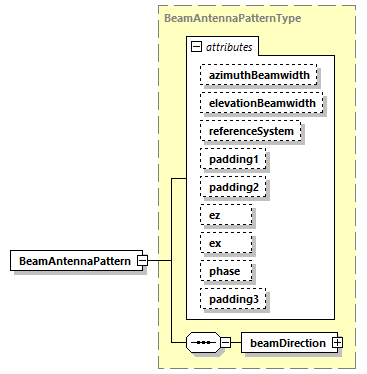

element DirectedEnergyAreaAimpointType/BeamAntennaPattern

diagram
type	BeamAntennaPatternType
properties	content  complex
children	beamDirection
attributes	Name   Type   Use   Default   Fixed   Annotation azimuthBeamwidth   xs:float            appinfo Full width of the beam to the -3dB power density points in the x-y plane of the beam                      coordinnate system. Elevation beamwidth is represented by a 32-bit floating point                      number in units of radians.                   elevationBeamwidth   xs:float            appinfo This field shall specify the full width of the beam to the –3 dB power density points                      in the x-z plane of the beam coordinate system. Elevation beamwidth shall be represented                      by a 32-bit floating point number in units of radians.                   referenceSystem   xs:string            appinfo The reference coordinate system wrt which beam direction is specified. This field                      should not change over the duration of an exercise. World coordindate systemis prefered                      for exercises. The entity coordinate system should be used only when highly directional                      antennas must be precisely modeled. (SISO enumeration TransmitterAntennaPatternReferenceSystem                      uid 168)                   padding1   xs:unsignedByte            appinfo Padding padding2   xs:unsignedShort            appinfo Padding ez   xs:float            appinfo This field shall specify the magnitude of the Z-component (in beam coordinates) of                      the Electrical field at some arbitrary single point in the main beam and in the far                      field of the antenna.                   ex   xs:float            appinfo This field shall specify the magnitude of the X-component (in beam coordinates) of                      the Electri- cal field at some arbitrary single point in the main beam and in the                      far field of the antenna.                   phase   xs:float            appinfo This field shall specify the phase angle between EZ and EX in radians. If fully omni-direc-                      tional antenna is modeled using beam pattern type one, the omni-directional antenna                      shall be repre- sented by beam direction Euler angles psi, theta, and phi of zero,                      an azimuth beamwidth of 2PI, and an elevation beamwidth of PI                   padding3   xs:unsignedLong            appinfo padding
annotation	appinfo list of beam antenna records. See 6.2.9.2 (length of list found in field beamAntennaPatternRecordCount)
source	<xs:element name="BeamAntennaPattern" type="BeamAntennaPatternType">   <xs:annotation>     <xs:appinfo>list of beam antenna records. See 6.2.9.2 (length of list found in field beamAntennaPatternRecordCount)</xs:appinfo>   </xs:annotation> </xs:element>

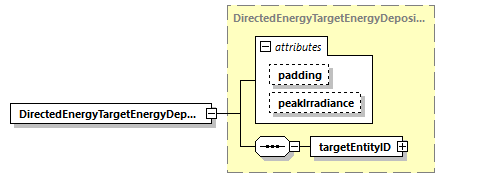

element DirectedEnergyAreaAimpointType/DirectedEnergyTargetEnergyDeposition

diagram
type	DirectedEnergyTargetEnergyDepositionType
properties	content  complex
children	targetEntityID
attributes	Name   Type   Use   Default   Fixed   Annotation padding   xs:unsignedShort            appinfo zero-filled array of padding bits for byte alignment and consistent sizing of PDU                      data                   peakIrradiance   xs:float            appinfo Peak irradiance
annotation	appinfo list of DE target deposition records. See 6.2.21.4 (length of list found in field                            directedEnergyTargetEnergyDepositionRecordCount)
source	<xs:element name="DirectedEnergyTargetEnergyDeposition" type="DirectedEnergyTargetEnergyDepositionType">   <xs:annotation>     <xs:appinfo>list of DE target deposition records. See 6.2.21.4 (length of list found in field                            directedEnergyTargetEnergyDepositionRecordCount)                         </xs:appinfo>   </xs:annotation> </xs:element>
